Explore our custom OEM-manufactured heavy-duty pallet racks, automated retrieval units, and high-density racking series. Engineered from high-tensile Q235B/Q355B cold-rolled steel, designed for maximum volumetric capacity and seismic endurance.
Guangzhou Heda Shelves Co., Ltd. (HEDA Shelves) operates as a Tier-1 storage engineering authority. Established in 2001, our facility executes turnkey structural engineering, automated roll-forming, robotic welding, and complete containerized export fulfillment across 120+ countries.
Engineered strictly with certified Q235B and Q355B prime high-yield structural steel coils. All configurations carry verifiable CE mark certification (No. 2435-CPR-8605159), ISO 9001:2015 quality credentials, and complete RoHS environmental compliance.
Our in-house structural engineering bureau produces detailed 2D CAD architectural placement drawings, realistic 3D spatial renders, and Finite Element Analysis (FEA) deflection calculations (strictly upholding L/200 deflection limits) within 24 hours of brief intake.
Complete tailor-made manufacturing for specialized beam profiles, custom upright column sections (80mm up to 140mm width), specialized roll patterns, bespoke electrostatic powder coat hues (RAL color matching), and private-label embossing for global distributor partners.
Every shipment utilizes specialized high-density bundling matrices and precision palletizing engineered to maximize 40HQ container interior cubic volume. We consistently prevent ocean freight transit shock, salt-mist maritime exposure, and mechanical surface abrasion.
Structural durability begins at the molecular and mechanical level. Every pallet racking upright frame, box beam, and bracing channel passes through our automated 10-stage fabrication protocol inside our Guangzhou industrial plant.
Spectrometric tensile verification of certified Q235B/Q355B prime steel slit coils.
High-speed CNC shear line calibrating longitudinal tolerances within ±0.2mm.
Multi-die hydraulic pressing delivering uniform 50mm / 75mm beam slot pitch.
Multi-stage roll-forming mill strengthening structural yield resistance.
Specialized roll lines calibrating box beams, step beams, and Omega column profiles.
Automated mechanical grinding eliminating micro-burrs and edge stress points.
Panasonic multi-axis robotic CO2 shielded welding securing beam-to-connector joints.
8-tank chemical wash bath stripping mill scale and forming zinc-phosphate primer layer.
GEMA automated powder spray line baking epoxy-polyester finish at 200°C for 25 min.
Coating adhesion cross-hatch check, deflection proof testing, and export bundle strapping.
As global real estate valuation increases and industrial warehouse clear heights routinely surpass 12 to 18 meters, procurement directors must weigh structural modularity, automation readiness, and environmental lifecycle impact.
The traditional warehouse archetype built exclusively around wide-aisle static selective pallet racking is undergoing massive structural disruption. In major metropolitan distribution hubs, high cubic logistics space lease costs have escalated by over 38% since 2021. This capital pressure makes low-density 3.5-meter forklift transfer aisles economically inefficient.
Procurement teams are actively replacing static Drive-In setups with Semi-Automated Radio Shuttle Racking and Unit-Load AS/RS Crane Systems. By decoupling material handling equipment from operator driving speed and aisle access width, automated shuttle systems elevate footprint utilization from 45% up to 82% while mitigating forklift collision incidents against structural upright columns—the primary root cause of racking system catastrophic failure worldwide.
Enterprise procurement professionals are moving beyond nominal EXW (Ex-Works) equipment price comparisons to adopt full Total Landed Cost (TLC) financial modeling. Sourcing pallet storage systems directly from tier-one Chinese OEM manufacturers such as Guangzhou Heda Shelves delivers raw steel pricing economies of scale that local fabricators in target export markets cannot match.
However, the viability of imported heavy racking hinges entirely on Container Nesting Engineering. Steel upright frames that are pre-assembled before ocean freight incur massive dead cubic volume shipping penalties. By designing modular bolted upright frames with nested teardrop or diamond slot profiles, HEDA Shelves packages over 26 to 28 tons of structural steel components into a single 40-foot High Cube (40HQ) container. This cuts container ocean freight cost per pallet location by roughly 52% compared to fully welded upright frameworks.
Warehouses situated in coastal regions, high-humidity river deltas, or harsh cold chain environments encounter rapid oxidation when inferior paint finishes are applied. Standard single-stage dip-coat liquid painting or low-adhesion flash-powder coatings succumb to subsurface corrosion within 18 months, compromising weld integrity and base plate anchor tensile margins.
HEDA Shelves counters humidity decay with our Continuous 8-Stage Chemical Pretreatment System. Upright columns and box beams undergo successive acid pickling, multi-rinse de-oiling, surface neutralization, and dense zinc-phosphate conversion coating before receiving non-toxic, TGIC-free thermosetting polyester powder. The resulting polymer matrix achieves a coating thickness between 70µm and 90µm, passing 500-hour ASTM B117 salt spray testing with zero edge blistering or underfilm rust creep.
Compare mechanical characteristics, SKU selectivity, and capital investment requirements to identify the optimal storage configuration for your facility's operational throughput.
| Racking Topology | Pallet Selectivity | Volumetric Storage Density | Inventory Flow Logic | Forklift Type Required | Relative CapEx / Position | Seismic Resistance |
|---|---|---|---|---|---|---|

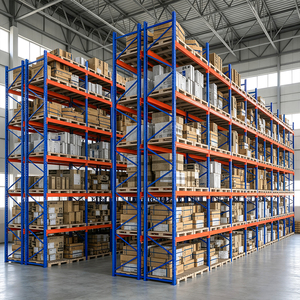

| Selective Pallet Racking | 100% Immediate | 40% – 50% (Standard) | FIFO / LIFO (Flexible) | Counterbalance / Reach Truck | Baseline ($) | High (Engineered Base Plates) |
| Drive-In / Drive-Through | 15% – 20% (Lane) | 70% – 85% (High Density) | LIFO (Drive-In) / FIFO (Thru) | Standard Counterbalance Truck | Moderate ($$) | Medium (Requires Top/Back Ties) |
| Semi-Automated Radio Shuttle | 30% – 50% (Channel) | 75% – 88% (Ultra High) | FIFO & LIFO Automated | Standard Reach Truck | Medium-High ($$$) | High (Rigid Channel Geometry) |
| Gravity Pallet Flow | 100% Face Pick | 70% – 80% (Dynamic) | Strict FIFO (Roller Flow) | Standard Counterbalance / Reach | High ($$$$) | High (Heavy Duty Roller Frame) |

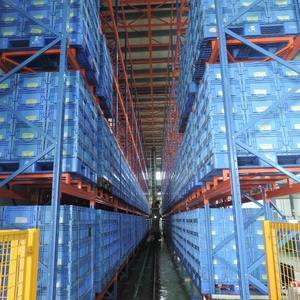

| High-Bay AS/RS Stacker Crane | 100% Direct Computer | 85% – 95% (Maximum 40m) | Automated FIFO / LIFO | Automated Crane Carriage | Enterprise ($$$$$) | Maximum (FEA Rigid Lattice) |
| Heavy Duty Cantilever Rack | 100% Open Access | Variable (Pipes/Timber) | Any (Manual / Sideloading) | Side-Loader / Standard Forklift | Moderate ($$) | High (Tapered Arm Lock Design) |
Authoritative guidance addressing the critical mechanical, civil, and logistical questions encountered by industrial procurement engineers and warehouse directors.
Industrial storage safety requires uncompromised legal and regulatory compliance. Our factory quality management ecosystem undergoes annual third-party audits to guarantee absolute adherence to international engineering norms.
Certificate No. 2435-CPR-8605159
Audit Registration 18624Q00169R0M
Non-Hazardous Surface Coating
Verified Manufacturer Inspection
Partner directly with an established OEM pallet storage manufacturer. Forward your architectural building layout, clear storage height, and pallet weight specifications. Our technical engineering division will generate a detailed project proposal, complete CAD floorplan, and accurate shipping estimate within 24 hours.
