As an established warehouse racking manufacturer, Guangzhou Heda Shelves Co., Ltd. provides factory-direct, heavy-duty pallet racking systems engineered for 3PL logistics, cold chains, raw material yards, food & beverage processors, and manufacturing facilities across South Asia. With a 30,000 m² certified production facility, we supply robust steel structures compliant with CE and ISO 9001:2015 international quality standards, backed by comprehensive project layout engineering.
Explore our complete portfolio of heavy-duty pallet storage systems, designed to handle distinct pallet profiles, SKU varieties, and inventory rotation workflows.

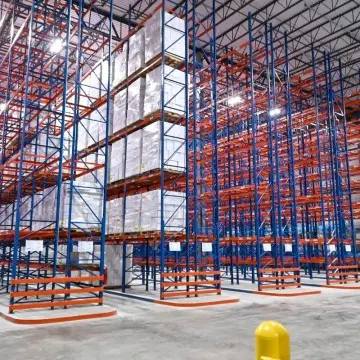

High Density VNA (Very Narrow Aisle) Racking is an engineered variation of selective pallet racking designed to operate within narrow working aisles of 1.5m to 1.8m. Working seamlessly with guided turret trucks, it maintains 100% direct pallet selectivity while expanding storage capacity by up to 40% and reaching heights up to 18 metres.

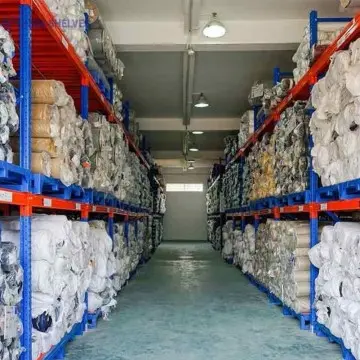

Custom Geometry Engineered specifically for non-standard cylindrical items such as textile rolls, carpets, industrial paper reels, coils, and heavy PVC pipes. Built with custom cradles, heavy-duty saddles, and reinforced uprights to ensure stable, safe stacking without load deformation.
Most Versatile The global benchmark for multi-SKU storage. Delivers immediate 100% direct picking access to every single pallet bay. Featuring modular clip-in box beams adjustable at 50mm or 75mm increments, it accommodates standard counterbalanced, reach, and articulated forklift configurations.
LIFO Bulk Designed for large volumes of uniform SKUs. By eliminating multiple service aisles, forklifts drive directly into storage lanes to load and retrieve pallets on continuous side rails. Ideal for cold storage, beverage facilities, and seasonal agricultural buffer depots.
FIFO Rotation Powered solely by gravity, pallets move on inclined roller tracks with integrated speed controllers from the loading face down to the picking front. Guarantees automatic First-In-First-Out (FIFO) stock turnover, making it indispensable for pharmaceutical and perishable food fulfillment.
Semi-Automated An intelligent deep-lane storage system utilizing an autonomous, battery-driven shuttle cart commanded by RF remote. Forklifts transfer pallets to lane entries, while the shuttle transports loads deep into the rack. Supports both FIFO and LIFO modes without forklift intrusion.
High Selectivity LIFO Pallets are placed on a series of nested rolling carts riding on inclined structural rails. Loading a subsequent pallet gently pushes the preceding load backwards. During unloading, gravity rolls remaining pallets smoothly forward to the aisle face for accessible LIFO handling.

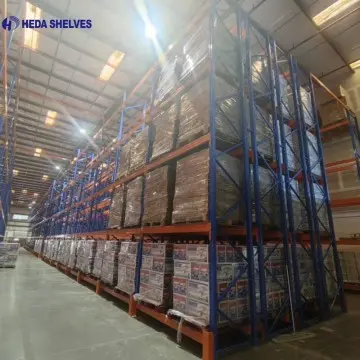

Compact Storage Configured two pallet positions deep from a single aisle access face. By eliminating 50% of access aisles compared to standard single selective rows, double deep racking increases warehouse storage density by up to 40% when paired with specialized pantograph reach trucks.
Guangzhou Heda Shelves Co., Ltd. eliminates procurement friction with dedicated in-house engineering and full project visualization before fabrication.
Provide your warehouse dimensions, clear height, and pallet parameters. Our engineering department prepares an optimized 2D CAD layout within 48 to 72 hours, ensuring compliant aisle tolerances and maximum pallet capacity.
Gain absolute clarity on clearances, upright frame configurations, loading points, and forklift turning radiuses with detailed 3D spatial models designed for executive sign-off and logistics audits.
We provide full structural engineering documentation, calculating dead and live load deflection, seismic anchoring, and slab point-load pressure to match regional building codes across South Asia.
Combining certified metallurgical quality, massive fabrication capacity, and direct international logistics support.
Manufactured under CE Certification (2435-CPR-8605159) and ISO 9001:2015 quality control, guaranteeing steel tensile reliability and safety.
Our 30,000 m² automated Guangzhou manufacturing hub delivers high-volume roll-forming capacity, ensuring rapid order turnarounds.
Comprehensive acid pickling, phosphating, and 180°C electrostatic powder curing create an impervious barrier against tropical humidity and coastal rust.
Direct containerized stowage and dispatch to Nhava Sheva, Chennai, Mundra, Chattogram, Colombo, and Karachi with full installation guides.
A snapshot of engineered racking solutions successfully delivered across diverse industrial sectors.
Engineered structural pallet racking featuring specialized drum supports, reinforced post protectors, and anti-corrosion coating for high-load chemical warehousing.

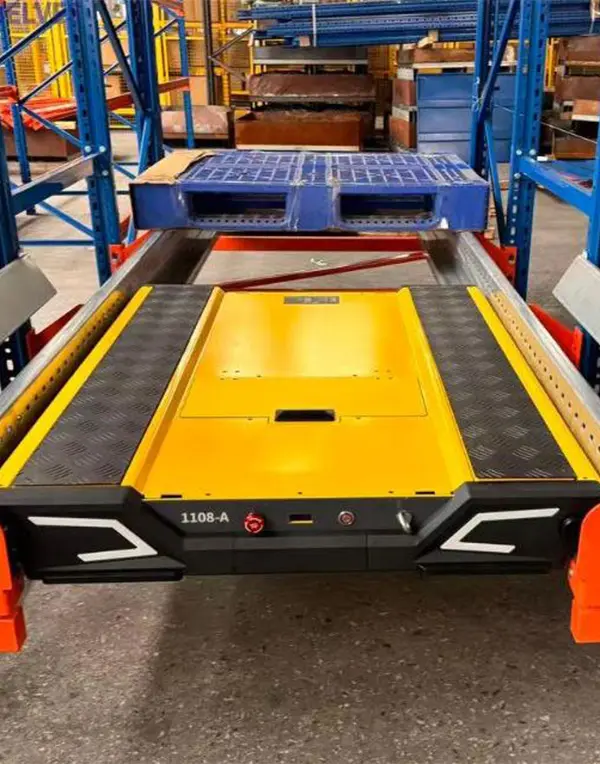

High-density semi-automated radio shuttle installation operating reliably at sub-zero temperatures, maximizing refrigerated air circulation and pallet volume.
Multi-tier selective and push-back combination racking configured to handle thousands of high-turnover consumer goods SKUs with zero inventory bottleneck.
Direct engineering answers to technical, commercial, and installation questions from procurement managers.
Guangzhou Heda Shelves Co., Ltd. manufactures standard Selective Pallet Racking, Very Narrow Aisle (VNA) Racks, Double Deep Racks, Drive-In/Drive-Thru Systems, Push Back Racks, Gravity Pallet Flow Racks, and Semi-Automated Radio Shuttle Systems. Our engineers will recommend the exact configuration suited to your throughput and forklift fleet.
Simply share your warehouse architectural floor plan (CAD or PDF), clear building height, column spacing, pallet dimensions (W x D x H) including load weight, and your preferred forklift model. We will deliver a complete layout and quotation package within 24 to 72 hours.
Standard beam levels are engineered for uniformly distributed loads ranging from 1,000 kg up to 5,000 kg per pair of beams. Upright frames are engineered to support total bay loads up to 25,000 kg depending on beam pitch and building seismic conditions.
Yes. Our pallet racking systems use standard modular roll-formed profiles with precision-punched slots at 50mm or 75mm increments. You can easily adjust beam levels, extend runs with additional add-on bays, or incorporate wire mesh decks and row spacers at any future stage.
Each shipment is bundled with clearly tagged part numbers matching our detailed 2D structural assembly drawings and installation video manuals. Local rigging and mechanical contractors can assemble the systems rapidly. On-site project supervisory engineering is also available for extensive regional installations.
Contact our engineering desk today for a free warehouse CAD layout, technical consultation, and competitive direct factory quotation.
