Warehouse Racking FAQ: MOQ, Lead Time & Design
Technical, manufacturing, and procurement guidance from Guangzhou Heda Shelves Co., Ltd. for project engineers and warehouse managers across South Asia and global markets.
Engineering Guidance
Warehouse Storage Systems & Procurement FAQ
Find authoritative answers regarding racking system selection, structural engineering calculations, production capacity, lead times, international certifications, and containerized dispatch.
1. Storage System Selection & Engineering
The optimal system depends on cargo packaging, handling methodology, clear warehouse ceiling height, inventory SKU profiles, and turnover velocity. Guangzhou Heda Shelves Co., Ltd. assesses these parameters to recommend:
- Selective Pallet Racking for 100% immediate selectivity across multi-SKU distribution hubs.
- Drive-In or Radio Shuttle Systems for high-density storage of homogeneous goods.
- Industrial Longspan Shelving for manual case, box, or small part picking.
- Mezzanine Racking Platforms when vertical volume can be leveraged to double functional floor area.
Selection primarily hinges on unit packaging and handling equipment:
- Pallet Racking: Engineered for heavy forklift operations storing standard wooden or plastic pallets from 500 kg to 3,000 kg per beam level.
- Industrial Shelving: Designed for manual piece or carton fulfillment, supporting 100 kg to 800 kg per shelf tier.
- Mezzanines: Ideal when your warehouse has vertical clearance above 5 meters, allowing you to establish multi-tier walkable catwalks, packing stations, or administrative rooms without new civil construction.
For cold chain logistics, high volume and low operational temperatures require specialized layouts. Gravity Flow Pallet Racking guarantees strict FIFO (First-In, First-Out) rotation to preserve shelf life, while Radio Shuttle Racking minimizes forklift aisle time, maximizing refrigerated cube space utilization and cutting operator cold exposure. Hot-dip galvanization can be specified for extreme condensation or freezing conditions.
Yes. Most distribution centers require hybrid configurations. Guangzhou Heda Shelves Co., Ltd. routinely integrates pallet racking on primary floors with multi-tier rack-supported mezzanines, carton live flow tracks, and cantilever wings for long tubular items into a cohesive master floor layout.
2. Manufacturing, Lead Time & Quality Control

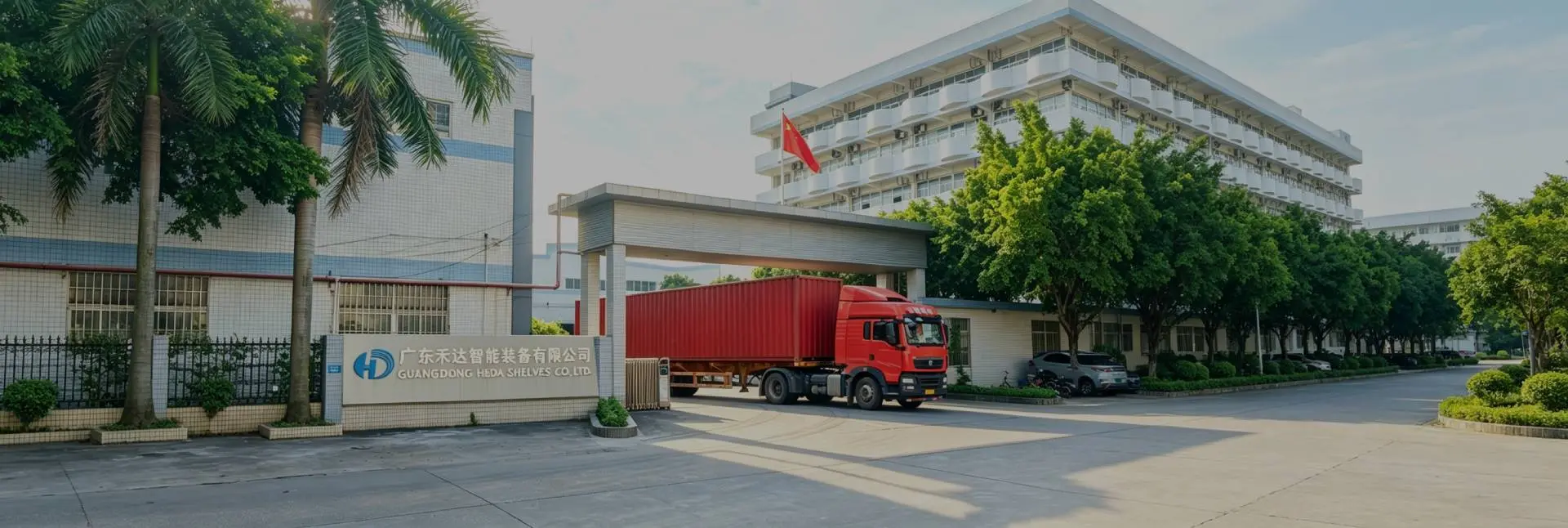

With 20+ years of dedicated manufacturing experience, Guangzhou Heda Shelves Co., Ltd. operates a 30,000 m² factory equipped with automated cold roll-forming lines, automated continuous punching machines, and full-immersion pickling and phosphating lines. We process approximately 30,000 tons of structural steel monthly, supplying projects across South Asia, the Middle East, Southeast Asia, Europe, and the Americas.
Our production adheres to international structural standards:
- CE Certification: Compliant with CPR standards under EN 1090-1:2009+A1:2011 (Certificate No. 2435-CPR-8605159) for steel load-bearing structures.
- ISO 9001:2015: Certified quality management systems across forming, welding, and coating (No. 18624Q00169R0M).
- RoHS Compliance: Non-toxic, environmentally safe electrostatic powder coatings.
Production schedules depend on project scope:
- Standard Pallet Racking & Shelving: 15 to 45 business days.
- Structural Steel Mezzanines: 25 to 50 business days.
- Custom Roll-Forming or Custom Colors: Confirmed individually based on raw coil allocation. Emergency container batches can be prioritized on active production schedules.
Yes. We welcome customer visits and factory tours at our manufacturing plants and Guangzhou showroom. In addition, third-party inspection agencies (such as SGS, BV, or TUV) are routinely accommodated to conduct dimensional verification, weld integrity testing, coating thickness checks, and test assembly prior to container sealing.
3. Quotations, Design Services & Shipping
To obtain an optimized proposal within 24 hours, please provide:
- Warehouse structural drawing (CAD or dimensioned PDF) indicating columns, docks, and clear ceiling height.
- Pallet specifications: Width × Depth × Height (including overhang) and maximum gross weight.
- Handling equipment: Forklift model, turning radius (AST), and maximum mast lift reach.
- Environmental requirements: Concrete slab thickness, local seismic zone, and temperature specifications.
Yes. Guangzhou Heda Shelves Co., Ltd. provides initial AutoCAD warehouse layout drawings and spatial calculations completely free of charge. Upon order confirmation, our engineering department furnishes complete 3D visualization renders, structural load capacity calculations, and comprehensive erection sequence blueprints.
We provide EXW, FOB, CFR, and CIF delivery terms. We regularly dispatch 20GP and 40HQ container shipments to Nhava Sheva (JNPT), Mundra, Chennai, Kolkata, Chattogram, Karachi, and Colombo. For landlocked destinations such as Nepal and Bhutan, transit is arranged via Kolkata or Visakhapatnam corridors. All components are strapped, bundled with protective padding, and labeled with project-specific marks.
Every project includes labeled component lists matching detailed assembly drawings and step-by-step video guides, enabling local mechanical contractors to assemble the systems accurately. For large-scale multi-tier mezzanines or automated shuttle systems, Guangzhou Heda Shelves Co., Ltd. can dispatch field commissioning engineers to supervise the complete erection and safety sign-off on site.
