Adjustable 4-Layer

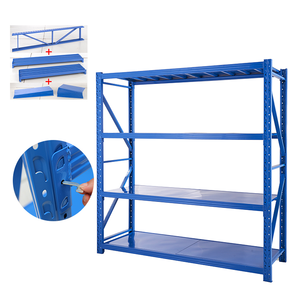

4 Layers 2000*600*2000mm Adjustable 200-500kg Storage Light Duty Shelves Long-span Racking for Warehouse
Capacity: 200-500 kg/Tier
Pitch: 50mm Adjust
Industry Procurement Context & Search Intent Insights: In modern industrial warehousing, logistics fulfillment centers, and manufacturing spare-part depots, wholesale longspan shelving serves as the critical intermediate structural medium between light boltless shelving and automated heavy-duty pallet racking. Navigating direct procurement from Chinese manufacturing plants requires rigorous technical auditing: from steel chemistry (Q235B vs. SPCC yield limits) and continuous CNC cold roll-forming precision, to certified uniform distributed load (UDL) deflection ratios ($L/200$ to $L/250$ serviceability limit states according to FEM 10.2.06 and ANSI MH16.1). This white paper breaks down factory performance metrics, architectural specifications, and strategic global supply chain trends.
Factory Direct Catalog
Featured Longspan & Heavy-Duty Industrial Shelving Systems
Engineered by Guangzhou Heda Shelves Co., Ltd., each system combines precision cold-formed upright profiles, certified load capacities, corrosion-resistant electrostatic powder coatings, and flexible tier spacing for heavy-duty commercial deployment.
Multi-Tier Wide Span
Light Duty Wide Span Shelving Multi Tiers Warehouse Storage Metal Storage Rack System
Material: Cold-Rolled Steel
Assembly: Interlocking Beam
High Clearance Span
Metal Storage Rack Long Span Steel Light Duty Shelf Warehouse Steel Shelving Assemble Shelving Racking System
Coating: Epoxy-Polyester
Deck: Solid Steel Decking
Medium-Duty Custom
Medium Duty Racking Customizable Long Span Storage Racks Steel Shelving Warehouse Shelving
Capacity: 300-800 kg/Tier
Finish: Phosphated Powder
E-Commerce Heavy Bay
E Commerce Warehouse Heavy Duty Pallet Rack Storage System Steel Racking Solution
Load: 1000-3000 kg/Level
Design: Forklift Selective
Specialty Textile Cradle
3000KG Per Level Heavy Duty Fabric Roll Storage Rack For Textile Warehouse
Capacity: 3000 kg/Level
Profile: Reinforced Cradle
Hybrid Mezzanine Base
Pallet Rack Heavy Duty Clip Type Forklift Compatible Mezzanine Boltless Snap Shelving Industrial Warehouse Rack Cold Rolled
System: Multi-Tier Mezzanine
Lock: Clip-Type Boltless
Anti-Rust FRP Composite
Hot Sale Heavy Duty Anti Rust Water Treatment 1200x750x2400mm 300kg 4 Layer Storage Shelving FRP Storage Rack Warehouse Rack
Feature: Chemical & Water Proof
Dim: 1200x750x2400mm
25+
Years of Manufacturing (Since 2001)
30,000m²
Automated Factory Footprint
30,000Tons
Monthly Cold-Formed Steel Capacity
120+
Global Export Destinations
Direct Factory Auditing
Metallurgical Quality Control & Precision Profile Engineering
As international procurement heads audit Chinese wholesale longspan shelving factories, raw steel metallurgy is the baseline determinant of operational safety. Guangzhou Heda Shelves Co., Ltd. sources certified prime high-yield structural steel coils (Q235B and SPCC grade) from leading domestic steel mills. Each production run undergoes tensile testing, verifying an ultimate tensile strength exceeding 370–500 MPa and an elongation limit greater than 26%.
Unlike light-duty utility shelves constructed from unverified scrap reroll, industrial longspan shelving uprights are processed through our proprietary 24-station continuous roll-forming lines. This cold-work process induces strain-hardening, substantially elevating the section modulus and compressive load capacity while controlling longitudinal twist and straightness tolerances within ±1.0mm per 10 meters (exceeding FEM 10.2.02 and EN 15512 specifications).
- Certified Compliance: CE Mark (2435-CPR-8605159), ISO 9001:2015 Quality Management, and RoHS chemical testing.
- Structural Safety Factor: Designed to 1.5–1.65 minimum factor against permanent steel yielding under maximum static load.
- End-to-End Traceability: Mill Test Certificates (MTC EN 10204 Type 3.1) stamped and archived for every heat number.
Technical Reference Guide
Longspan Shelving Engineering & Decking Substrate Matrix
Select the appropriate beam profiles, shelf insert configurations, and protective surface treatments based on your dynamic environmental stresses and distributed load parameters.
| Structural System | Standard Profile (mm) | UDL Load Range (kg/Tier) | Compatible Decking Substrates | Pretreatment & Finish | Primary Application Profile |
|---|---|---|---|---|---|
| Longspan Type A (Step Beam) | 55×47×1.5 Upright / 50×30 P-Beam | 200 – 450 kg | Flush Galvanized Steel / 15mm Chipboard | 9-Stage Zinc Phosphate + Powder | Manual Carton Picking, Retail Backroom, E-Commerce |
| Longspan Type B (Box Beam) | 60×50×1.8 Upright / 60×40 Box Beam | 400 – 800 kg | Drop-in Steel Panels / Welded Wire Mesh | Electrostatic Epoxy-Polyester (60-80μm) | Automotive Spares, Heavy Machinery Hardware, Tooling |
| Wide-Span Heavy Tier | 80×60×2.0 Upright / 80×50 Step Beam | 800 – 1,500 kg | Reinforced Ribbed Steel Decks / Bar Grating | Heavy Powder Coat / Pre-Galv | Fabric Roll Storage, Chemical Drums, Bulk Raw Materials |
| Mezzanine-Supported Longspan | 90×70×2.0 Upright / Open Web Joists | 300 – 600 kg + 500kg/m² Deck | Perforated Steel Planks / B-Deck + Plywood | Heavy Duty Industrial Coating | Multi-Tier High-Bay Fulfillment, Automated Picking Towers |
| Chemical / Anti-Rust FRP Rack | Structural Pultruded GRP/FRP Composite | 250 – 400 kg | Molded Fiberglass Grating / Vinyl Decking | Inherent Resin UV/Chemical Matrix | Water Treatment Plants, Battery Storage, Marine Coastal |
Factory Execution
HEDA 10-Stage Precision Production Pipeline
From raw carbon steel coil to ocean-ready container bundle packing, every intermediate fabrication step is monitored under strict ISO 9001:2015 quality assurance gates.
01
Raw Steel Coils
Spectrographic chemical & yield analysis on incoming Q235B steel coils.
02
CNC Slitting
High-precision uncoiling and edge-slitting to exact profile strip widths.
03
Automated Punching
Continuous servo punch press punching 50mm pitch butterfly/teardrop holes.
04
Roll-Forming
24-stage progressive cold-roll forming to create rigid closed upright sections.
05
Laser Beam Cutting
High-speed fiber laser cutting beam connectors and interlocking safety teeth.
06
Robotic Welding
MIG/MAG robotic welding cells joining heavy-gauge connector brackets to beams.
07
Chemical Cleaning
9-stage ultrasonic degreasing, acid pickling, rust removal & hot rinsing.
08
Zinc Phosphating
Micro-crystalline conversion coating forming an impermeable anti-rust bond.
09
Powder Coating
GEMA electrostatic spray guns delivering 60-80μm uniform cured polymer.
10
QC Bundling
Deflection load validation, steel banding, corrugated corner protectors & shrink wrap.
Strategic Sourcing Insights
Future Procurement Trends for Global Shelving Buyers (2025–2030)
Enterprise supply chain managers, 3PL logistics directors, and racking distributors must adapt their sourcing strategies to four structural market shifts.
1. Micro-Fulfillment & AMR Integration
Longspan frameworks are transitioning from passive manual shelving to active hybrid pick-stations designed for Autonomous Mobile Robots (AMRs) and automated tote-handling shuttles. Procurement tenders increasingly mandate custom beam-spacing tolerances (±0.5mm) and non-deflecting extruded runner guides.
2. Low-Carbon "Green Steel" Verification
Corporate Environmental, Social, and Governance (ESG) mandates in North America and the European Union are enforcing carbon border adjustments (CBAM). Tier-1 Chinese manufacturers like HEDA are transitioning to electric arc furnace (EAF) recycled billet feeds and documenting cradle-to-gate Environmental Product Declarations (EPDs).
3. Volumetric Container Packing Optimization
With fluctuating ocean freight spot rates, procurement decisions center on Landed Cost Per Stored Kilogram. Advanced factories now use custom nestable roll-formed upright geometries and interlocking steel shelf trays, raising standard 40HQ container cube utilization from 68% to over 93%.
4. Seismic Resilience & Dynamic Baseplate Modeling
As global warehouse construction booms in seismically active regions (such as the Pacific Rim, South Asia, and Southern Europe), baseline static calculations are insufficient. Importers are requiring certified non-linear FEA seismic analysis, custom ductile anchor sizing, and heavier cold-formed footplates as contract prerequisites.
Industry Modernization
Longspan Shelving Engineering Evolution: Past vs. Present
A comparative structural analysis illustrating how manufacturing methodologies have transformed from low-tolerance manual pressing to robotic automated continuous extrusion.
Mechanical Advancements
Cold-Roll Forming vs. Stamped Angle
Historical light-duty shelving relied on slotted angle irons sheared on hydraulic punch presses. Modern industrial longspan systems use sophisticated multi-rib closed upright profiles with continuous omega bends. The Cold-Bending Forming process work-hardens the steel corners, delivering three times the bending moment resistance with 20% less gross deadweight.
Surface Treatment Shift
Nanotech Pretreatment vs. Acid Baths
Traditional factories utilized rudimentary dip tanks with manual solvent degreasing, resulting in rapid coating delamination and rust formation under coastal humidity. Contemporary Tier-1 Chinese plants utilize fully enclosed automated 9-stage zirconium/iron phosphating spray tunnels, ensuring 500+ hours of continuous neutral salt-spray test endurance (ASTM B117).
Connection Mechanics
Drop-In Safety Claws vs. Bolted Webbing
Bolted longspan racks previously required labor-intensive torque wrench fastening that inevitably loosened under vibrational fork truck traffic. Current wholesale systems employ 3-claw or 4-claw stamped interlocking connector brackets with automatic spring-loaded safety pins, slashing installation labor times by 65% while preventing beam dislodgment.
Procurement Knowledge Base
Frequently Asked Questions for B2B Importers & Contractors
Real-world operational, commercial, and technical answers compiled by our chief structural engineers to streamline your sourcing pipeline from China.
What distinguishes industrial longspan shelving from pallet racking and rivet shelving?
Industrial longspan shelving is explicitly engineered for medium-to-heavy manual case picking and bulky unpalletized cargo (200kg to 1,000kg per level). While standard rivet shelving uses light-gauge single-layer steel angles with limited clearance spans (≤1200mm), longspan systems employ stepped box-beams and heavy roll-formed uprights spanning 1500mm to 2700mm, bridging the operational gap before requiring forklift-accessed pallet racks.
How do you guarantee load capacity and prevent catastrophic beam deflection?
Every longspan beam profile manufactured at HEDA is validated via structural finite element calculations (FEA) and physical destruction test rigs conforming to EN 15512 and FEM 10.2.06 standards. We mandate that the maximum vertical deflection ($\delta$) under full Uniform Distributed Load (UDL) must never exceed $L/200$ (where $L$ is clear span length). High-traffic logistics facilities can specify conservative thresholds of $L/250$ for enhanced rigidity.
What is the optimal decking substrate: Solid Steel, Wire Mesh, or Wood Particleboard?
Selection depends on fire safety regulations, moisture, and point-loading. Solid steel shelf panels provide non-combustible durability and washdown sanitation. Welded wire mesh decks allow vertical sprinkler water penetration conforming to NFPA 13 standards while preventing dust accumulation. Plywood or chipboard offers economical deadload dampening for dry retail spares, but requires chemical flame-retardant treatment in commercial facilities.
What Harmonized Tariff Code (HS Code) is applied, and how do you optimize shipping?
Industrial wholesale longspan steel shelving is categorized under HS Code 7308.90.00 (Structures and parts of structures of iron or steel). For custom retail modular racks, HS 9403.20.00 (Other metal furniture) may apply. To maximize container stuffing factors, upright frames can be shipped knocked-down (KD) for on-site bolting, enabling up to 26–28 metric tons of steel shelving components per 40ft High Cube container.
What surface finishing protocols protect steel shelving against high humidity?
In regions subject to coastal salinity or tropical monsoons, basic paint chips quickly. HEDA subjects all roll-formed profiles to a multi-stage chemical immersion sequence: hot alkaline degreasing, clean rinse, acid pickling to strip mill scale, followed by micro-crystalline zinc phosphating. Finally, an automated electrostatic thermosetting epoxy-polyester powder coat is applied at 60–80 microns and baked at 180°C–200°C for supreme scratch resistance.
Can HEDA provide customized OEM roll-forming profiles and color-matched powder?
Yes. With an in-house tooling workshop, 300+ technical employees, and 20+ specialized roll-forming lines, we routinely manufacture proprietary upright hole geometries (butterfly, teardrop, diamond, or hex pitch) and beam cross-sections for OEM brands globally. Full RAL color-matching (e.g., RAL 5015 Blue, RAL 2004 Orange, RAL 7035 Grey) and branded silk-screening or laser-cut logo plates are fully supported.
Partner With China's Leading Storage Racking Manufacturer
Whether you require 20 container loads of standardized warehouse longspan shelving, a tailored OEM profile distribution contract, or a certified mezzanine-supported picking platform with free 3D CAD engineering layout proposals — Guangzhou Heda Shelves Co., Ltd. delivers factory-direct pricing, verifiable ISO 9001/CE certifications, and turnkey structural integrity.
Exporting directly from Guangzhou/Shenzhen to global destinations across North America, Europe, the Middle East, Southeast Asia, and South Asian hub ports (Nhava Sheva, Mundra, Chattogram, Colombo, Karachi).
