High-Density Live Storage & Industrial Racking Lineup
Explore our core engineered pallet flow, dynamic shuttle, automated ASRS, and structural warehouse storage solutions. Designed to maximize volumetric storage efficiency, improve material throughput, and guarantee First-In-First-Out (FIFO) batch compliance.
Heavy Duty Industrial Steel Cantilever Rack for Pallet & Long Loads
Engineered for long-span raw materials, steel bars, timber, and heavy coils. Features unhindered front-column access and high structural rigidity.
High Density Automated Warehouse FIFO & FILO Pallet Radio Shuttle System
Semi-automated deep lane storage running battery-powered shuttle carriers. Drastically minimizes forklift operating travel times and rack impacts.
Automated Target Retrieval Pallet ASRS Storage High-Bay Racking
Fully unmanned high-bay racking systems integrating stacker cranes, high-speed vertical conveyors, and seamless WMS/WCS enterprise interfaces.
Custom Heavy Duty Selective Pallet Rack System for Bulk Warehouse Logistics
Provides 100% direct pallet selectivity. The benchmark modular storage framework for multi-SKU logistics hubs, distribution centers, and retail depots.

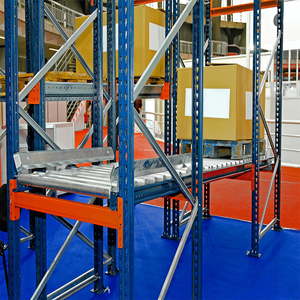

FIFO High-Efficiency Warehouse Gravity Live Storage Pallet Flow Racks
Gravity-driven live storage roller tracks engineered with dynamic brake rollers and pallet separators. Ideal for cold storage, food, and perishables.

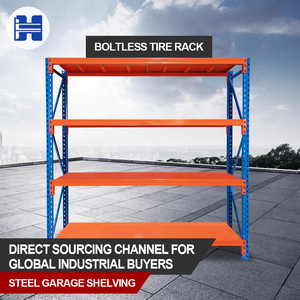

Long Span Medium Duty Boltless Steel Industrial Warehouse Storage Shelving
Rapid tool-less assembly featuring high-strength stepped beams and galvanized steel shelves. Designed for manual picking and spare parts management.

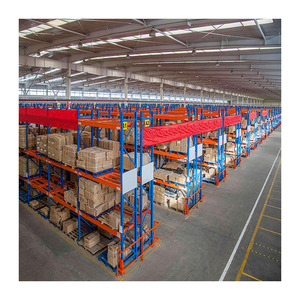

Custom Heavy Duty 500kg/Layer Multi-Tier Warehouse Storage Metal Shelf Unit
Reinforced cold-rolled steel shelving with powder-coated corrosion-resistant finish. Perfect for retail backrooms, e-commerce sortation, and light manufacturing.
ASRS Warehouse Automated Stacker Crane High-Density Stacking Rack System
Precision-fabricated structural uprights with tight vertical deflection limits. Built specifically for high-acceleration automated storage crane travel.
Kinematics, Friction Coefficients & Safety Engineering of Live Storage Racking
Live storage racking (also commonly designated as gravity pallet flow racking) is a dynamic, high-density warehousing framework operating on unpowered gravitational kinematics. Understanding its mechanical laws and manufacturing criteria is essential for supply chain architects.
Gravitational Gradient Physics
The operational foundation of live storage relies on an inclined roller track set between 3.0% and 4.0% gradient (approx. 1.7° to 2.3°). This precise angle overcomes initial static rolling friction without inducing uncontrolled pallet acceleration. Variables such as pallet bottom runner deformities, moisture levels, and base skid deflection under full load require custom slope engineering for distinct warehouse environments.
Centrifugal Speed Controllers
To prevent runaway pallet momentum across lane depths exceeding 3 pallets (often reaching up to 20 pallets deep), integrated centrifugal brake rollers are spaced along the flow bed. These mechanical braking units activate proportionally to rotational velocity, governing descent speed strictly within safe velocity parameters (0.25 m/s to 0.30 m/s), regardless of whether the unit load is 300 kg or 1,500 kg.
Pallet Separation Mechanics
Accumulated hydrostatic line pressure in deep-lane gravity flow can exert several tons of continuous force on the discharge face. Our live storage racking integrates automated mechanical pallet separators at the retrieval pick-face. The mechanism isolates the first pallet from subsequent uphill loads, eliminating product compression and ensuring the forklift driver can safely extract loads without snagging or back-pressure tipping.
| Storage System Architecture | Aisle Space Consumption | Volumetric Density | Inventory Flow Logic | Throughput Cycle Speed | Forklift Travel & Wear | Best Industrial Applications |
|---|---|---|---|---|---|---|
| Live Storage (Pallet Flow) | Low (2 Aisles Only) | Up to 75% Floor Utilization | Strict FIFO (100%) | Extremely High (Self-Indexing) | Minimal (Perimeter Only) | Cold storage, perishable foods, dairy, high-throughput pharmaceuticals |
| Radio Shuttle Racking | Low (1 or 2 Aisles) | Up to 80% Floor Utilization | FIFO or LIFO Selectable | High (Automated Carriage) | Minimal (Dock to Lane Face) | High-volume uniform SKUs, seasonal buffers, raw materials |
| Drive-In Racking | Very Low | Up to 65% Floor Utilization | Strict LIFO Only | Slow (Forklift Enters Rack) | High (Substantial Rack Collision Risk) | Homogeneous goods, low turnover bulk materials, beverage kegs |
| Selective Pallet Racking | High (Every Lane Needs Aisle) | 35% - 40% Floor Utilization | Any Order (Random Select) | Moderate (Travel Distance Long) | Maximum Floor Travel | Multi-SKU e-commerce fulfillment, 3PL transit hubs, retail cross-docks |
| Push-Back Cart Racking | Moderate (Single Aisle) | Up to 60% Floor Utilization | Strict LIFO Only | Moderate (2-5 Pallets Deep) | Low to Moderate | Medium turnover items with 2 to 5 pallets per SKU |
Global Procurement & Technology Trends in Live Storage (2025–2030)
Procuring warehouse racking from China has transitioned from basic structural tonnage sourcing to advanced systems integration. Buyers must align with upcoming engineering innovations to protect their capital investments.
1. AMR & AGV Robotic Interfacing
Traditional live storage required human-operated counterbalanced or reach forklifts at the charge and discharge lanes. Modern procurement requires roller discharge beds equipped with optical sensors, photogates, and laser-guided reflective markers that facilitate pick-up by Autonomous Mobile Robots (AMRs) and Automated Guided Vehicles (AGVs), enabling 24/7 lights-out warehouse dispatch.
2. Cold-Chain Metallurgy & Lubrication
The rapid expansion of global frozen food and biopharmaceutical distribution has created massive demand for live storage operating at -25°C to -30°C. Standard steel and conventional bearing greases fail under cryogenic stress. Sourcing trends prioritize Q355B modified alloys with certified low-temperature Charpy V-notch impact toughness and self-lubricating, non-freezing synthetic roller bearings.
3. IoT In-Lane Monitoring & Smart Rollers
Industrial IoT sensors are entering gravity flow lanes. By embedding micro-dynamo load-cell rollers and speed-tracking bearings, live storage lanes can report pallet flow velocity, detect jammed pallets, monitor temperature variances in cold rooms, and alert warehouse management systems in real time when stock replenishment is required at the entry face.
Decarbonization & Green Steel Procurement Standards
Global multi-nationals and institutional developers now mandate Scope 1, 2, and 3 emissions auditing throughout their material handling supply chains. Leading Chinese manufacturers are investing heavily in low-carbon steel coils, recycled scrap melting methods, and zero-discharge closed-loop powder coating lines.
-
Certified High-Tensile Steel Profiles: Achieving identical yield loads using thinner, micro-alloyed sections to decrease freight shipping tonnage.
-
Non-Toxic Eco-Friendly Surface Coatings: Lead-free, heavy metal-free TGIC polyester powder coatings compliant with EU RoHS and REACH regulations.
-
High-Density Shipping Stuffing: Specialized nested frame bundling reduces 40HQ container count by up to 22%, dramatically cutting international logistics emissions.
Why Tier-1 Global Procurement Teams Source from HEDA Shelves
Founded in 2001 in Guangzhou, China, Guangzhou Heda Shelves Co., Ltd. operates a vertically integrated 30,000 square meter industrial manufacturing base. From prime raw steel coil roll-forming to fully certified automated surface treatment lines, we guarantee full engineering control.
In-House Roll Forming
Continuous automated roll-forming lines for omega upright profiles and box step beams guarantee sub-millimeter dimensional tolerances, critical for level roller track seating.
Chemical Pretreatment
Full 10-stage chemical pickling and phosphating tank immersion removes all scale, oil, and oxidation, ensuring maximum powder coating adhesion even in humid tropical zones.
Free 3D & CAD Layouts
Dedicated structural engineering team prepares comprehensive AutoCAD layout designs, 3D renderings, and finite element analysis (FEA) load calculations within 24 hours.
Direct Port Logistics
Strategic manufacturing hub in South China facilitates rapid dispatch via major international seaports (Nansha, Huangpu, Shenzhen, Hong Kong) with optimized container nesting.
Full International Certification & Compliance Verification
Our structures comply strictly with European EN 15512, FEM 10.2.02, and American RMI (Rack Manufacturers Institute) design standards. Every shipment undergoes rigorous quality assurance inspections before export.
-
CE Certification: Structural Steel Racking Execution No. 2435-CPR-8605159.
-
ISO 9001:2015: Quality Management System Certification No. 18624Q00169R0M.
-
Full Traceability: Mill test certificates (MTC 3.1) provided for every raw steel heat number.
Frequently Asked Questions on Live Storage Racking Procurement
Detailed engineering and commercial answers to resolve technical queries, avoid costly layout mistakes, and ensure seamless overseas shipping and commissioning.
Accelerate Your Warehouse Storage Density Today
Send your architectural floor plan, clear building height, pallet specifications, and target throughput metrics. Our senior engineering team will deliver a complimentary, fully calculated 2D AutoCAD layout, 3D visualization, and comprehensive factory-direct pricing quote within 24 hours.
