Recommended Warehouse Pallet Shelving Systems
Precision-engineered cold-formed steel racking systems certified to CE (2435-CPR-8605159) and ISO 9001:2015 standards for high-bay logistics, 3PL hubs, and cold storage chains.
Heavy Duty Steel Pallet Racking System
5 Ton Selective 3-Layer Racking HW-PR33
Adjustable Industrial 5-Ton Selective Shelf
Modular Stackable Pallet Racking Units
Heavy Duty Industrial Selective Steel Rack

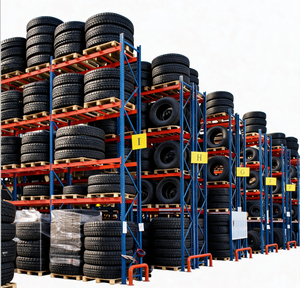

Custom Beam Type Adjustable Powder Rack
Selective Heavy-Duty Pallet Shelving
Boltless Stacking Assemble Shelving 3-Tier
Executive Industry Overview: China Warehouse Pallet Shelves Manufacturing Landscape
As global supply chains navigate volatile freight economics, post-pandemic warehousing expansion, and the aggressive acceleration of automated logistics hubs, China maintains an unmatched technological and structural advantage in the fabrication of industrial pallet shelves and structural racking platforms. Sourcing directly from an audited China top warehouse pallet shelves manufacturer yields substantial dividends in capital expenditure efficiency, raw material metallurgy consistency, and structural engineering compliance.
Modern warehouse logistics infrastructure requires an uncompromising balance between dynamic load capacity, seismic stability, and volumetric space utilization. Leading Chinese manufacturers, centered primarily in the industrialized logistics machinery clusters of Guangdong and Jiangsu, have shifted decisively from legacy manual welding methods toward high-precision automated roll-forming lines, computerized continuous CNC punching, and automated electrostatic powder coating applications. The integration of structural analysis software (finite element analysis / FEA) ensures full conformance with rigorous international design codes, including European Standard EN 15512 (FEM 10.2.02), the American RMI (Rack Manufacturers Institute) MH16.1, and the Australian standard AS 4084-2012.
Material Science & Structural Engineering: Q235B vs. Q355B Hot-Rolled Coils
The structural integrity of heavy-duty warehouse pallet shelves begins at the blast furnace and cold-rolling mill. Premier Chinese manufacturers source exclusively from tier-one steel producers such as Baosteel, Shougang, and Ansteel, avoiding the structural inconsistencies typical of secondary or re-rolled scrap steel. The standard commercial workhorse for pallet racking uprights and box beams is Q235B grade structural carbon steel, delivering a yield strength of 235 MPa and high elongation characteristics, which provide necessary ductility under dynamic impact.
Q235B Cold-Formed Steel
Standardized yield strength of ≥235 MPa with 26% minimum elongation. Perfect for selective pallet racks, hand-loaded medium-duty longspan shelving, and indoor multi-tier mezzanines subjected to standard warehouse ambient cycles.
Q355B High-Tensile Steel
Engineered with a high yield strength of ≥355 MPa. Specifically deployed in automated high-bay racking, automated storage and retrieval systems (ASRS) surpassing 20 meters, and extreme-load cold storage environments down to -30°C.
Upright & Beam Geometry
Omega-shaped (Ω) upright profiles engineered with multi-bend stiffeners resist torsional buckling. Beams utilize twin cold-formed C-profiles interlocking into seamless box beams with robotic MIG welded 3-claw or 4-claw connector plates.
| Racking System Category | Pallet Access Rate | Volumetric Efficiency | Typical Load Rating | Ideal Storage Applications |
|---|---|---|---|---|
| Selective Pallet Racking | 100% Direct Selectivity | 40% – 50% Area Usage | 1,000 – 5,000 kg / Level | 3PL FMCG, E-Commerce Fulfillment, High SKU Turnover |
| Drive-In / Drive-Through Rack | LIFO / FIFO Lane-Based | 65% – 75% Area Usage | 1,000 – 1,500 kg / Pallet | Cold Storage Facilities, Beverage Bottling, Homogeneous Bulk Goods |
| Radio Shuttle Automation | Semi-Automated (FIFO/LIFO) | 80% – 85% Area Usage | 500 – 2,000 kg / Shuttle | Frozen Meat/Seafood, Pharmaceuticals, Rapid Turnaround Hubs |
| Push-Back Cart Racking | LIFO (2 to 6 Pallets Deep) | 60% – 70% Area Usage | 1,000 – 1,500 kg / Position | Mid-Tier SKU Diversity, Fast Pallet Rotation, Staging Buffers |
| Heavy Duty Cantilever Racks | Open Clear-Span Access | Custom Linear Density | 1,000 – 3,000 kg / Arm | Structural Steel Beams, PVC Tubing, Timber Packs, Aluminum Extrusions |
Factory-Direct Excellence: 10-Stage Precision Manufacturing Workflow
Quality reliability in structural pallet shelving is fundamentally defined by tight machining tolerances, continuous quality inspection checkpoints, and standardized anti-corrosion pre-treatments. Guangzhou Heda Shelves Co., Ltd. operates a vertically integrated 30,000 square meter manufacturing infrastructure where incoming steel undergoes rigid tensile verification prior to automated processing.
Raw Material QC
Mill test cert verification and ultrasonic thickness checking of prime steel coils.
Precision Slitting
Automated uncoiling and high-speed rotary slitting to strip width tolerances within ±0.1mm.
CNC Punching
Continuous hydraulic stamping of upright diamond or teardrop connector hole pitches.
Multi-Pass Roll Forming
18 to 24 progressive forming stations roll omega profiles without micro-fracturing.
Laser Cutting & Trim
Automated fiber-laser cutting for clean upright chamfers, notch cuts, and connector holes.
Robotic MIG Welding
Shielded gas welding attaches stamped beam claws to box profiles with zero slag entrapment.
Shot Blasting & Degrease
Complete mechanical descaling and chemical degreasing to prepare steel substrate.
Phosphating Pretreatment
Nanotechnology zinc-phosphate immersion wash forming a dense crystalline corrosion shield.
Electrostatic Powder Coat
Swiss Gema automated powder spray application followed by 200°C polymerization curing.
Export Stacking & Pack
Palletized wood runners, corrugated edge protectors, and steel strapping for container stuffing.
Strategic Sourcing Analysis: Total Cost of Ownership (TCO) & Logistics Optimization
International procurement executives evaluating Chinese pallet rack manufacturers must calculate the true Landed Cost per Pallet Position rather than relying merely on baseline ex-works (EXW) quotation metrics. Freight economics, container volume nesting efficiency, and customs tariff management are vital determinants of capital efficiency.
40ft High Cube Container Packing
Standard upright frames exceeding 5.8 meters are engineered for modular bolted assembly on-site. By breaking frames into knocked-down (KD) upright posts and diagonal braces, container utilization increases by over 60%, packing up to 26–28 tons per 40HQ container.
Corrosion Resistance Engineering
Tropical and coastal port warehouse projects (e.g., Chennai, Chattogram, Karachi, Colombo) demand severe corrosion resistance. Standard 70–90 μm thermosetting powder coats withstand 500-hour salt spray testing, with hot-dip galvanized finishes available for high-humidity outdoor storage.
Free Engineering CAD & 3D Modeling
Professional suppliers eliminate site mismatch risk through complimentary pre-sales structural modeling. Structural engineers calculate aisle turning clearances for reach trucks, counterbalance forklifts, and VNA turret trucks according to VDI 2198 standards.
Future Procurement Trends: Modernization & Automation Integration (2025–2030)
The industrial shelving and pallet rack manufacturing sector in China is currently undergoing rapid technological adaptation driven by robotics, micro-fulfillment, and carbon-reduction initiatives. Enterprise buyers should align their 5-year warehouse strategies with three prominent procurement megatrends:
1. Convergence Toward Hybrid Automation: Pure manual forklift operations are increasingly being augmented by radio shuttle racking and Autonomous Mobile Robot (AMR) under-chassis transport. Warehouse operators are specifying racking systems built with tighter dimensional tolerances (±1.0mm per 10m height) to allow seamless future retrofitting into semi-automated shuttle systems without demolishing base upright structures.
2. High-Bay Very Narrow Aisle (VNA) Adoption: Driven by skyrocketing industrial real estate land costs in Tier-1 logistics nodes across South Asia, North America, and Europe, average rack heights have escalated from standard 6-meter bays to 12-to-18-meter VNA configurations. These systems require specialized top-tie beams, wire-guided ground tracking channels, and rigorous floor flatness checks (DIN 18202 / TR34 DM2 compliance).
3. Sustainable Green Steel & Eco-Powder Chemistry: Global corporate ESG mandates require verified lifecycle decarbonization audits. Leading Chinese pallet rack fabricators are transitioning to closed-loop powder recovery booths (achieving 98% powder reuse) and non-toxic, heavy-metal-free zirconium chemical pretreatment washes that eliminate hazardous heavy phosphate sludge.
Frequently Asked Questions: Global Pallet Racking Procurement
Essential technical, commercial, and operational insights for industrial warehouse owners, project procurement managers, and logistics consultants.
How do Chinese manufacturers guarantee load-bearing safety?
Certified manufacturers perform both physical beam deflection testing and computer-aided Finite Element Analysis (FEA). Structural deflection limits conform strictly to FEM 10.2.02 codes, mandating that under full working load, the maximum beam deflection cannot exceed L/200 (1/200th of the clear beam span), incorporating a safety factor of 1.5 to 1.65.
What is the standard production and shipping lead time?
For standard project volumes of 1 to 5 forty-foot high cube containers (approx. 500 to 2,500 pallet positions), the manufacturing cycle takes 15 to 25 business days from CAD drawing sign-off. Ocean freight transit varies from 7–14 days for East and South Asian ports to 25–35 days for European or North American discharge ports.
Can racking components be customized to integrate with existing systems?
Yes. OEM and ODM capabilities allow Chinese factories to fabricate custom upright punch pitches (such as 50mm, 75mm, 76.2mm, or 3-inch teardrop profiles compatible with US legacy systems). Custom baseplate bolt holes and beam connector claws can be matched to existing facility expansions seamlessly.
What documentation is required to initiate a structural layout proposal?
To receive an engineered CAD layout and quotation within 24 hours, furnish: (1) Warehouse architectural floor plan (PDF or DWG format) detailing column grids, dock doors, and building clear heights; (2) Pallet dimensions (W × D × H) including product overhang; (3) Maximum loaded pallet gross weight; (4) Forklift model, turning radius, and lift height.
How are international field installations managed?
Every export shipment includes comprehensive component tagging, numbered upright/beam bundle marks, 3D architectural assembly blueprints, and step-by-step video installation guides. For mega-distribution centers, our factory dispatches bilingual structural installation supervisors on-site to oversee local mechanical contracting crews.
How does the powder coating prevent peeling and rust in tropical climates?
Peeling occurs when paint is sprayed over oily mill scale. Our production incorporates multi-stage acid pickling to eliminate mill oxidation, followed by high-pressure phosphating. This chemically deposits a micro-porous conversion layer ensuring resin adhesion, delivering impact resistance tested up to 50 kg/cm.
Why Partner with Guangzhou Heda Shelves Co., Ltd.
Combining 25+ years of storage equipment manufacturing, ISO-certified operational quality, and comprehensive global project delivery.
Audited Certifications
CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality System (No. 18624Q00169R0M), and full RoHS compliance verifiable with international testing authorities.
Industrial Capacity
Our 30,000 m² Guangzhou production facility houses 12 automatic roll-forming lines, automated laser workstations, and continuous powder-coat lines yielding 30,000 tons monthly.
Free CAD & Structural Design
Over 300 experienced engineers and technical staff provide bespoke warehouse space planning, 3D renderings, and precise pallet position calculations at no cost prior to contract signing.
End-to-End Export Delivery
Proven export experience across 120+ countries with optimized container bundling for major container ports including Nhava Sheva, Mundra, Chattogram, Colombo, and Karachi.
