Multi Level Rack ASRS Warehouse Robot Storage Retrieval Picking System Asrs Racking System with Stacking Crane
Product Description
Products Description

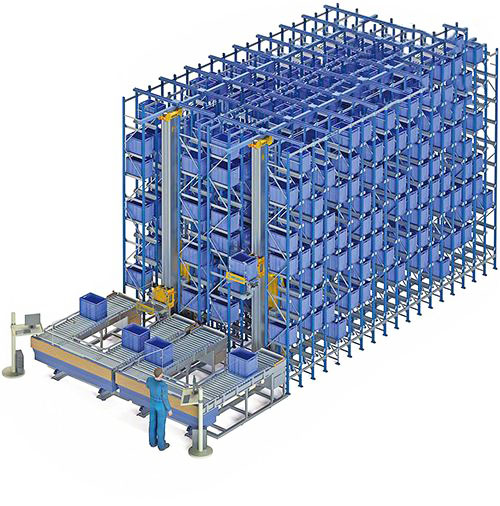

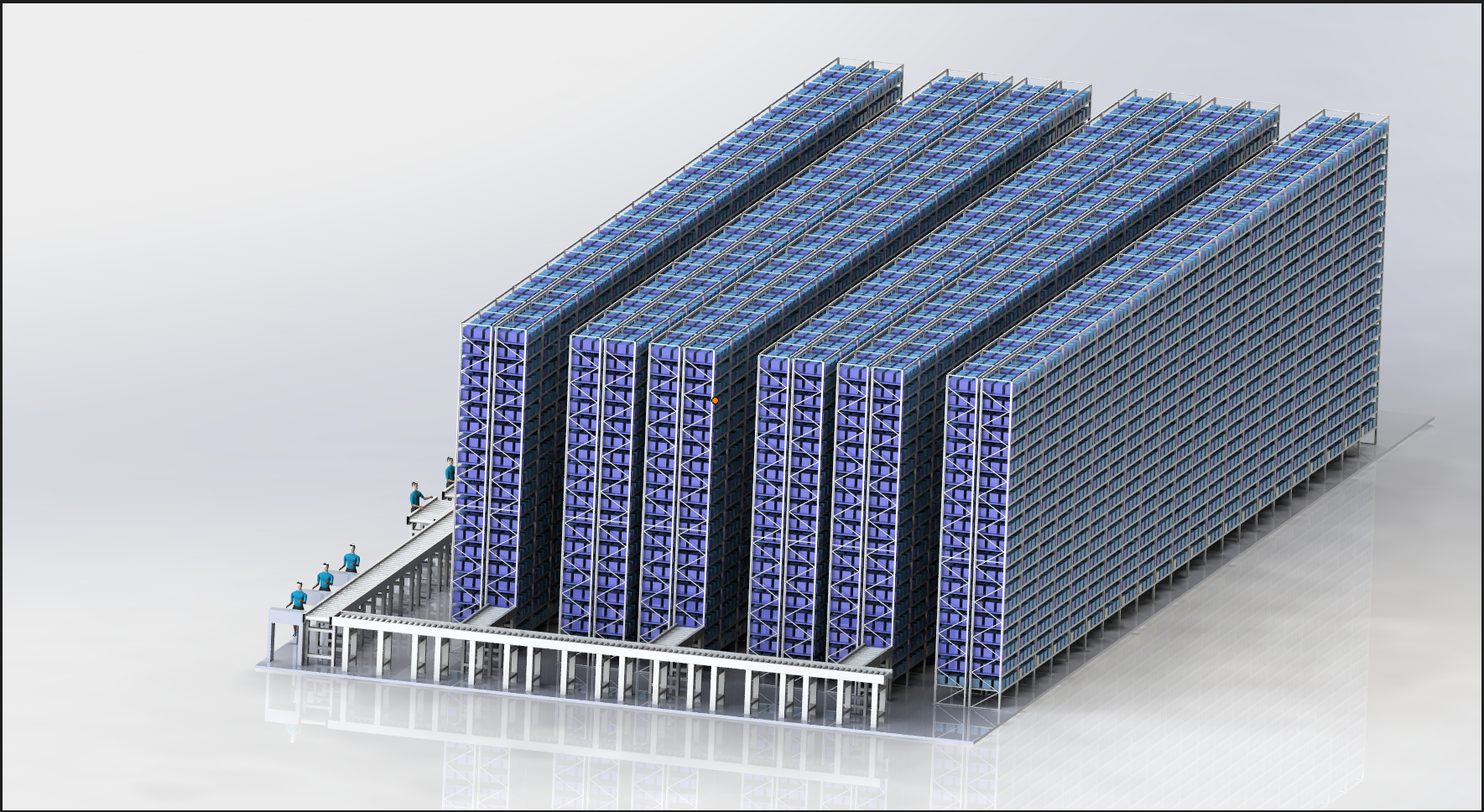

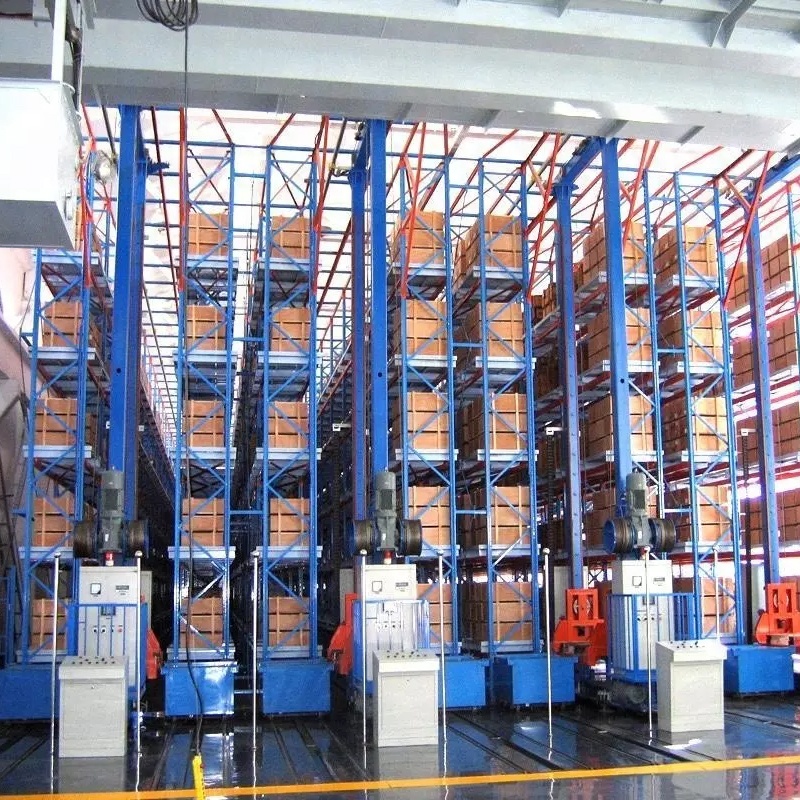

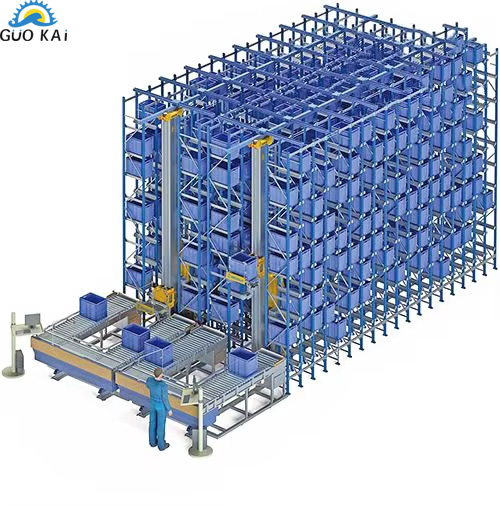

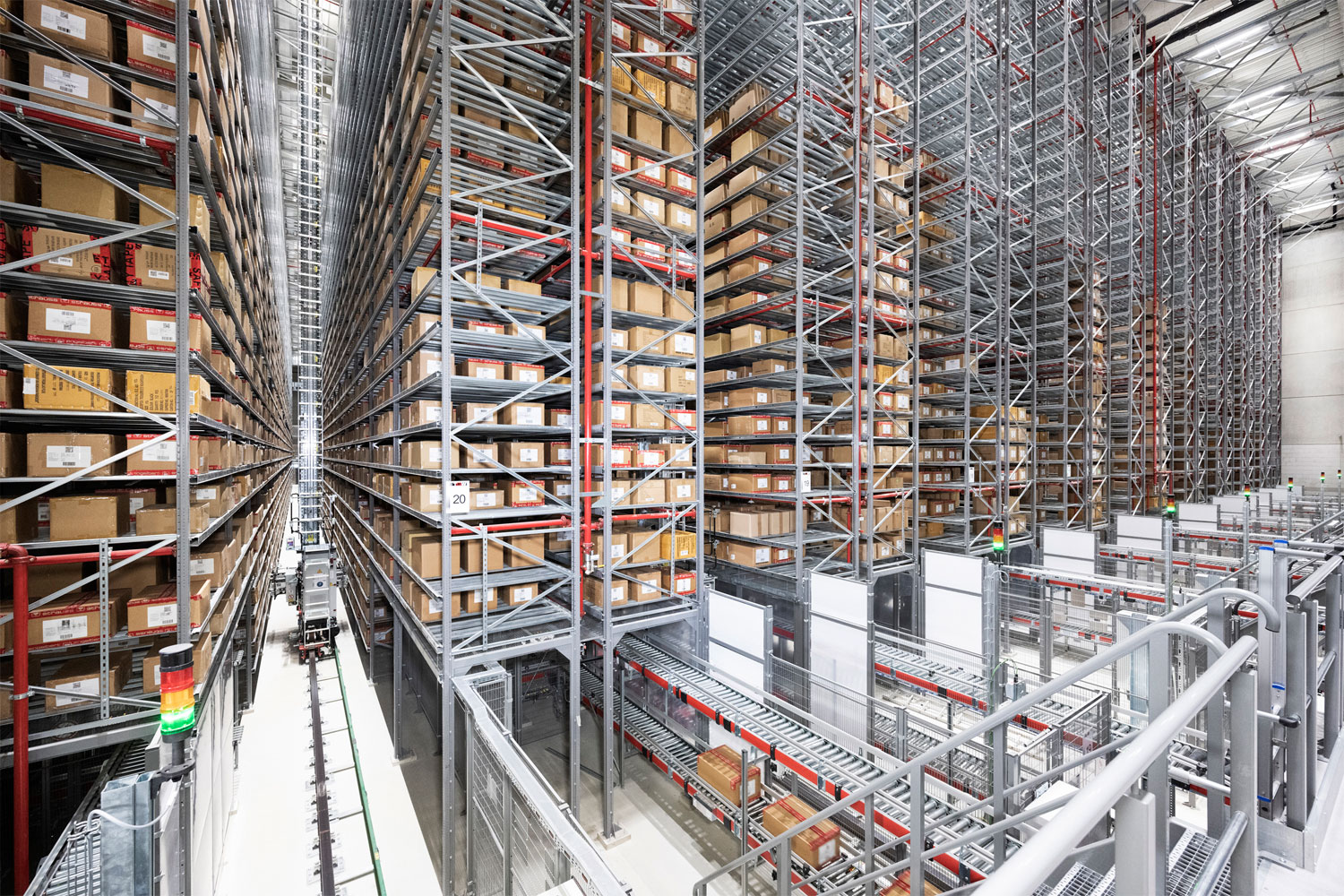

Automated Storage Retrieval Systems (ASRS)
The automatic three-dimensional storage system consists of high-rise three-dimensional shelves, automatic stacker, conveying system, automatic control system (WCS), warehouse management system (WMS) and related peripheral equipment.
Automatic storage system can make full use of storage space, and online control of equipment can be realized through storage management system (WMS).
Based on the principle of first in first out, quickly and accurately handle the goods and reasonably manage the inventory data.
Advantages
Save inventory floor space and improve space utilization
Automatic cargo access, accurate, fast and safe
Be precise in information management and save labor force
Improve the contingency capacity of production
Accelerate the turnover of warehousing funds
Low transportation cost and high operating efficiency
Improve the inventory management level of enterprises
Manufacturing Technique

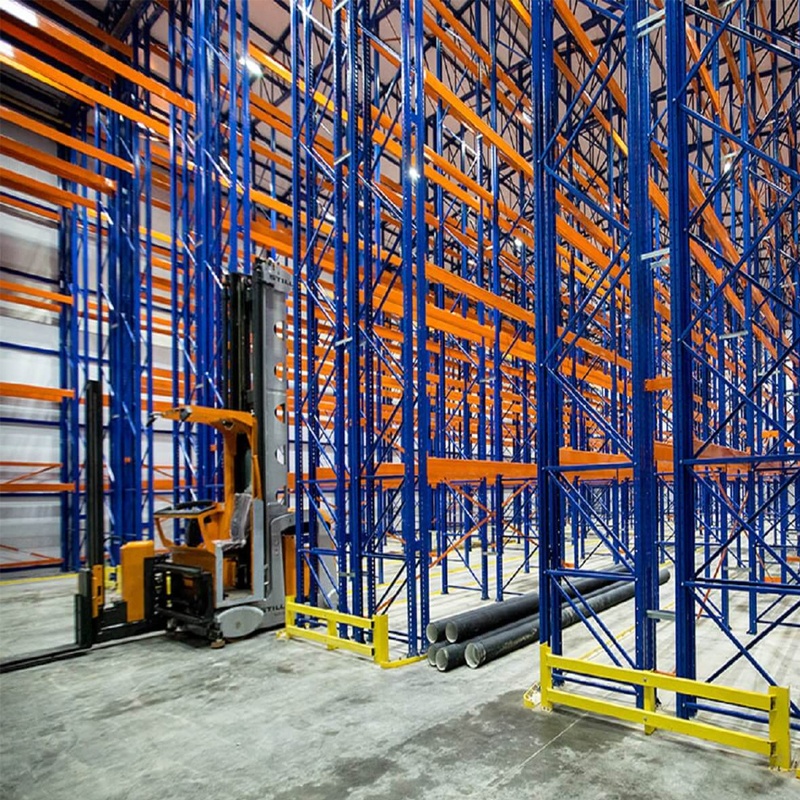

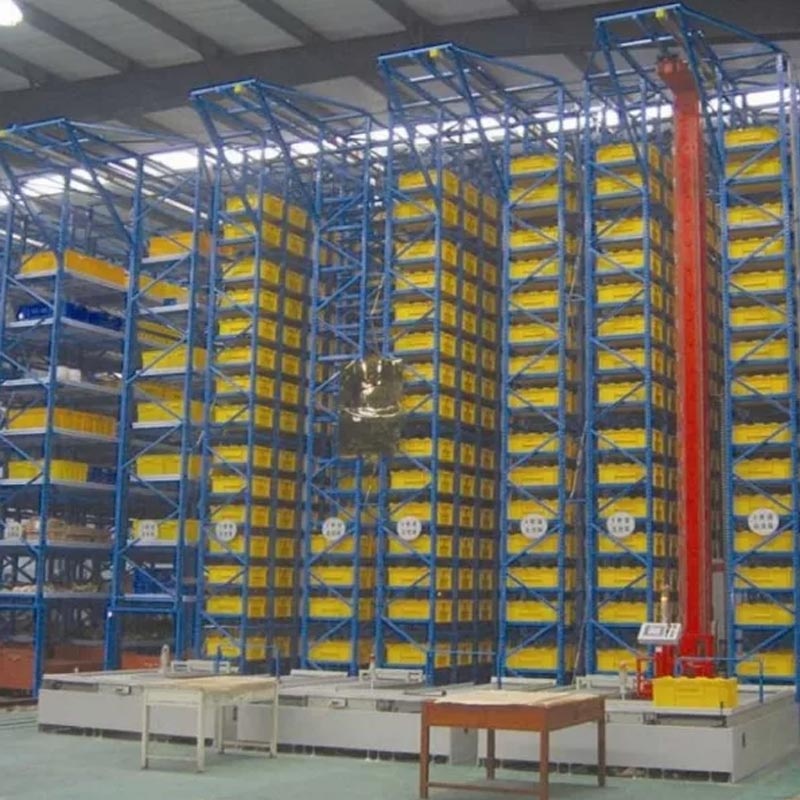

Racking
Structural feature: ASRS System are usually equipped with pallet racking and drive-in racking, both of which are composite structure. Steel panels and wooden panels are available for loading with good capacity. Conveyors will do the loading and unloading job under the instruction from the central computer. ASRS System is mainly used in the food, tobacco, electronic, mechanical and armament industry.

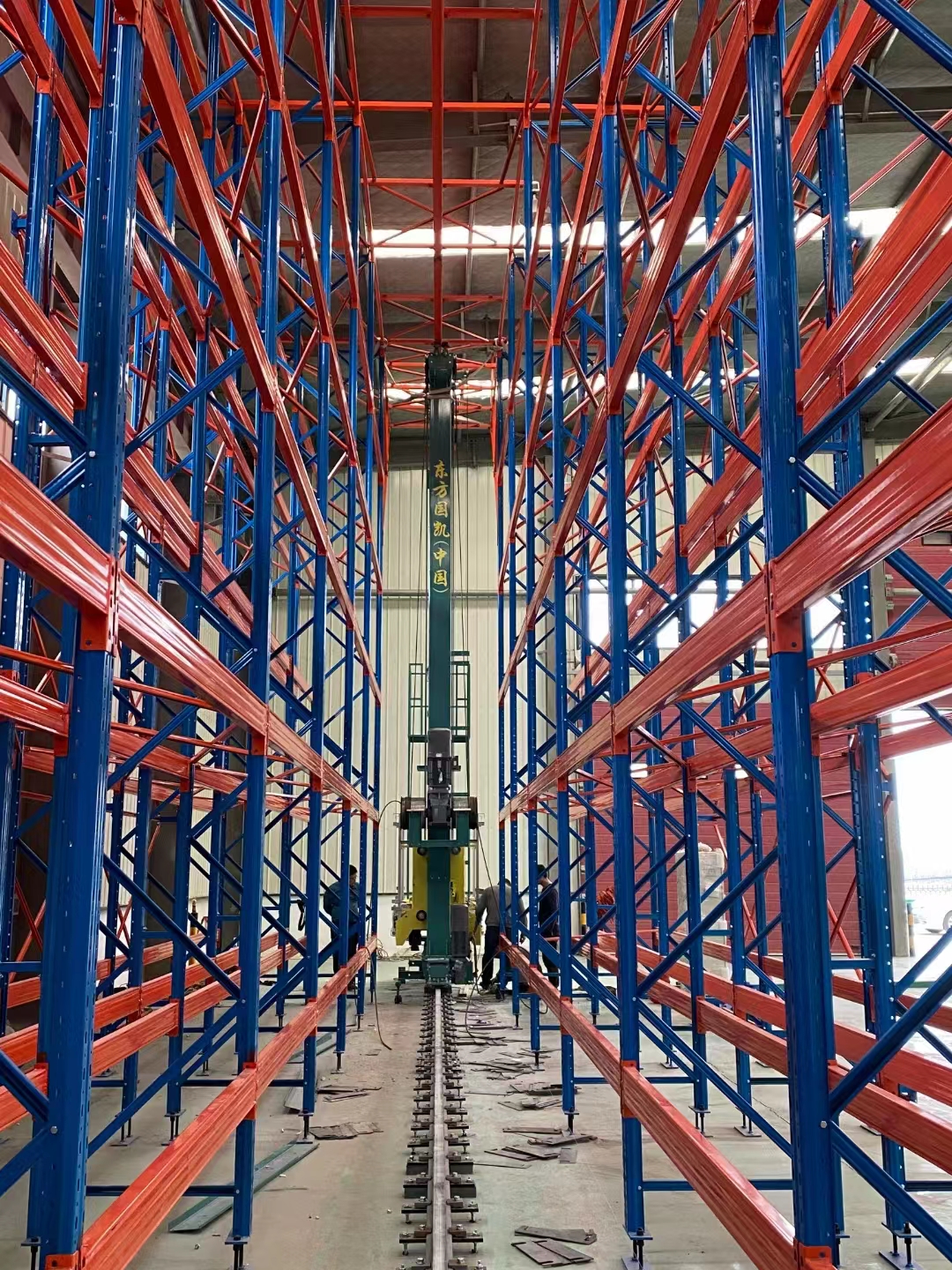

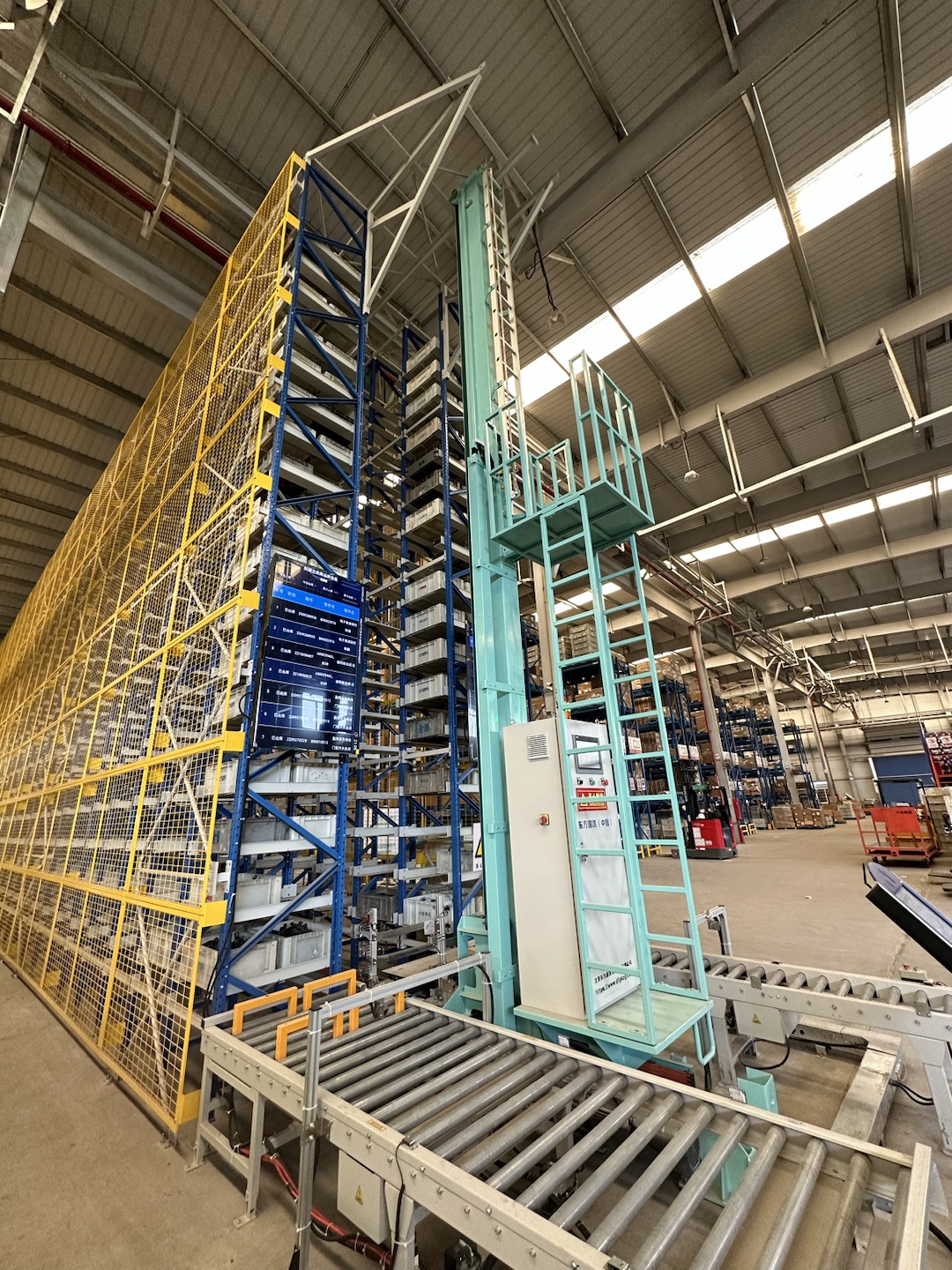

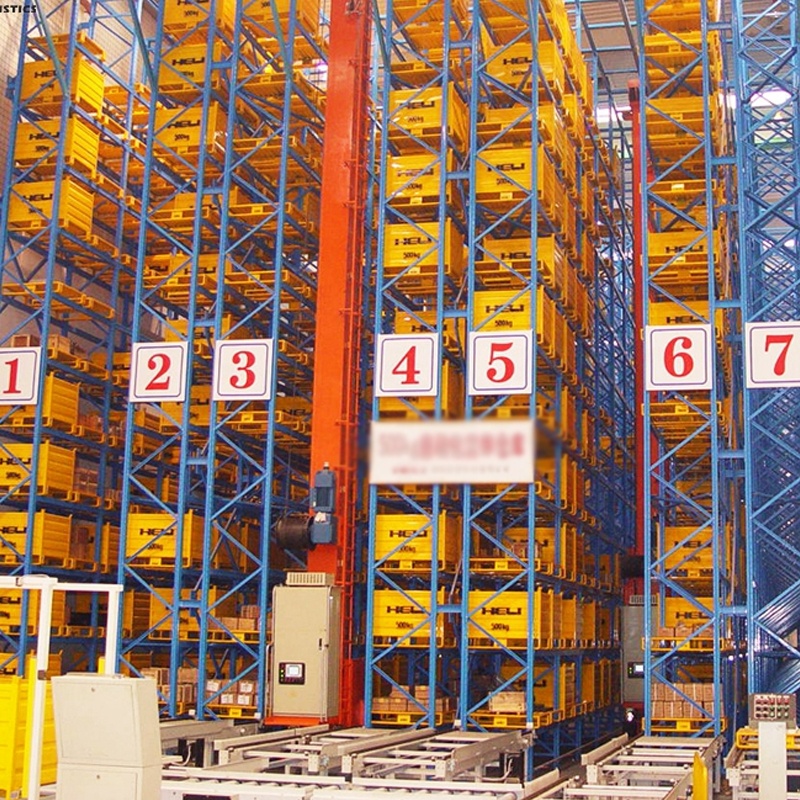

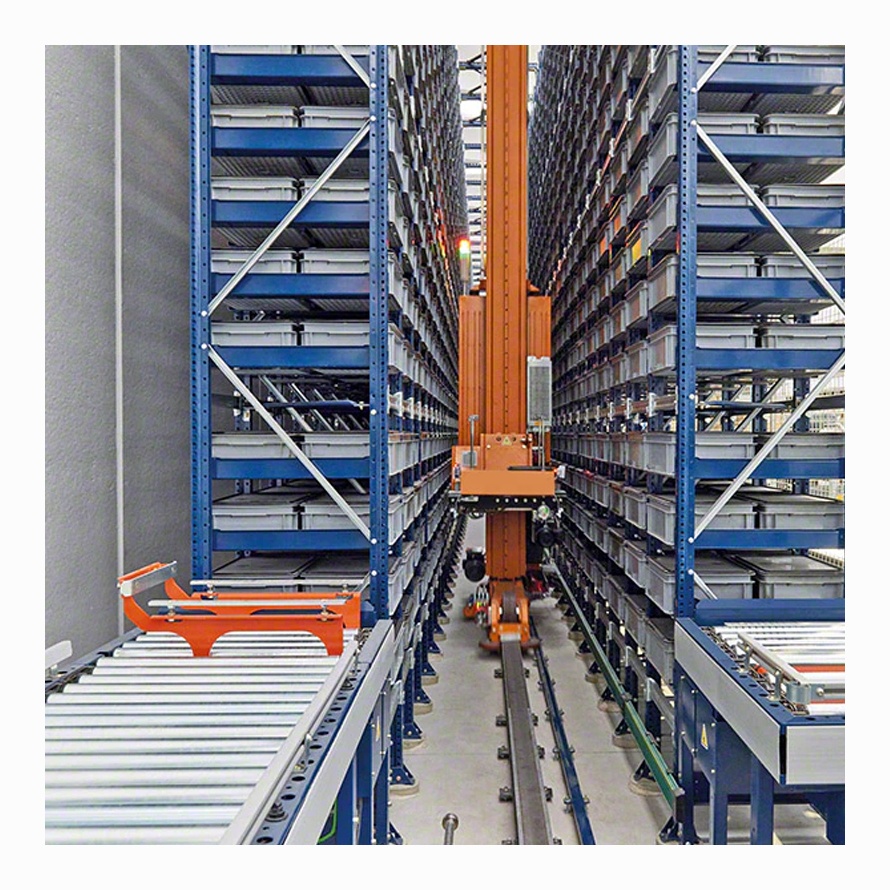

Stacker
Structural feature: Double upright structure, steady and reliable, vector frequency conversion drive and encoder position control, mechanical and electronic safety devices to ensure safe using of the system; All the way tracing technology by information transferring; Electric components are imported from abroad; Touching screen interface for easy operation; Making manual, semiautomatic, automatic and linkage control come true; Used in many situations by combining with other logistics equipment.

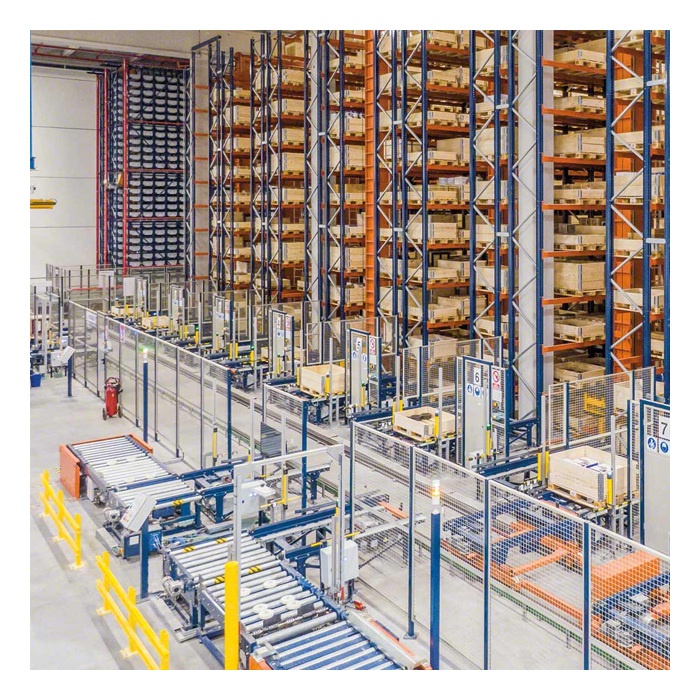

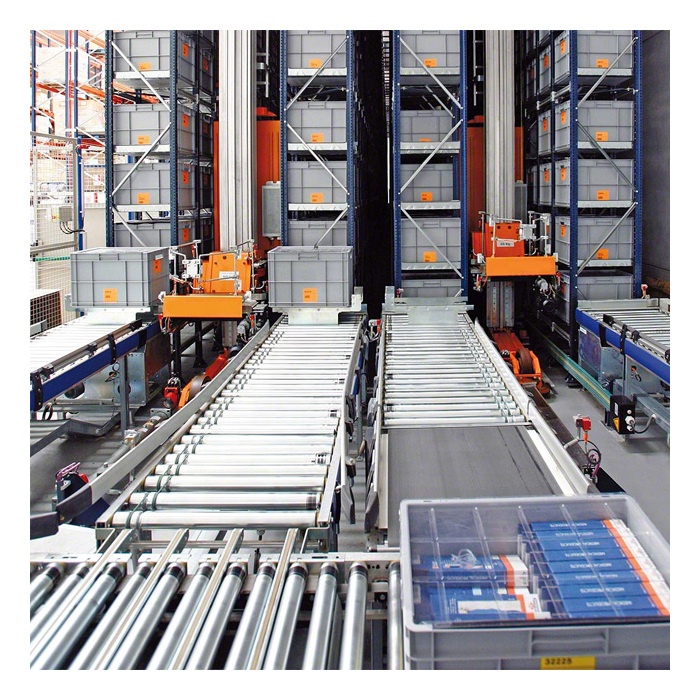

Conveying System
Structural feature: Conveying system is usually equipped in the front or back of warehouse for conveying goods here and there, bridging the procedures done by forklifts and stackers by using rolling conveyor or chain conveyor and combining with lifts, rotating devices and other equipments.
Controlling System
Structural feature: Communicating with WMS and ECS through OPC agreement, PROFIBUS bus network, set up by Siemens S7-300controller can operate all conveyors offline, doing conveying of goods automatically. Please refer to the attached drawing for details of conveying system.
WMS System
Hardwares of WMS System: Star network structure, network sever, RF server, computers for management and monitor, RF base station and RF terminal for in/out warehouse of goods.
| Material | Cold-rolled Steel |
| Surface | Electrostatic spraying |
| Size | Customize according to your needs |
| Color | Customize according to your needs |
| Feature | Corrosion Protection |
| Payment Terms | 40% deposit upon signing the contract, the balance will be cleared by T/T before delivery |
| Delivery Time | 25-35 working days after received deposit |

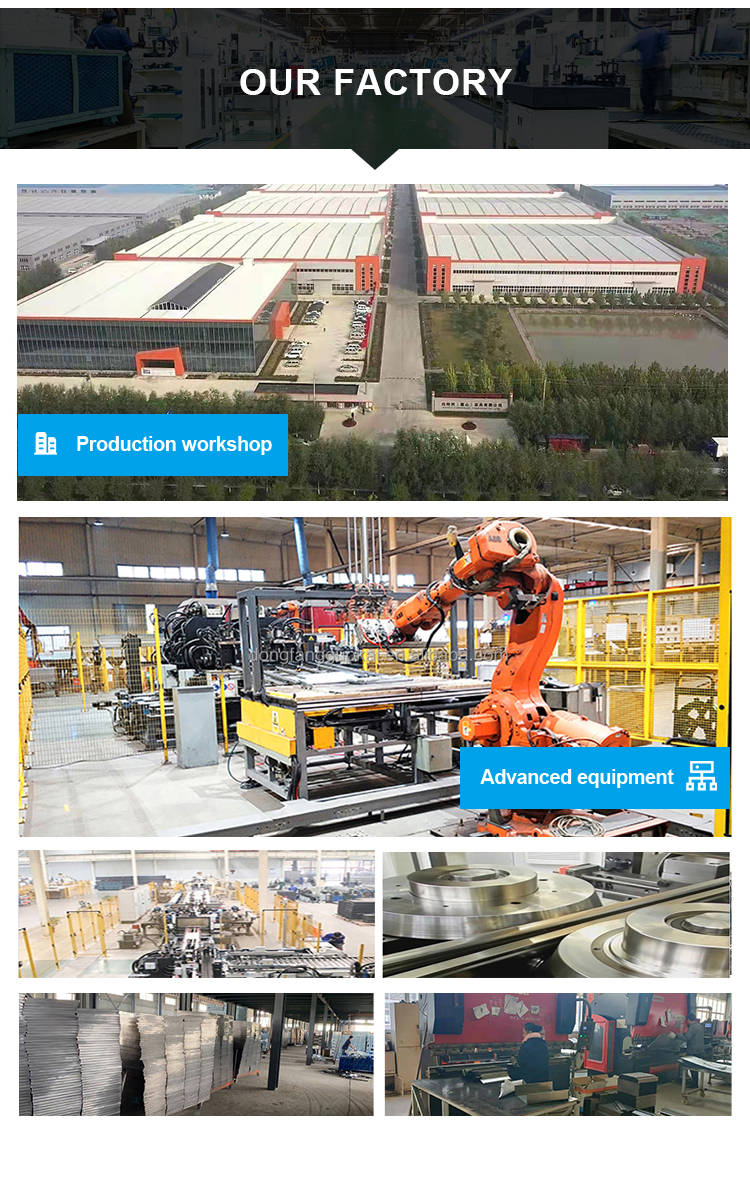

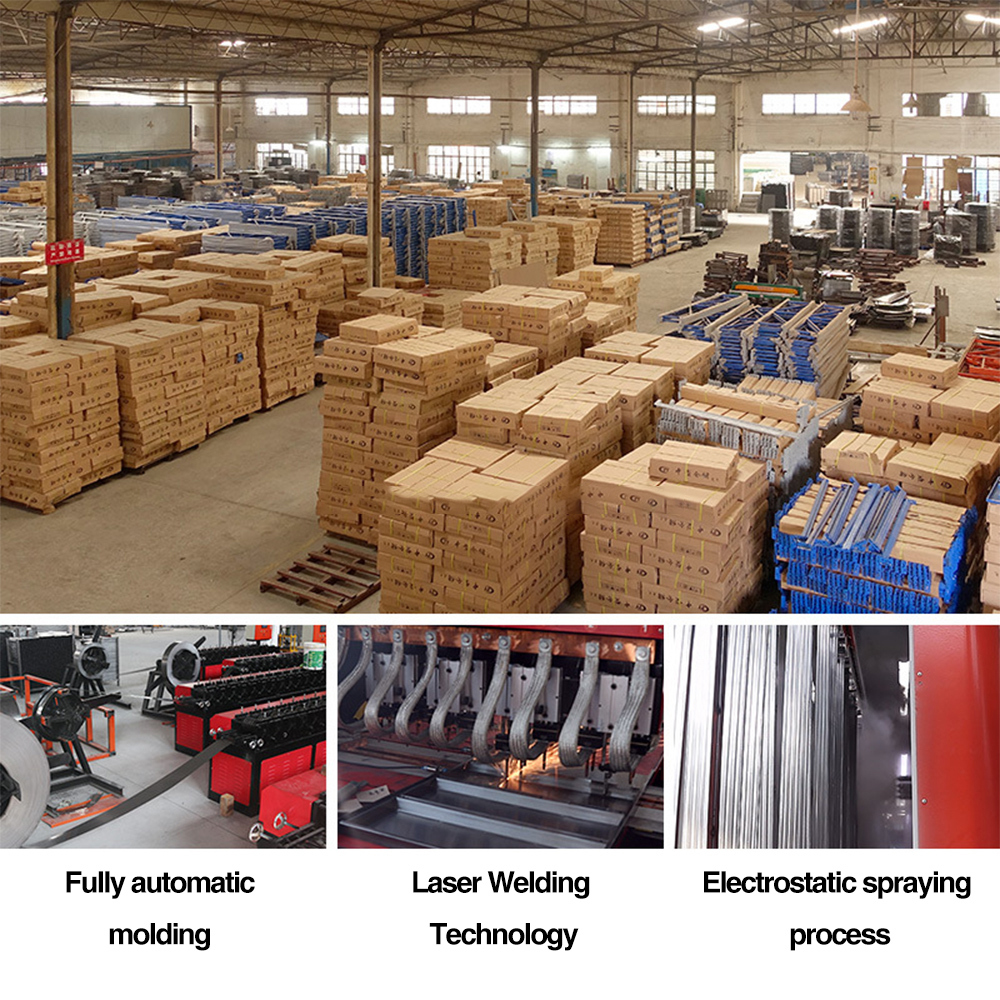

Company Profile
Beijing Dongfang Guokai Industrial Equipment Co., Ltd. was established in 2003 with a registered capital of 210 million yuan. It is a high-tech enterprise specializing in the planning, design, manufacturing, installation, and consulting services of fully automated three-dimensional warehouse systems, warehouse shelf systems, WMS/WCS software systems, and specialized logistics appliances. The headquarters is located in Beijing, the capital city, and has established branches and factories in many places throughout the country.
The company has strong technical and R&D capabilities, and its products are widely used in third-party logistics, cold chain, food and beverage, medicine, complete vehicles and components, e-commerce, and other fields at home and abroad. It has successfully obtained the manufacturing qualification for Class B equipment in the "List of Equipment Manufacturers of the People's Liberation of China", and has been recognized as a "high-tech enterprise" by the government.
The company is committed to establishing a sound quality control system, and its independently developed and produced products have passed the certification of IS09001:2015 international quality system, ISO14001:2015 international environmental management system, etc. Currently, the main products include a series of high-end shelf products such as fully automated three-dimensional warehouse systems, shuttle car shelves, crossbeam shelves, drive-in shelves, electric mobile shelves, attic shelves, steel structure platforms, shelf shelves, fluent shelves, cantilever shelves, and various logistics special appliances.
Certifications
Each of our products has passed the authoritative professional certification, and there are about 100+ patents to ensure your peace of mind.
Frequently Asked Questions
Are you a manufacture or trading company?
Since 2003, we have started to provide overall warehouse solutions. We have two factories located in Tianjin and Nanning, China. Welcome to visit anytime.
What information is required for an automated warehouse quotation request?
First of all, we need to know the number of your storage space, the maximum number of goods in and out per hour, and the size of the warehouse. This is a complex system, and we need to fully communicate.
Could you produce according to customers' design?
Of course, we have rich experience in the overall warehouse solution, and we build hundreds of projects every year.
What are your payment terms and delivery time?
Payment Terms: 40% deposit upon signing the contract, the balance will be cleared by T/T before delivery. Delivery Time: 25-35 working days after received deposit, according to the order quantity and drawing size.
How could I install the racks?
We provide detailed installation instructions for every type of shelf. If needed, we can also assign engineers to guide and teach you.
What is the manner of packaging?

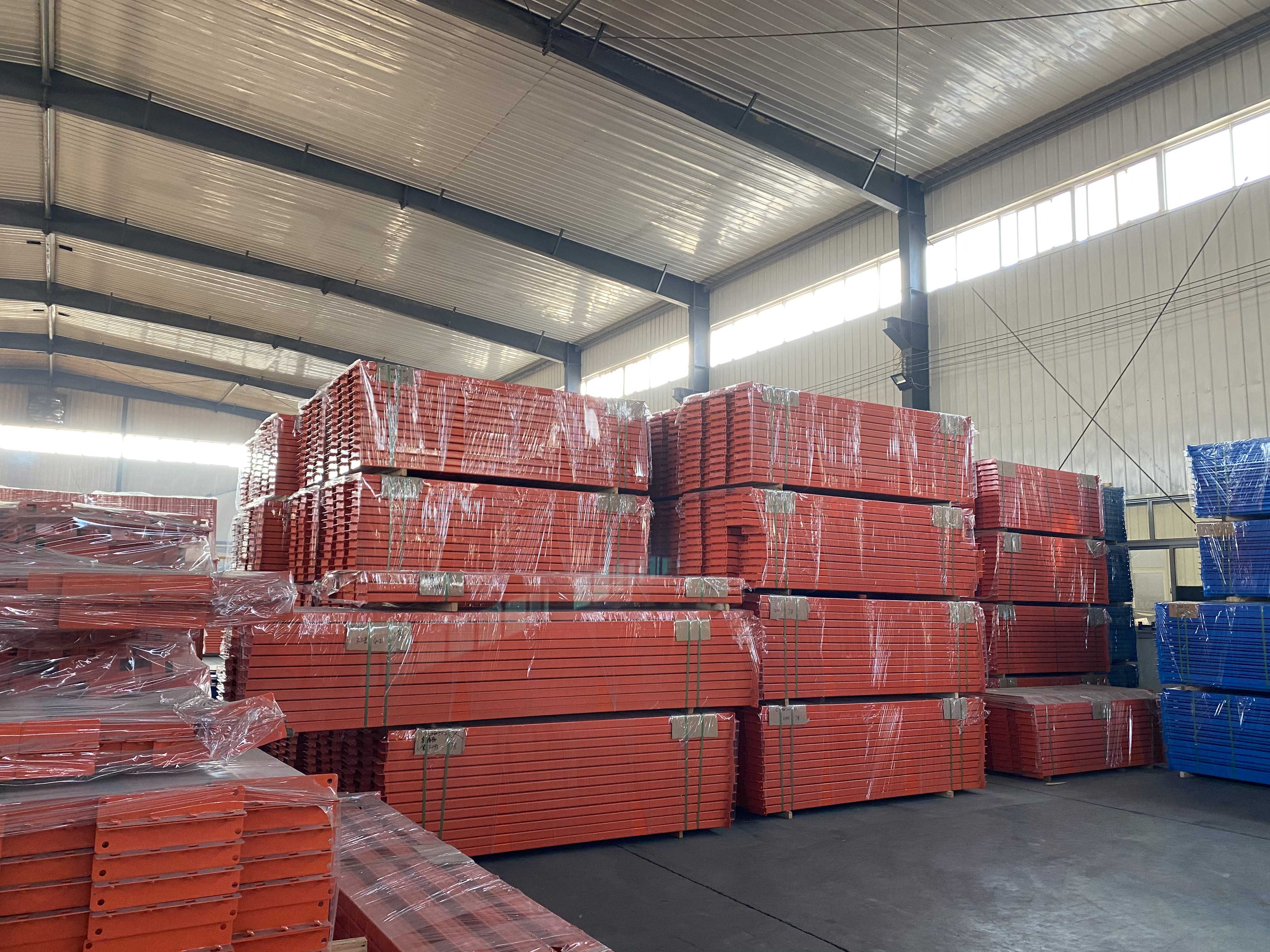

Generally, shelves are flat packed with air bubble film in standard export cartons. Other packaging methods like wooden boxes are available according to clients' requirements.
