Mracking Industrial Storage Mezzanine Platform China Wholesale Multi-Tier Warehouse Rack Design Steel Material Easy Installation
Product Description
Product Description

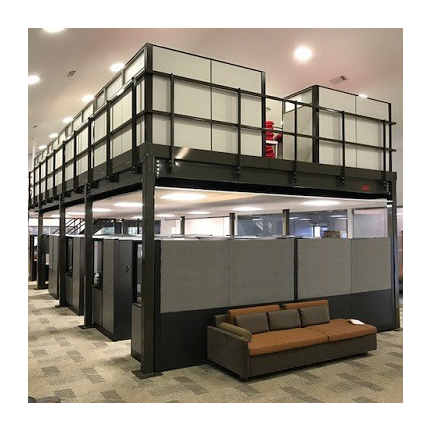

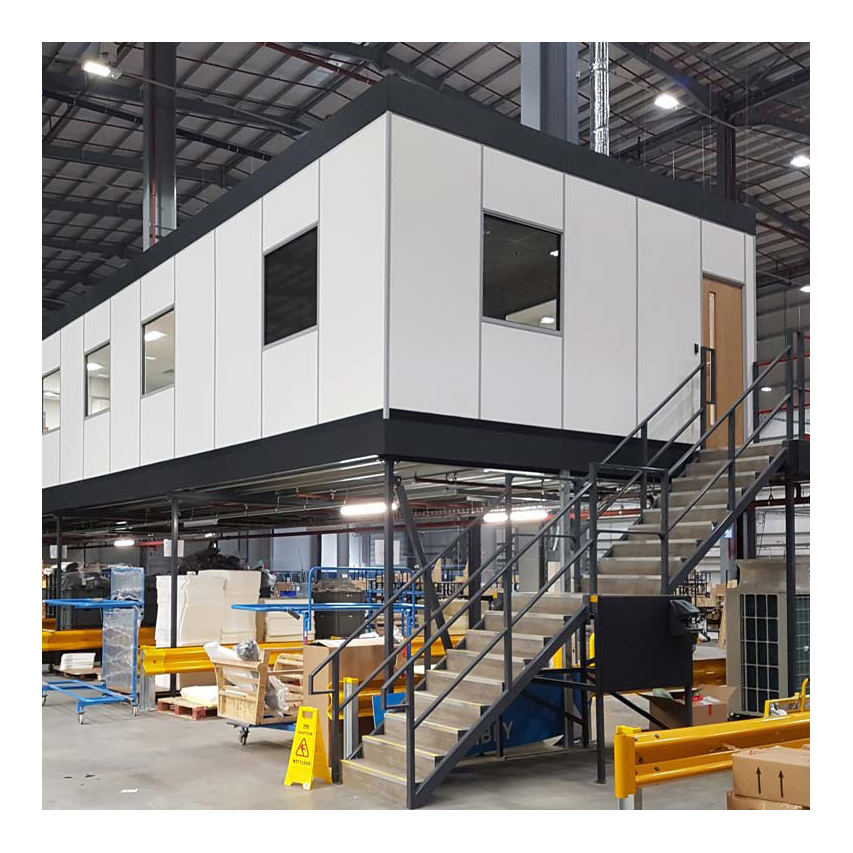

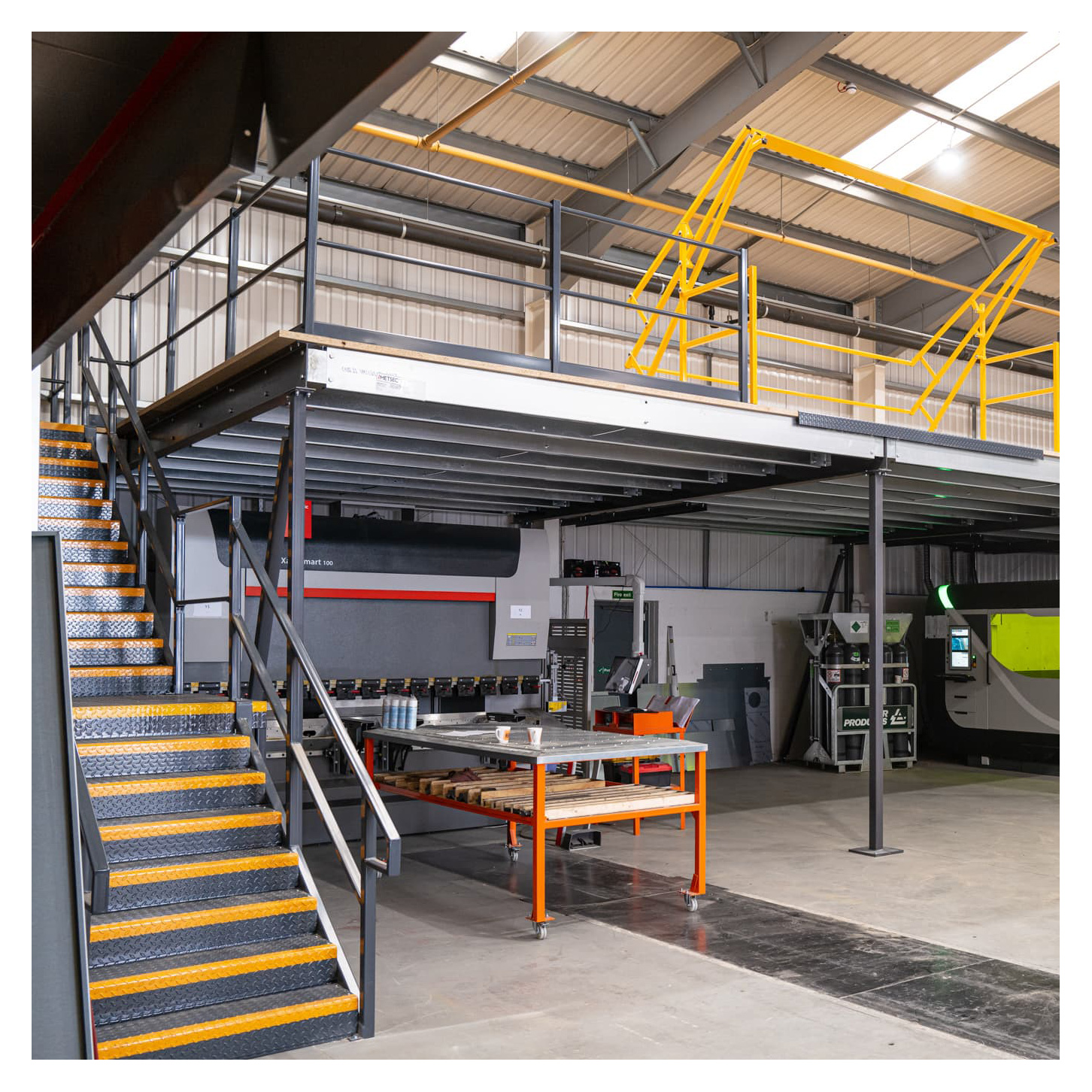

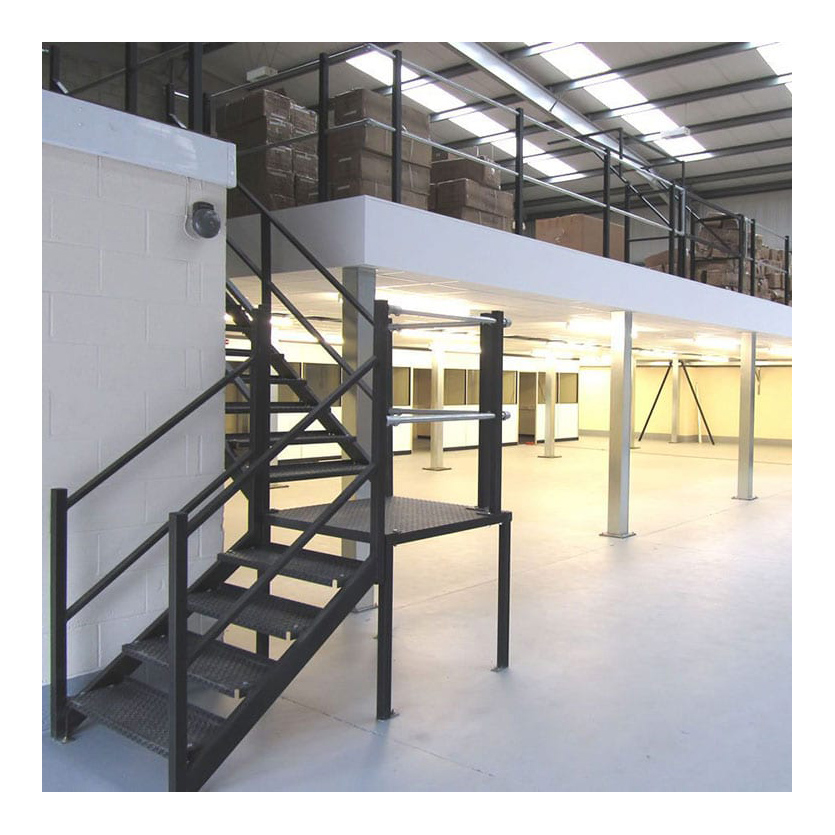

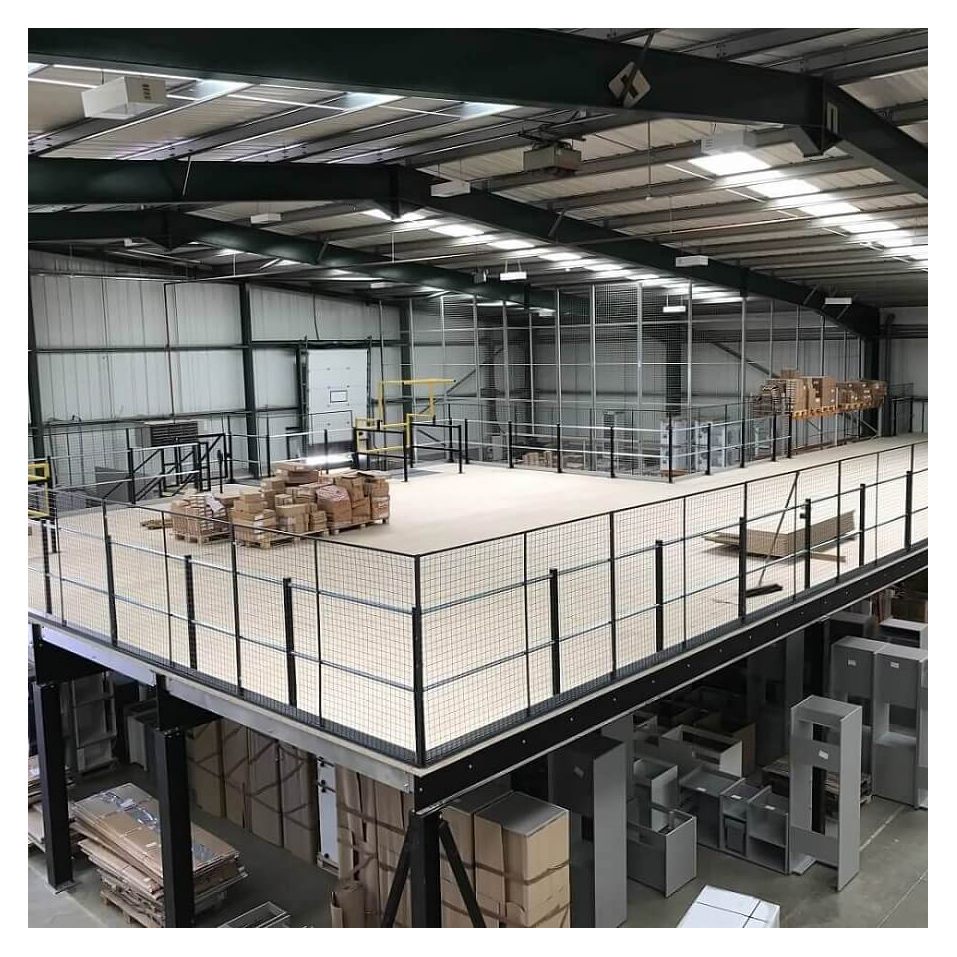

H beam steel mezzanine platform adopts H-type steel and cross beam as the major supporting structure for the steel panel. Usually, steel panels or MDF panels are configured for the mezzanine floor, equipped with matching staircases and guardrails. It can seamlessly integrate with cargo lifts to maximize handling efficiency.
Suitable for warehouses with higher ceilings, large loading capacity demands, longer spans, and bulk storage requirements. It fully utilizes vertical space, effectively doubling storage capacity. Widely used for electronics, hardware, communication equipment, printing, and various industrial applications.
| Brand | XINMIAO |
| Raw Material | High-Quality Q235 Cold Rolled Steel |
| Color | Upright frame in blue, Beam in orange (Fully customizable) |
| Height | Customized based on warehouse specifications |
| Width / Depth | Customized based on warehouse specifications |
| Length | Customized based on warehouse specifications |
| Loading Capacity | 200 ~ 5000 kg per sqm |
| Surface Treatment | Powder Coated Finish |
| Packing Term | Air bubble film, Wooden Case, etc. |
Upright & Main Beam Connection
Both components are manufactured from high-strength H-steel, ensuring substantial load capacity and extended span capabilities.
The major beams are secured by dedicated connector pieces on each side, significantly increasing the overall stability of the structure.
Support Beam & Main Beam Connection
Precision-engineered hanging pieces connect the support beam directly to the main beam.
The hanging piece is firmly welded onto the main beam, ensuring enhanced rigidity and load-bearing performance throughout the platform.
Steel Panel & Guardrail Connection
The steel panels and support beams are locked together using heavy-duty hooks, providing exceptional stability under operational weight.
The safety guardrail mounts seamlessly onto the main beam without drilling holes, preserving structural integrity without negative impact on beam strength.
Detailed Images
Product Overviews
Hot Sale Products
Heavy Duty Pallet Racking
Medium Duty Rack
Mould Rack
Cantilever Rack
Mezzanine Floor
Wire Mesh Container
Frequently Asked Questions
Q
Are you a manufacturer or trading company?
We are a professional racking manufacturer located in Dongguan, Guangdong.
Q
What material is used for the rack construction?
Our products are manufactured using premium high-grade Q235B cold rolled steel for optimum strength and durability.
Q
What is the standard delivery lead time?
Generally less than 15 workdays. The delivery time also depends on the order quantity and custom shelving design specifications.
Q
What are your standard payment terms?
Our standard terms require a 30% T/T down payment and 70% T/T settled before final delivery.
Q
How can I get a quick quotation for my racking project?
For an accurate and rapid quotation, please provide the following details:
- The overall dimensions of the rack: Length × Depth × Height.
- Number of layers required per set.
- Target load capacity per beam layer.
- Total racking quantity required.
Q
Are product samples available and how is quality controlled?
We can provide free samples with freight collect. For quality assurance, quality is always our top priority and our factory is certified under ISO 9001 2001 standards.
