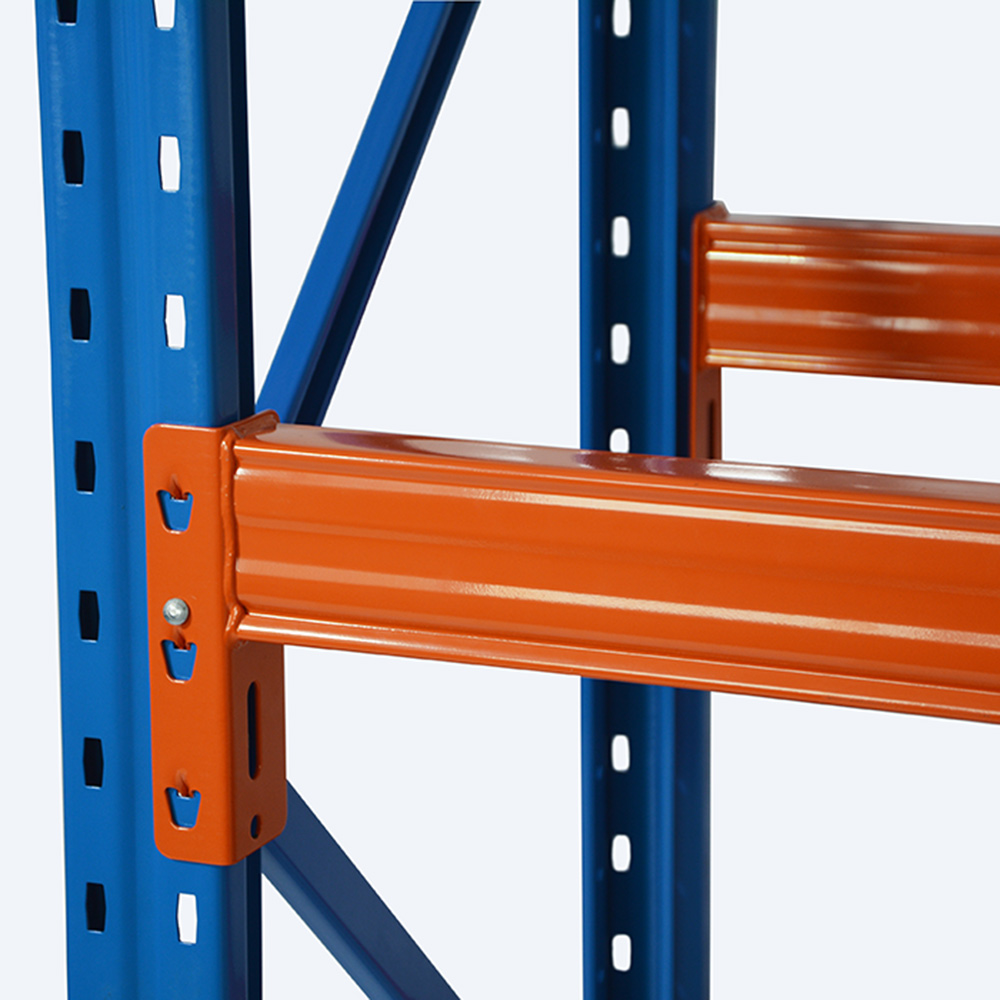

Heavy Duty Pallet Racks Redirack Teardrop Hole Canada Storage Racking System Drive-in Mezzanine System
Product Description
Products Description

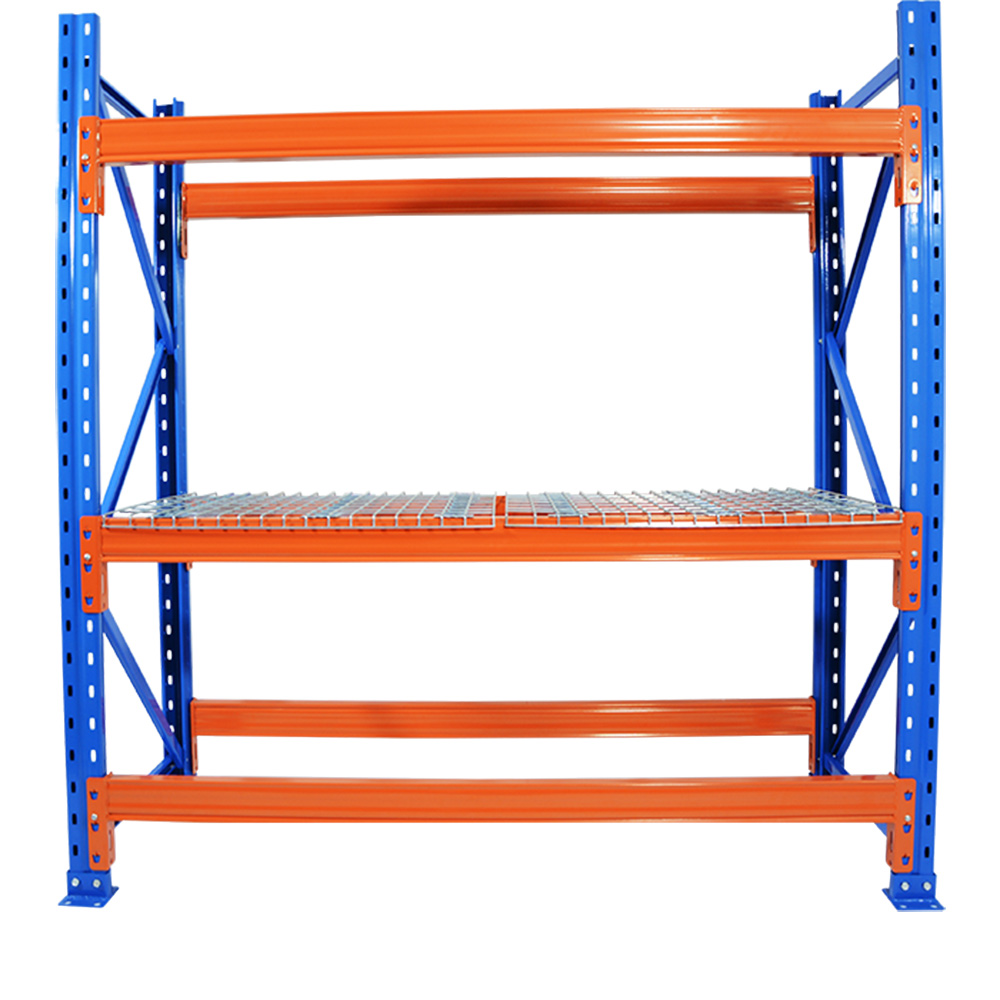

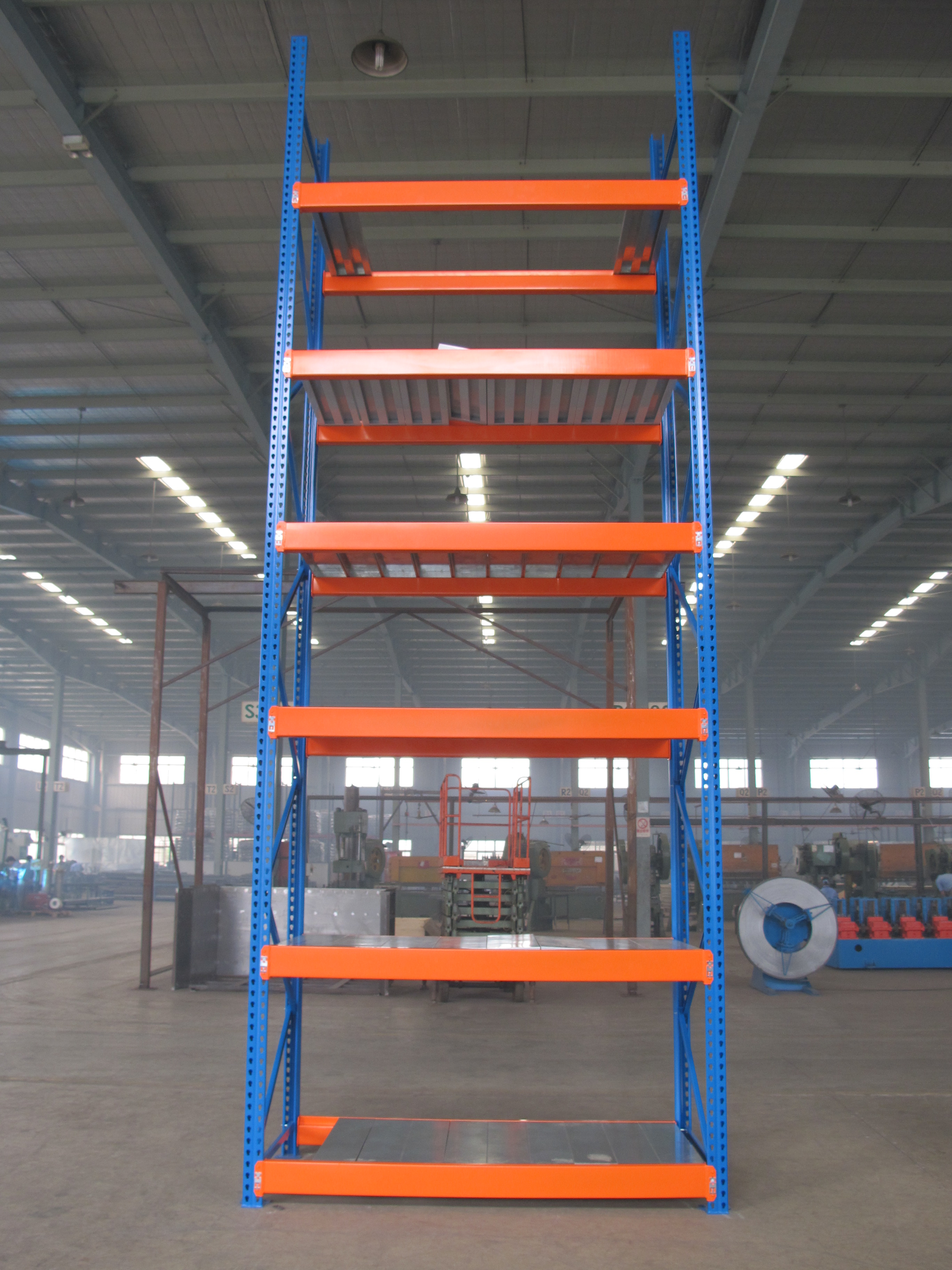

Selective Pallet Racking is the simplest & economical racking system which allows 100% accessibility to each pallet. This racking is suitable for large variety of SKU’s irrespective of quantity.
100% selective of goods / pallets
Most economical to maximise warehouse space
Picking rate: Fast
Floor space utilization: 30% to 40%
Most popular application / solution to warehouse storage solution

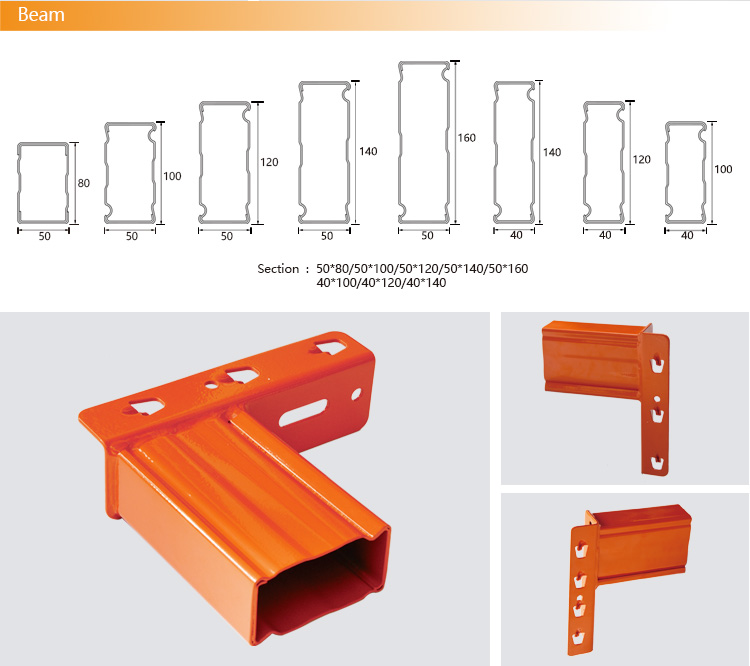

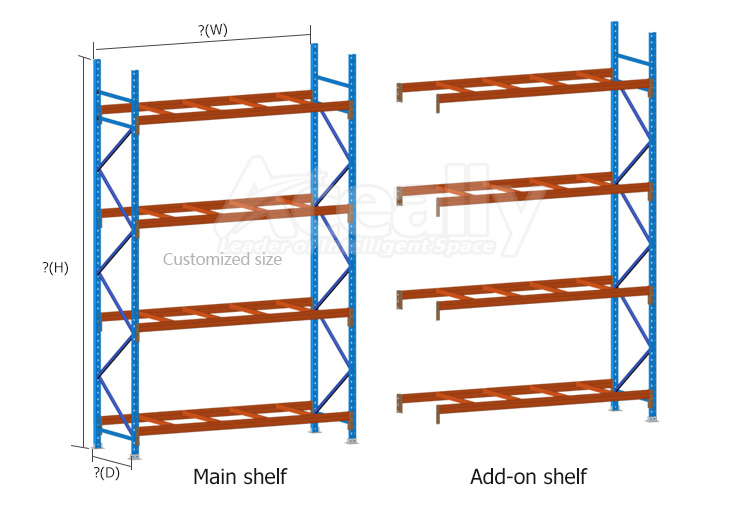

Technical Specifications & Load Capacity
| Length | 80x50 | 100x40 | 100x50 | 110x50 | 120x40 | 120x50 | 140x40 | 140x50 | 160x50 |
|---|---|---|---|---|---|---|---|---|---|
| 1500 | 4286 | - | - | - | - | - | - | - | - |
| 1800 | 2977 | - | - | - | - | - | - | - | - |
| 1900 | 2672 | 3809 | 4535 | - | - | - | - | - | - |
| 2200 | 1993 | 2841 | 3382 | 4219 | - | - | - | - | - |
| 2300 | 1823 | 2599 | 3095 | 3860 | 3918 | - | - | - | - |
| 2400 | 1674 | 2387 | 2842 | 3545 | 3598 | 4284 | - | - | - |
| 2500 | 1403 | 2000 | 2381 | 2970 | 3014 | 3598 | 4340 | - | - |
| 2600 | 1297 | 1849 | 2201 | 2745 | 2787 | 3318 | 4010 | 4771 | - |
| 2700 | 1203 | 1715 | 2041 | 2546 | 2584 | 3077 | 3145 | 3716 | - |
| 3000 | 974 | 1389 | 1655 | 2065 | 2093 | 2492 | 3010 | 3585 | - |
| 3300 | 708 | 1010 | 1202 | 1500 | 1522 | 1812 | 2189 | 2610 | 3555 |
| 3600 | 600 | 849 | 1010 | 1260 | 1279 | 1523 | 1839 | 2190 | 2986 |
| 3800 | 540 | 762 | 907 | 1135 | 1148 | 1369 | 1658 | 1965 | 2680 |
| 4000 | 485 | 687 | 818 | 1024 | 1036 | 1235 | 1550 | 1774 | 2419 |
Product Packaging

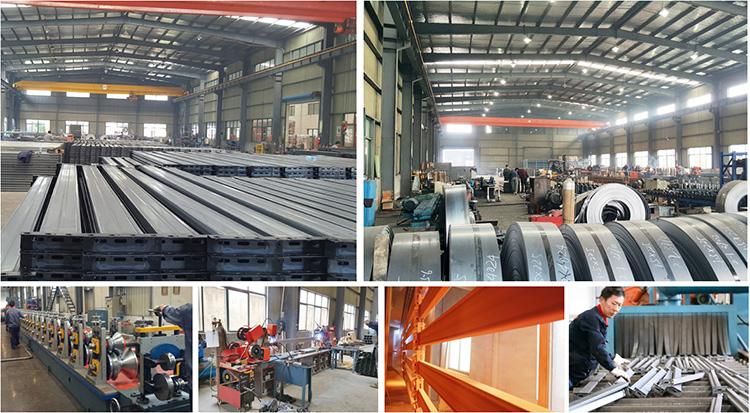

Workshop Show

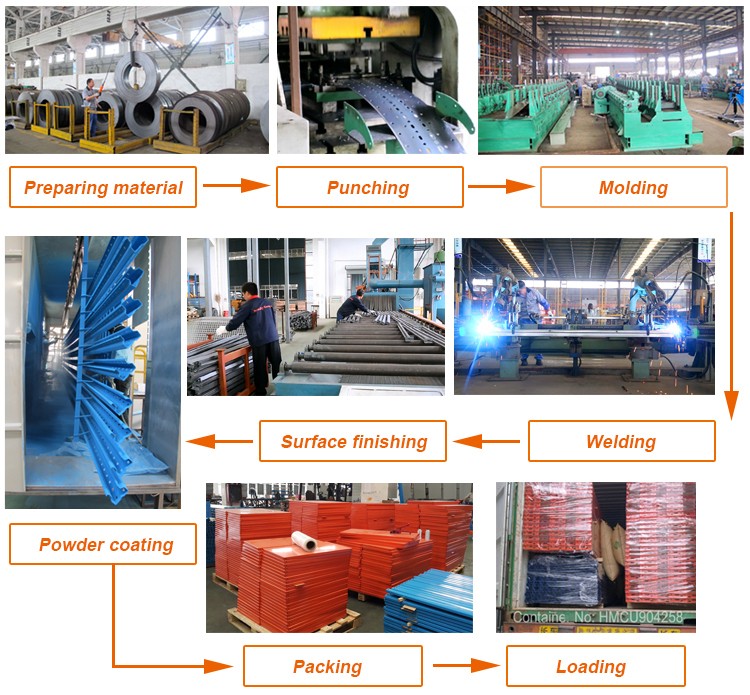

Productive Process
Aceally Brand
Company Information
Company Profile
Aceally (International) Group is a manufacturer of innovative and professional logistics equipment products for warehousing storage markets worldwide. Which specializes in light duty shelving, medium duty racking, heavy duty ones and various storage and shelving solutions for nearly 15 years. Please feel free to contact our highly knowledgeable staff and allow us the pleasure of proposing the most innovative and affordable solution to your material handling needs.
Frequently Asked Questions (FAQ)
Q
What is Selective Pallet Racking and how does it work?
Selective Pallet Racking is the most popular and cost-effective warehouse storage system. It allows direct, 100% individual access to every single pallet position without having to move other pallets, making it ideal for facilities managing a wide variety of SKUs.
Q
What is the average floor space utilization rate of this system?
Selective pallet racking typically utilizes 30% to 40% of the warehouse floor space for actual storage, with the remaining area dedicated to aisles for fast forklift travel, loading, and high-speed order picking operations.
Q
Can beam levels be adjusted for different load sizes?

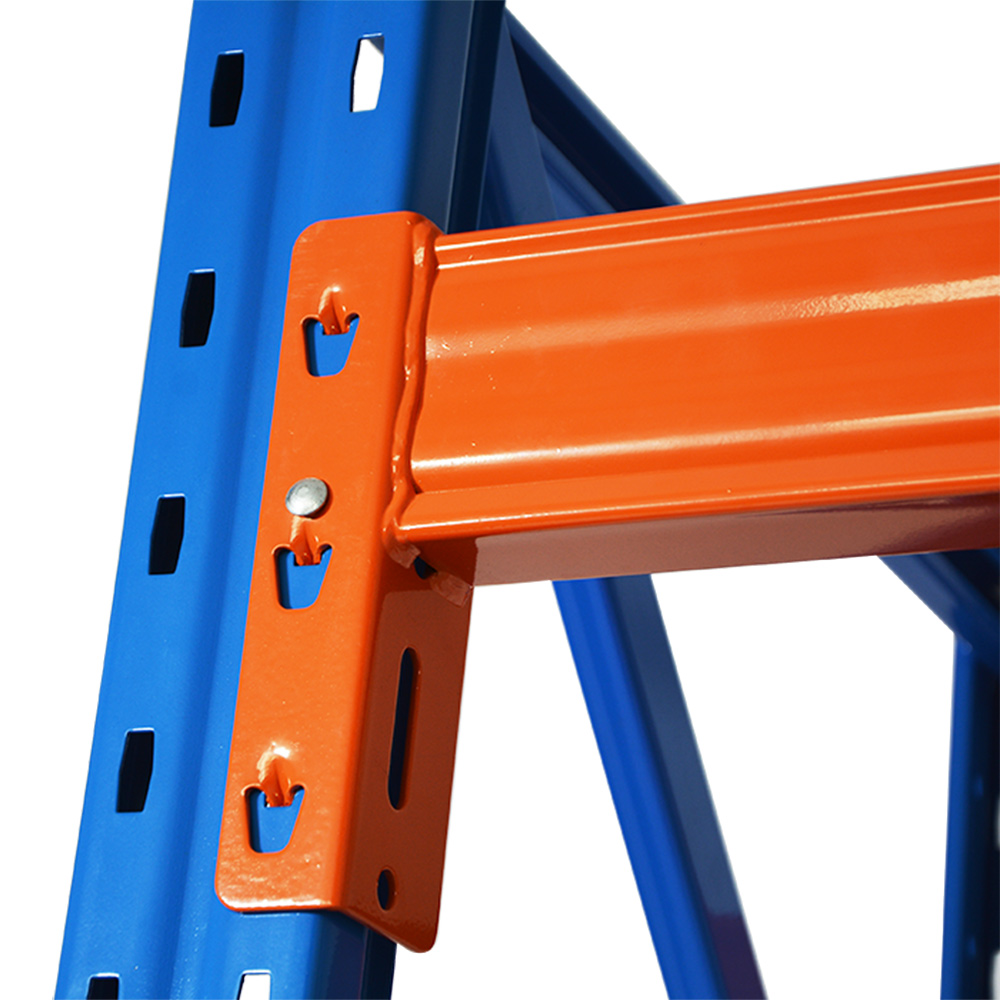

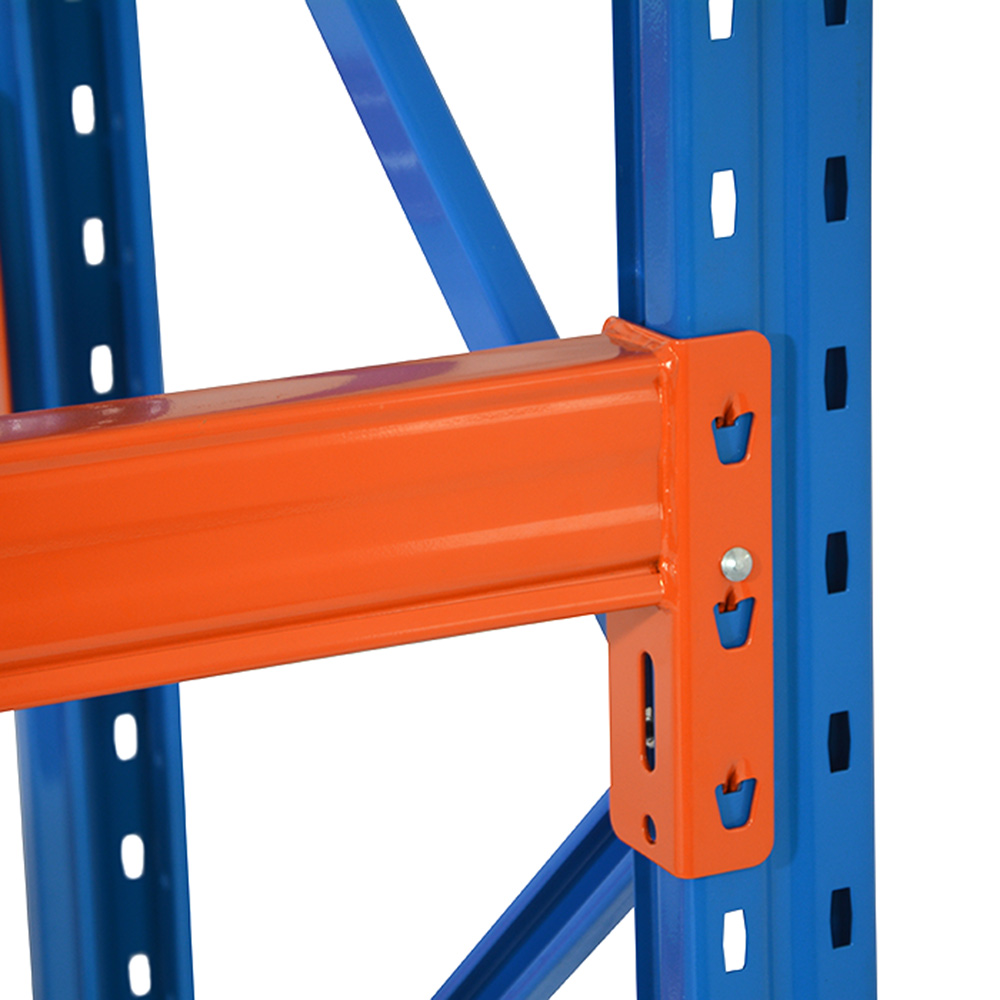

Yes, the horizontal beams can be easily adjusted vertically on the upright columns in standard pitch increments (such as 50mm or 75mm), allowing flexible accommodation for varying pallet heights and unit load requirements.
Q

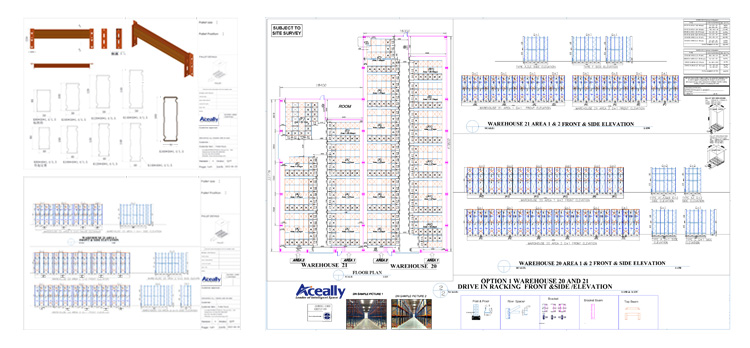

What information is required to get an accurate racking quote and design?

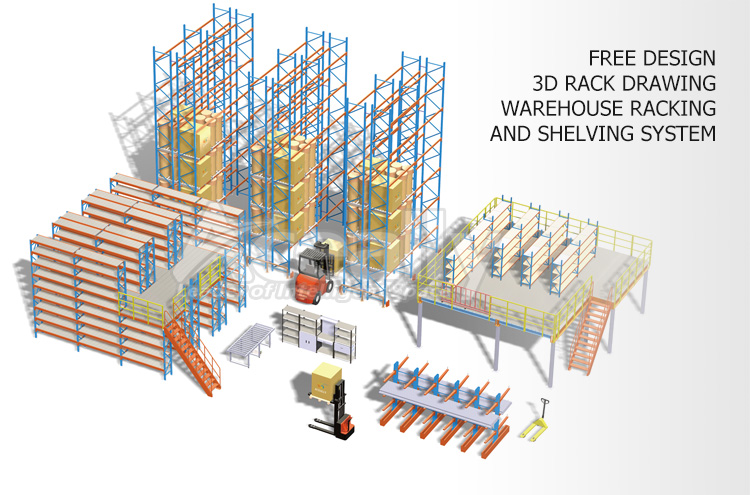

To provide an optimal layout and quotation, we require your pallet dimensions (Width x Depth x Height including cargo), maximum load weight per pallet, warehouse ceiling clear height, forklift model specifications (turning radius and lift height), and an architectural building layout if available.
Q
Are Aceally storage racks certified to international safety standards?
Aceally racking systems are engineered and manufactured in strict compliance with international structural and safety criteria, including AS4084, FEM 10.2.02, and ISO standards, ensuring maximum stability, durability, and operational safety.
Q

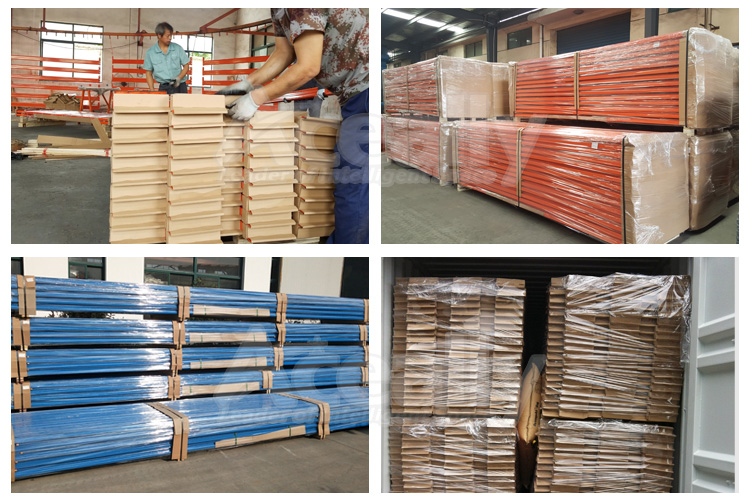

How are the rack components packaged to prevent damage during transit?
Upright frames and horizontal beams are bundled with protective strapping, corner protectors, and air bubble film or plastic wrap. Small hardware accessories and safety pins are securely packed in sturdy corrugated export cartons.
