Engineered with premium Q235B cold-rolled structural steel, electrostatic thermoset powder coatings, and computerized continuous roll forming, our rack assemblies are built for intense cycle times across Indian 3PL and industrial distribution parks.
Rugged industrial shelving fabricated from prime grade cold-formed steel. Engineered with reinforced box-beams and heavy multi-bend upright frames to handle high-density palletized merchandise or heavy unpalletized machinery components.
Sanitary commercial wire shelving system electro-plated with mirror chrome finish. Designed for cleanroom applications, pharmaceutical staging bays, food and beverage processing, and cold-room order picking requiring continuous ventilation.
Interlocking boltless rivet shelving designed for rapid modular erection without hardware fasteners. Supports medium-duty manual picking aisles, carton storage hubs, e-commerce sortation, and central automotive spare parts rooms.
Heavy-duty selective pallet racking optimized for 100% SKU selectivity. Compatible with Euro, ISO, and standard Indian pallets (1200x1000mm). Features multi-claw locking connectors with high shearing safety pins for counterbalanced forklifts and reach trucks.
High-rigidity step-beam shelving featuring galvanized or cold-rolled steel drop-in shelves. Perfect for workshop tool storage, regional hardware retail warehousing, textile bins, and maintenance, repair, and operations (MRO) spare parts depots.

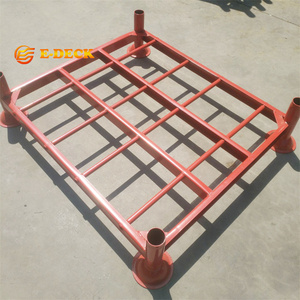

Demountable post-pallet management systems engineered for seasonal inventory spikes, bulk raw agricultural goods, textiles, and tyre storage. Stacks up to 4 to 5 units high without anchor drilling into warehouse floor slabs.
Rack-supported high-bay engineering combining building structural frames with heavy pallet racking. Designed for cold storage buildings, agrochemical storage, and external warehouse expansions needing hot-dip galvanized weather protection.
Heavy wire mesh deck racking engineered to fulfill international NFPA & Indian NBC fire safety compliance. Ensures unhindered overhead sprinkler water penetration, light illumination, and dust prevention in modern Class-A logistics facilities.
Operating a warehouse in India presents distinct physical and regulatory challenges: high-humidity coastal monsoon environments, varying floor slab capacities in leased godowns, and hyper-dynamic throughput requirements. Here is how Heda Shelves tailors engineering to your region.
Industrial warehousing across Maharashtra (Bhiwandi, JNPT corridor), Tamil Nadu (Sriperumbudur), Gujarat, and West Bengal confronts ambient humidity exceeding 85% during monsoon periods. Standard cheap paint quickly undergoes blistering and under-film rust creep. Heda Shelves implements an intensive chemical pickling and phosphating pre-treatment followed by electrostatic thermosetting polyester powder coating baked at 180°C. For chemical and sub-zero cold room environments, we supply hot-dip galvanization achieving zinc coatings over 60–85 microns for uncompromised anti-corrosion lifespans.
Warehousing clusters spanning Delhi-NCR (Farukhnagar, Bilaspur, Luhari), Punjab, and parts of Gujarat fall under moderate to severe seismic vulnerability (Zone IV & V). Many imported racks fail due to narrow footplates and undersized anchors. Our technical teams run structural stress analysis compliant with IS 1893 and European EN 15512 codes, engineering oversized baseplates, paired mechanical expansion anchor studs, and specialized cross-aisle X-bracing towers that prevent catastrophic structural collapse during dynamic shockwaves.
A frequent challenge for Indian 3PLs and logistics operators renting older or speculative Grade-B industrial properties is an unknown or inadequate slab load-bearing rating (frequently below 4–5 Tons/m² with non-FM2 floor tolerances). Setting high-bay racks on such slabs can cause punch shear failure or upright leaning. Heda’s design engineers utilize custom load-distributing spreader plates and calculated column spacing to safely dissipate point loads across wider surface footprints without cracking pre-existing concrete.
The rapid execution of India’s National Logistics Policy (NLP), dedicated freight corridors (DFC), and GST harmonization has triggered an unprecedented transition from low-height fragmented sheds into institutional Grade-A logistics parks exceeding 10 to 14 meters in clear ceiling height. This evolution has altered how supply chain directors specify pallet storage systems:
With per-square-foot industrial real estate prices appreciating rapidly in Chakan (Pune), Hoskote (Bengaluru), and Bhiwandi, warehouse operators are moving away from 4-meter storage toward 12-meter Very Narrow Aisle (VNA) and Double-Deep pallet configurations, cutting aisle width down to 1.7m and unlocking over 65% more pallet capacity.
Urban micro-fulfillment hubs and large regional sorting distribution centres (handling 100,000+ individual SKUs) are prioritizing rack-supported multi-tier mezzanine floors. By integrating gravity carton flow rollers and walk-ways directly onto heavy-duty upright frames, operators multiply picking surface area by 300% without incurring new commercial lease fees.
Shortlist the optimal storage system architecture according to your pallet dimensions, forklift fleet availability, SKU turnover velocity, and CAPEX budget constraints.
| Racking Architecture | Pallet Accessibility | Space Utilization | Stock Rotation Strategy | Recommended Material Handling Equipment (MHE) | Primary Industrial Use Cases in India |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Direct Access | Average (~40% Floor) | FIFO or LIFO | Standard Counterbalance, Reach Truck | FMCG, 3PL Warehousing, Retail Distribution Hubs |
| Double Deep Racking | 50% Direct Access | High (~60% Floor) | LIFO | Pantograph or Telescopic Reach Truck | Manufacturing Buffers, Raw Material Staging |
| Drive-In / Drive-Through | Low (Lane Specific) | Maximum (~75% Floor) | Strict LIFO (FIFO with Drive-Thru) | Counterbalance Forklift (Caged Cab) | Cold Storage (Dairy/Potato), Beverage Bottling Plants |
| Radio Shuttle System | Semi-Automated Lane | Maximum (~80% Floor) | Flexible FIFO & LIFO | Any Standard Forklift (Does not enter rack) | High-Throughput Frozen Food, Agri-Processing, Pharma |
| Heavy Cantilever Racks | 100% Direct Front | High for Long Items | Random Order | Side Loader, Multi-directional Reach Truck | TMT Steel Bars, PVC Conduits, Aluminium Extrusions |
| Rack-Supported Mezzanine | 100% Hand-Pick Access | 200% - 300% Floor Area | Any Batch Picking Method | Pallet Jacks, Vertical Goods Lifts, Chutes | Apparel, E-Commerce Fulfillment, Electronics Spares |
Operating a sprawling 30,000 square meter factory base in Guangzhou, China, Guangzhou Heda Shelves Co., Ltd. represents over 25 years of specialized storage rack production. Here is how our production excellence delivers total supply security to your port.
We source certified Q235B high-tensile steel coils directly from domestic top-tier mills (Baosteel/Shougang). Each batch is verified for yield strength, elongation, and chemical balance to eliminate structural weld brittle failure under intense dynamic loading.
Our in-house 10-stage automated finishing includes deep chemical degreasing, multi-cycle rinsing, hot acid pickling, and micro-crystalline zinc phosphating before electrostatic spray. This guarantees powder coating adhesion capable of passing severe cross-hatch testing.
We operate independent cold-roll forming profile lines, robotic CO₂ gas-shielded welding arms, and heavy CNC punching stations. From custom upright widths (80/90/100/120mm) to corporate color powder finishes, we configure components exactly to your specifications.
Exporting to India requires clean documentation and precise packaging. Our warehouse loading teams palletize upright frames and bundle cross-beams with anti-abrasion protective wrapping, optimizing 40ft High Cube container cube utilization to lower CIF freight costs to Nhava Sheva or Mundra.
Clear, direct answers regarding shipping logistics, customs duties, import clearance, installation oversight, and structural design standards.
We ship full container loads (FCL: 20GP, 40GP, 40HQ) from Guangzhou / Nansha / Shenzhen ports directly to major Indian commercial ports. Typical ocean transit times: Nhava Sheva (JNPT, Mumbai) and Mundra (Gujarat): 14 to 18 days; Chennai and Tuticorin: 12 to 16 days; Kolkata / Haldia: 16 to 20 days. Inland transit to dry ports (ICDs) such as Tughlakabad (Delhi-NCR), Dadri, Garhi Harsaru, Whitefield (Bengaluru), and Sanathnagar (Hyderabad) can be easily coordinated via your nominated forwarder or our freight partners.
We provide complete, compliant documentation under the correct HS Code classification (typically HS 7308.90 - Structures and parts of structures of iron or steel). Documentation includes: Clean On Board Commercial Bills of Lading (B/L), Detailed Commercial Invoices, Itemized Weight-Breakdown Packing Lists, Mill Test Certificates (MTC) verifying steel chemical properties, and Certificates of Origin (Non-Preferential COO). This ensures straightforward duty calculations and rapid clearance by your local Customs Broker (CHA).
Our engineering calculation sheet models upright column sectional modulus against dead loads, live pallet weights, and dynamic earthquake ground acceleration specific to your Indian city. For sites located in Zone IV (e.g., Delhi, Rohtak, Patna) or Zone V (Guwahati, Bhuj), we increase the steel gauge thickness of upright profiles (e.g., upgrading from 1.8mm to 2.0mm or 2.5mm Q235B), add heavy-duty floor anchor anchor bolts, and specify horizontal and vertical stability bracing frames to satisfy structural inspection audits.
We provide two primary installation routes: 1. Comprehensive Local Erection Support: Every export shipment includes clear piece-marked CAD floor blueprints, step-by-step 3D assembly guides, and high-definition video walkthroughs allowing local Indian warehouse fabrication and mechanical contractors to install the system smoothly. 2. Factory Supervisor Dispatch: For large multi-tier mezzanine installations or radio shuttle automation projects, Heda can dispatch an experienced site installation engineer to supervise local labor, verify torque specs on anchor bolts, and conduct pre-commissioning alignment tests.
To enable our structural designers to generate an optimized AutoCAD design and accurate quotation within 24 hours, please share: 1. Building Architectural CAD/PDF showing clear warehouse internal height, dock gate positions, and column grid spacing. 2. Pallet Specifications: Width (W) × Depth (D) × Overall Loaded Height (H) including pallet base, plus Maximum Gross Pallet Weight. 3. Material Handling Equipment: Forklift model, minimum turning radius (ast), and maximum mast lift height. 4. Project City: To account for local seismic and climatic environmental factors.
Consult with Guangzhou Heda Shelves Co., Ltd.'s structural engineering team today. We provide full warehouse CAD layouts, seismic load calculations, and comprehensive containerized CIF quotations for your warehouse projects across India.
