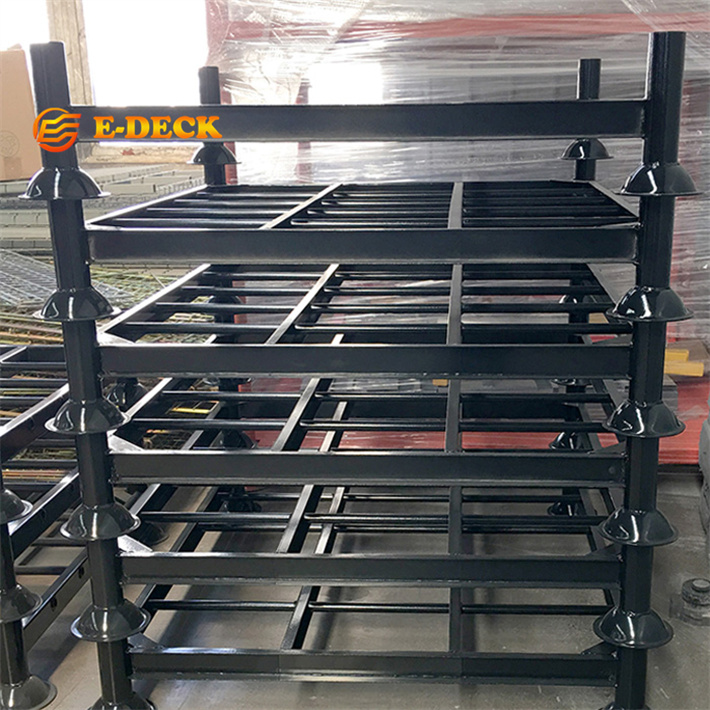

Heavy-duty Steel Metal Logistic Stackable Storage Post Pallet Racks
Product Description

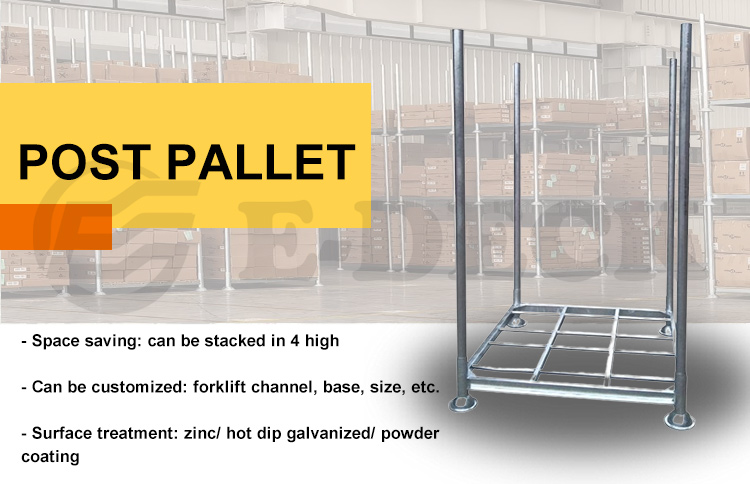

Heavy-duty Steel Metal Logistic Stackable Storage Post Pallet Racks

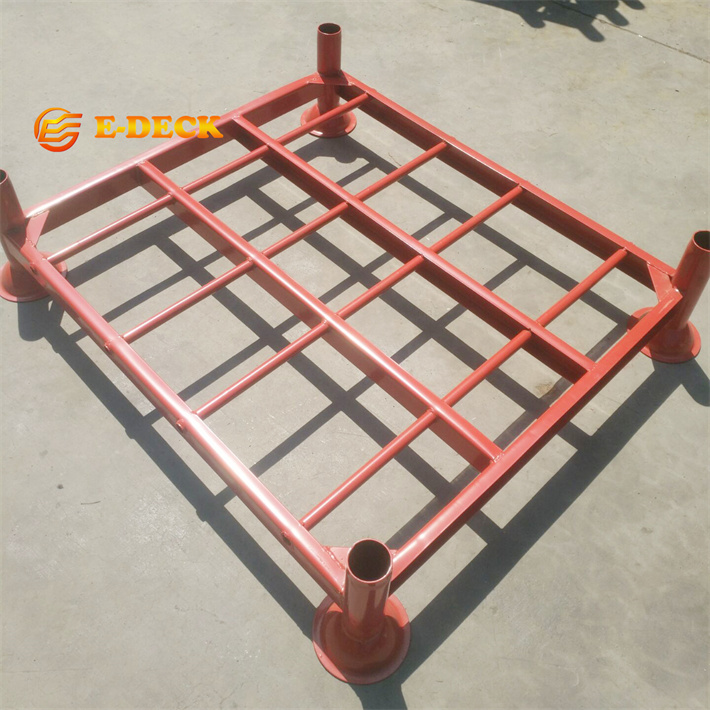

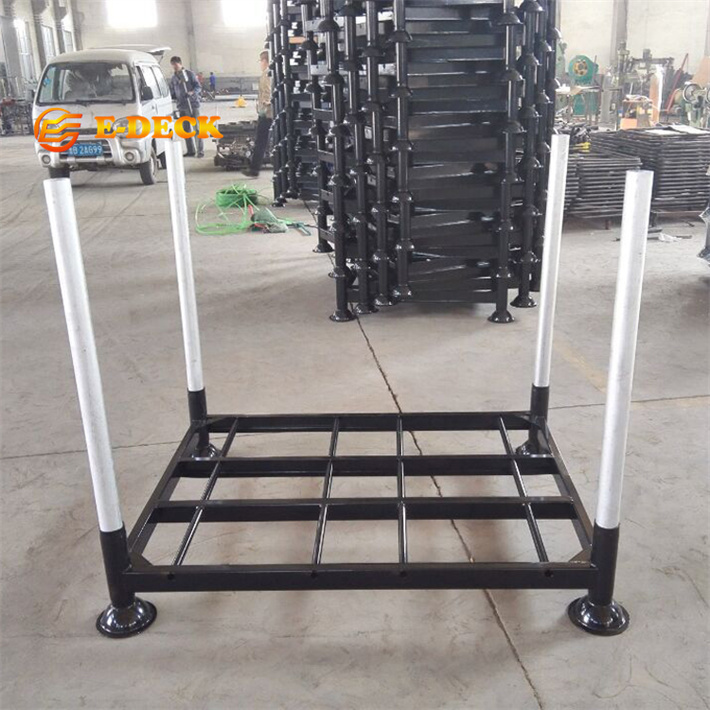

1 set = 1 base + 4 posts

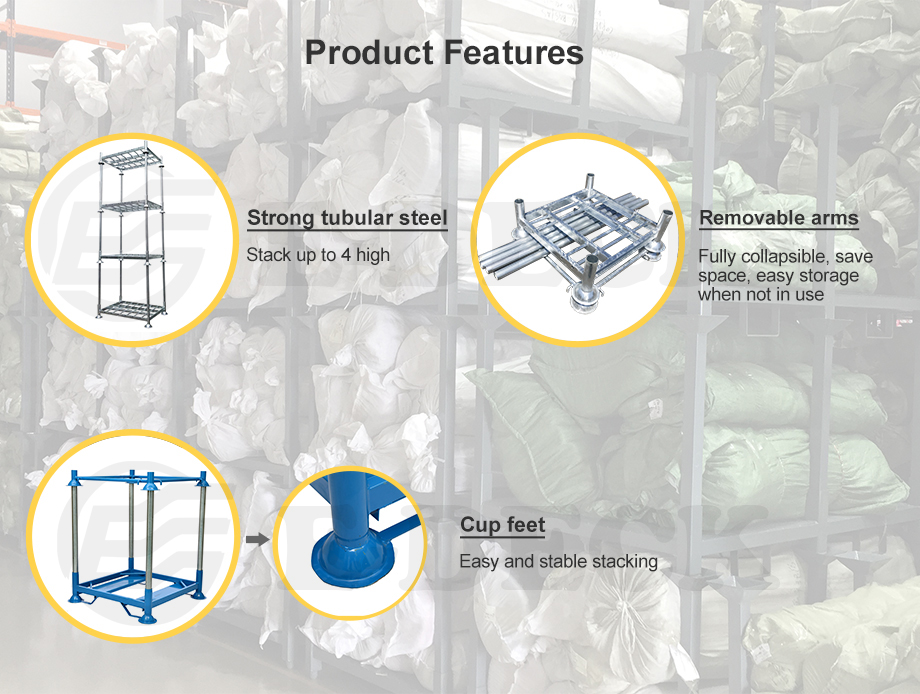

Key Features
Feature 01
Strong tubular steel: Stack up to 4 units high securely.
Feature 02
Removable arms: Fully collapsible design to save space and enable easy storage when not in use.
Feature 03
Cup feet: Engineered for quick, stable, and safe stacking.
Feature 04
Hot-dip galvanized finish: Corrosion resistant and fully suitable for outdoor and cold storage environments.
Specification of Storage Post Pallet

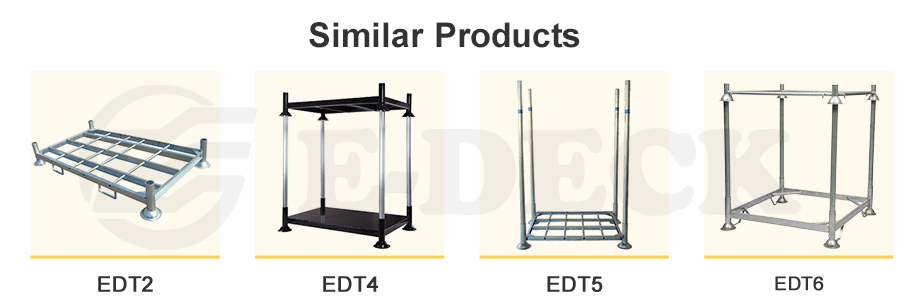

| Model No. | Exterior Dimension | Loading Capacity | Finish | Quantities | Total Container |
|---|---|---|---|---|---|
| LxWxH (mm) | kg | Type | Sets | Specification | |
| EDT1-Base | 1395x1060x310 | 1500 | Zinc | 250 | 1x40'HQ |
| EDT1-Post | 1200x60x2.5 | Zinc | 1000 | - | |
| EDT2-Base | 1875x1060x310 | 2000 | Zinc | 150 | 1x40'HQ |
| EDT2-Post | 1200x60x2.5 | Zinc | 600 | - | |
| EDT4-Base | 1545x1050x310 | 1000 | Powder coating | 247 | 1x40'HQ |
| EDT4-Post | 1510x60x2.5 | Zinc | 988 | - | |
| EDT5-Base | 1200x1000x310 | 1500 | Zinc | 250 | 1x40'HQ |
| EDT5-Post | 2000x60x2.5 | Zinc | 1000 | - | |
| EDT6-Base | 950x950x310 | 1000 | Zinc | 160 | 1x40'HQ |
| EDT6-Post | 1200x60x2.5 | Zinc | 640 | - | |
| Material | Mild steel Q235 | ||||
| Application Area | Warehouse, logistic, recycling, etc. | ||||
| Remark | Customized or OEM support | ||||

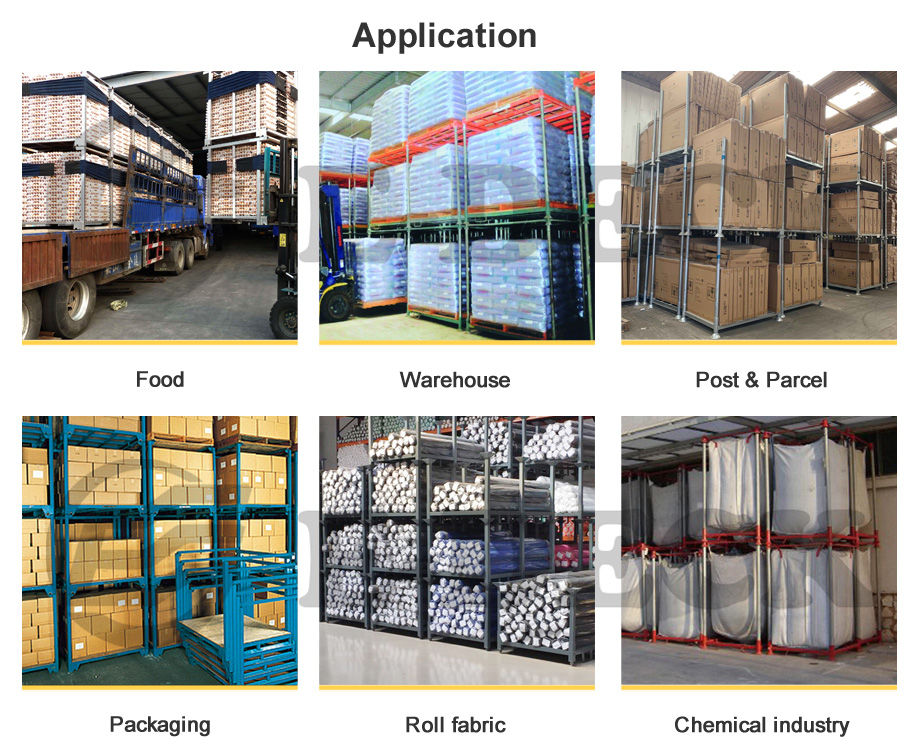

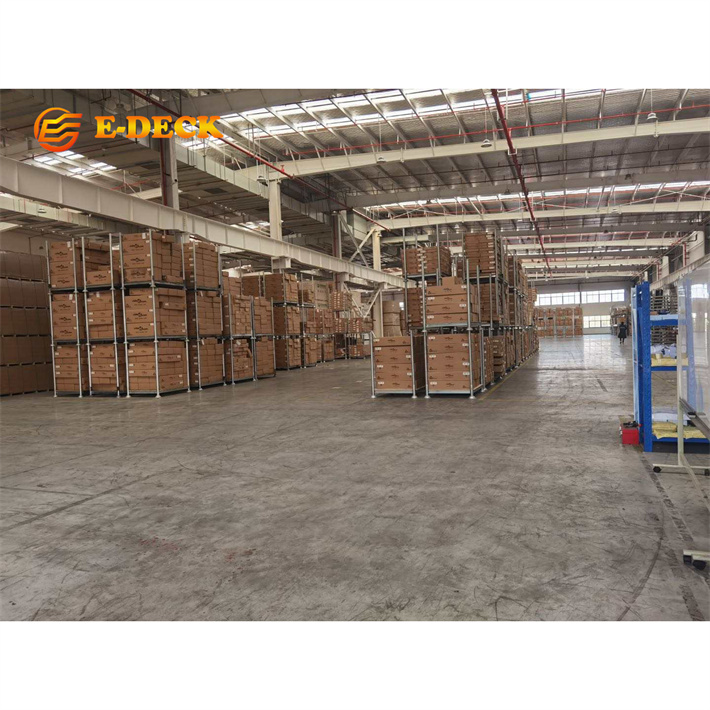

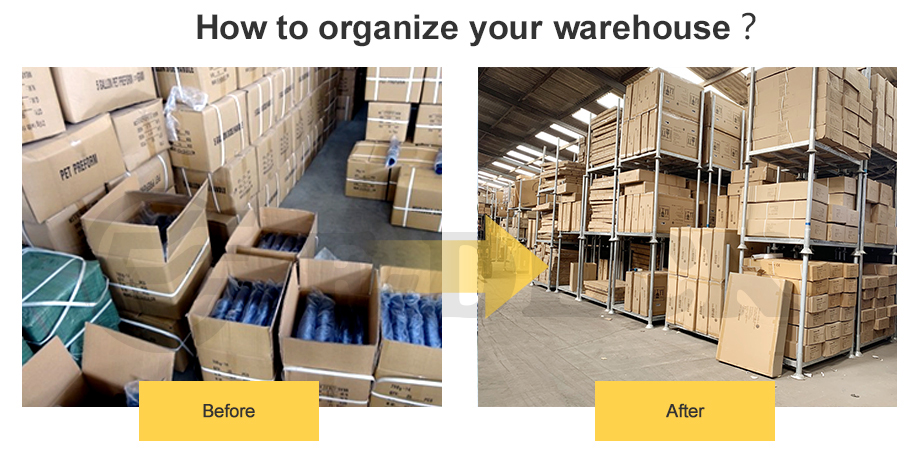

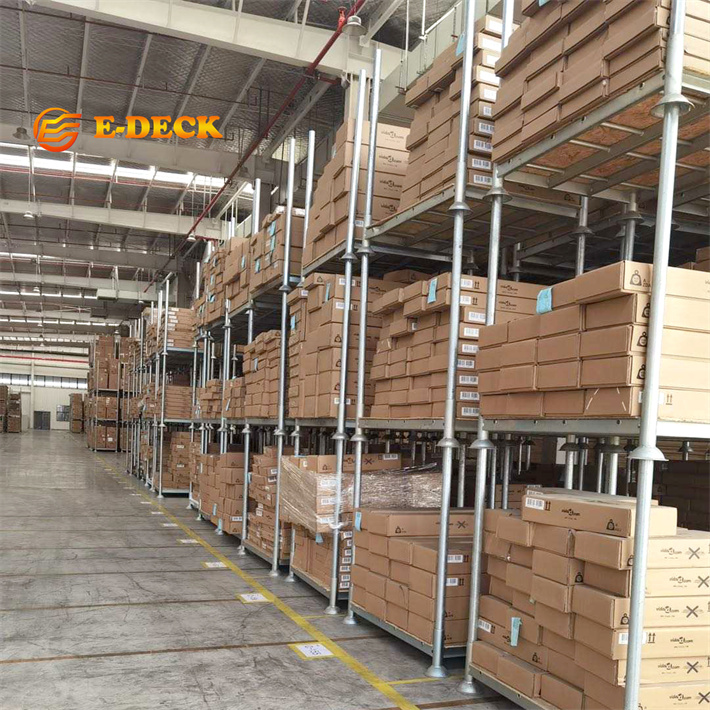

Product Uses

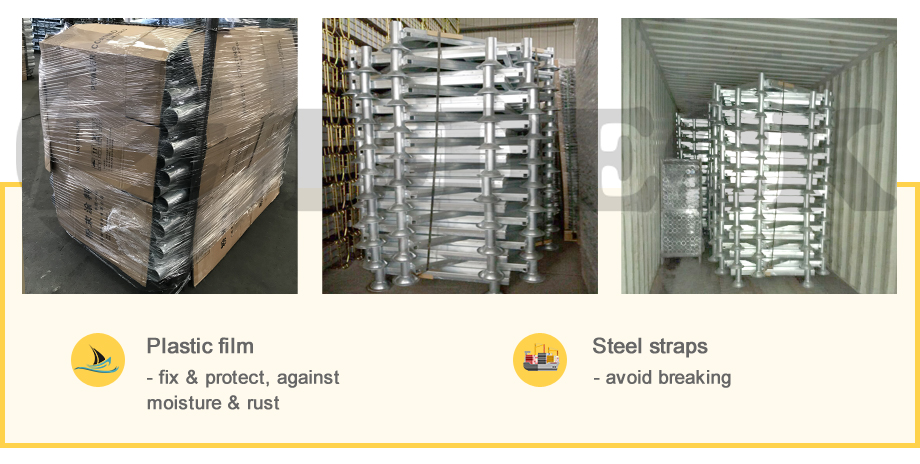

Packaging & Shipping
Packing Details
1. Plastic banding with wooden pallet
2. Stretch film wrapped
Delivery Time
30 days for Storage Post Pallet after receiving 30% deposit.
Payment Methods
T/T: 3-5 Working Days to The Account
Western Union: 1-24 Hours to The Account
MoneyGram: 1-24 Hours to The Account
PayPal: Immediately to The Account
Company Information

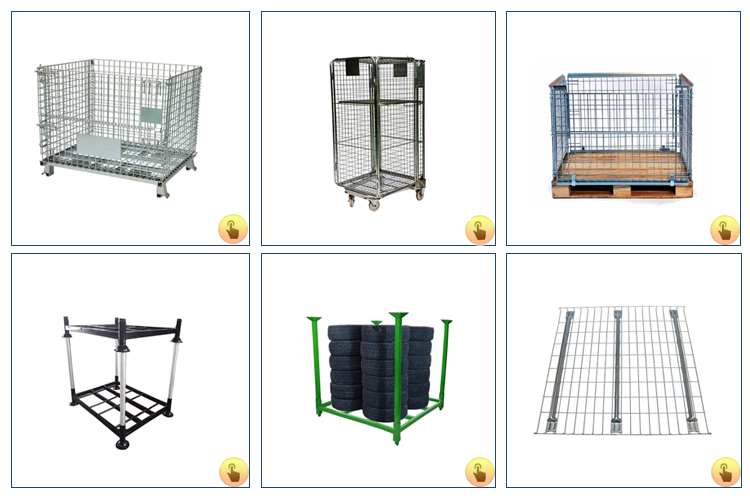

Main Products
Our Services
Frequently Asked Questions
Q1
What is the material used for the Storage Post Pallet?
The main material used is high-grade mild steel Q235, ensuring structural durability and high load-bearing capacity.
Q2
What finishes are available for the racks?
We provide three finish types:
A. Electro-galvanized / Zinc plated: Acts as a sacrificial anode for indoor storage.
B. Hot-dip galvanized: Forms a corrosion-resistant zinc layer suitable for indoor, outdoor, and cold storage.
C. Powder coating: Applied as a free-flowing, dry powder coating for durable indoor and outdoor use.
Q3
What are the standard loading capacities?
We offer models in three duty levels based on your warehousing needs: light duty (100–300kg), medium duty (400–800kg), and heavy duty (1000–1700kg).
Q4

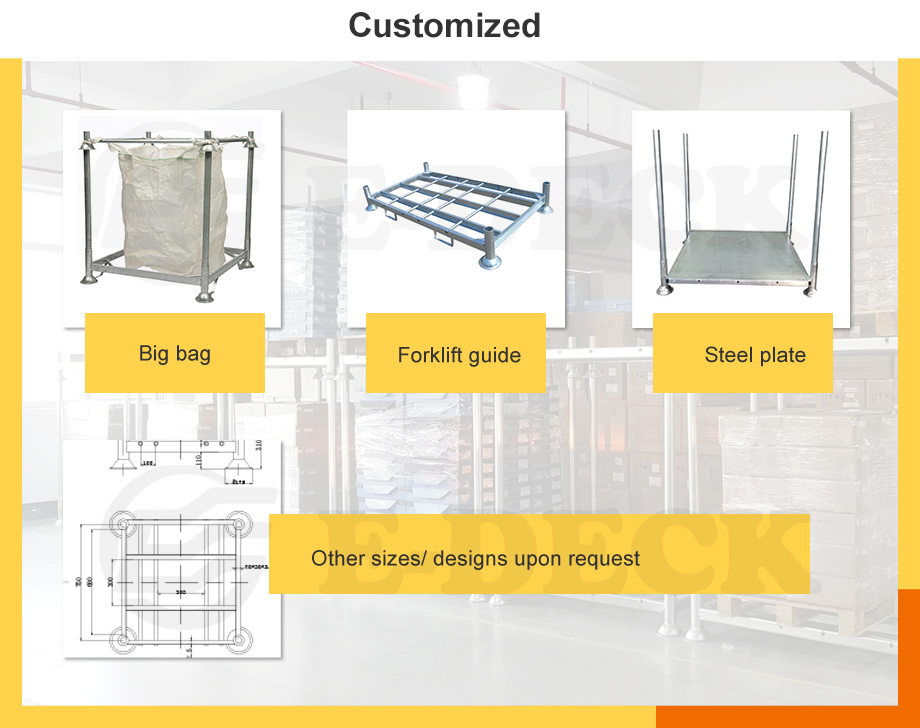

Can you manufacture custom sizes or design without drawings?
Yes, we support OEM and custom specifications. If you do not have drawings, our engineering team can design the optimal product based on your dimensions, loading capacity, stackability requirements, and operating environment.
Q5
What is your minimum order quantity (MOQ) and production lead time?
The standard minimum order quantity is 1x20'GP container (exact unit quantity varies by product size). Average production lead time is 2 to 3 weeks upon receipt of the formal order and deposit.
Q6
What warranty and quality guarantee do you provide?
We provide a 3 to 10 years warranty subject to correct forklift operation during stacking/unstacking, strict adherence to load capacity limits, and usage within appropriate non-corrosive environmental conditions.
