Featured Industrial Racking & Stacking Systems
Verified structural racking systems manufactured to international CE & ISO 9001:2015 standards, designed to withstand Malaysia's high-humidity operating environments and rigorous warehouse safety bylaws.
- Load Rating: 1,000–4,000 kg / level
- Finish: Phosphatized Powder Coat
- Accessibility: 100% Direct Selective
- Pitch Interval: 50mm / 75mm Adjustable
- Automation: Radio Shuttle Ready
- Safety Standard: FEM 10.2.02 / CE
- Stack Height: 3 to 5 Tiers High
- Frame Type: Removable / Intubated Post
- Footprint: Space Saving Empty Nest
- Capacity: 1,200–2,500 kg / unit
- Steel Grade: Q235B / Q355B Carbon Steel
- Deployment: Forklift 4-Way Entry
- Material: Virgin PP Plastic / Anti-Static
- Application: E-commerce SKU Picking
- Durability: Moisture & Acid Resistant
- Cold Rating: Down to -30°C Freezers
- Mechanism: Fold-Flat Hinged Corner Posts
- Galvanization: Hot-Dip Galvanized Available
- Vertical Reach: Up to 12+ Meters Height
- Aisle Width: Engineered for Counterbalance / Reach
- Accessories: Wire Decking & Pallet Support Bars

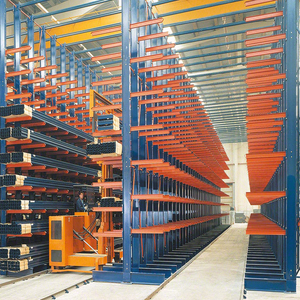

- Arm Capacity: 500–1,500 kg / Arm
- Cargo Compatibility: Pipes, Timber, Aluminum Extrusions
- Base Construction: Heavy Welded Structural H-Beam
The Strategic Role of Stacking Racks in Malaysia’s Modern Logistics Architecture
Industrial manufacturing, warehousing, and third-party logistics (3PL) across Malaysia are navigating an unprecedented structural transformation. Driven by national supply chain initiatives such as the New Industrial Master Plan (NIMP 2030) and the massive expansion of logistics corridors surrounding Port Klang (Northport and Westport), Bukit Raja, Shah Alam, Senai (Johor), and the Batu Kawan Industrial Park (Penang), warehouse footprint efficiency has shifted from a peripheral operational metric to a core strategic determinant of corporate profitability.
Industrial land acquisitions in prime Klang Valley zones have seen double-digit capital appreciation, forcing facility managers, supply chain directors, and factory operators to re-evaluate horizontal floor storage. Traditional floor block-stacking creates severe cargo-crushing risks, limits vertical cubic space utilization to under 35%, and exposes bottom-tier cargo to ground moisture and fungal contamination. Conversely, permanent selective bolt-down pallet racking systems demand rigid, immovable floor anchors that strip leased warehouses of operational agility.
Core Engineering Insight: Portable and modular stacking racks (post pallets and nesting stillages) represent the technological bridge between rigid pallet racking and flexible open-floor staging. In Malaysian facilities where leasehold tenure, seasonal inventory surges (e.g., Hari Raya and Chinese New Year consumer spikes), and heavy tropical humidity dictate operations, modular stack racks unlock up to 300% vertical volume expansion without incurring structural alteration penalties under local council tenancy agreements.
Engineering Adaptation for Malaysia’s Tropical Rainforest Climate
Unlike temperate distribution hubs, Malaysian warehouses operate in Köppen climate classification Af (tropical rainforest), marked by constant ambient temperatures ranging between 28°C and 34°C and relative humidity levels (RH) frequently exceeding 85% to 92%. In coastal logistics parks such as Pelabuhan Klang and Pasir Gudang, atmospheric airborne chlorides accelerate galvanic and electrochemical corrosion on unprotected carbon steel.
Standard commercial storage frames treated with basic single-coat alkyd primers degrade within 12 to 18 months, resulting in micro-pitting along welded intersections and eventual load-bearing fatigue. Guangzhou Heda Shelves Co., Ltd. addresses this climatic threat through a comprehensive industrial surface-engineering protocol:
Pre-Treatment Chem-Wash
Every cold-formed Q235B steel profile undergoes high-pressure degreasing, hot acid pickling to strip surface mill scale, followed by automated zinc phosphating. This forms an insoluble crystalline substrate that bonds chemically to the coating layer.
Thermoset Powder Coating
Our automated electrostatic lines apply premium polyester-epoxy powder cured at 180°C–200°C, producing a non-porous dry film thickness (DFT) of 70–90 microns. Validated to ASTM B117 salt spray standards exceeding 500 hours without red rust blister creep.
Hot-Dip Galvanizing (HDG)
For sub-zero cold storage facilities handling seafood, meat, and frozen palm oil derivatives down to -30°C, we provide full molten zinc immersion (ISO 1461), depositing 85+ microns of pure metallurgically bonded zinc for zero flaking.
Malaysian Regulatory Bylaws: BOMBA, DOSH, and JAKIM Halal Compatibility
Procuring industrial warehouse racking in Malaysia requires compliance with local government authorities. Installing sub-standard or uncertified storage equipment risks catastrophic warehouse collapses, heavy statutory fines from the Department of Occupational Safety and Health (DOSH / JKKP), and immediate denial of operational fire permits by the Fire and Rescue Department of Malaysia (Jabatan Bomba dan Penyelamat Malaysia - BOMBA).
1. BOMBA Fire Clearance & Flue Space Compliance: Under the Uniform Building By-Laws (UBBL 1984) and NFPA / MS guidelines enforced by BOMBA, racking configurations inside high-hazard factories must incorporate clear longitudinal and transverse flue spaces (minimum 150 mm to 300 mm) to ensure unobstructed penetration of in-rack ESFR (Early Suppression, Fast Response) fire sprinklers. HEDA modular stacking racks feature engineered post collars that naturally preserve critical vertical air passages, eliminating sprinkler shielding issues inherent in haphazard carton floor piling.
2. DOSH (JKKP) Structural Safety Verification: DOSH mandates that storage systems carrying dynamic overhead loads possess verified load test documentation, anti-collapse safety margins (safety factors typically ≥ 1.5 to 1.65 under FEM 10.2.02 / EN 15512), and explicit Safe Working Load (SWL) placards. HEDA Shelves provides stamped engineering load calculation sheets, baseplate anchoring shear verifications, and comprehensive structural finite element analysis (FEA) for all custom stacking configurations.
3. Halal Logistics Alignment (MS 2400:2019): As the world’s leading Halal certification hub, Malaysia’s Department of Islamic Development Malaysia (JAKIM) enforces stringent physical segregation between Halal-certified goods and non-certified/toyyib cargo. HEDA stacking racks offer dedicated powder-coat color codification (e.g., green-coded frames for Halal designated staging) and non-porous, easily sanitized, detergent-resistant steel surfaces that prevent cross-contamination during washdowns.
Racking Architecture: Performance Across Key Operational Metrics
Evaluate which storage topology aligns with your warehouse ceiling height, material handling equipment (MHE), SKU turnover velocity, and lease constraints.
| Storage System Type | Space Density | Floor Anchor Need | SKU Selectivity | Cold Store Adaptability | Ideal Malaysian Application |
|---|---|---|---|---|---|
| Portable Post Stacking Racks | Very High (85%) | Zero (Movable) | Batch / Block Entry | Exceptional (HDG Steel) | Leased 3PL sheds, tire distribution, fabric rolls, seasonal agribulk |
| Standard Selective Pallet Racking | Moderate (50–60%) | Mandatory Chemical Studs | 100% Direct Immediate | High (Chilled/Ambient) | Shah Alam e-commerce fulfillment hubs, multi-SKU retail DCs |
| Heavy Duty Drive-In Racking | High (75–80%) | Mandatory Chemical Studs | Low (LIFO Sequential) | Very High (Bulk Frozen) | Beverage bottling plants, frozen poultry cold storage in Johor |
| Automated Radio Shuttle Racking | Maximum (85–92%) | Mandatory Base Plate | High (FIFO / LIFO) | Industry Benchmark | High-throughput pharmaceutical, dairy, and cold storage chains |
| Cantilever Stacking Racks | Moderate-High | Bolted or Free-Standing | 100% Open Horizontal | Moderate (Indoor/Yards) | Steel pipes, timber mills in Sarawak/Sabah, aluminum extrusions |
Guangzhou Heda Shelves Co., Ltd.: Manufacturing Capabilities
Headquartered in Guangzhou with over two decades of production heritage, HEDA operates an integrated 30,000 square-meter facility capable of processing 30,000 metric tons of certified steel monthly.
Raw Steel Spectrometry
Strict incoming metallurgical inspection of prime Baosteel and Shougang carbon steel coils to guarantee tensile strength and yield stress compliance.
CNC Forming & Punching
Fully automated multi-station roll-forming lines punch upright columns with 50mm/75mm hole pitches to dimensional tolerances within ±0.2 mm.
Robotic Argon-Arc Welding
Panasonic robotic welding arms execute uniform seam welds on collar sleeves, base feet, and load beams, eliminating cold-lap defects.
Full Load Testing & QC
Destructive and non-destructive load-deflection testing verified against CE (2435-CPR-8605159) and ISO 9001:2015 certified parameters prior to bundling.
Custom Stacking Frame Geometries for Factory Applications
Every factory process requires distinct material handling geometries. In Selangor’s automotive component corridor (supplying Proton and Perodua tier-1 parts), traditional fixed pallet racks cannot handle irregular stamping blanks, plastic car bumpers, and sub-assemblies. HEDA designs customized post pallet nesting racks with detachable corner posts, allowing forklifts to manipulate unit loads in batches while nesting empty frames 4-to-1 when idle, preserving valuable production floor staging space.
Similarly, in Johor’s chemicals and oleochemical refineries, hazardous intermediate bulk containers (IBC tote tanks) and 200-liter metal drums demand stable vertical containment. Our heavy-duty intubated stacking frames incorporate reinforced undercarriage cradles, perimeter anti-slide retainers, and integrated forklift guide slots to prevent dislodgement during seismic vibrations or high-speed MHE loading.
Malaysian Procurement Guide: Tariffs, Form E, and Discharge Ports
Procuring industrial warehouse racking directly from our Guangzhou manufacturing facility gives Malaysian enterprises significant cost savings compared to purchasing through local resellers who mark up imported steel by 30% to 50%. However, achieving optimal landed costs requires a thorough understanding of Malaysian customs clearance and trade agreements.
1. Zero-Tariff Import Clearance via ACFTA Form E
Under the ASEAN-China Free Trade Area (ACFTA) agreement, warehouse steel racking systems classified under HS Code 7308.90 (Structures and parts of structures of iron or steel) qualify for 0% preferential import duty when entering Malaysia. Guangzhou Heda Shelves Co., Ltd. issues official, pre-verified Certificate of Origin (Form E) documentation with every shipment, ensuring zero customs duty at the Royal Malaysian Customs Department (Jabatan Kastam Diraja Malaysia). Shipments remain subject only to the standard 10% Malaysian Sales and Service Tax (SST), which registered industrial manufacturers can claim as an input tax credit where applicable.
2. Freight Routes and Container Stuffing Efficiencies
Our logistics team engineers every racking component specifically for shipping container cubic capacity. Uprights, support tubes, nesting baseplates, and wire decking are packed with custom protective dunnage to prevent transit surface abrasion while achieving 95%+ volumetric space utilization in 40ft High Cube (40HQ) containers.
Port Klang (Central Peninsular)
Transit Time: 5–7 Days from Guangzhou Port.
Serving: Greater Kuala Lumpur, Shah Alam, Bukit Raja, Subang, Rawang, Nilai, and Seremban logistics corridors.
Penang Port (Northern Hub)
Transit Time: 6–8 Days direct sailing.
Serving: Batu Kawan Industrial Park, Bayan Lepas Free Industrial Zone, Kulim Hi-Tech Park (Kedah), and Ipoh.
Pasir Gudang / PTP (Southern Hub)
Transit Time: 5–7 Days direct sailing.
Serving: Johor Bahru, Senai Airport City, Pasir Gudang oleochemical cluster, and Singapore border transit centers.
For projects located in East Malaysia (Sabah and Sarawak), containers are efficiently routed via Kuching (Senari Port) or Kota Kinabalu (Sepangar Bay Container Port) through reliable regional feeder connections.
Frequently Asked Questions by Malaysian Warehouse Directors
Technical, financial, and logistical insights directly addressing the real-world operational questions of Malaysian warehouse builders and plant managers.
Accelerate Your Warehouse Capacity with Guangzhou Heda Shelves
Contact our senior warehouse storage engineering team today. Receive a tailored structural calculation, free 2D/3D CAD layout, and factory-direct quotation delivered to Port Klang, Penang, or Pasir Gudang within 24 hours.
