Featured Blue Industrial Racking & Warehouse Systems
Precision-manufactured in Guangzhou with high-tensile Q235B/Q355B structural steel, finished with high-durability electrostatic RAL 5015/5005 blue epoxy polyester powder coating designed to resist coastal and highland warehouse wear.
Heavy-duty Steel Metal Logistic Stackable Storage Post Pallet Racks
- Load Capacity: 1,000–2,000 kg/tier
- Coating: Signal Blue Electrostatic Powder
- Application: Temporary buffer, cross-docking
NESRACK Industrial Heavy-Duty Steel Selective Pallet Rack Multi-Level
- Access: 100% Direct Selective Access
- Corrosion Finish: Anti-corrosion bake
- Beam Pitch: 50mm / 75mm Adjustable
Q235 Steel 2000kg Capacity FIFO High Density Gravity Pallet Flow Rack
- Throughput: Strict First-In First-Out
- Roller Bed: Steel zinc-plated rollers
- Best For: Cold stores, FMCG, perishables
Wooden Gondola Display Shelving Adjustable Retail Store Racks
- Structure: Solid steel core + Wood grain
- Flexibility: Tool-less height levels
- Application: Wholesalers, hardware outlets

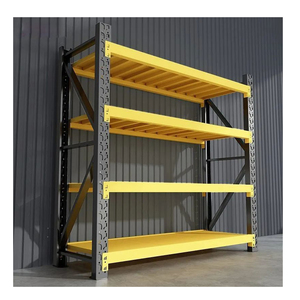

Factory Price 5 Layer Adjustable Steel Warehouse Storage Rack Shelving
- Shelf Load: 200–500 kg/tier uniform
- Uprights: Omega profile cold roll-formed
- Assembly: Bolt-free butterfly lock design
Heavy Duty Selective Pallet Rack 1000–4500kg Capacity Q235B Steel
- Capacity: Up to 4,500 kg per beam level
- Blue Upright / Orange Box Beams
- Seismic Safety: Footplate expansion anchors
Adjustable Boltless HeavyDuty Shelf 6 Layers 500 kg Garage Steel Rack
- Total Load: 3,000 kg total rack capacity
- Finish: High-adhesion electrostatic coating
- Use: Maquiladora assembly & spare parts
Medium Duty Racking Customizable Long Span Storage Racks Steel Shelving
- Span: Up to 2,500mm wide clear openings
- Decking: Galvanized steel panels or wire mesh
- Standard: ISO 9001:2015 & CE Certified
1. Executive Briefing: Mexico's Nearshoring Industrial Real Estate Explosion
2. Seismic Resistance Engineering & Mexican Structural Norms
CFE Manual & NTC-CDMX
Engineering calculations adhere to the Manual de Diseño de Obras Civiles de la Comisión Federal de Electricidad (CFE) and CDMX Technical Norms (NTC). Racks in high-amplification lacustrine clay soils (Zone III) feature heavy-gauge cold-formed columns and reinforced upright baseplates.
NOM-006-STPS-2014 Protocol
Fully compliant with the Mexican Secretariat of Labor regulations for storage systems. Our systems integrate mechanical locking safety pins with a 3-point shear engagement on beam end-connectors, preventing accidental uplift during seismic tremors or forklift impact.
Dual Pallet Standard Compatibility
Engineered specifically for the standard Tarima Mexicana (1000mm × 1200mm / 40" × 48" AMACARGA/GMA), as well as European standard 800mm × 1200mm Euro-pallets common in the automotive and aerospace assembly supply lines of Querétaro and Puebla.
3. Industrial Racking Systems: Engineering Selection Matrix for Mexico
| Racking Architecture | Pallet Selectivity | Volume Utilization | Stock Rotation Logic | Primary Industrial Application in Mexico |
|---|---|---|---|---|
| Selective Pallet Racking | 100% Immediate Direct Access | Medium (~40% floor area) | FIFO or LIFO | 3PL Distribution Centers (Bhiwandi style CTT mega-hubs), Retail FMCG, Multi-SKU operations. |
| Double Deep Racking | 50% Direct (requires pantograph) | High (~60% floor area) | LIFO | Dry goods, packaged foods, beverage bottling holding areas in Toluca and Guadalajara. |
| Drive-In / Drive-Thru | Lane Dependent (Low) | Ultra-High (up to 75%) | Strict LIFO (or FIFO with 2 aisles) | Agro-export cold storage (Michoacán avocado, Sinaloa berries, Sonora beef processing). |
| Radio Shuttle System | Semi-Automated Deep Lane | Maximum (up to 85%) | Programmable FIFO & LIFO | Sub-zero cold chambers (-25°C), pharmaceutical hubs, large-scale automotive staging. |
| Gravity Flow Pallet Racks | Front Picking Face Only | High (~70%) | Strict FIFO (Gravity roller bed) | High-throughput perishable food processing, pharmaceutical expiration-controlled inventory. |
| Rack-Supported Mezzanines | Multi-Level Foot Access | Vertical Space × 2 or × 3 | Manual SKU Picking | E-commerce fulfillment (Mercado Libre, Amazon México vendors), spare parts assembly in Bajío. |
4. Factory Superiority: Guangzhou Precision Production & Surface Treatment
Raw Steel Ingot & Coil
Certified Baosteel Q235B and Q355B hot-rolled coils with metallurgical mill certificates.
Precision Slitting
High-speed longitudinal coil slitting maintaining microscopic edge tolerances and flatness.
Continuous CNC Punching
Automated pitch punching ensuring exact 50mm / 75mm teardrop or butterfly connector slots.
Multi-Stand Roll Forming
22-station precision cold roll-forming forming rigid multi-bend Omega (Ω) column profiles.
Interlocking Box Beam
Double-C profile robotic continuous seam seam welding for high torsional rigidity.
Robotic Connector Welding
Automated robotic MIG welding of 3-claw and 4-claw heavy-gauge stamped end connectors.
Shot Blasting & Pickling
Complete immersion chemical rust descaling, alkaline degreasing, and acid pickling.
Nano-Ceramic Phosphating
Zinc-phosphate chemical conversion layer providing superior paint bonding and salt-spray defense.
Electrostatic Powder Coating
Automated GEMA electrostatic powder booths applying pure polyester powder cured at 200°C.
Containerized Bundling
Component-numbered, high-density wood-cushioned steel strapping for damage-free ocean freight.
5. Logistics, Customs Clearance & Shipping Optimization to Mexican Pacific Ports
- Puerto de Manzanillo, Colima: The primary commercial maritime gateway serving the central Bajío industrial region, Guadalajara, and Mexico City via Ferromex rail and toll expressways. Average ocean transit: 18 to 24 days.
- Puerto de Lázaro Cárdenas, Michoacán: Specialized deep-water terminal with dedicated intermodal rail corridors (Canadian Pacific Kansas City - CPKC) directly connecting container units to Toluca, Monterrey, and border crossings in Nuevo Laredo.
- Puerto de Ensenada, Baja California: Serving the dynamic maquiladora electronics and medical cluster in Tijuana, Tecate, and Mexicali.
Frequently Asked Questions by Procurement Directors in Mexico
What is the typical lead time from factory order to arrival in Monterrey or CDMX?
Manufacturing typically requires 15 to 25 days depending on project tonnage (1 to 20 containers). Ocean transit from Guangzhou or Shenzhen to Puerto de Manzanillo or Lázaro Cárdenas averages 18–22 days. Customs clearance and inland multimodal rail or bonded flatbed trucking to Monterrey, Querétaro, or Estado de México takes approximately 4–7 days. The end-to-end timeline typically spans 6 to 7 weeks.
Can you provide custom engineering calculations for Mexican building permits?
Yes. Our in-house engineering division prepares complete CAD structural drawings, column cross-section profiles, load capacity distribution placards, and finite element analysis (FEA) calculation packages aligned with Mexican CFE seismic codes and American RMI/ANSI MH16.1 specifications, which can be directly reviewed and endorsed by your Mexican certified structural auditor (Perito Responsable de Obra).
How are components protected against oxidation during maritime transit?
Before electrostatic epoxy-polyester powder coating, all cold-formed profiles undergo rigorous pickling and nano-ceramic phosphating to inhibit subsurface oxidation. Finished uprights and beams are wrapped in moisture-resistant polyethylene micro-foam sheeting, reinforced at contact points with heavy corrugated corner protectors, and palletized on treated timber runners for container moisture absorption during equatorial ocean crossing.
Do you support installation within Mexico, or must we hire local contractors?
We provide flexibility: Every shipment includes color-coded component tagging, stamped 3D assembly shop drawings, and step-by-step video installation guides allowing your local Mexican installation team or facility crew to erect the system rapidly. For large-scale projects (over 5,000 pallet positions), we can dispatch bilingual bilingual technical field supervisors to supervise alignment, plumb checking, torque verification, and anchoring on-site.
What payment mechanisms and commercial terms (Incoterms) do you offer?
We regularly transact under FOB China ports, CIF Manzanillo / Lázaro Cárdenas / Ensenada, or DAP / DDP to your designated industrial park door in Monterrey, Saltillo, Querétaro, Silao, Guadalajara, or CDMX. Standard commercial settlement is via confirmed irrevocable Letter of Credit (L/C) or T/T wire terms.
Can your blue pallet racks integrate with wire mesh decks and column protectors?
Yes. We manufacture matching safety drop-in wire decking (zinc-electroplated or powder-coated), roll-formed pallet support bars, heavy-duty floor-mounted column bullnose protectors, end-of-aisle structural wrap-around crash barriers, and backstop safety mesh screens to prevent pallet push-through in compliance with Mexican civil protection warehouse audits.
Request Your Free CAD Racking Layout & CIF Mexico Quotation
Accelerate your nearshoring warehouse launch. Send us your facility architectural drawings (DWG/PDF), clear height, floor slab parameters, and pallet specifications. Our senior structural design engineers will deliver a comprehensive 3D layout, static calculation, and competitive factory-direct proposal within 24 hours.
