Q235B Steel
Direct Factory Catalog

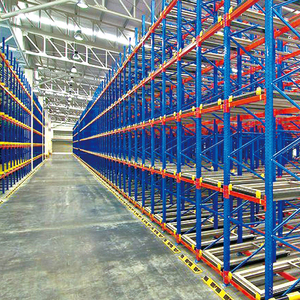

Featured Industrial Systems & Heavy-Duty Equipment
Discover high-precision modular steel equipment designed for multi-tier warehouses, automotive distribution nodes, and modern high-bay material handling facilities.
Modular Snap-In
ISO Certified
LIFO Gravity
Tier-1 OEM
Semi-Automation
Heavy Profiles
Universal Stacking
25+
Years Manufacturing
30KTons
Monthly Steel Output
10K+
Global Projects Built
120+
Countries Exported
Procurement Whitepaper
Structural Architecture of Industrial Wire Mesh Cages & Pallet Systems
Material selection, welding metallurgy, anti-corrosive finishes, and mechanical safety metrics essential for global engineering compliance.
Q235B Cold-Rolled Wire & Frame
Structural wire mesh pallet cages are fabricated using certified high-tensile Q235B / Q195 low carbon drawn steel wire. Every cross point features automated CNC resistance spot welding (4.8mm to 6.4mm wire diameters) guaranteeing shear strengths exceeding 2,500 N per joint to prevent structural tearing under dynamic impacts.
Drop-Gate Ergonomics & Stacking Legs
Engineered with half-drop front gates using industrial helical springs and self-locking latches. Heavy-duty 3D cup-formed stacking feet spread load points onto lower cage collars, allowing 4-high and 6-high fully loaded stacking (1,500kg per unit static load) without risk of structural buckling or post drift.
Surface Passivation & Powder Deposition
Finished with high-spec electro-galvanization (EN ISO 2081) or hot-dip galvanization for hostile marine/cold-chain setups. For internal distribution, electrostatic thermosetting polyester powder coating provides high scratch resistance, salt spray resistance up to 500 hours, and compliance with RoHS directives.
| Cage Model Specification | Wire Mesh Grid (mm) | Dynamic Capacity | Static Stacking Tier | Compatible Racking Support |
|---|---|---|---|---|
| Standard Euro WMC-01 (800 x 600 x 640) | 50 x 50 (4.8mm Wire) | 800 kg | 1 + 3 Levels | Selective Beams • Snap-In Shelving |
| Heavy Duty Logistics WMC-02 (1200 x 1000 x 890) | 50 x 100 (6.0mm Wire) | 1,500 kg | 1 + 4 Levels | Heavy Duty Pallet Racks • Push Back |
| Extended Industrial WMC-03 (1400 x 1000 x 1000) | 50 x 50 (6.2mm Wire) | 2,000 kg | 1 + 3 Levels | Automated Shuttle Racks • Ground Bays |
| Custom Foldable Collapsible Type | Engineered on Demand | Up to 2,500 kg | 1 + 5 Levels | Drive-In Lanes • Structural Mezzanine |
Future Procurement Roadmap
Future Procurement Trends in Wire Mesh Pallet Systems
How automation, circular supply chain mandates, and digital tracking are altering bulk storage specification guidelines worldwide.
AGV & AMR Autonomous Interfacing
Traditional pallet cages are shifting to standardized precision baselines with high-flatness runner runners and optical target plates. As automated guided vehicles (AGVs) handle line transfers, bottom clearances and under-skid skid runners must adhere to DIN EN 13626 tolerances to prevent pallet sensor errors during robotic high-speed pick and place.
Embedded RFID & IoT Fleet Tracking
Cross-border returnable transit item (RTI) losses present large capital overheads. Leading factories embed ruggedized UHF RFID bracket mounts and QR data plates directly into the lower U-channel perimeter. This supports autonomous gate-reader inventory reconciliation across intermediate 3PL nodes without manual barcode scanning.
Collapsible Reverse-Logistics Efficiency
Supply chains require dynamic folding mechanisms that maintain a 1:4 or 1:5 volume reduction ratio when empty. This cuts return transit container space significantly, saving up to 75% in sea freight and intermodal rail distribution costs for closed-loop reverse logistics across international manufacturing hubs.
Engineering Authority
End-to-End Precision Manufacturing Since 2001
Guangzhou Heda Shelves Co., Ltd. operates a 30,000 square meter intelligent manufacturing base equipped with CNC wire straightening, automated multi-spot mesh welding machines, roll-forming lines, and eco-friendly pre-treatment systems.
-
Certified Compliance: Full CE (2435-CPR-8605159), ISO 9001:2015, and RoHS certification with complete heat-lot material traceability.
-
30,000 Tons Monthly Capacity: Rapid delivery turnaround with automated robotic production lines minimizing thermal deformation.
-
Turnkey Engineering: Complimentary 3D simulation, finite element analysis (FEA) for custom load capacities, and tailored OEM branding.
Procurement Guidance
Frequently Asked Questions (FAQ)
Key structural, logistic, and commercial questions answered for industrial warehouse buyers.
What is the standard tolerance and load safety factor?
All wire mesh cages are engineered according to ANSI MH26.2 and FEM standards with an integrated structural safety factor of 1.5 to 2.0 under uniform static loads. Wire diameter tolerance is strictly maintained within ±0.05 mm, and overall exterior dimensions hold to ±2.0 mm.
Can wire mesh pallet cages be deployed on pallet racking beams?
Yes. We manufacture customized bottom structures including welded bottom channel skid rails, full wrap-around fork guides, or bottom drop-in mesh retainers that prevent the cage feet from sliding off beam profiles, fully complying with warehouse racking fire safety mandates.
What surface treatment provides the longest service life in humid climates?
For high-humidity or sub-zero refrigeration conditions, we recommend Hot-Dip Galvanization (HDG) with zinc coating thickness ≥ 65 μm, or zinc electroplating plus an organic sealing lacquer. For indoor automotive warehouses, electro-deposition powder coating provides superior aesthetics and impact resistance.
How are cages packed to optimize 40HQ container utilization?
Folded cages are flat-packed in high-density nested bundles strapped with heavy-duty polyester bands and protected with corner edge protectors. Standard 1200x1000mm models achieve up to 280-320 units per 40ft High Cube container, reducing landed logistics freight cost per unit position.
Request Complete Engineering Drawings & Pricing
Get instant factory-direct quotations, full technical CAD specifications, and FEA load validation reports for your next warehouse modernization project.
