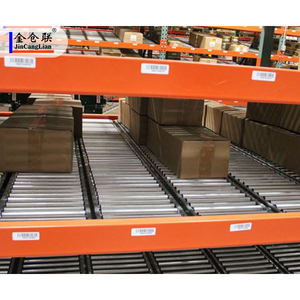

Dynamic Flow
Textile & Roll
VNA Teardrop
Carton Flow
Accessories
Heavy Pallet Bay
Engineering Whitepaper & Technical Foundation
Single Pallet Racking Architecture: The Definitive Industrial Engineering Guide
In contemporary supply chain logistics, Single Pallet Racking (commonly engineered as Single-Deep Selective Pallet Racking) represents the benchmark standard for 100% immediate SKU selectivity, operational accessibility, and inventory turnover agility. While ultra-dense storage configurations such as Drive-In or Radio Shuttle racking sacrifice accessibility for volumetric compaction, single pallet architecture allows warehousing systems to achieve frictionless picking workflows with zero "honeycombing" pallet entrapment.
As a global top-tier manufacturer and direct exporter with over 25 years of structural metal manufacturing experience, Guangzhou HEDA Shelves Co., Ltd. designs single pallet racking systems governed by rigorous finite element analysis (FEA). We process prime certified high-tensile structural carbon steel (grades Q235B and Q355B, corresponding to European standard S235JR and S355JR / ASTM A36) to manufacture upright columns, step beams, box beams, and horizontal/diagonal frame bracings. Every structural calculation incorporates safety factors compliant with the European standard EN 15512:2020 (Steel static storage systems – Adjustable pallet racking systems – Principles for structural design), the American Rack Manufacturers Institute (RMI MH16.1) specifications, and Australian standard AS 4084:2023.
Mechanical Structural Analysis & Load Transfer Dynamics
The structural efficacy of an industrial single pallet rack relies on the tri-axial equilibrium of the upright frame, the moment-resistant connector beam joints, and sub-grade concrete anchorage. Unlike residential or commercial retail shelving, a heavy-duty industrial pallet bay bearing two 1,500 kg standard Euro-pallets (1,200 mm × 800 mm) or ISO industrial pallets (1,200 mm × 1,000 mm) per level exerts intense concentrated point loads through baseplates into the facility's concrete floor slab.
HEDA Shelves eliminates structural failure modes by roll-forming upright sections with continuous cold-formed profiles featuring up to 12 distinct mechanical bends. These profile convolutions substantially enhance the sectional radius of gyration, counteracting torsional-flexural buckling under excessive axial compression. Our standard uprights feature pitch increments of 50 mm or 75 mm (or proprietary 2-inch / 50.8 mm teardrop patterns for North American logistics facilities), providing complete vertical adjustability to eliminate wasted clearance height above pallet loads.
| Structural Parameter | Standard Specification (EN 15512 / ISO) | Heavy-Duty Extreme Spec (HEDA Standard) | Engineering Significance |
|---|---|---|---|
| Primary Steel Grade | Q235B (Yield Strength ≥ 235 MPa) | Q355B (Yield Strength ≥ 355 MPa) | Guarantees elastic modulus recovery under maximum rated dynamic forklift impacts. |
| Upright Profile Depth | 80 mm × 60 mm (1.8 mm gauge) | 120 mm × 95 mm (2.5 mm – 3.0 mm gauge) | Controls frame slenderness ratio (λ); withstands combined axial and wind/seismic lateral moments. |
| Beam Deflection Limit | 1 / 200 of clear span length (L/200) | 1 / 250 of clear span length (L/250) | Prevents beam permanent set; eliminates pallet instability and snagging risks during retrieval. |
| Beam End Connectors | 3-claw or 4-claw stamped connectors | 5-claw drop-forged high-interlock claws | Imparts high rotational stiffness (semirigid joint behaviour) to resist frame sway. |
| Surface Pretreatment | Solvent wipe or single-stage wash | 8-stage immersion pickling & phosphating | Eliminates mill scale, rust, and oil; guarantees 1,000+ hour salt spray anti-corrosion barrier. |
| Coating Thickness | 45 μm – 60 μm powder coat | 70 μm – 90 μm electrostatic polyester thermoset | Resists impact chipping, fork scuffing, and aggressive industrial airborne solvents. |
Sub-Grade Slab Anchorage & Seismic Zone Mitigation
A fundamental vulnerability observed in poorly engineered export racking is disregard for floor slab structural ratings and local tectonic peak ground acceleration (PGA). Guangzhou Heda Shelves Co., Ltd. incorporates seismic site-specific coefficient checks (according to IBC Chapter 16 and Eurocode 8). When designing single pallet racks for seismic-prone zones—including parts of the Pacific Rim, the Himalayan belt, and Mediterranean zones—our engineers calculate baseplate footprint dimensions and anchor shear-tension capacities to prevent base uplifting and anchor pull-out. We furnish our clients with calculated concrete anchor embedment depths, specifying wedge anchors or heavy-duty chemical capsule studs that integrate into C25/30 or C30/37 reinforced concrete slabs.
Strategic Procurement Horizons
Future Procurement Trends in Industrial Pallet Storage (2025–2035)
Global supply chain disruptions, rising warehouse land valuations, and aggressive industrial ESG mandates are reshaping how multinational enterprises procure storage racks. Here are the macro procurement trends dominating strategic RFQs worldwide.
Total Cost of Ownership (TCO) vs. Initial Steel Tonnage
Procurement directors are departing from raw "price-per-ton" assessments. Focus has shifted to life-cycle maintenance costs, frame reconfigurability without hot work, and structural resilience against fork impact damage. Factory-fitted heavy-duty column guards, wrap-around sacrificial leg protectors, and pre-galvanized components offer significant ROI over an 8- to 15-year facility lease.
Automation Readiness & VNA System Convergence
Modern procurement specifications increasingly mandate hybrid compatibility: single pallet racking systems must readily convert into Very Narrow Aisle (VNA) or accommodate automated guided vehicles (AGVs) and autonomous mobile robots (AMRs). Beams must maintain tighter deflection tolerances (L/250 to L/300) to allow computer-vision sensors to index pallets without optical interference.
Direct Factory Sourcing with Integrated 3D CAD / BIM Models
Enterprise buyers bypass intermediary trading agencies in favor of direct manufacturer relationships capable of outputting Revit and IFC-compatible Building Information Modeling (BIM) assets. Real-time factory design support accelerates municipal fire clearance approvals (NFPA 13 in-rack sprinkler mapping) and guarantees sub-millimeter fabrication fidelity.
Container Cubing Optimization to Offset Sea Freight Volatility
In international procurement, ocean container rates heavily impact landed position costs. Smart buyers evaluate suppliers based on nesting and bundling engineering. HEDA Shelves optimizes structural nest ratios inside 40HQ high-cube shipping containers, reaching 95%+ volumetric space efficiency without cosmetic surface abrasions.
Strict Traceability & Environmental ESG Compliance
European and North American supply chains require documented steel origin certs (MTRs), zero hazardous heavy metal compounds in powder coating (RoHS certification), and low-VOC manufacturing processes. Traceable mill certificates validating yield point, elongation, and phosphorus/sulfur content are mandatory gating criteria in international racking tenders.
Innovation Trajectory & R&D
Technological Evolution: From Static Steel Frames to Smart Racking Assets
The heavy-duty racking manufacturing industry is undergoing structural modernization. Single pallet racking is evolving from an inert steel assembly into an active structural component of the automated enterprise:
Precision CNC Continuous Roll-Forming Tolerances
Older fabrication methodologies relied on segmented punching and separate cold brake pressing, which introduced cumulative pitch deviations across upright lengths exceeding 8 meters. Modern lines at HEDA Shelves employ continuous online CNC punching synchronized with multiple-pass roll-forming stands. This guarantees hole spacing tolerances under ±0.2 mm across a 12-meter continuous column, ensuring effortless beam connector seating and eliminating residual internal stresses that cause upright twist.
Integrated Acoustic Emission & Strain Sensor Integration
The emergence of industrial IoT has spurred structural health monitoring (SHM) systems for pallet racking. Optical load-monitoring sensors and acoustic wave strain gauges embedded within the connector teeth detect micro-deflections and unrecorded forklift impacts in real time. This alerts facility safety managers before structural fatigue can induce progressive progressive frame collapse.
Duplex Galvanized & Nano-Ceramic Surface Treatments
For sub-zero cold chain operations and high-salinity maritime logistics yards (such as coastal CFS hubs in Nhava Sheva, Colombo, or Karachi), traditional powder coatings risk micro-cracking and under-film corrosion. Next-generation systems feature duplex coating: hot-dip galvanizing or zinc-aluminum-magnesium (ZAM) sheet substrate sealed with silane or nano-ceramic conversion films, yielding over 2,500 hours of cyclic salt spray durability.
Universal Interchangeable Modular Geometries
Warehousing operations demand high agility to accommodate seasonal SKU variance. Modern single pallet racking designs integrate universal connector profiles capable of accepting drop-in wire mesh decking, pallet support crossbars, drum chocks, and coil cradles without replacing the primary structural steel skeleton, preserving facility capital investments.
Enterprise Manufacturing Authority
Why Global Logistics Leaders Partner with HEDA Shelves
Established in 2001, Guangzhou Heda Shelves Co., Ltd. operates as a premiere integrated manufacturer of industrial heavy-duty racking, mezzanine platforms, and automated storage solutions. Discover our production power and audited qualifications.
2001
Year Established
30,000 m²
Modern Manufacturing Plant
30,000 Tons
Monthly Production Capacity
120+
Export Destination Countries
STRENGTH 01
25+ Years Racking Engineering
Over two decades of structural steel mastery, executing 10,000+ completed warehouse projects across multinational FMCG, automotive, pharmaceutical, and 3PL distribution sectors worldwide.
STRENGTH 02
Compliant & Verifiable Accreditations
Fully authenticated European CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management System (No. 18624Q00169R0M valid through 2027), and RoHS compliance.
STRENGTH 03
Full In-House Industrial Process
Zero subcontracting. We control raw steel slitting, continuous multi-stage roll-forming, automatic robotic welding, immersion phosphating, and automated electrostatic powder coating under one roof.
STRENGTH 04
Complimentary 3D CAD & BIM Layouts
Our in-house structural engineering team provides complete warehouse CAD layouts, 3D photorealistic renderings, pallet position calculations, and slab static load checks within 24 hours.
Zero-Defect Quality Chain
10-Stage Precision Manufacturing Workflow
Every component of our single pallet racking passes through an ISO-governed ten-stage manufacturing lifecycle.
01
Raw Materials
Certified prime Q235B/Q355B coil stock tested for tensile, yield, and chemical composition.
02
Precision Cutting
Automated slitting and high-speed CNC precision length shearing with sub-millimeter tolerances.
03
CNC Punching
Simultaneous multi-hole CNC line punches column pitch with continuous vertical alignment.
04
Cold Bending
Multi-roller progressive forming stands impart maximum structural yield stiffness without cracking.
05
Profile Forming
Specialized interlocking box beams, step beams, and heavy open-omega upright profiles formed.
06
Edge Polishing
Robotic de-burring and thermal edge smoothing to protect goods and warehouse personnel.
07
Robotic Welding
Automated CO2/Argon shielded arc welding joints connecting beam claws with zero slag defects.
08
Pickling & Phosphating
Total immersion multi-tank acid wash and chemical conversion coat for extreme rust prevention.
09
Powder Coating
Electrostatic spray guns apply durable polyester thermoset resin cured in 200°C baking tunnels.
10
QC & Bundling
Dimensional checks, coating thickness audit, impact testing, and maritime container strapping.
Procurement Clarity
Single Pallet Racking: Frequently Asked Questions (FAQ)
Authoritative technical answers to key questions raised by warehouse developers, supply chain directors, and industrial contractors.
What distinguishes Single Pallet Racking from Double Deep or Drive-In Systems?
Single Pallet Racking (Selective Pallet Racking) is arranged in single or back-to-back rows where every pallet position is directly accessible from the aisle without moving any adjacent pallet (100% SKU selectivity). Double Deep requires specialized pantograph reach trucks and stores pallets two deep (50% direct selectivity), while Drive-In racks utilize continuous pallet rails for high density at the expense of strict LIFO rotation and individual accessibility. Single pallet racking remains optimal for facilities managing diverse SKUs with high picking velocity.
Which steel standards and mechanical grades are utilized in your export racking?
We exclusively roll-form cold-rolled structural steel compliant with Chinese National Standards GB/T 700 (Grades Q235B and Q355B), equivalent to European EN 10025 S235JR and S355JR, and American ASTM A36 / A572 Grade 50. All steel raw material coils are delivered with certified mill test reports (MTR) verifying tensile strength, elongation (≥ 26%), and chemical purity to ensure crack-free cold profile rolling and dependable structural load ratings.
How is beam load capacity determined and verified under international codes?
Our pallet rack beams are rated based on uniformly distributed loads (UDL) in accordance with EN 15512 and RMI MH16.1 protocols. The standard engineering deflection limit is set at 1/200th (0.5%) of the clear span length under full static load (with optional tighter L/250 criteria for automated applications). Each beam pair includes heavy-duty spring safety locking pins that resist vertical dislodgement forces up to 5,000 N caused by accidental upward forklift operator errors.
What information is required to generate a complete free CAD layout and project quote?
To generate an optimized structural layout within 24 hours, our engineering office requires: (1) Architectural warehouse drawing in DWG, DXF, or PDF showing clear internal heights, building column centers, floor joints, and fire exit locations; (2) Pallet specifications including width, depth, overall height, and gross weight per pallet; (3) Forklift fleet details including maximum mast lift height, minimum turning radius (AST - aisle stocking turning width); and (4) Site seismic zone classification and ambient temperature profiles (ambient vs cold store).
How does your surface treatment protect steel in humid, tropical, or coastal environments?
Unlike budget suppliers using basic wipe-down degreasing, HEDA Shelves utilizes an eight-tank automated immersion pretreatment cycle: hot degreasing, clean water rinse, acid pickling to strip rust/scale, secondary rinse, surface conditioning, zinc-iron phosphating, passivation, and deionized rinse. This is sealed with lead-free, non-toxic electrostatic polyester powder coating baked at 180°C–200°C. For coastal warehouses (such as port facilities in Chennai, Chattogram, or Colombo) or sub-zero blast freezers, we provide continuous hot-dip galvanizing per ISO 1461 with minimum 65 μm zinc layer thickness.
What global export shipping and logistical options are supported?
We operate containerized maritime export operations through South China deepwater ports (Guangzhou Nansha, Shenzhen Yantian/Shekou, and Hong Kong). We support Incoterms including FOB, CIF, CFR, and DDU/DDP. Our shipments serve primary trade gateways such as Nhava Sheva (JNPT), Mundra, Chennai, Kolkata, Chittagong, Colombo, Karachi, Jebel Ali, Rotterdam, Los Angeles, and Santos. Landlocked destinations like Nepal and Bhutan are routed via bonded transit corridor through Kolkata/Visakhapatnam.
How are installation, alignment, and safety signages managed overseas?
Every shipment arrives with color-coded, labeled components, full structural 3D assembly drawings, bill of materials (BOM), anchor positioning templates, and video assembly documentation. Local installation contractors can complete erection smoothly. For major multi-thousand pallet developments, HEDA Shelves dispatches bilingual senior project engineers on-site to oversee erection, vertical alignment tolerances (≤ H/1000 plumb deviation), anchor torque validation, and issuance of formal EN 15635 static load capacity load warning plates.
