Featured Industrial Aisle Racking Systems
Engineered for harsh operating environments, high cycle throughput, and optimized cubic volume. Review our benchmark selective, dynamic flow, drive-in, mezzanine, and automated racking configurations.
Engineered for high-density FIFO split-case picking aisles. Features smooth aluminum/plastic roller tracks with customizable 50-100kg loading per shelf level.
- Rotation Principle: Strict FIFO Track
- Lane Capacity: 100 kg / level
- Roller System: High-Durability Polymer

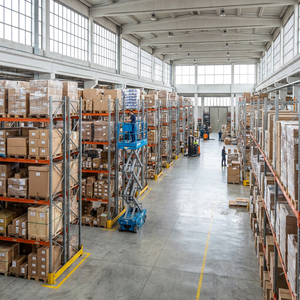

Modular heavy-duty structural steel beam rack designed for demanding distribution hubs. 100% direct pallet selectivity with adjustable 50mm/75mm upright pitch.
- Frame Profile: Omega Upright Section

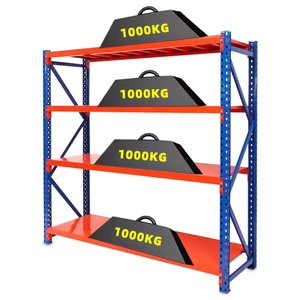

- Payload Rating: 1,000 - 4,500 kg / level
- Surface Tech: Electrostatic Powder Coat

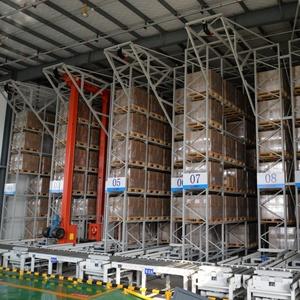

High-precision tolerance aisle racking designed for stacker cranes and automated shuttles. Maximizes clear vertical clearances up to 35 meters with zero deflection error.
- Integration: WMS/WCS Controlled Crane
- Vertical Reach: Up to 35 Meters
- Deflection Spec: < L/300 Ultra-Rigid

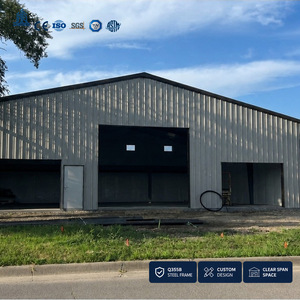

Turnkey architectural space planning integrating pre-engineered steel frames with high-bay pallet racking. Engineered to withstand heavy seismic and live wind loads.
- Structure Type: Rack-Supported Building
- Standards: EN 1993 / AISC 360
- Spatial Gain: +180% Cubic Density
The international benchmark for multi-SKU warehousing. Features cold-rolled interlocked safety beam pins and high-tensile column base shoes for reach-truck aisles.
- Steel Grade: Q235B / Q355B Certified
- Beam Heights: 80mm - 160mm Box Beams
- Pallet Access: 100% Immediate Reach

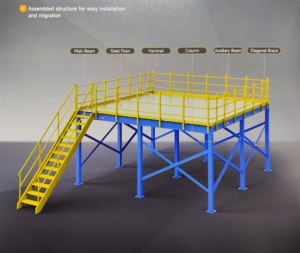

Multi-tier rack-supported platforms multiplying usable mezzanine square footage. Incorporates cold-formed steel decking, perimeter handrails, and pallet safety gates.
- Floor Loading: 300 - 1,000 kg / m²
- Tiers: 2 to 4 Structural Levels
- Decking Media: Galvanized Steel / B盘 Grating
Built strictly to FEM 10.2.02 and EN 15512 specifications. Optimized for Very Narrow Aisle (VNA) reach trucks, cutting operational aisle widths down to 1.7 meters.
- Compliance: CE 2435-CPR-8605159
- Aisle Width: 1,650mm - 1,850mm VNA
- Corrosion Proof: Pickled & Phosphated Steel
Eliminates intermediate operating aisles to create monolithic pallet blocks. Ideal for cold store freezers and homogenous SKU production facilities with LIFO stock rotation.
- Space Saving: Up to 80% Floor Utilization
- Rails: Structural Folded Guide Rails
- Bracing: Top & Back X-Bracing Tie
The Engineering Anatomy of Modern Aisle Racking: Structural Mechanics & Clearances
In modern industrial logistics, an aisle racking installation is not merely passive shelving; it is a dynamic, load-bearing civil structure subjected to complex multi-axial forces including gravity dead loads, fluctuating live product loads, forklift impact shears, and horizontal seismic acceleration. Guangzhou Heda Shelves Co., Ltd. executes each aisle design under strict structural calculation protocols governed by EN 15512:2020 (European Standard for Steel Static Storage Systems) and ANSI MH16.1 (Specification for the Design, Testing and Utilization of Industrial Steel Storage Racks).
A crucial factor in racking longevity and site safety is the precise determination of clear aisle widths. Standard Counterbalance Forklifts dictate wide aisle configurations typically between 3,500 mm and 4,000 mm to accommodate vehicle turning radii. Moving into Reach Truck configurations reduces aisle clearances to 2,700 mm – 3,000 mm. For enterprise facilities facing astronomical land costs, Very Narrow Aisle (VNA) systems compress operating corridors down to 1,650 mm – 1,800 mm. Under VNA operations, floor flatness tolerances become parametric; uneven slabs compound angular mast lean exponentially at 12 to 18 meters, demanding superflat floors conforming strictly to DIN 18202 Table 3 Group 4 or ASTM E1155 F-min 75+ specifications.
Racking profile metallurgy governs ultimate structural resistance. Upright columns manufactured by Heda Shelves utilize continuously roll-formed, multi-flange Omega profiles made from certified high-tensile Q235B and Q355B structural coil steel. Multi-bend cold roll-forming yields work-hardened corners that heighten torsional resistance against forklift impact. Box beams are engineered via double-C interlocking seams robotically seam-welded to three- or four-claw forged steel connectors. This mechanical interface ensures maximum moment-resisting joint stiffness, preventing joint rotational slip and keeping frame deflection safely within the conservative δ ≤ L/200 design boundary.
Aisle Racking Architecture Comparative Matrix
Direct empirical comparison of storage density, selectivity, SKU turnover profile, and capital expenditure requirements across primary industrial aisle racking systems.
| Racking System | Pallet Selectivity | Storage Density | Typical Aisle Width | Handling Equipment Required | Primary Industrial Use Case |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Direct Immediate | Standard (40-45%) | 3,000mm – 3,800mm | Standard Counterbalance / Reach Truck | General 3PL, FMCG, Diverse Multi-SKU Distribution |
| Very Narrow Aisle (VNA) | 100% Direct Immediate | High (60-65%) | 1,650mm – 1,850mm | Man-Up / Man-Down VNA Turret Truck | High-Value Inventory, Expensive City-Hub Warehouses |
| Drive-In / Drive-Through | Lane Dependent (LIFO/FIFO) | Very High (70-75%) | Forklift Drives into Racks | Standard Counterbalance / Reach Truck | Cold Storage, Agricultural Harvests, Bulk Raw Goods |
| Radio Shuttle Racking | Lane Dependent (FIFO/LIFO) | Maximum (80-85%) | Lane Entry Only (No In-rack Aisles) | Automated Lithium Shuttle Cart + Forklift | Refrigerated Cold Chain, Meat, Dairy, High Volume |
| Carton / Pallet Flow Rack | Strict FIFO First-In First-Out | High (70%) | Separate Loading & Picking Aisles | Standard Forklift (Pallet) / Manual (Carton) | Pharmaceuticals, Perishables, Fast-Pick Buffers |
| Automated ASRS Clad | Computer Controlled (100%) | Maximum (85-90%) | 1,400mm – 1,600mm Crane Bay | High-Speed SRM Stacker Cranes | Fully Automated 24/7 Smart Logistics Hubs |
Future Procurement Trends in Industrial Aisle Racking
How technological, economic, and geopolitical forces are reshaping procurement criteria for global supply chain directors from 2025 through 2030.
1. Total Cost of Ownership (TCO) vs. Initial CapEx
Industrial buyers are shifting focus from purchase price to full lifecycle Total Cost of Ownership. Racking systems constructed from substandard gauge steel cause frequent mast misalignments, deflection stress on concrete anchors, and recurring downtime. High-durability hot-dip galvanized or automated electrostatic powder-coated steel with superior impact-resistant column bases reduces post-commissioning maintenance expenditures by up to 64% over an eight-year operational timeline.
2. Automated & AMR Hybrid Readiness
Procurement managers are future-proofing conventional warehouses by specifying aisle racking compatible with Autonomous Mobile Robots (AMRs) and automated side-fork reach systems. This requires tighter manufacturing tolerances, flush-faced bottom beams, precision aisle rail integration, and clearance for optical floor QR-navigation strips, allowing seamless transitioning from manual picking to robotic automation without tearing down racks.
3. Climate Resilient & Coastal Pre-treatment
With massive logistics expansions near maritime ports (Nhava Sheva, Chattogram, Karachi, Colombo, Rotterdam), atmospheric humidity and airborne chlorides cause rapid oxidation of standard steel racks. Procurement tenders now explicitly require continuous online pickling, nano-ceramic phosphating, and thermo-cured polymer powder coatings exceeding 500-hour ASTM B117 salt-spray ratings, or full-immersion hot-dip galvanizing for cold storage facilities.
Guangzhou Heda Shelves Co., Ltd.: Engineering Credibility
Founded in 2001, Heda Shelves operates a self-owned 30,000 square meter intelligent manufacturing facility in South China, producing over 30,000 tons of structural warehouse systems monthly with end-to-end traceability.
Prime Steel Ingot Selection
Certified Q235B & Q355B coils tested for chemical composition, tensile yield, and metallurgical elongation prior to slit processing.
High-Speed CNC Punching
Multi-axis automated CNC punching lines stamp teardrop and diamond upright patterns with micro-tolerances within ±0.1mm accuracy.
Continuous Roll Forming
Heavy-duty 24-pass continuous cold-roll forming mills bend heavy-gauge uprights and interlocking box beams without micro-fracturing.
Pickling, Phosphating & Coating
Automated 12-stage chemical wash removes oils and mill scale, followed by electrostatic epoxy resin baking at 200°C for extreme scratch resistance.
Verified Quality Certification Credentials
Independent third-party certifications available for international engineering audits.
Industrial Aisle Racking Procurement FAQ
Direct answers to complex structural engineering, logistics routing, slab capacity, and compliance questions asked by procurement directors.
How do you verify warehouse concrete slab capacity before layout sign-off?
Our engineering department requires your slab core thickness, concrete compressive rating (e.g., C25/30 or 3,000 PSI), sub-base reinforcement profile, and existing expansion joint layouts. We execute finite-element footplate load calculations, sizing base plates and chemical anchor embeds so concentrated point loads (typically 40 to 120 kN per upright) do not exceed soil bearing and slab punching-shear limits.
What surface treatment is specified for humid or coastal ocean-port warehouses?
For high-humidity or coastal installations near ports (e.g., Chennai, Chattogram, Karachi, Colombo, Southeast Asia), standard degreasing is insufficient. Heda Shelves applies an industrial 12-stage automated chemical immersion consisting of acid pickling, zinc phosphating, and deionized passivating. Uprights and beams receive electrostatic TGIC polyester powder coat baked at 200°C (60-80 μm dry film thickness). Hot-dip galvanization to EN ISO 1461 is also provided for cold storage.
What vertical deflection safety limits do your structural beams maintain?
Under full static load design according to European standard EN 15512 and RMI specifications, our box beams are calculated to an elastic deflection limit of δ ≤ L/200 (where L is the clear span distance between upright columns). For sensitive automated ASRS racking applications or pallet flow lanes, we enforce a strict δ ≤ L/300 design threshold to ensure optical sensors and robotic shuttles encounter zero dynamic travel obstruction.
How are ocean shipping containers packed to prevent profile bending in transit?
Racking damage frequently occurs during container sea transit due to improper bundling. Heda Shelves custom bundles upright frames in heavy steel strapping with protective corner shoes and anti-friction corrugated spacers. Beams are palletized in interlocking layers with customized wooden dunnage. All loose hardware, base plates, and safety clips are packed in reinforced, heat-treated wooden crates, achieving 98%+ cubic volume utilization inside 40ft High Cube containers.
Can Heda Shelves engineer racking systems for high-risk seismic zones?
Yes. In accordance with EN 16681 (Seismic Design of Steel Racks) and local seismic building codes, our structural design software models response spectrum dynamics. For earthquake-prone sites, we engineer enlarged base footings, high-ductility steel anchor bolts, reinforced column back-to-back ties, and horizontal/vertical bracing towers that disperse seismic ground acceleration without brittle structural failure.
What documentation and assembly guidance accompany export shipments?
Every project is shipped with a comprehensive engineering installation dossier. This includes color-coded 2D CAD component layout drawings, 3D structural connection schematics, step-by-step assembly video guides, factory steel mill test certificates (MTC), and official maximum beam level load signage plates ready for on-site OSHA and EN safety compliance inspection.
Request Your Free Custom Warehouse Aisle Racking Engineering Layout
Provide your warehouse dimensions, clear ceiling heights, pallet dimensions, and forklift fleet specifications. Our technical engineering team will deliver a comprehensive 2D CAD spatial layout, 3D visual rendering, and itemized load-bearing quote within 24 business hours.
