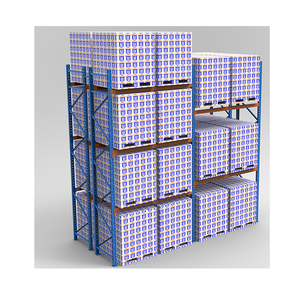

Storage Equipment Heavy Duty Racking Shelves & Metal Pallet Systems
Versatile heavy-duty logistics shelves engineered with continuous automated weld seams to eliminate structural fatigue under high duty cycles.
Warehouse Storage Automated Pallet Runner Shuttle Racking System
Semi-automated deep-lane pallet shuttle system that optimizes cold storage density and accelerates FIFO/LIFO batch picking workflows.
Fully Automatic Sheet Metal High Density Smart Storage With Loading Robot
Robotic-assisted automated sheet metal storage rack designed for raw material handling in heavy manufacturing and stamping plants.
Whitepaper: Structural Engineering Standards of China VNA Racking
In modern industrial logistics, the trade-off between floor space utilization and 100% SKU selectivity has historically limited warehouse efficiency. Standard selective pallet racking layouts require aisle widths ranging between 3.2 to 3.8 meters to accommodate conventional counterbalanced forklifts. Very Narrow Aisle (VNA) racking systems compress these working aisles down to 1.5–1.8 meters, unlocking up to 65% additional pallet capacity within the exact same building footprint.
1. Steel Metallurgy & Roll-Forming Tolerances
To support high-bay elevations exceeding 15 meters without structural deflection, China's premier VNA manufacturers utilize high-tensile cold-rolled steel grades—primarily Q235B and Q355B (equivalent to EN 10025 S235JR and S355JR). Cold-formed upright profiles feature continuous multi-stage roll-forming with up to 14 deformation stations. This process induces work-hardening along column corners, substantially elevating yield strength and torsional stiffness.
2. Floor Flatness Tolerances (EN 15620 / TR34)
VNA turret trucks (Man-Up or Man-Down) operate with millimetric clearances at extreme heights. Consequently, floor levelness is paramount. VNA whitepaper specifications require compliance with TR34 Superflat (Category 1) or EN 15620 Class 300 standards. Minor floor undulations of 2mm at ground level translate into a dangerous 30mm horizontal sway at a 14-meter beam elevation, stressing upright frames and beam connectors.
| Racking Architecture | Aisle Width Requirement | Storage Volume Index | Selectivity | Ideal Handling Equipment |
|---|---|---|---|---|
| VNA Selective Racking | 1.5m – 1.8m | 165% | 100% Direct Access | VNA Turret Truck / Articulated Forklift |
| Standard Selective Rack | 3.2m – 3.8m | 100% (Baseline) | 100% Direct Access | Reach Truck / Counterbalance Truck |
| Double Deep Pallet Rack | 3.0m – 3.3m | 130% | 50% Direct Access | Deep-Reach Pantograph Forklift |
| Radio Shuttle Automation | 3.0m – 3.2m (Front Aisle) | 220% | Batch LIFO / FIFO | Automated Shuttle + Standard Truck |
Future Sourcing & Procurement Trends (2025–2030)
As global supply chains transition toward automation, carbon neutrality, and data transparency, purchasing managers must evaluate China VNA racking suppliers against evolving technological criteria.
1. Hybrid AMR & VNA Systems
Future procurement specifies structural compatibility for Autonomous Mobile Robots (AMRs) and automated AGVs operating within VNA guide rails, replacing manual turret truck drivers entirely.
2. Green Powder Coating & EPD
Tier-1 manufacturers are adopting zero-VOC electrostatic thermosetting powder coatings backed by Environmental Product Declarations (EPD) to comply with European ESG mandates.
3. Digital Twin & IoT Structural Monitoring
Integration of strain-gauge sensors inside heavy-duty beam connectors sends real-time deflection and impact alerts directly to warehouse WMS dashboards.
Technical Development Trends in Chinese VNA Manufacturing
Chinese storage racking producers have transitioned from standard structural steel fabrication to advanced precision industrial engineering. Key technological developments include:
- Laser-Cut Beam Connector Claws: Transitioning from stamped steel to CNC fiber laser cutting guarantees zero connector play, minimizing beam sagging under maximum rated loads.
- High-Durability Galvanization: Cold-chain VNA deployments utilize hot-dipped zinc coatings (>65μm thickness) ensuring anti-corrosion protection in sub-zero environments down to -30°C.
- Integrated Wire Guidance Channels: Modern VNA upright bases incorporate pre-engineered floor slots and concrete inset brackets for inductive magnetic wire guidance installation.
- Seismic Resistance (ISO 16681 Compliance): Advanced FEA (Finite Element Analysis) modeling guarantees dynamic structural stability during high-magnitude seismic events without catastrophic frame failure.
Why Partner with Us: Manufacturer Strengths
By operating an automated 30,000m² manufacturing facility in Guangzhou, China, we deliver end-to-end engineering rigor, certified quality control, and direct factory pricing.
30,000m² Automated Production Base
Equipped with automated cold-roll forming lines, continuous robotic welding cells, and automated powder coating lines delivering 30,000 tons of monthly capacity.
ISO 9001:2015 & CE Certified
Rigorously tested to international standards (EN 15512, FEM 10.2.02, ISO 9001). Every batch undergoes ultrasonic weld testing and powder adhesion cross-hatch checks.
Free Engineering CAD & 3D Design
In-house structural engineers prepare customized 2D warehouse layouts, structural calculation reports, and 3D BIM models within 24 hours.
Global Turnkey Logistics & Installation
Full support including optimized container packing (20GP/40HQ), international shipping, numbered assembly drawings, and on-site engineering supervision.
