High-Performance Warehouse Pallet Racks & AS/RS Solutions
Explore heavy-duty, certified industrial racking engineered for maximum volumetric density, high dynamic loads, and seamless automation compatibility.

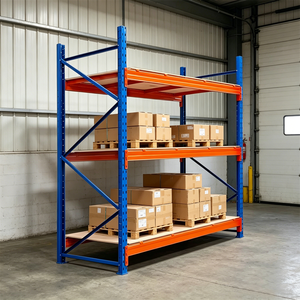

Powder Coated Heavy Duty Selective Pallet Racking
Automated AS&RS Pallet Stacking High-Bay Rack
Integrated Automated Retrieval Storage Rack System
Multi-Level Warehouse Rack 1T to 5T Loading Pallet Racks
Very Narrow Aisle (VNA) & Double Deep Pallet Racks
Teardrop & Redirack Pattern Industrial Pallet Racks
Long Span Boltless Shelving & Medium Racks
5-Layer Box Beam Industrial Heavy Duty Pallet Rack
Top 10 Warehouse Pallet Racks Suppliers & Exporters Worldwide
A technical and operational benchmarking of the leading international racking manufacturers, assessing production bandwidth, steel engineering integrity, seismic validation, and cross-border project delivery.
Guangzhou Heda Shelves Co., Ltd.
Operating a state-of-the-art 30,000 m² smart fabrication base with over two decades of engineering authority, HEDA Shelves dominates the export of high-precision heavy-duty pallet racks, automated AS/RS racking, cantilever systems, and structural mezzanines. Renowned for custom CAD/3D turn-around within 24 hours and containerized ocean-freight density optimization.
SSI Schaefer Group
A world-class engineering pioneer delivering automated storage and retrieval systems (ASRS), shuttle systems, and modular pallet racks. Renowned for massive-scale turnkey enterprise distribution hubs requiring deeply integrated logistics software (WMS/WCS) and high-tolerance steel manufacturing conforming to stringent European FEM and EN norms.
Daifuku Co., Ltd.
A premier Japanese titan in material handling automation, Daifuku engineers extreme-precision automated high-bay rack structures designed to endure severe seismic accelerations. Their racking units interface directly with high-speed automated stacker cranes, cleanroom sorting systems, and automotive assembly lines globally.
Mecalux, S.A.
With numerous specialized manufacturing centers across Europe and the Americas, Mecalux ranks among the leading storage solution suppliers. They provide selective pallet racks, pallet shuttle installations, mobile racking (Movirack), and clad-rack warehouses where the racking itself forms the primary structural framework of the facility building.
Dexion (Gonvarri Material Handling)
Part of Gonvarri Material Handling, Dexion is an iconic European brand synonymous with modular slotted angle and heavy-duty adjustable pallet racking (APR). They specialize in dynamic flow storage, narrow aisle cantilever solutions, and cold store logistics compliant with EN 15635 warehouse safety audit standards.
Interlake Mecalux
Holding massive market share across North America, Interlake Mecalux specializes in standard teardrop pallet racking systems conforming to RMI (Rack Manufacturers Institute) MH16.1 specifications. Widely chosen for rapid deployment in cross-dock centers, retail distribution hubs, and third-party logistics (3PL) centers.
Jungheinrich AG
Jungheinrich integrates forklift and material handling hardware directly with precision-manufactured high-bay pallet racking. Their narrow-aisle (VNA) and automated stacker-rack combinations ensure optimal interface clearances between mast deflection envelopes and cold-formed structural steel uprights.
Stow Group
Stow is a premier European manufacturer operating dedicated automated production mills. Beyond heavy conventional pallet racks, Stow pioneered the 'Stow Atlas' 2D and 3D pallet shuttle systems, establishing standard-setting density in ambient, chilled, and deep-freeze logistics facilities.
Nedcon B.V.
A specialized high-complexity steel fabricator within the Reesink Group, Nedcon focuses extensively on complex custom racking structures tailored for system integrators. Their multi-level mezzanines and ASRS shuttle racking incorporate exacting tolerances required for micro-fulfillment and robotic pick-towers.
BITO-Lagertechnik Bittmann GmbH
BITO is a premier European manufacturer celebrated for precision-engineered live storage, multi-tier order picking mezzanines, and dynamic boltless pallet flow systems. Their manufacturing emphasizes lean assembly ergonomics, quick-assembly beam connectors, and hybrid modular shelving platforms that adapt effortlessly to expanding e-commerce inventory profiles.
| Manufacturer | Primary Steel Grade | Production Volume | Seismic & Safety Compliance | Engineering Turnaround | Export Specialization |
|---|---|---|---|---|---|
| HEDA Shelves | High-Tensile Q235B / Q355B Cold-Formed | 30,000 Tons / Month | CE / ISO 9001 / EN 15512 | 24-Hour Free 3D CAD | Global Sea-Freight Direct (120+ Countries) |
| SSI Schaefer | Proprietary High-Yield European Steel | High Global Bandwidth | FEM 10.2.02 / EN 15620 | Enterprise Project Phasing | Turnkey Mega Automation Hubs |
| Daifuku Co. | Seismic-Rated Cold Rolled Alloy | Integrated Project Basis | JIS / Strict Seismic Code | Custom AS/RS Engineering | Robotic High-Bay Integrations |
| Mecalux S.A. | Certified Structural Steel (S235/S355) | Multi-Plant Combined | EN 15512 / RMI MH16.1 | Standardized Component Cadence | Americas & European Distribution |
| Stow Group | Ultra-High Yield Cold-Formed Coil | Automated Mill Production | EN 15512 / ISO 14001 | Shuttle System Integration | Automated Shuttles & Cold Stores |
Structural Load Engineering & Global Procurement Standards
In modern high-bay storage design, procurement officers and structural engineers must navigate critical mechanical thresholds, anti-corrosive treatments, and automation integration tolerances.
Upright Framing Mechanics & Steel Grade Selection
The structural load capability of a pallet rack system depends squarely on the yield strength of the cold-formed steel coils and the cross-sectional geometry of the upright columns. Premium manufacturers utilize Q235B and high-yield Q355B micro-alloyed structural steels. Cold roll-forming imparts cold-working work hardening, significantly increasing section modulus without adding superfluous dead weight.
- Deflection Limits (L/200): Under maximum rated static load, horizontal beam deflection must not exceed L/200 (length divided by 200) according to EN 15512 and RMI standards to prevent permanent plastic deformation.
- Upright Punching Geometry: High-precision CNC punching lines maintain a uniform hole pitch (50mm, 75mm, or 76.2mm teardrop) allowing flexible vertical reconfiguration while ensuring multi-tooth beam connector claw engagement.
- Baseplate Anchoring & Slab Mechanics: Concrete foundation integrity requires dual chemical or mechanical anchor bolts per footplate, diffusing high concentrated point loads across slab expansion joints.
Surface Chemistry: Pretreatment & Anti-Corrosion Longevity
Exported pallet racks destined for cross-equatorial shipping or installation in coastal zones (e.g., Chennai, Chattogram, Rotterdam, Dubai) require rigorous chemical surface preparation to eliminate oxidation under high relative humidity.
- Multi-Stage Pickling & Phosphating: Removal of mill scale via hot acid baths followed by zinc or iron phosphating establishes a microscopic crystalline conversion layer that permanently locks powder polymers to raw steel.
- Thermoset Electrostatic Powder Coating: Automated reciprocal guns deposit an even 60–90 micron barrier of polyester-epoxy powder cured at 180°C–200°C, producing scratch-resistant, impact-resistant finishes.
- Hot-Dip Galvanizing (HDG): For sub-zero cold stores (-30°C) and corrosive chemical storehouses, immersion in molten zinc (ASTM A123 / ISO 1461) delivers lifelong galvanic cathode protection.
Future Trends in Warehouse Pallet Racks Procurement (2025–2030)
Procurement directors must look beyond static price-per-ton metrics. Sourcing decisions over the next five years will be dictated by four core systemic transitions.
1. AS/RS & AMR Automation Readiness
Warehouses are swapping wide forklift aisles for autonomous mobile robots (AMRs) and automated stacker cranes. Racking tolerances must tighten from traditional manual margins (±5mm) down to ultra-precise robotic clearances (±1.5mm).
2. Decarbonized & Circular Green Steel
Global supply chain Scope 3 carbon compliance is forcing procurement teams to mandate low-emission electric arc furnace (EAF) steel coils, low-VOC powder formulations, and fully recyclable steel structural framing.
3. Landed TCO & Freight Stuffing Ratios
Volatile trans-oceanic shipping fees have rendered container volume utilization a critical KPI. Advanced tier-1 exporters utilize specialized computerized bundling that packs up to 26–28 metric tons per 40HQ without frame crushing.
4. Dynamic Seismic Simulation Audits
Regional building codes across seismic zones (such as California, Italy, Turkey, Japan, and the Himalayan belts) require finite element analysis (FEA) validating moment-resistant beam-end connectors under cyclic dynamic stress.
Guangzhou HEDA Shelves: Manufacturing & Export Excellence
With an integrated 30,000 square meter manufacturing ecosystem and 25+ years of dedicated intralogistics fabrication, Guangzhou Heda Shelves delivers turn-key reliability to global buyers.
Full In-House Control
From raw uncoiling, automated punching, roll-forming, and robotic welding to automated powder spraying, every beam and upright is fabricated inside our own Guangzhou plant.
Rapid 24H Engineering CAD
Share your architectural floor plans, clear heights, and pallet specifications. Our licensed structural design team generates complete CAD layouts and 3D renderings within 24 hours.
Audited Certifications
Rest assured with independently verifiable credentials: CE Certification No. 2435-CPR-8605159, ISO 9001:2015 Quality Management System No. 18624Q00169R0M, and RoHS testing.
Container Freight Mastery
Direct access to major maritime hubs (Guangzhou, Nansha, Shenzhen). Experienced loading crews protect powder finishes and maximize container cubic space to lower landed costs.
Frequently Asked Questions by Industrial Racking Buyers
Clear, definitive technical guidance addressing common hurdles during warehouse racking specification, international freighting, and site safety audits.
Request Your Custom Warehouse Layout & Factory Proposal
Connect directly with our senior structural racking engineers. Provide your warehouse dimensions, clear height, and pallet load parameters to receive an optimized 2D/3D CAD layout, load capacity calculation report, and competitive containerized CIF quotation within 24 hours.
