Featured Industrial Structural Racking & High-Density Systems
Discover high-capacity warehouse rack assemblies manufactured from structural C-channel and cold-formed profile steel, engineered to withstand rigorous forklift abuse, intensive warehouse turnover, and demanding seismic requirements.
Track-Guided Mobile Pallet Racking System
High-density motorized bases riding on embedded floor tracks, eliminating idle aisles and doubling warehouse storage capacity.
View Specifications
Heavy Duty Boltless Steel Storage Rack
Modular industrial boltless steel framework with adjustable tiers for bulk manual picking, distribution centers, and commercial hubs.
View Specifications
Xinke 42U Liquid Cooling Server Cabinet
Structural-grade 19-inch steel enclosure integrating advanced liquid cooling and intelligent PDU systems for data processing infrastructure.
View Specifications

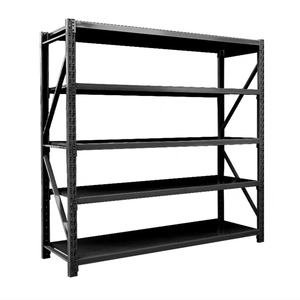

200kg 5-Layer Medium Duty Shelves
Reinforced cold-rolled steel shelving with 200kg capacity per beam level, designed for spare parts warehouses, logistics sorting, and retail inventory.
View Specifications
Heavy Duty Warehouse Picking Racks
Heavy structural-beam integration configured for high-reach pallet placement coupled with lower-level ergonomic hand picking stations.
View Specifications

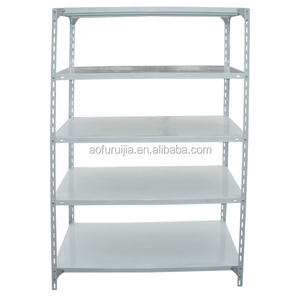

5-Tiers Slotted Angle Steel Rack
Precision-punched corner angle steel with high-tensile hardware. Versatile, economical, and field-adjustable for workshop tools and hardware storage.
View Specifications

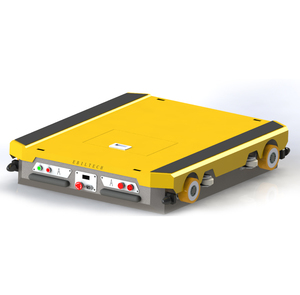

Automated Radio Shuttle Racking System
High-density semi-automated deep-lane storage running autonomous battery-powered shuttles. Supports both FIFO and LIFO pallet operations.
View Specifications
Heavy Duty Industrial Selective Pallet Rack
The gold standard in logistics facilities worldwide: 100% immediate pallet selectivity, custom beam heights, and high load-bearing column footings.
View SpecificationsStructural C-Channel vs. Roll-Formed Steel Racking: The Decisive Benchmark
When specifying heavy industrial pallet racking, material handling engineers must choose between cold roll-formed sheet steel and hot-rolled structural steel channels. Understanding the physical yield mechanics, torsional rigidity, impact tolerance, and long-term operating costs is paramount for high-throughput distribution hubs, seismic zones, and freezer facilities.
| Evaluation Parameter | Hot-Rolled Structural Racks (C-Channel) | Roll-Formed Steel Racks (Standard) | Engineering Impact & ROI |
|---|---|---|---|
| Raw Material Specification | ASTM A36 / Q235B heavy hot-rolled structural C-channel steel | Q235 / Q355 cold-formed light-gauge steel coil sheet (12–14 gauge) | Structural: Up to 250% higher wall thickness |
| Forklift Impact Resistance | Superior corner impact absorption; thick flanges resist catastrophic bucking | Susceptible to torsional deformation and upright tearing from glancing impacts | Structural reduces warehouse repair downtime by 80% |
| Beam-to-Column Connection | Grade 5 / Grade 8 heavy structural hex bolts through unpunched web | Teardrop / slotted hook connector clips with spring safety pins | Structural bolts eliminate dislodgement during high-speed hoisting |
| Sub-Zero Freezer Performance (-30°C) | Exceptional ductile resilience under thermal contraction; minimal brittle failure risk | Thinner profiles subject to accelerated fatigue under repetitive shock loading | Structural is mandatory in premier cold-chain logistics |
| Seismic Ductility & Shear Capacity | High moment-frame resistance; handles heavy dynamic seismic base shear | Requires extensive external x-bracing and reinforcement collars | Conforms to high seismic acceleration parameters (RMI MH16.1) |
| Initial Capital Expenditure (CapEx) | 15% to 28% higher initial raw material and hot-rolled fabrication cost | Lower initial purchase price due to continuous high-speed roll forming | Roll-formed offers lower initial entry cost |
| 10-Year Total Cost of Ownership (TCO) | Extremely low: virtually zero column replacement, lower insurance premiums | High: ongoing repair kits, frequent upright replacements, safety inspections | Structural delivers lower overall lifecycle expenditure |
Engineering Consensus: For facilities experiencing rapid forklift travel cycles (e.g., fast-moving beverage distribution, agricultural raw storage, cold storage freezers, and heavy metal warehousing), hot-rolled structural steel pallet racking pays for itself within 36 to 48 months solely by eradicating structural upright frame replacements and catastrophic structural failure risks.
Top 10 Structural Pallet Rack Factory & Suppliers Worldwide
Based on manufacturing capacity, structural engineering innovation, seismic certification compliance (RMI ANSI MH16.1, EN 15512, ISO 9001), automated CNC precision, and international export track records, here are the top 10 structural rack manufacturers dominating industrial logistics infrastructure in 2026.
Guangzhou Heda Shelves Co., Ltd.
Founded in 2001, HEDA Shelves operates a state-of-the-art 30,000 m² heavy manufacturing facility producing over 30,000 tons of industrial racking monthly. Renowned for custom structural channel racks, automated shuttle solutions, and high-density warehouse mezzanines, HEDA integrates complete in-house CNC roll-forming, robotic welding, shot-blasting, and duplex powder coating. Certified under CE (2435-CPR-8605159), ISO 9001:2015, and RoHS, HEDA supplies turnkey structural projects across 120+ countries with factory-direct pricing and free 3D CAD engineering.
- 30,000 Tons Monthly Output / 30,000 m² Plant
- Hot-Rolled C-Channel & High-Density Shuttle Hybrid
- Certified CE, ISO 9001:2015, RoHS with Free Design
Frazier Industrial Company
Widely recognized as the pioneer of structural steel storage racks in North America, Frazier utilizes 100% hot-rolled structural steel channel for columns and beams. With an extensive fabrication network across the United States, Mexico, and Canada, Frazier's systems are ubiquitous in refrigerated cold storage, food processing, and heavy industrial distribution centers requiring extreme impact resilience.
- 100% Hot-Rolled Structural C-Channel Fabrication
- RMI Member / Strict North American Seismic Focus
- Established Leader in Beverage & Frozen Distribution
Ridg-U-Rak, Inc.
Ridg-U-Rak is one of the largest storage rack manufacturers globally, processing over 100 million pounds of steel annually. They engineer both roll-formed and structural channel pallet racks. Their structural systems feature heavy-gauge base plates, solid corners, and rigid bolted beam connectors engineered to satisfy rigorous seismic provisions in earthquake-prone zones.
- Heavy C-Channel Frames with Reinforced Back-to-Back Columns
- Extensive Seismic Engineering Calculations
- Wide Distribution & Dealer Integrator Network
Mecalux, S.A.
Operating globally with 11 production centers across Europe, North America, and South America, Mecalux is a world leader in automated warehouse storage and rack-clad buildings. Their structural engineering division specializes in multi-level high-bay pallet racking frameworks capable of integrating automated stacker cranes (ASRS) reaching vertical heights of up to 45 meters.
- Massive High-Bay Rack-Supported Building Solutions
- Integrated In-House WMS (Easy WMS) Ecosystem
- Comprehensive EN 15512 and FEM Compliance
Advance Storage Products
Advance Storage Products is an acknowledged leader in engineered dynamic racking, producing over half of all pushback racking systems installed in North America. Advance’s heavy structural channel line is engineered specifically to eliminate aisle upright damage and provide maintenance-free longevity in heavy-duty grocery and 3PL warehouses.
- Deep-Lane Structural Pushback Racking Specialists
- Heavy Structural Tubular Beam Welded Assemblies
- Premium Corrosion-Resistant Powder Coat Technology
Stow Group (stow International)
Stow Group is one of Europe’s leading racking manufacturers, operating nine modern production facilities. Stow’s structural engineering division develops heavy industrial racking, drive-in systems, and automated pallet shuttles (stow Atlas). Their structural pallet rack designs are engineered to strict EN 15512 standards with automated high-speed punching precision.
- Pan-European Automated Production Network
- stow Atlas 2D & 3D Pallet Shuttle Integration
- Certified Heavy-Duty Multi-Tier Platforms
SSI SCHAEFER Systems
SSI SCHAEFER is globally acclaimed for turnkey warehouse logistics and automated material flow. In structural racking, SCHAEFER designs heavy-gauge channel frameworks engineered to support multi-million-cycle automated storage and retrieval systems (ASRS), cantilever systems for heavy steel profiles, and rack-supported cold storage facilities.
- High-Precision Tolerance for Robotic Handling
- Comprehensive Global Turnkey Project Management
- Extreme Structural Deflection Limits (< 1/500)
Steel King Industries
Steel King specializes in severe-duty structural rack lines like their renowned SK3000® structural channel series. Fabricated using high-strength hot-rolled structural steel, their column posts and bolted connection frames provide maximum resistance to forklift impacts, floor torsion, and heavy dynamic pallet dropping in demanding industrial environments.
- C-Channel Structural Construction (SK3000 Series)
- Full Closed-Tube Structural Steel Racking Variants
- Engineered Impact Load Absorbing Footplates
Redirack Storage Systems
Redirack pioneered the sacrificial leg and heavy structural upright design in the British intralogistics sector. Integrated within European supply networks, Redirack manufactures high-capacity structural pallet racking systems engineered for high-turnover fulfillment hubs, timber yards, and chemical manufacturing facilities demanding certified stability.
- Patented Heavy-Duty Welded 6-Hook Connectors
- Structural Sacrificial Post Repair Designs
- SEMA Structural Compliance Certified
Dexion (Gonvarri Material Handling)
As the historic originator of slotted angle steel and adjustable industrial shelving, Dexion—under Gonvarri Material Handling—supplies heavy structural pallet racking, cantilever arms, and structural mezzanine steel throughout EMEA and the Asia-Pacific. Their structural engineering focus blends automated robotics compatibility with extreme load-bearing stability under harsh industrial regimes.
- 75+ Years Logistics Heritage with Global Engineering Offices
- High-Capacity Heavy Cantilever & Structural Mezzanine Platforms
- Extensive Certifications: ISO 9001, ISO 14001, EN 15512
Future Procurement Trends in Structural Pallet Racking (2026–2035)
Procurement executives are pivoting from low-bid component buying to integrated structural lifecycle contracts. Four major technological and architectural shifts are reshaping structural rack investments over the coming decade.
Cold-Chain High-Density Surge
The global boom in temperature-controlled pharmaceuticals and blast-frozen foodstuffs requires structures capable of enduring thermal stress down to -30°C. Standard roll-formed racks experience embrittlement and accelerated fatigue, driving demand toward heavy hot-rolled C-channel frames that maintain impact ductility in cryogenic conditions.
Structural Integration with ASRS & Shuttles
Autonomous mobile robots (AMRs) and radio shuttle carriers impose rigorous horizontal wheel deflection constraints (<1.5mm tolerance). Racking structures are no longer static frameworks; they serve as robotic guide rails where structural steel tolerances prevent carriage jams and ensure multi-year operational uptime.
Seismic Engineering & Life Safety Codes
Modern building codes (such as IBC 2024 and Eurocode 8) mandate heightened seismic base shear verification for rack installations over 8 meters. Structural steel frames with bolted Grade 5/8 fasteners provide the required moment-frame ductility, significantly lowering municipal permitting friction and corporate liability insurance premiums.
Direct Manufacturing Excellence: Guangzhou Heda Shelves Co., Ltd.
For over 25 years, Guangzhou Heda Shelves Co., Ltd. has delivered end-to-end industrial storage engineering from our consolidated 30,000 m² production complex in South China. Unlike trade intermediaries, we maintain 100% direct control over every manufacturing phase—from raw structural steel coil slitting and automated CNC punching to dual-stage pickling and robotic electrostatic powder coating.
-
30,000 Tons Monthly Capacity: Massive coil stock ensures guaranteed delivery lead times for large-scale logistics centers, cold stores, and industrial factories.
-
Pretreatment Against Monsoon & Salt Corrosion: 10-stage pickling, phosphating, and thermo-cured epoxy polyester powder coating (80–120 µm) prevents flaking and rust in humid coastal or sub-zero environments.
-
Container-Optimized Logistics: Customized bundling bundles beams, uprights, and deck panels to maximize 40HQ ocean container cube efficiency, drastically reducing landed freight cost per pallet position.
Audit-Ready International Credentials
Free Structural Engineering Package
Submit your building architectural CAD file. Our structural engineering department delivers precise 3D BIM models, beam load deflection verifications, and slab anchor calculation reports within 24 hours.
Frequently Asked Structural Pallet Rack Sourcing Questions
Expert answers to the technical, commercial, and structural compliance questions most frequently submitted by warehouse operations managers, 3PL directors, and engineering procurement teams.
Q1: How does structural C-channel steel resist forklift impact compared to roll-formed uprights?
Hot-rolled structural steel C-channels feature solid flanges up to 6–8mm thick with rounded corner fillets formed at temperatures exceeding 900°C. When a forklift outrigger strikes a structural upright, the heavy solid profile absorbs the kinetic energy without tearing or buckling. Conversely, roll-formed profiles (12–14 gauge / 2.0–2.5mm) rely on cold-folded stiffeners that are prone to localized web crumpling, requiring costly column replacement or splice kits.
Q2: Why is structural racking preferred in cold storage and freezer applications?
In sub-zero cold stores (-20°C to -30°C), steel undergoes ductile-to-brittle transition. Standard light-gauge cold-formed sheet steel can become brittle, and repetitive vibrations from reach trucks can initiate fatigue micro-cracks at punched hole corners. Hot-rolled structural steel retains superior low-temperature impact toughness. Moreover, structural racks utilize bolted beam connections that cannot pop open if ice builds up around the connection pockets.
Q3: Can HEDA Shelves integrate structural frames with radio shuttles or automated AS/RS?
Yes. HEDA Shelves specializes in hybrid engineering where hot-rolled structural steel upright frames are utilized on lower impact-prone levels and main column uprights, while precision cold-formed guide rails are laser-aligned to support autonomous radio shuttles. This hybrid approach ensures total impact protection against forklift entry errors while maintaining the tight dimensional tolerances required for autonomous high-speed carriage movement.
Q4: What technical parameters are needed to generate a formal structural racking CAD quote?
To produce certified CAD layouts and load calculations, provide: (1) Warehouse architectural drawings showing clear eaves height, building columns, and dock doors; (2) Concrete slab thickness and compressive strength (e.g., 200mm, 30MPa); (3) Pallet dimensions (W x D x H) including load overhang and maximum gross pallet weight; (4) Forklift specifications including mast lift height and turning radius; and (5) Local seismic zone requirements.
Q5: What surface finishes are recommended for coastal or high-humidity warehouse sites?
For humid, coastal, or tropical regions (e.g., Southeast Asia, coastal India, Middle East), we apply a dual-stage pickling and phosphating acid wash, followed by electrostatic thermo-set epoxy polyester powder coating cured at 200°C (thickness 80–120 µm). For outdoor lumber yards, chemical washdown facilities, or extreme salt spray zones, HEDA also manufactures full Hot-Dip Galvanized (HDG) structural frames according to ASTM A123.
Q6: How does bolted structural racking assemble in the field compared to teardrop styles?
While teardrop racking uses slide-in hook connectors secured by safety pins, structural racking employs heavy Grade 5 or Grade 8 structural hex bolts with prevailing-torque locknuts tightened into tapped beam-end plates or through-holes. Although initial bolting requires approximately 10–15% more assembly labor during initial installation, it creates a rigid, unified moment frame that completely eliminates beam dislodgement risks and loose beam chatter under heavy seismic oscillation.
Engineer Your Warehouse for Maximum Density, Safety, and ROI
Whether you are retrofitting a 5,000 m² distribution hub, planning a sub-zero freezer cold store, or specifying heavy structural channels for an automated logistics center, Guangzhou Heda Shelves Co., Ltd. provides factory-direct engineering expertise, competitive ocean freight delivery, and verifiable global certifications.
