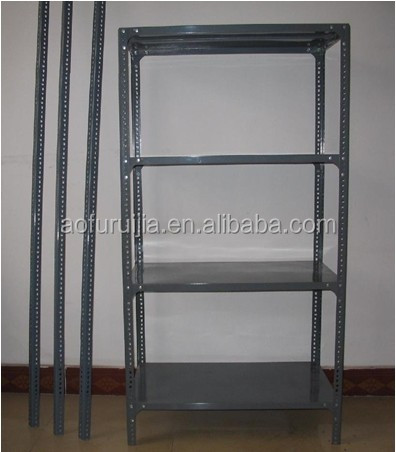

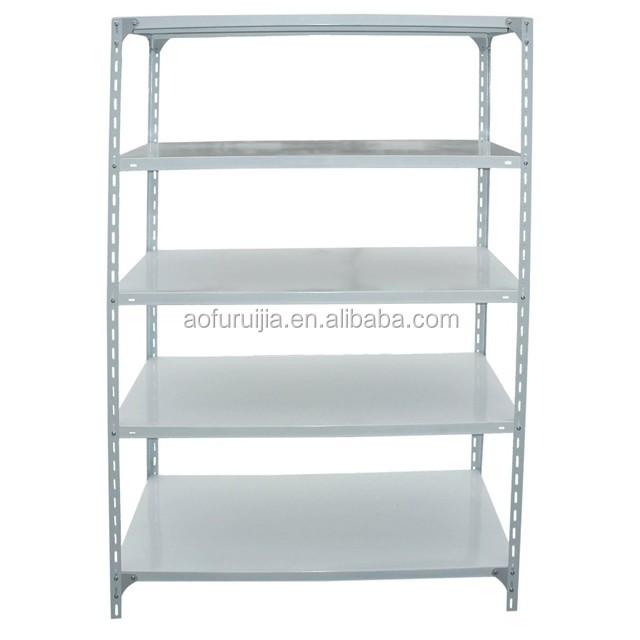

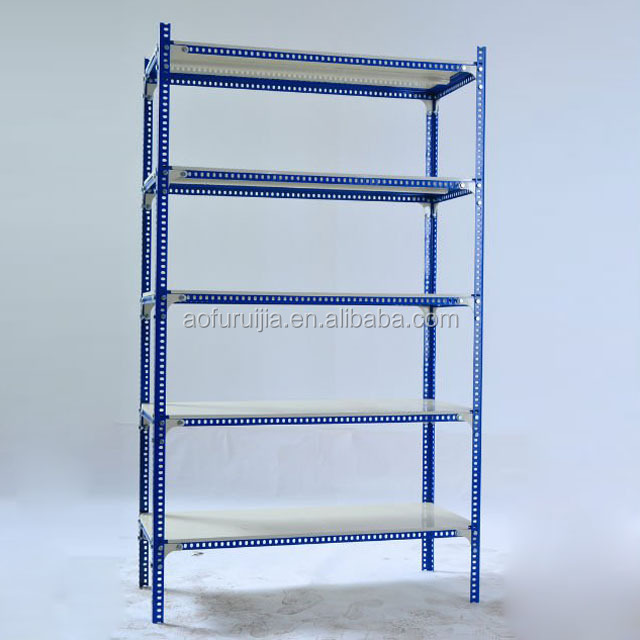

5 Tiers Metal Slotted Angle Rack with Bolts&nuts
Product Description
5 Tiers Metal Slotted Angle Rack with Bolts/Nuts: Light duty slotted angle rack assembled with durable slotted angle uprights and high-grade steel shelf panels using sturdy bolts, nuts, and corner plates.
Bolt Assembly
Simple and rigid installation with corner plates and hardware.
Corrosion Protection
Durable powder coated or galvanized surface finishing.
Adjustable Levels
Fully flexible shelf height adjustment on each tier.
Economical Type
Budget-friendly and high-efficiency storage system.
Quick Overview
Material:
High quality cold rolled steel
Surface Treatment:
Powder coated
Application:
Supermarket, warehouse, factory, house, stores, etc.
Standard Sizes:
W300mm × L900/1000mm × H1200/1800/3000mm
W450mm × L900/1000mm × H1200/1800/3000mm
W600mm × L900/1000mm × H1200/1800/3000mm
W450mm × L900/1000mm × H1200/1800/3000mm
W600mm × L900/1000mm × H1200/1800/3000mm
Slotted Angle Rack Specifications
| 1. Material | High Quality Cold Rolled Steel |
| 2. Dimensions & Size Range |
D300 × W700/900 × H1200/1500/1800/2000/2400/3000 (mm) D400 × W700/900 × H1200/1500/1800/2000/2400/3000 (mm) D450 × W700/900 × H1200/1500/1800/2000/2400/3000 (mm) D600 × W700/900 × H1200/1500/1800/2000/2400/3000 (mm) * Customized sizes are also available. |
| 3. Structure | Post uprights, steel panels, connection parts |
| 4. Load Capacity | 50 – 200 kg / layer |
| 5. Available Tiers | 3, 5, 6, 8 tiers |
| 6. Surface Treatment | Galvanized or Powder Coated |
| 7. Color Options | White, grey, blue, brown, black, silver, hammer tone, or custom made according to your requirements |
| 8. Hardware & Parts | Bolts, nuts, corner plates |
| 9. Applications | Warehouse storage, display racks, supermarket shelves, retail stores, household use, tools racks, etc. |
| 10. Core Features |
• Easy to assemble with bolts and nuts • Robust corrosion protection finish • Height of each layer is independently adjustable • Highly economical and modular design |

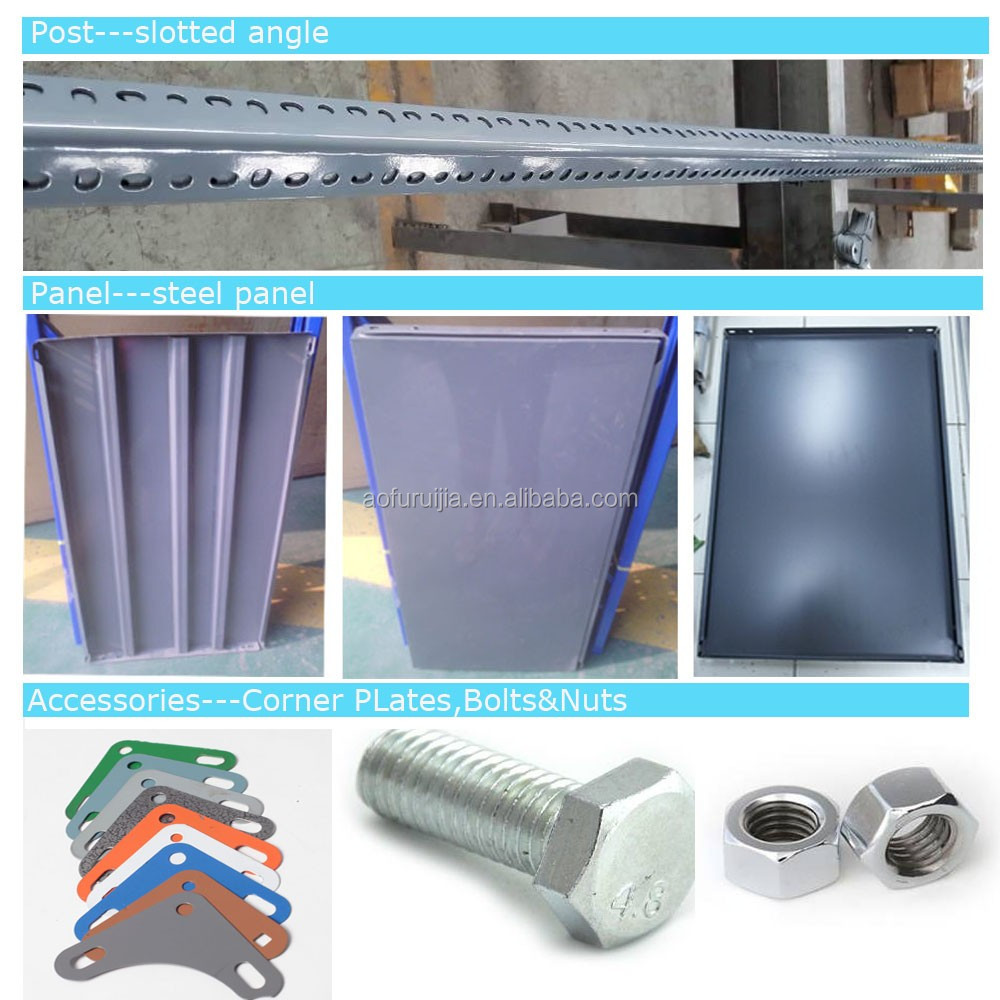

Components & Assembly Parts
Frequently Asked Questions (FAQ)
Q
What is the load capacity of each shelf layer?
Each tier is designed to support a loading weight between 50 kg to 200 kg per layer depending on the chosen configuration and beam setup.
Q
Can shelf heights be adjusted after installation?

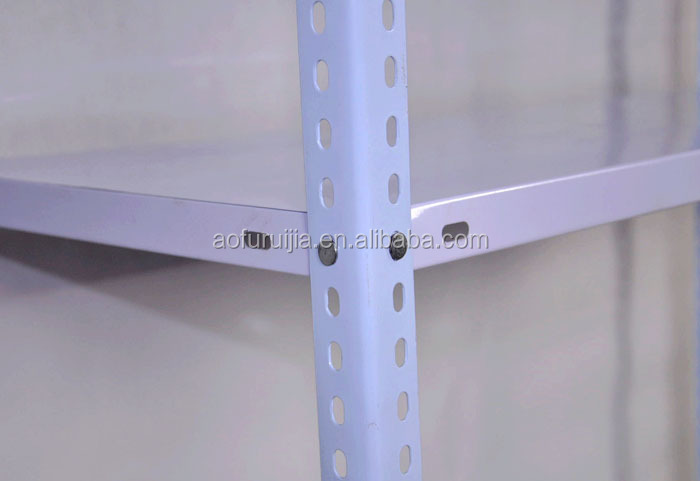

Yes. The posts feature continuous precision-punched slots allowing each steel panel layer to be adjusted upwards or downwards to accommodate items of varying heights.
Q
What surface treatment options are provided to prevent corrosion?
Racks are finished using either durable powder coating or galvanization, ensuring long-lasting rust and corrosion protection in various warehouse and retail environments.
Q
Are custom sizes and colors available?
Yes. While standard depths span 300mm to 600mm and heights range from 1200mm up to 3000mm, custom dimensions can be manufactured. Color selections include white, grey, blue, black, brown, silver, and hammer tone finishes.
Q
What components are included for assembling the rack?
Each unit includes slotted angle upright posts, cold rolled steel panels, corner triangular plates for structural rigidity, and matching bolts/nuts for straightforward assembly.
Q
Where can this slotted angle shelving system be applied?
It is widely used in commercial warehouses, supermarket merchandise displays, retail store backrooms, factories, tool storage rooms, and residential utility spaces.
