Engineered Heavy-Duty Pallet Racking & Industrial Storage Assemblies
Precision cold-rolled, ISO 9001:2015 and CE certified heavy-duty warehouse racking solutions. Direct-from-factory fabrication engineered for optimal seismic performance, beam deflection resilience, and modular footprint optimization.

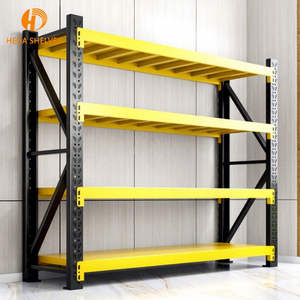

Boltless Adjustable Heavy Duty Load-Bearing 500kg/Layer Steel Racks
Payload Capacity: 500 kg - 1,200 kg / Tier
Structural Grade: High-yield Q235B cold-rolled steel
Beam Connector: 3 & 4-prong interlocking brackets
Surface Finish: Anti-abrasion electrostatic powder coat
Powder-Coated Stainless Steel Warehouse Detachable Upright Shelves
Payload Capacity: Up to 800 kg / Level
Corrosion Resistance: 304 Stainless / Galvanized Hybrid
Adjustment Pitch: 50mm / 75mm precision punched
Ideal Application: Cold storage & pharmaceutical hubs
Distribution Center Pallet Racking System Storage Equipment
Bay Load: Up to 22,000 kg total column limit
Direct Access: 100% Selective SKU picking density
Safety Standards: Compliant with FEM 10.2.02 & RMI
Beam Options: Heavy box beams & step beam profiles
Heavy Duty Pallet Rack Warehouse Storage System Assembly
Pallet Format: Euro, ISO, GMA, & bespoke pallets
Upright Width: 80mm - 140mm roll-formed profile
Seismic Design: Reinforced base plates & floor anchors
Engineering: Full structural load calculation included
Heavy Duty Adjustable Pallet Rack Warehouse Shelving System
Payload Capacity: 1,000 kg - 4,500 kg / Layer
Interlocking Safety: Spring steel retention pins
Coating Pretreatment: 4-stage pickling & phosphating
Testing: Deflection verified at L/200 & L/250 ratios
Heavy Duty Adjustable Metal Shelves Stacking Warehouse Storage Rack
Deck Type: Drop-in steel panel / wire mesh decking
Upright Pitch: 75mm micro-adjustable pitch heights
Frame Construction: Bolted diagonal & horizontal bracing
Certification: Certified CE 2435-CPR-8605159
Industrial Heavy Duty Cold Rolled Steel Powder Coated Pallet Racks
Steel Spec: Continuous roll-formed Q355B / Q235B
Export Packaging: High-density container bundle packing
Forklift Interface: Counterbalance, reach, and VNA compatible
Custom CAD: Optimized aisle and column layout design

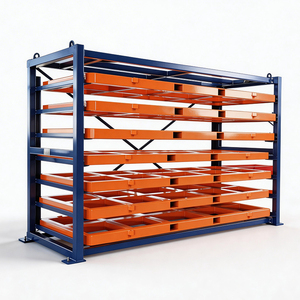

CE Certified Industrial Warehouse Steel Shelving Heavy Duty Racks
Payload Standard: Heavy cargo rated up to 5,000 kg
Crash Protection: Upright column protectors & guide rails
Compliance: ISO 9001:2015 & RoHS environmental safety
Turnkey Delivery: Direct maritime export to international ports
Top 10 Storage Solutions Pallet Racking Factory & Exporters Benchmark
A rigorous industrial engineering audit assessing production capacity, automated cold roll-forming capabilities, surface chemistry durability, and global compliance across the premier structural pallet racking exporters worldwide.
Guangzhou Heda Shelves
South China Hub · Est. 2001Recognized globally for deep turnkey intralogistics integration, operating a modern 30,000 m² smart fabrication plant with a monthly output exceeding 30,000 metric tons. Heda leads the export domain with in-house 4-stage pretreatment, custom automated punching lines, and zero-defect structural roll-forming certified under CE (2435-CPR-8605159) and ISO 9001:2015.
Mecalux Storage Systems
European & Americas DivisionRenowned for massive automated warehouse integration and proprietary Warehouse Management Software (Easy WMS). Mecalux engineers high-tolerance automated stacker crane racking and high-density pallet flow systems, setting stringent European benchmarks under EN 15512 and FEM structural calculation frameworks.
SSI Schaefer Group
Global Intralogistics EnterpriseA benchmark in German precision engineering, SSI Schaefer delivers enterprise-grade rack-clad buildings, cantilever assemblies, and dynamic automated carton storage. Their structural steel alloys utilize proprietary cold-formed profiles capable of handling extreme continuous cyclic dynamic stresses.
Dexion (Gonvarri Material Handling)
Pan-European ManufacturingThe pioneer of the slotted angle system, modern Dexion specializes in adjustable pallet racking (APR), drive-in arrays, and mobile pallet racking (MOVO). Their cold-roll facilities adhere strictly to SEMA codes and BS EN regulations, widely specified across UK, European, and Australasian supply chains.
Interlake Mecalux
North American ProductionDominating North American distribution hubs, Interlake produces massive volumes of roll-formed teardrop and structural C-channel racking. Engineered in accordance with RMI (Rack Manufacturers Institute) MH16.1 specifications, providing high seismic-zone dampening throughout California and US-West hubs.
Stow Group (Movirack)
Belgium HeadquartersA powerhouse in pallet racking, cantilever, and the innovative Stow Atlas 2D shuttle system. Stow operates high-speed automated roll-forming lines with rigorous quality control, providing heavy industrial users with scalable racking certified for severe dynamic temperature fluctuations in cold chain sites.
Jungheinrich AG
German Logistics TechnologyIntegrating mechanical storage steel directly with automated guided vehicles (AGVs) and narrow-aisle (VNA) material handling fleets. Their racking structures are fabricated with tight beam-level tolerances to support millimeter-accurate laser navigation and high-density vertical turret trucks.
Frazier Industrial Company
North American Structural SteelThe preeminent structural steel (hot-rolled channel) manufacturer in the Western Hemisphere. Unlike thin-gauge cold-rolled racking, Frazier builds heavy structural C-channels with exceptional impact resistance, making them the preferred exporter for rough, high-impact beverage and food distribution centers.
AR Racking (Grupo Arania)
Basque Country, SpainBacked by decades of steel processing heritage, AR Racking excels in automated profiling, robotics, and advanced cold-formed section innovation. They provide custom anti-seismic dynamic calculations and continuous traceability from raw coil coil certification to finished powder-coated export crating.
Advanced Engineering Exporters (Inform Storage / Bito Equivalent Tier)
Cross-Regional High Density Automated LogisticsRounding out the world’s elite manufacturers, this tier represents specialized high-density innovators producing multi-tier mezzanine floors, radio shuttle carts, and live dynamic flow carton channels. They bridge the gap between pure static boltless storage and multi-level dynamic retrieval, utilizing optimized container-packing protocols to lower landed CIF shipping costs across the Americas, EMEA, and Asia-Pacific.
Engineering Benchmark: Racking Systems Structural Analysis
Compare operational characteristics, vertical cubic space utilization, forklift aisle geometries, and cycle-time impacts across core industrial racking configurations.
| Racking Methodology | Direct Accessibility | Floor Utilization (%) | Stock Rotation | Standard Deflection Limit | Target Application Profile |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Direct Immediate | 35% - 40% | FIFO / LIFO | 1/200 (Span Length) | Multi-SKU, 3PL Distribution, FMCG Hubs |
| Double-Deep Racking | 50% Direct Access | 50% - 60% | LIFO | 1/200 (Reinforced) | Medium SKU counts, Reach Trucks with Pantographs |
| Drive-In / Drive-Through | Lane-Restricted Access | 65% - 75% | LIFO (Drive-In) / FIFO | 1/250 (High Rigidity) | Cold Stores, Beverage Bottlers, Seasonal Batches |
| Radio Shuttle Automation | Lane Independent (Fast) | 80% - 85% | FIFO & LIFO Automated | 1/250 (Precise Alignment) | Sub-zero Frozen Storage, Meat, Dairy, Pharma |
| Gravity Flow Pallet Racking | Separated Load/Pick Faces | 70% - 78% | Strict FIFO Automatic | 1/200 (Continuous Brake) | Perishable Groceries, Buffer Queues, Strict Expiries |
| Heavy-Duty Cantilever | 100% Open Horizontal Face | 45% - 55% | Any Dynamic Access | 1/180 to 1/200 (Arm Spec) | Steel Pipes, Extrusions, Timber, Sheet Panels |
Next-Generation Procurement Trends (2025–2030 Horizon)
Global warehouse operators are pivoting from rudimentary static steel frames toward integrated, resilient, and eco-certified material handling ecosystems. Understanding these four strategic vectors ensures capital expenditures deliver long-term operational resilience.
Semi-Automated Shuttle Migration
Labor shortages and rising high-bay construction costs are driving warehouse operators to replace standard drive-in corridors with semi-automated radio shuttle racking. This eliminates forklift entry into rack lanes, slashing frame impact damage by over 82% while doubling pallet handling speeds in cold chain and high-density environments.
Finite Element Seismic Analysis (FEA)
Modern engineering contracts now mandate FEA seismic calculations under Eurocode 8, RMI MH16.1, or AS 4084-2023. Buyers require site-specific ground acceleration modeling, specialized footplate anchoring, and spine bracing geometry to ensure high-bay racks absorb lateral dynamic energy without catastrophic yield during seismic activity.
Advanced Chemical Pretreatments
Exported racking systems crossing tropical ocean lanes or operating in coastal humidity require resilient surface chemistry. Top manufacturers now utilize comprehensive immersion pickling, micro-crystalline zinc phosphating, and thermosetting polyester powder coatings that pass 500+ hour ASTM B117 salt-spray corrosion tests.
Container-Cube Optimization
Global sea freight volatility has made container loading density a key metric in total landed costs. Elite exporters leverage nested roll-formed upright designs, modular unbolted frame shipping, and custom steel pallet strapping protocols that maximize 40HQ container volumetric utilization up to 98% without shipping damage.
IoT Structural Strain Telemetry
Forward-thinking distribution hubs are deploying embedded piezoelectric strain sensors and RFID impact monitors directly into beam connectors and critical upright bases. These systems alert warehouse managers in real time to forklift impacts or load imbalances exceeding structural deflection design thresholds.
Low-Carbon Recycled Steel Procurement
With global ESG standards and carbon border adjustment mechanisms (CBAM) expanding, tier-one manufacturers are shifting to Electric Arc Furnace (EAF) certified steel coils with low embodied carbon, providing verified Environmental Product Declarations (EPD) for green building warehouse certifications like LEED and BREEAM.
Why Enterprise Logistics Choose Guangzhou Heda Shelves
Since 2001, Guangzhou Heda Shelves Co., Ltd. has established itself as an engineering-driven manufacturer, operating end-to-end fabrication under a single roof to deliver uncompromising structural reliability across 10,000+ completed warehouse installations worldwide.
In-House 10-Stage Precision Production Workflow
Raw Materials
Certified mill-test Q235B & Q355B coils verified for tensile and chemical consistency.
Precision Slitting
High-speed laser and rotary slitting lines with millimeter-level strip width tolerance.
Automated Punching
Computerized continuous hole punching ensuring uniform 50mm / 75mm beam adjustment pitch.
Cold Roll-Forming
Multi-roller continuous forming stands generating high-rigidity upright and beam profiles.
Robotic Welding
Automated multi-axis robotic welders securing beam end-connectors with zero spatter.
Edge Deburring
Mechanical polishing to eliminate micro-burrs and ensure operator safety during assembly.
Pickling & Degreasing
Hot alkaline cleaning and acid pickling to strip mill scale, rust, and surface grease.
Zinc Phosphating
Chemical conversion coating creating a dense crystalline barrier for coating adhesion.
Powder Coating
Electrostatic spray guns curing thermoset polyester powder at 200°C for durable finish.
Export Bundling
Steel strap bundling with corner edge protection and fumigated export pallet cradles.
Frequently Asked Questions: Global Pallet Racking Procurement
Practical answers to structural engineering, certification compliance, shipping logistics, and installation questions from warehouse directors and procurement managers.
Which international quality and structural certifications must an exporter hold?
Tier-one global exporters must possess verified CE Certification conforming to EN 1090-1 / CPR regulations (e.g., Heda Shelves CE No. 2435-CPR-8605159) for structural components, ISO 9001:2015 quality management systems (No. 18624Q00169R0M), and RoHS environmental safety compliance. For US and Australian destinations, calculations aligning with RMI ANSI MH16.1 and AS 4084-2023 are standard requirements.
How does Heda Shelves protect steel racks against monsoon humidity and coastal corrosion?
Prior to powder application, all components undergo a 4-stage pretreatment cycle involving alkaline degreasing, acid pickling to strip mill scale, and zinc phosphating. Finished components receive heavy electrostatic polyester powder cured at 200°C. For severe high-humidity ports, cold storage, or open docks, continuous hot-dip galvanized (HDG) steel elements are manufactured to prevent galvanic corrosion.
What critical building and cargo parameters are required for a free CAD layout?
To produce an optimized structural layout within 24 hours, our engineering department requires: (1) Architectural warehouse CAD drawings showing column grids and door heights; (2) Clear ceiling height to the lowest overhead obstruction or sprinkler head; (3) Pallet specifications (Length x Width x Height including cargo overhang and gross weight); (4) Total SKU inventory profile; and (5) Forklift minimum aisle width and maximum mast lift elevation.
What beam deflection criteria are considered safe for heavy industrial loads?
The recognized international safety standard (EN 15512 and RMI) specifies a maximum vertical beam deflection under full static payload not exceeding 1/200th (0.5%) of the clear horizontal beam span (L/200). For automated ASRS or high-precision shuttle rails, more stringent limits of L/250 or L/300 are enforced to avoid jamming automated shuttle wheels and extraction forks.
How are overseas installation and structural assembly managed remotely?
Every international export order includes detailed CAD assembly drawings, color-coded component tagging, and high-definition video walkthroughs. Structural frames can be shipped flat-packed for local assembly to minimize container volume, or pre-assembled where local labor costs are prohibitive. For enterprise installations exceeding 5,000 pallet positions, Heda Shelves deploys experienced on-site supervisory engineers to manage local contractor teams.
How do you accommodate warehouse floor slabs with unknown load-bearing capacities?
When working in leased commercial buildings where concrete core compressive strength is unverified, our engineers distribute column loads over oversized heavy-gauge steel spreader baseplates (up to 300mm x 300mm x 12mm) and specify expansion or chemical wedge anchor arrays that isolate localized shear stresses, ensuring loads remain within standard 20-30 MPa slab ratings.
Ready to Optimize Your Warehouse Cubic Footprint?
Connect directly with Guangzhou Heda Shelves' senior structural engineering team. Receive a zero-obligation, custom 2D/3D CAD layout, structural payload calculation, and comprehensive container-landed export quotation within 24 hours.
