Engineering Whitepaper

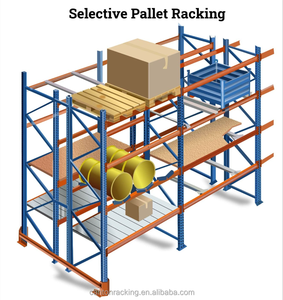

Single Deep Pallet Racking: The Core Benchmark of Modern Warehousing
Single deep selective pallet racking remains the universal benchmark for industrial warehouse storage worldwide, offering 100% direct pallet selectivity, flexible beam adjustability, and low operational friction.
In modern third-party logistics (3PL) centers, cold storage operations, automotive assembly plants, and fast-moving consumer goods (FMCG) distribution hubs, selecting the right racking hardware is a critical infrastructure decision. Single deep pallet racking systems—also known as selective pallet racks—allow material handling equipment (MHE) like standard counterbalanced forklifts, reach trucks, and VNA narrow-aisle trucks to access any individual stock keeping unit (SKU) without moving surrounding load positions.
However, procuring racking hardware on a global scale requires rigorous evaluation beyond initial steel pricing. Structural stability under maximum deflection limits (L/200 formula), seismic bracing resistance, steel tensile yield strengths (Q235B vs. Q355B cold-rolled profiles), automatic safety locking pins, and anti-corrosive electrostatic powder coatings determine the operational lifespan and safety profile of your distribution center.
100%
Direct SKU Selectivity
5,000kg
Max Level Load Capacity
15m+
Achievable Clear Height
25Yrs
Structural Design Life
Top 10 Single Deep Pallet Rack Suppliers & Exporters Benchmark
To assist global procurement directors, warehouse engineers, and supply chain project leads in identifying vetted manufacturing partners, our engineering audit team evaluated global manufacturers based on production capacity, quality assurance standards (ISO/CE/ANSI/FEM), engineering customized capability, and international export track record.
1. Guangzhou Heda Shelves Co., Ltd. (China)
Key Specialization: Direct OEM/ODM Racking Manufacturing, Custom Single Deep Racking Systems, Structural Mezzanines.
Factory Footprint: 30,000 m² in Guangzhou, South China; 30,000 tons monthly steel processing output.
Engineering Strengths: 25+ years of storage engineering experience. Full control of cold roll-forming, automatic punching, robotic welding, pickling-phosphating anti-corrosion, and electrostatic powder coating. Free CAD layout and 3D structural analysis within 24 hours.
Global Reach: Containerized export to 120+ countries, with specialized port-to-door delivery throughout South Asia, Middle East, Europe, and the Americas.
2. SSI SCHAEFER (Germany)
Key Specialization: Automated Intralogistics & Modular Heavy-Duty Racking.
Overview: Global leader in complex intralogistics systems, producing heavy-duty selective pallet racks engineered for seamless combination with automated guided vehicles (AGVs) and conveyor networks. High structural compliance with European FEM 10.2.02 standards.
3. Mecalux (Spain)
Key Specialization: High-Bay Selective Racking & WMS Software Integration.
Overview: Operating across Europe and the Americas, Mecalux provides versatile single deep and double deep steel storage racks backed by structural finite element software modeling, ideal for multinational e-commerce and retail fulfillment hubs.
4. Jungheinrich AG (Germany)
Key Specialization: Integrated Forklift & Rack Infrastructure Solutions.
Overview: Jungheinrich offers turnkey warehouse solutions, matching customized single deep upright frames and box beams precisely with reach trucks and VNA truck turning radii to minimize aisle width waste.
5. Interroll Group (Switzerland)
Key Specialization: Dynamic Material Flow & Heavy-Duty Pallet Racking Modules.
Overview: Renowned for high-speed material handling modules, Interroll manufactures heavy-duty selective rack components designed for severe impact resistance in dynamic pallet flow and cross-docking environments.
6. Dematic (KION Group, USA)
Key Specialization: AS/RS High-Bay Structural Rack Superstructures.
Overview: Specializing in mega-scale supply chain installations, Dematic designs structural steel rack frames that double as building support superstructures for automated storage and retrieval systems (AS/RS).
7. Dexion (Gonvarri Material Handling, UK)
Key Specialization: Keyhole & Teardrop Pallet Racking Systems.
Overview: A pioneer in industrial storage systems across Europe and APAC, Dexion manufactures highly standardized adjustable selective racks featuring versatile beam connectors and specialized safety lock pins.
8. Stow Group (Belgium)
Key Specialization: Heavy-Duty Pallet Racking & Movable Shuttle Racks.
Overview: One of Europe’s leading racking manufacturers, Stow supplies robust single deep, double deep, and mobile racking structures constructed with high-yield cold-formed steel profiles.
9. Kardex Remstar (Switzerland)
Key Specialization: High-Density Small-Parts & Pallet Buffer Racks.
Overview: While widely known for vertical lift modules, Kardex produces high-precision structural steel pallet buffer racks designed for automated picking lines and pharmaceutical storage facilities.
10. Nedcon (Netherlands)
Key Specialization: Custom Engineering for Automated Logistics Systems.
Overview: Nedcon delivers specialized structural racking components for complex warehouse projects, utilizing advanced structural finite element analysis (FEA) to ensure earthquake compliance in seismic active zones.
Technical Benchmarking
Engineering Comparison Matrix: Single Deep vs. Alternative Systems
Choosing the right racking profile requires balancing storage density against pallet access velocity. Review the technical trade-offs below:
| Racking Architecture | SKU Selectivity | Floor Space Utilization | Stock Rotation Strategy | Recommended Forklift Fleet | Relative Cost / Pallet Position |
|---|---|---|---|---|---|
| Single Deep Selective Rack | 100% Direct Access | 40% – 45% Floor Usage | FIFO (First-In, First-Out) | Counterbalance / Reach Truck | Lowest Baseline |
| Double Deep Racking | 50% Direct Access | 55% – 60% Floor Usage | LIFO (Last-In, First-Out) | Pantara / Deep Reach Truck | Low to Medium (+15%) |
| Drive-In Racking | 20% – 30% Lane Selectivity | 65% – 75% Floor Usage | Strict LIFO | Counterbalance Truck | Medium (+25%) |
| Radio Shuttle Racking | Lane-Level Control | 75% – 85% Floor Usage | FIFO or LIFO Automated | Standard Forklift + Automated Shuttle | High (+65%) |
| Gravity Pallet Flow | Picking Face Only | 70% – 80% Floor Usage | Strict FIFO (Gravity Rollers) | Standard Forklift Fleet | High (+80%) |
Why Source Directly from Guangzhou Heda Shelves Co., Ltd.?
As a global top-tier manufacturer with 25+ years of dedicated storage engineering, HEDA Shelves operates a state-of-the-art 30,000 m² factory facility in Guangzhou, China. Producing over 30,000 tons of high-grade cold-rolled steel racking monthly, we provide direct factory-to-site engineering solutions without middleman markups.
CE & ISO 9001:2015 Verified
Certified structural safety compliance (CE No. 2435-CPR-8605159, ISO 9001 No. 18624Q00169R0M) with strict RoHS raw material tracing.
Free 3D CAD Layout Engineering
Send us your warehouse DWG drawings or dimensions; our engineering team provides complete CAD layout proposals and FEA load calculations for free.
Strategic Procurement Insights
Future Procurement Trends in Warehouse Storage Systems
How industrial real estate costs, supply chain volatility, and automation are reshaping racking specification standards over the next decade.
1. Transition to High-Tensile Steel Profiles
Procurement departments are replacing traditional hot-rolled angles with precision cold-formed Q355B structural steel. High-tensile steel profiles decrease deadweight while increasing vertical load capacity per bay, lowering international container shipping costs per pallet position.
2. Automation-Ready Modular Beams
Single deep racking is increasingly specified with standardized hole pitch and sensor bracket mounts to accommodate autonomous mobile robots (AMRs), automatic guided vehicles (AGVs), and pallet conveyor pick-faces without requiring future rack replacement.
3. Environmental Pretreatment & Zero-VOC Coating
Global ESG mandates require zero-emission surface treatment lines. Modern racking factories utilize eco-friendly 8-stage pickling and phosphating wash cycles combined with solvent-free electrostatic powder coating for superior humidity and salt-spray corrosion resistance.
Engineering & Material Development Trends
The engineering evolution of single deep pallet racking focuses on structural safety, seismic resilience, and smart structural monitoring:
- Seismic Base Plate & Anchor Design: Advanced finite element modeling (FEA) allows engineers to calculate energy dissipation during earthquake events. Upright frames in high-seismic zones feature heavy-duty seismic base plates with expanding mechanical or chemical anchor bolts.
- IoT Impact Sensors & Smart Upright Guards: Collisions from forklifts represent the single highest cause of racking failure. Next-generation installations integrate Wireless IoT impact monitoring sensors into upright protectors to alert safety managers instantly when structural deflections occur.
- Hybrid Cold-Chain Coatings: In cold storage warehouses operating down to -30°C, traditional paint films can micro-crack. Dual-layer galvanizing plus low-temperature powder coatings prevent sub-zero structural rust and steel hydrogen embrittlement.
Procurement Knowledge Base
Single Deep Pallet Racking FAQ
Common technical, structural, and shipping questions asked by warehouse operators and global buyers.
What is the load capacity of a standard Single Deep Pallet Rack level?
Standard heavy-duty beam levels support between 1,000 kg and 4,000 kg per pair of box beams (typically carrying 2 to 3 standard EUR or ISO pallets). Load capacities are strictly engineered based on beam profile height (e.g., 80mm to 160mm box beams), steel gauge thickness (1.5mm to 2.0mm), and beam length.
How do I calculate the required aisle width for a single deep racking layout?
Aisle width depends on your forklift turning radius (Ast). Standard counterbalanced forklifts require 3.5m to 3.8m aisles. Reach trucks require 2.7m to 3.0m aisles, while VNA (Very Narrow Aisle) trucks can operate in aisles as narrow as 1.6m to 1.8m.
What international quality certifications should I request from a racking exporter?
Vetted manufacturers must provide CE Certification (under EN 15512 structural racking design standards), ISO 9001:2015 Quality Management System compliance, and optional ANSI/RMI MH16.1 approval for North American markets.
How is container shipping optimized for heavy racking orders?
Uprights and beams are bundled with steel strapping, protective corner edge protectors, and specialized wooden block skids. A standard 40ft High Cube (40HQ) container holds approximately 22 to 26 metric tons of steel racking depending on weight limits at destination discharge ports.
