From selective beam setups and dynamic roll-out storage to intelligent pick-to-light picking platforms, explore our certified structural solutions tailored for industrial warehouse hubs.

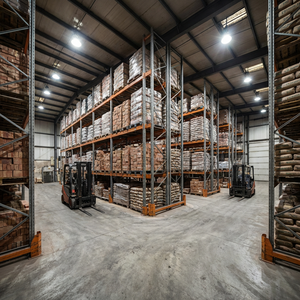

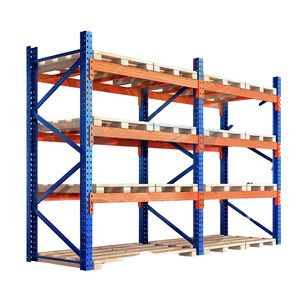

Roll-formed omega-profile uprights featuring 50mm/75mm height adjustments. Engineered for 100% selective pallet accessibility and high payload endurance.

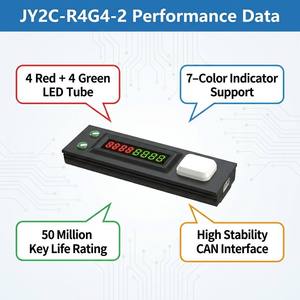

Semi-automated picking hardware integrated into high-density flow racks. Eliminates manual routing errors and accelerates order fulfillment cycles by up to 300%.
All-welded heavy-gauge steel cabinet with central locking mechanism, partitionable ball-bearing slide drawers, and modular tooling organization.
Engineered multi-tier structural mezzanine transforming vertical air rights into operational picking floors, industrial workspaces, or elevated shelving tiers.
100% mechanical crank-out or forklift-accessible extension cassettes designed to safely store, organize, and access thin/thick sheet metals, dies, and raw plates.
Dual interlocking connector lugs, heavy-duty box beams, and integrated seismic bracing frames built for high-throughput logistics hubs and 3PL transit warehouses.

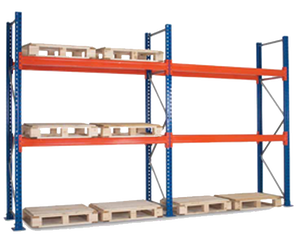

Standardized Euro and US pallet footprint compatibility with wire decking options, frame row spacers, and floor-anchored column corner impact protectors.
Hybrid Cash & Carry racking engineered to unite bottom-tier customer hand-picking with upper-tier pallet reserve storage. Supports 1,000–5,000kg payload per level.
An engineering and supply chain analysis on rising land valuations, dynamic automated handling, seismic micro-zoning, and structural steel sustainability.
Industrial real estate rents have risen by over 42% in global manufacturing hubs over the past decade. Enterprise logistics operators are discarding traditional single-level low-clearance storage in favor of VNA (Very Narrow Aisle) and automated high-bay systems extending from 12 to 32 meters. Procurement contracts increasingly evaluate structural steel designs based on volumetric density yield rather than mere floor square-meter footprint.
Warehousing is transitioning from manual counterbalance forklift operations toward semi-automated radio shuttle car systems, autonomous mobile robots (AMRs), and AS/RS automated stacker cranes. Future-proof pallet racking procurement specifications demand tighter manufacturing tolerances (±1.0mm deflection variance), laser-aligned guide rails, and integrated photoelectric sensor clearance brackets to prevent automated collision bottlenecks.
Cross-border EPC contractors and institutional investors mandate strict structural compliance with Eurocode EN 15512, RMI ANSI MH16.1, and AS 4084. Modern racking procurement specifies dynamic seismic simulations analyzing dead load, live pallet payload, seismic acceleration ground coefficients ($S_s, S_1$), and beam-to-column connector rotational stiffness to prevent catastrophic progressive collapse under seismic vibrations.
| Racking Architecture | Direct Selectivity | Space Density Index | Inventory Flow (FIFO/LIFO) | Handling Fleet Equipment | Target Capital Cost / Pallet |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Single Access | Baseline (1.0x) | FIFO / LIFO Adaptive | Standard Counterbalance / Reach | Economical ($35 - $65) |
| VNA (Very Narrow Aisle) | 100% Single Access | High (1.6x - 1.8x) | Strict FIFO Accessible | Articulated / Man-Up Turret Truck | Moderate ($65 - $110) |
| Drive-In / Drive-Through | Lane Dependent (15-20%) | Ultra-High (2.2x) | Strict LIFO (FIFO Drive-Thru) | Specialized Narrow Counterbalance | Moderate ($55 - $90) |
| Semi-Automated Radio Shuttle | Channel Dependent | Maximum (2.8x - 3.2x) | Dual Software Mode (FIFO/LIFO) | Standard Reach Truck + Shuttle Unit | Advanced ($120 - $220) |
| Rack-Supported Mezzanine | Multi-Tier Hand Pick / Pallet | Volumetric Multiplier (2.0x-3.0x) | Hybrid Dynamic | Forklift Lift-Table + Manual Pickers | Engineered ($90 - $180/m²) |
Discover how advanced cold-roll continuous profiling, high-yield steel chemistry, and automated robotic welding transform raw coils into critical storage infrastructure.
Unlike generic pressed channels, our automated cold-roll forming lines utilize up to 24 progressive roll stands. This gradual bending avoids residual micro-fissures along steel corner radii, creating rigid 11-fold and 13-fold omega upright profiles with yield strengths exceeding 355 MPa (Q355B grade), engineered specifically for extreme column buckling resistance.
Every customized OEM beam section, hook connector bracket, and rack upright is digitally stress-tested via ANSYS finite element simulations. We analyze non-linear beam-to-column semi-rigid joint behavior ($M-\phi$ curves) and dynamic torsional buckling under full load capacity factors (1.5 to 1.8 safety multipliers), ensuring structural safety before steel coil slitting starts.
To survive aggressive industrial operating conditions, chemical manufacturing environments, and coastal sea freight voyages, components undergo a full chemical pre-treatment cycle: multi-stage degreasing, acid pickling, zinc phosphating, and deionized water rinsing before receiving an electrostatic cured polyester/epoxy powder coating (60-90 μm) rated for 1,000+ hours in salt spray testing.
Headquartered in Guangzhou, South China, Guangzhou Heda Shelves Co., Ltd. controls the complete supply chain from raw certified coil processing to automated roll forming, testing, and worldwide project export.
Prime certified Baosteel/Ansteel hot & cold rolled coils checked for tensile tolerances.
Continuous high-speed progressive punching machines yield 50mm/75mm hole pitches (±0.1mm).
24-stand automated rolling stations shape multi-bend omega uprights and box step beams.
Laser-guided cutting units achieve micro-length limits tailored for clear building spans.
Automated Panasonic multi-axis robotic welders join beam-to-connector clips flawlessly.
Total immersion baths strip mill scale, surface oxidation, and impurities before phosphating.
Zinc-phosphate chemical conversion layer seals the substrate to prevent corrosion creep.
Automated electrostatic spray booths apply high-grade polyester resin across all surfaces.
180°C - 200°C thermal cross-linking ensures impact abrasion resilience and chemical shield.
Steel-strapped bundles with protective plastic film and corner boards optimized for 40HQ stuffing.
Key structural calculations, logistics planning, and manufacturing compliance guidelines for warehouse operations and procurement directors.
Partner directly with Guangzhou Heda Shelves Co., Ltd. for your next industrial racking expansion. Our certified senior structural engineers calculate beam loads, aisle clearances, seismic limits, and container loading schedules with zero obligation.
