Corrosion Protection Heavy Duty 2-Layer Steel Structure Mezzanine Floor Platform Pallet Storage Racking Powder Coated Finish for
Product Description

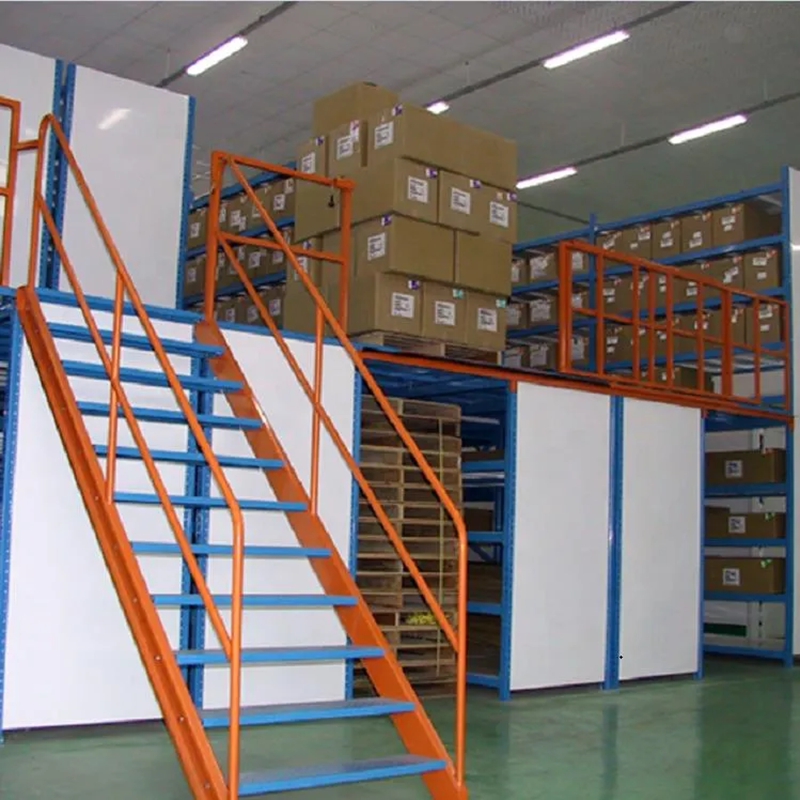

Corrosion Protection Warehouse Rack Steel Structure Mezzanine Floor Platform for Pallet Storage Racking Industrial Storage

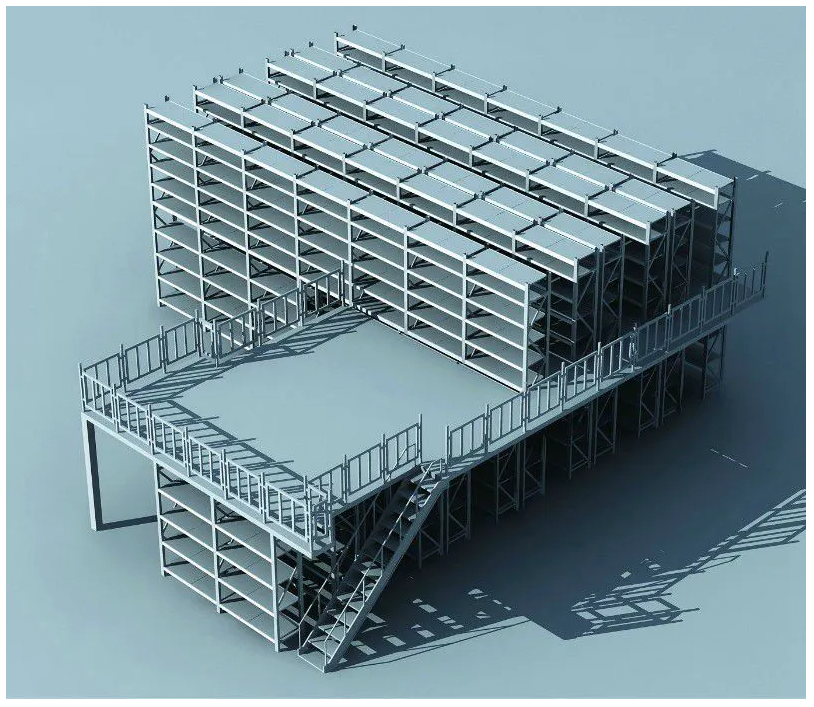

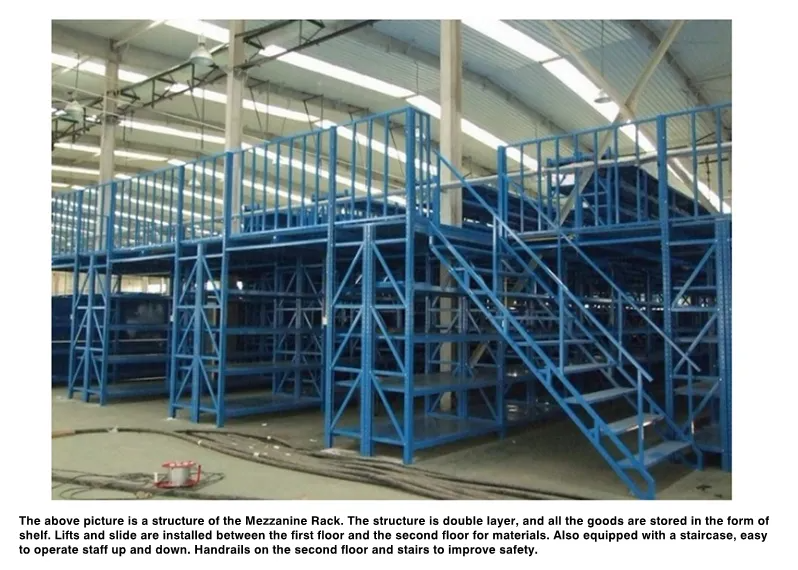

Loft-style shelf structure:
The steel structure floor with upright columns as the floor support. The floor is flat and the whole is strong. Carrying capacity is strong and uniform. It is suitable for the situation that the warehouse is high, the goods are small, the manual access and the large amount of access are available. It can be fully utilized to save the area of the storeroom.
The steel structure floor with upright columns as the floor support. The floor is flat and the whole is strong. Carrying capacity is strong and uniform. It is suitable for the situation that the warehouse is high, the goods are small, the manual access and the large amount of access are available. It can be fully utilized to save the area of the storeroom.

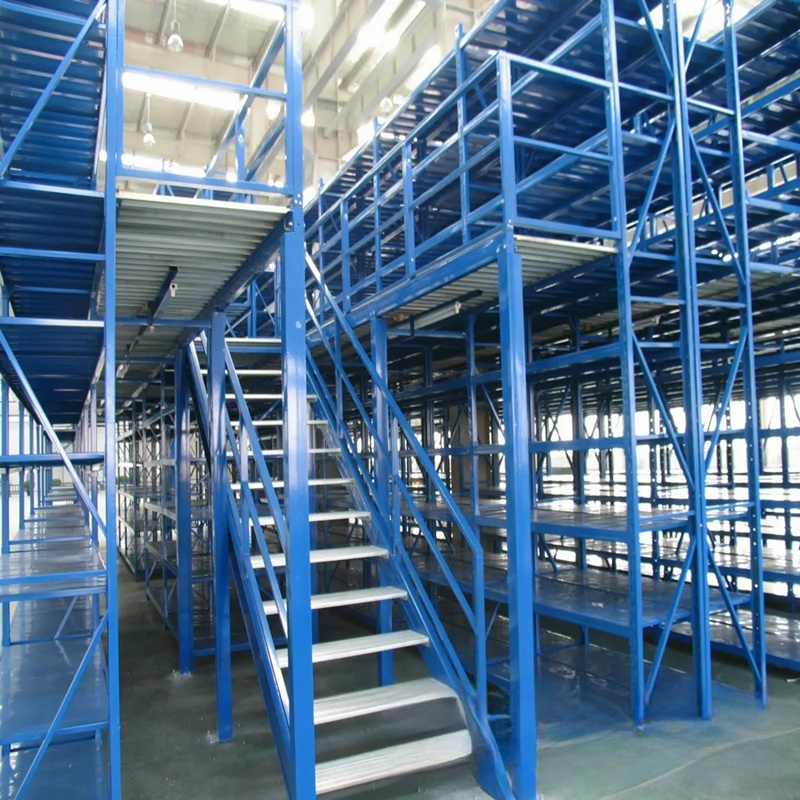

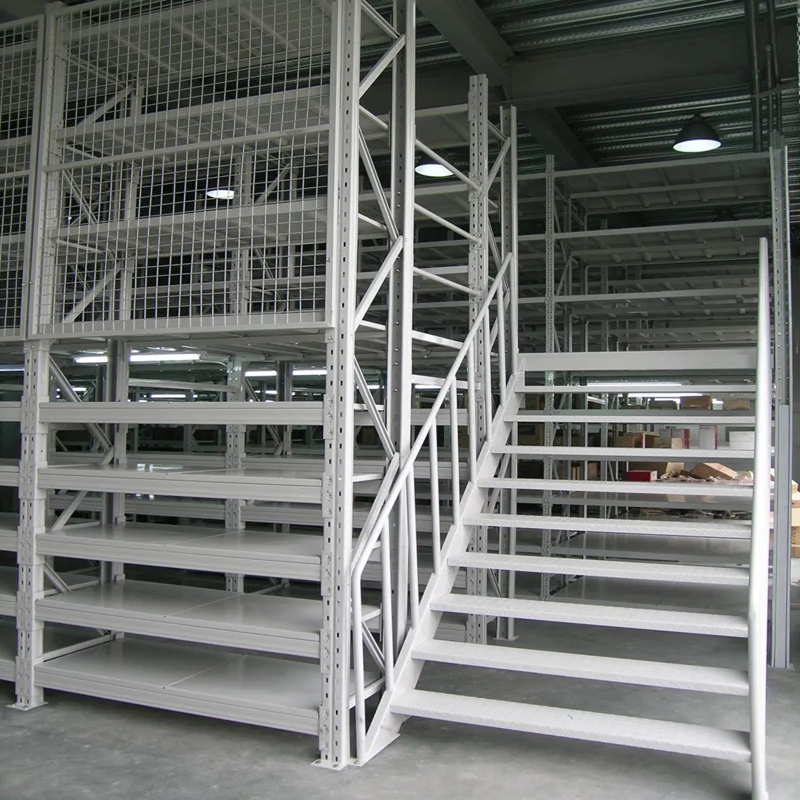

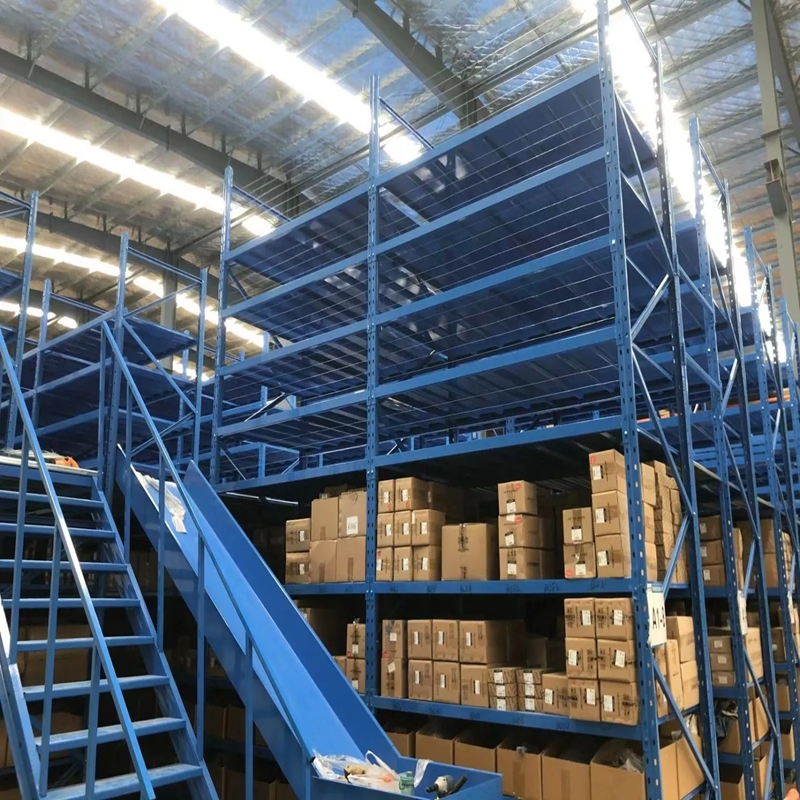

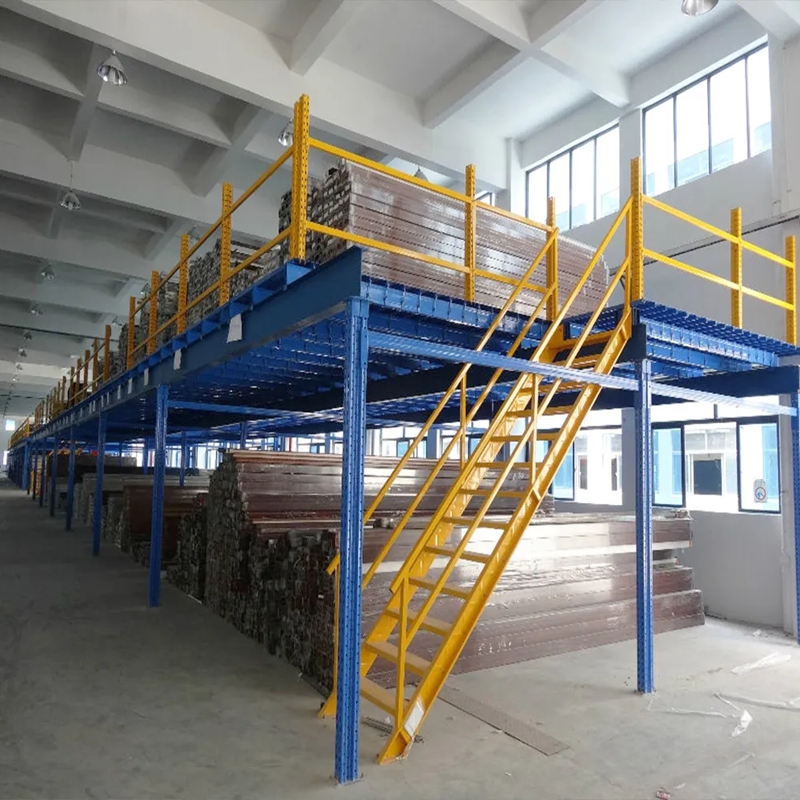

Depending on the actual site and the specific requirements, it can be designed as a multi-storey floor, usually 2 to 3 floors. The bottom shelf can be medium-duty shelves, heavy-duty shelves and other shelves. It is not only a system for storing goods, but also a support point for the upper weight. Equipped with stairs, guardrail and electric lifting platform and other auxiliary facilities.

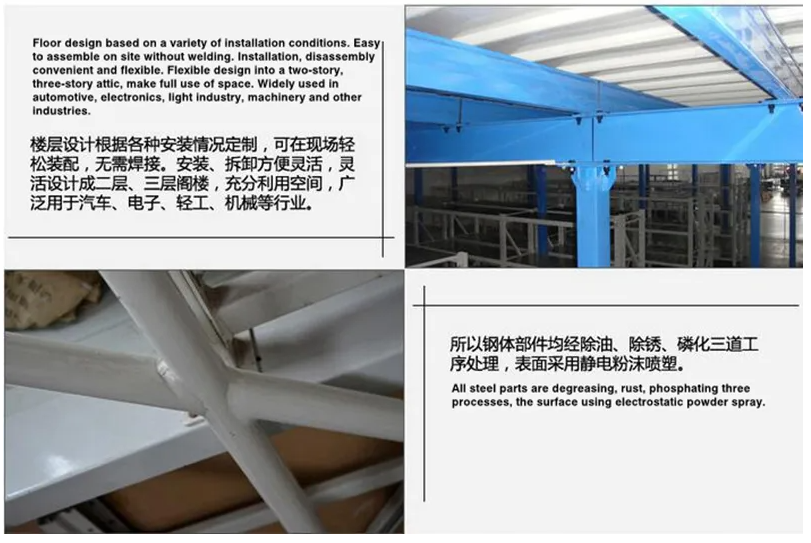

All combined structure, strong sense of three-dimensional. The use of high-quality carbon structural steel, quality, bearing, the appearance is very superior. According to the actual site needs, flexible design into two or more attic. Suitable for storing more variety and less bulk goods. Special C-shaped steel floor, snap-type structure, with a special locking device to lock, so that the loft together as one. The floor is flat. Dust, debris, small pieces will not fall into the downstairs. Downstairs lighting wiring can also be hidden and beautiful. Widely used in automotive, electronics, machinery and other industries.
The mezzanine rack is required for the height of the warehouse. Suitable for smaller goods, manual access, storage of large warehouses. Also need to consider lighting, fire and other issues.
Product Specifications
| Product Name | Mezzanine Floor Rack | Type | Multi-Level Racking |
| Brand | Yuanjin | Mobility | Adjustable |
| Texture | Metal.. | Place of Product | Jiangxi Province, China |
| Certification | ISO9001 / ISO14001 / ISO45001 | Modes of packing | Pallet Package or as Requested |
| Size | Sizes Can Be Customized | After sale service | 10 years normal use |
Key Features
1. Vertical Space Optimization: Mezzanine racks can enhance shelf height, make full use of storage height and save space.
2. Superior Floor Loading: Floor laying special floor slab. It has a strong loading capacity compared with the pattern plate or the rigid grille. It has the characteristics of good integrity, uniform loading, smooth surface, easy to lock and so on.
3. Ergonomic Logistics Structure: The mezzanine rack takes full consideration of the humanized logistics. The design is beautiful and the structure is generous. It is convenient to install and disassemble, and can be designed flexibly according to the field.
4. Universal Application: The mezzanine rack is suitable for storage of various types of goods.
Selection & Engineering Factors
Selection factors of main profiles - columns, beams and laminate specifications:
- 1. Rated weight of the beam each level;
- 2. The length of the beam (the length of the shelf);
- 3. The storage layers and the rated total weight;
- 4. The total area of the attic surface and the load capacity per unit area.
The main factors of the attic platform in the storage area:
- 1. The shape and size of the warehouse, the location of the warehouse gate and so on;
- 2. The size of a single piece of goods. When the volume of single piece goods is large, the width of the channel between the shelves is large. When the volume of single piece goods is small, the channel is small, but it is a generally not less than 700mm.
- 3. The general bearing capacity is at 300-1000KG/square meters. The column selects a round pipe with strong bearing capacity and less steel.

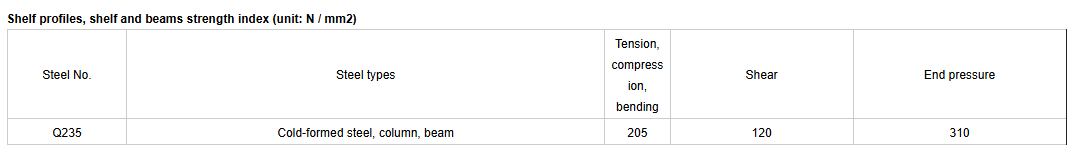

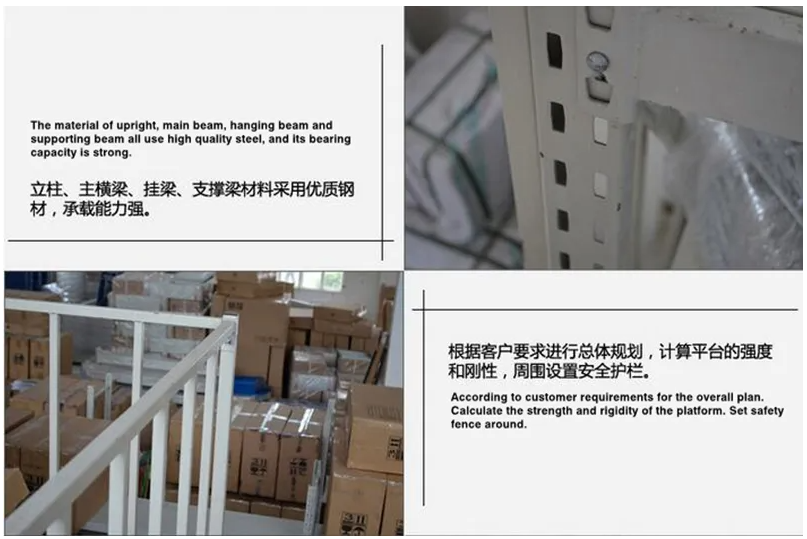

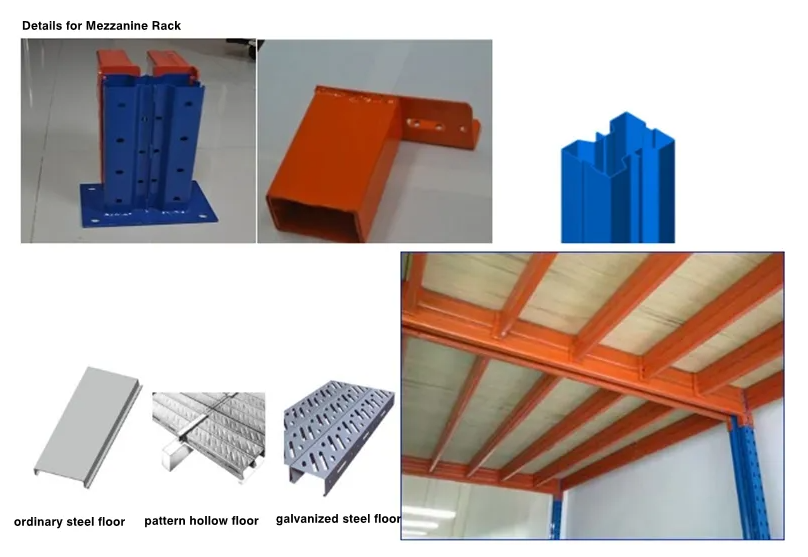

The use of material, specifications and standards for the main parts of the shelf:
- 1. Material: Baosteel Q235 or SS400, SPCC
- 2. Upright: normally with 5*47*1.5/1.8 Q235 convex cold rolling steel
- 3. Shelf board: 0.6-0.8mm thickness, high quality SPCC cold plate, which is welded by panel and reinforcement.
- 4. Beam: P tube or other profile
- 5. Floor beams
Installation Details
- 1. Simple and quick assembly: The installation of the attic type shelf is very simple and quick. Simple assembly, no screws. Custom specifications can be available. It is easy to use the pallet for delivery. It is the first choice for the large and medium sized and small enterprises to choose the storage shelf.
- 2. Space-saving industrial structure: The attic shelf is suitable for the large and medium parts with uniform specifications. Easy to pick up, easy to pick up, fast, strong structure. The bearing weight of this shelf is mostly in the layer bearing 800kg. This platform can save space and greatly reduce the waste of space. Other specifications can be made, the shelves in the logistics enterprises, the large amount of plants, suitable for large and medium-sized warehouse.
Company Profile
About us
Jiangxi Yuanjin Science & Technology Group Co., Ltd. (abbreviated as Yuan-jin Group), established in October 2014, is headquartered at No.88 Keji Roadin Zhangshu Metal Furniture Industrial Park - a city renowned as China's Pharmaceutical Capital and a national hub for metal furniture manufacturing. Occupying over 70,000 square meters, we are a modern high-tech enterprise specializing in integrated R&D and manufacturing of manual & intelligent mobile shelving systems, smart museum display racks, security equipment, library facilities and fully automated smart warehouse storage systems.
Jiangxi Yuanjin Science & Technology Group Co., Ltd. (abbreviated as Yuan-jin Group), established in October 2014, is headquartered at No.88 Keji Roadin Zhangshu Metal Furniture Industrial Park - a city renowned as China's Pharmaceutical Capital and a national hub for metal furniture manufacturing. Occupying over 70,000 square meters, we are a modern high-tech enterprise specializing in integrated R&D and manufacturing of manual & intelligent mobile shelving systems, smart museum display racks, security equipment, library facilities and fully automated smart warehouse storage systems.
Certificates
Our Advantages
- 1. Real manufacturer of various kinds of metal office furniture, industry warehouse racking systems, other office furniture such as sofa, chairs, tables. Direct factory sale with most competitive price.
- 2. You don't have to worry about the quality or deceptive materials specification happened. 'Yuanjin' is always been trusted for its good reputation.
- 3. We are capable of suppling wide range of products to satisfied your needs so you don't have to arrange goods from different suppliers. This will save much expenses caused by shipment or other handle charges.
- 4. We can make solution free of charge. And we always response to our clients within 24 hours.
- 5. Owing to the good quality, the warranty for most of our products has 10 years. Some has 20 years.
- 6. The quality inspection rate of products is 100%.
- 7. Most of our products can be delivered within 15 days. And in fact, we usually can push the production to make it earlier for shipment. The issue of delay never ever happened.
Frequently Asked Questions (FAQ)
What is the load-bearing capacity of the steel mezzanine floor platform?
The general load-bearing capacity of the platform surface is between 300 to 1000 kg per square meter. In addition, the storage shelf layer under the structure commonly carries up to 800 kg per level, utilizing heavy-duty columns and high-strength floor beams.
How many storeys can this warehouse mezzanine system accommodate?
Depending on your site dimensions, warehouse height, and specific operational needs, the platform is flexibly engineered as a multi-storey system, usually designed into 2 to 3 floors.
What specific materials and standards are applied to the racking system?
The mezzanine system utilizes high-quality carbon structural steel including Baosteel Q235, SS400, or SPCC cold-rolled steel. The shelf boards are made from 0.6–0.8mm SPCC cold plates reinforced by welded panel structures, combined with specialized C-shaped snap-lock floor plates.
Is the installation process complex and does it require on-site welding or screws?
Installation is simple, straightforward, and quick. The system features an all-combined, snap-type modular assembly that requires no screws, utilizing custom locking fixtures to secure the loft floors firmly in place.
Which industries commonly deploy this mezzanine platform?
Due to its high structural stability, tight floor seams preventing small debris from falling, and hidden lighting wire conduits, it is widely utilized across the automotive, electronics, mechanical, hardware, and third-party logistics warehousing industries.
What warranty and delivery lead times does Yuanjin provide?
Products undergo a 100% quality inspection rate and include a standard 10-year warranty under normal use (some lines include up to 20 years). Most standard orders are manufactured and dispatched within 15 days, with design solutions provided free of charge within 24 hours.
