Manufactured in Guangzhou from high-tensile cold-rolled Q235B and Q355B structural steel, our certified racking platforms double and triple usable cubic volume for manufacturing facilities, logistics hubs, e-commerce fulfilment centers, and temperature-controlled storage operations.
Engineered modular attic structure utilizing heavy-duty upright frames as vertical support columns. Ideal for mid-sized warehouses seeking dual-purpose bulk pallet buffering below and manual carton picking above.
High-capacity equipment support floor integrating cold-rolled box beams and perforated interlocking steel planks. Designed for extreme loads including light assembly machinery, pallet jacks, and multi-tier shelving arrays.
Hybrid structural system linking high-bay selective pallet bays directly into an elevated picking platform. Minimizes footprint loss and guarantees structural coherence through rigid cross-bracing geometry.

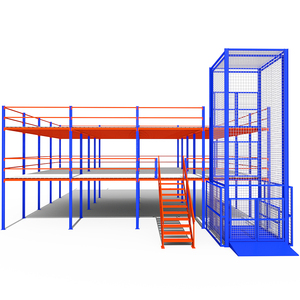

Triple-tier vertical storage platform engineered with automated staircases, perimeter balustrades, and kick plates. Finished with electrostatically deposited thermosetting epoxy powder for scratch and impact resistance.
Extreme-load welded steel pallet base engineered for long-life cold store storage, raw material staging, and high-cube overseas shipping. 4-way entry profile engineered with rounded entries to prevent forklift tine puncture.

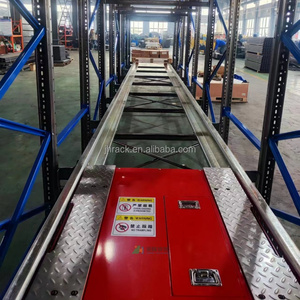

Semi-automated deep-lane pallet shuttle system. Carrier vehicles navigate precision cold-formed rails via Wi-Fi radio commands, cutting forklift transit cycles by over 60% in high-turnover beverage and cold-chain distribution centers.

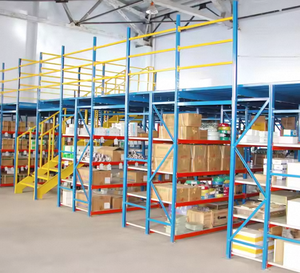

Ultra-narrow aisle pallet racking integrated with overhead structural workshop decking. Slashes aisle clearance requirements down to 1.6 meters while granting uninterrupted vertical space for factory offices and QA testing stations.
Advanced corrosion-inhibiting pallet platform featuring automatic acid pickling, multi-stage zinc phosphating, and thick thermal cure powder coats. Purpose-built for humid coastal environments, fertilizer depots, and chemical plants.
When procuring warehouse pallet rack platforms and structural steel mezzanines at industrial scale, structural failure is never an option. Procurement engineers must evaluate the underlying physics, metallurgy, and international code compliance before approving drawings.
Modern industrial pallet racking platforms rely extensively on cold-formed thin-walled steel profiles engineered to maximize moment of inertia while optimizing dead load weight. At Guangzhou Heda Shelves Co., Ltd., we utilize premium hot-rolled and cold-rolled prime steel coils meeting Q235B and Q355B standards (equivalent to ASTM A36 and ASTM A572 Grade 50). Q355B steel yields a tensile strength of 470–630 MPa, allowing our structural engineers to decrease upright section thickness without compromising deflection thresholds.
Every profile undergoes continuous CNC cold roll-forming with multi-pass tooling stations. This process induces work-hardening around profile corners, substantially reinforcing structural resistance to torsional buckling and local flange deformation under rated pallet impact conditions.
Standard testing protocols conducted at HEDA Shelves state-of-the-art testing rigs for certified client submittals:
Global supply chain disruptions, escalating commercial land rents, and aggressive sustainability mandates are revolutionizing how enterprise logistics directors design and purchase warehouse platforms. Below are five verified engineering megatrends dictating capital expenditure across international logistics corridors.
Warehouses are no longer purely manual or purely automated. Progressive operators deploy hybrid picking mezzanines where Autonomous Mobile Robots (AMRs) patrol second- and third-tier decking. This requires ultra-flat steel-resin composite decking and precision expansion joints capable of sustaining 24/7 repetitive robotic wheel passes without localized surface fatigue.
Scope 3 supply chain auditing is compelling multinational procurement groups to mandate low-emission steel sourcing and zero-VOC finishing. The shift away from solvent-based paints toward closed-loop automated powder coating recovery systems cuts wastewater to zero and lowers embodied carbon per metric ton of steel fabricated by up to 28%.
With cold store energy tariffs surging worldwide, air volume is treated as an expensive consumable. Buyers prioritize ultra-dense radio shuttle platforms paired with hot-dip galvanized uprights. Storing pallets 30 to 40 positions deep in temperatures down to -30°C demands specialized low-temperature alloy steels that resist brittle transition fracture.
Because most logistics service providers (3PLs) operate inside 3-to-5-year facility leases, irreversible civil building construction has become obsolete. Modern buyers exclusively specify 100% bolted, weld-free structural mezzanines that can be cleanly dismantled, containerized, transported, and reconfigured inside a subsequent logistics warehouse without asset write-offs.
The emergence of Industrial IoT is entering the rack space. Next-generation installations integrate strain gauges and accelerometer nodes into critical uprights and platform transfer beams. Real-time telemetry alerts operations managers to forklift impacts, floor slab subsidence, or unintended static overloading well before structural deformation occurs.
Select the optimal storage infrastructure based on direct throughput velocity, pallet SKU selectivity, space utilization index, and capital investment requirements per pallet position.
| Racking Platform System | Space Density | SKU Selectivity | Handling Kinematics | Typical Load Rating | Forklift Compatibility | Relative Capex |
|---|---|---|---|---|---|---|
| Structural Steel Mezzanine Platform | 100% Custom Direct | Manual / Pallet Jack / AGV | 300 – 1,500 kg / m² | Forklift to load gate / Cargo Lift | Moderate to High | |
| Rack-Supported Mezzanine Floor | High (Multi-tier) | Hybrid Pick & Store | 300 – 800 kg / m² | Reach Truck / Counterbalance | Economical | |
| Standard Selective Pallet Racking | 100% Direct Access | FIFO / Fast Turnover | 1,000 – 4,500 kg / level | Standard Counterbalance / Reach | Lowest Base Entry | |
| Radio Shuttle High-Density Racking | Lane Dependent | FIFO or LIFO Automated | 500 – 1,500 kg / pallet | Standard Forklift (Aisle face only) | Medium to High | |
| Drive-In / Drive-Through System | Low (Bulk SKU) | Strict LIFO (Drive-In) | 1,000 – 2,000 kg / pallet | Specialized Narrow Counterbalance | Low to Moderate | |
| VNA (Very Narrow Aisle) Racks | 100% Immediate | High-Speed Pallet Handling | 1,000 – 3,500 kg / level | VNA Turret Truck / Articulated | Moderate |
* Note: Structural load thresholds and allowable clear spans are subject to local seismic subsoil profiles, slab depth (minimum 150mm concrete C20/25 recommended), and wind uplift calculations for open-sided facilities.
Operating from Guangzhou, South China since 2001, Guangzhou Heda Shelves Co., Ltd. controls the end-to-end manufacturing chain without subcontracting. Our 300+ structural engineers, certified welders, and production specialists guarantee full component traceability, turnkey OEM/ODM customization, and on-time global sea freight execution.
Over 16 fully automated CNC cold roll-forming lines producing omega uprights, step beams, and interlocking mezzanine planks with hole punch tolerance under ±0.2mm.
Continuous pickling, degreasing, ultrasonic water rinse, and hot zinc phosphating prior to electrostatic powder coating ensure superior adhesion that prevents salt spray blistering.
Strict QA systems backed by independent audit certifications: CE Certificate No. 2435-CPR-8605159 and ISO 9001:2015 Certification No. 18624Q00169R0M (valid through 2027).
Custom packaging bundles and precision loading plans ensure 100% cubic utilization of 40HQ ocean containers, reducing ocean transit damage and slashing landed freight costs.
Detailed technical answers to common queries regarding building codes, floor slab requirements, fire suppression compliance, anti-corrosion finishes, and international shipping.
Collaborate directly with HEDA Shelves certified structural engineers. Send your warehouse floor plan, ceiling clear height, slab characteristics, and pallet SKU specifications. We return a fully engineered 2D AutoCAD layout, 3D photorealistic rendering, and precise factory-direct price quotation within 24 hours.
