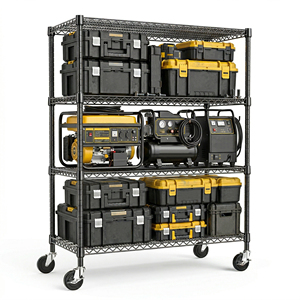

Featured Industrial Racking & Storage Products
Explore our engineered range of heavy-duty storage racks, mezzanine platforms, and boltless industrial shelving manufactured under strict ISO 9001:2015 and CE quality management standards.
Heavy Duty Storage Racking: Metallurgy, Engineering Standards, and System Selection
In modern supply chain management and automated logistics hubs, heavy-duty industrial racking systems serve as the structural backbone of physical inventory storage. Selecting the ideal structural racking infrastructure requires a rigorous engineering evaluation of structural metallurgy, static and dynamic deflection parameters, seismic resiliency, and volumetric space optimization. As a premier OEM/ODM heavy duty rack factory & exporter, Guangzhou Heda Shelves Co., Ltd. integrates advanced structural mechanics with high-tensile steel roll-forming to engineer storage systems tailored to global industrial requirements.
1. Metallurgy & Structural Steel Profile Physics
The load-bearing capability of industrial racking depends heavily on the chemical composition and mechanical properties of the cold-rolled steel profiles. Our manufacturing base utilizes prime high-tensile carbon steel coils (Q235B and Q355B structural grades), verified for yield stress, ultimate tensile strength, and elongation percentage. Cold-formed omega-profile upright columns are continuous-punched with high-precision CNC equipment to maintain exact pitch consistency, preventing stress concentration points during dynamic loading.
Structural integrity is further bolstered by interlocking box-beam geometry. Double-C cold-rolled profiles are robotically seam-welded to forged multi-claw beam connectors, establishing rigid moment-resisting connections. These configurations adhere to international structural testing standards, including EN 15512 (European Steel Static Storage Systems standard), RMI (Rack Manufacturers Institute specifications), and AS4084 (Australian Steel Storage Racking code).
| Racking System Type | Structural Profile Grade | Load Capacity Range | Volumetric Efficiency | Primary Industrial Application |
|---|---|---|---|---|

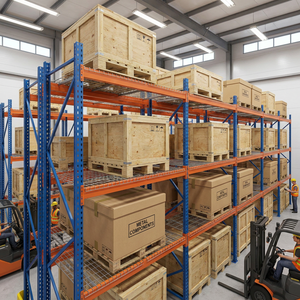

| Selective Pallet Racking | Q235B / Q355B Roll-Formed | 1,000 kg – 4,500 kg / Level | 40% – 50% Spatial Use | 3PL Warehouses, FMCG, Multi-SKU Hubs |
| Drive-In / Drive-Thru Racking | Q355B Heavy Structural C-Section | 1,000 kg – 2,000 kg / Pallet | 75% – 85% Spatial Use | Cold Storage, Agricultural Bulk, Beverage |
| Radio Shuttle Racking | Automated Track + High-Tensile Column | 1,500 kg / Pallet Position | 80% – 90% High-Density | Pharmaceuticals, Food Processing, Cold Chain |
| Multi-Tier Steel Mezzanine | H-Beam / Structural Steel Framing | 300 kg – 1,200 kg / m² | 200% – 300% Floor Area | E-Commerce Sorting, Auto Parts, Garments |
| Heavy Duty Cantilever Racking | Hot-Rolled Structural Steel Arms | 500 kg – 3,000 kg / Arm | Unobstructed Horizontal | Steel Pipes, Lumber, Aluminum Profiles |
2. Finite Element Analysis (FEA) & Seismic Design
Global sourcing managers must ensure structural compliance for localized seismic forces and wind uplift vectors (for outdoor cantilever installations). Our engineering team utilizes advanced Finite Element Analysis (FEA) software to simulate 3D stress distribution, frame buckling loads, and dynamic rack displacement under localized seismic zone parameters. By calculating critical frame stability under loaded deflection limits ($\delta \le L/200$), we ensure safe operations even in earthquake-prone regions or high-bay narrow aisle (VNA) configurations exceeding 15 meters in clear height.
Future Sourcing & Global Procurement Trends (2025–2030)
As logistics operations adapt to rapid e-commerce expansion, labor constraints, and ESG (Environmental, Social, and Governance) compliance mandates, international B2B buyers are shifting their procurement strategies. Sourcing heavy-duty racking is no longer a simple commodity purchase; it is a long-term capital equipment investment that demands adaptability, automation readiness, and eco-certified manufacturing.
1. Automation & AMR Integration
The integration of Autonomous Mobile Robots (AMRs), Automated Guided Vehicles (AGVs), and Automated Storage and Retrieval Systems (ASRS) demands sub-millimeter manufacturing tolerances. Future racking procurement centers on high-precision guide rails, laser-aligned beam leveling, and sensor-compatible racking frames capable of seamless robotic picking.
2. Modular Hybrid Architecture

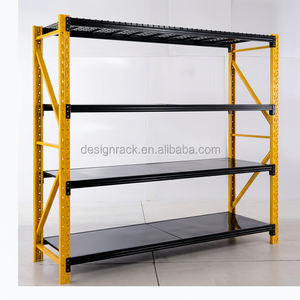

Static warehouse layouts are being replaced by reconfigurable, modular boltless systems. Modern distribution hubs favor standardized teardrop or upright framing that allows rapid vertical expansion, mezzanine tier integration, and beam pitch adjustments without requiring structural demolition or welding.
3. ESG & Low-Carbon Coating
Environmental standards require low-VOC, heavy-metal-free thermosetting powder coatings. Eco-friendly pretreatment processes—such as silane-based conversion coatings replacing traditional heavy phosphate baths—are rapidly becoming prerequisites for Tier-1 corporate supply chain audits.
Corporate Advantages & OEM/ODM Manufacturing Pipeline
Guangzhou Heda Shelves Co., Ltd. (established in 2001) operates a state-of-the-art 30,000 m² smart manufacturing base equipped with automated steel cold roll-forming production lines, robotic laser welding cells, and an automated continuous powder-coating line. With over 300 skilled engineers and technicians, our annual output exceeds 360,000 tons of structural steel storage products exported to over 120 countries across North America, Europe, Southeast Asia, South Asia, and the Middle East.
10-Stage Precision Manufacturing Workflow
To maintain consistent structural tolerances and long-term corrosion resistance, every heavy-duty rack profile undergoes our controlled 10-stage manufacturing process:
Prime Q235B/Q355B steel spectral analysis.
Precision longitudinal steel band slitting.
High-speed CNC continuous pitch punching.
Cold roll-forming through 18-stage rollers.
Automated MIG welding of claw connectors.
Mechanical deburring and corner smoothing.
Chemical derusting & oil removal bath.
Micro-crystalline anti-corrosion layer.
60-80 micron electrostatic epoxy coating.
200°C baking and protective export bundling.
Custom OEM/ODM Capabilities
Whether you require custom upright profile geometry, non-standard beam lengths, brand-specific RAL color powder matching, private-label stamping, or custom corrugated export packaging, HEDA Shelves provides comprehensive OEM/ODM services. Our structural engineering team delivers free CAD layout designs and 3D BIM rendering within 24 hours of receiving building blueprints.
Frequently Asked Sourcing & Engineering Questions (FAQ)
Guangzhou Heda Shelves Co., Ltd. holds certified compliance under CE Certification No. 2435-CPR-8605159, ISO 9001:2015 Quality Management System Certification No. 18624Q00169R0M (valid through June 2027), and full RoHS environmental compliance. Our structural calculations adhere strictly to EN 15512 and RMI specifications.
Load capacities are engineered based on maximum pallet dimensions, pallet weight distribution, unit load heights, forklift reach capabilities, and localized slab load ratings. Our structural engineers utilize FEA simulations to verify allowable beam deflection ($\le L/200$) and column upright compression limits under full safety factor multipliers ($1.5\times$ static load).
Standard components undergo an automated 10-stage chemical pickling, phosphating, and electrostatic epoxy-polyester powder coating process (60-80μm thickness). For cold storage facilities, outdoor yards, or coastal sites exposed to high humidity, we provide hot-dip galvanizing (HDG) or zinc-rich primer base coatings for superior corrosion protection.
Our standard OEM/ODM MOQ starts at one 20GP container load to maximize freight packing density and lower landed logistics costs per pallet position. Standard production lead time is 15 to 20 business days from technical CAD approval, supported by a 30,000-ton monthly factory throughput.
Every export shipment includes numbered structural components, color-coded CAD installation manuals, component packing manifests, and step-by-step video installation guides. For mega-distribution centers or multi-tier structural mezzanine projects, on-site installation supervision and structural engineering guidance can be dispatched globally.
Heavy-duty rack components (uprights, box beams, support bars) are nested and custom-bundled using steel strapping, corner protectors, and moisture-barrier shrink wrapping. Our logistics team utilizes specialized container loading software to maximize weight and space utilization in 20GP/40HQ shipping containers, minimizing freight costs.
Optimize Your Warehouse Storage Capacity Today
Need custom structural racking drawings, engineering load calculations, or factory-direct price estimates? Contact our engineering team for a free CAD layout and comprehensive project proposal within 24 hours.
