Engineered Heavy-Duty Racking & Modular Shelving Systems
Direct factory manufacturing featuring Q235B/Q355B cold-rolled structural steel, certified load-bearing safety pins, robotic seam-welding, and automated multi-stage electrostatic powder finishing.

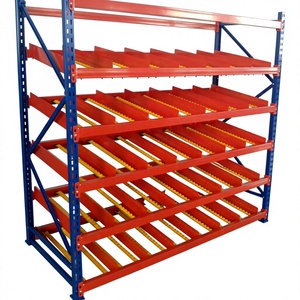

Gravity Carton Level Tilt Flow Rack FIFO Roller System
Precision-tilted aluminium or sheet-metal roller tracks utilizing gravity feed for high-density FIFO stock turnover in assembly and picking zones.

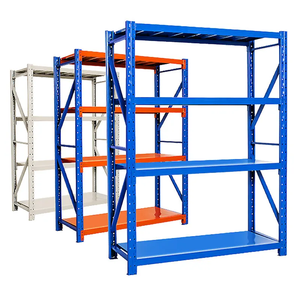

Custom Adjustable Heavy Duty Warehouse Storage Shelves
Fully modular steel upright frames with 50mm/75mm height pitch adjustment, designed for manual and semi-mechanized goods handling up to 1,500kg/tier.

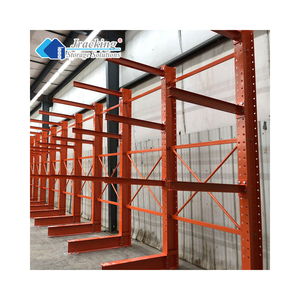

Rust-Resistant Cantilever Rack for Pipes & Long Extrusions
Unobstructed arm layout eliminating front-column restrictions for continuous storage of PVC tubing, timber, bar stock, and metallic conduit profiles.
250KG Long-Span 5-Tier Boltless Metal Storage Shelving
Fast-assembly interlocking rivets and keyhole posts that need zero fasteners, delivering an even 250kg shelf capacity across five configurable decking tiers.

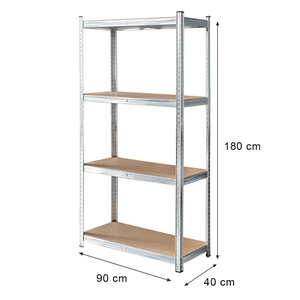

5-Tier Hot-Dip Galvanized Industrial Steel Shelving Unit
Heavy zinc coating barrier designed for sub-zero cold-storage facilities, high-humidity processing rooms, and corrosive chemical environments.

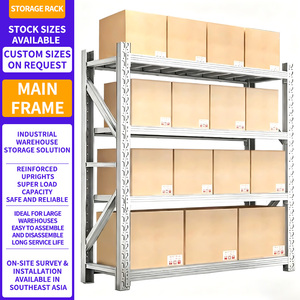

Customized 500kg/Layer Warehouse Pallet Storage Racking
Optimized roll-formed omega upright channels matched with step beams and drop-in wire decking, engineered for 3PL logistics facilities and regional e-commerce hubs.

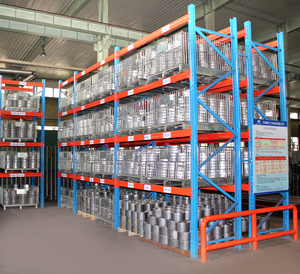

Industrial Heavy-Duty Structural Steel Beam Pallet Rack
Box-beam and twin-omega upright column design built for intense forklift loading cycles, supporting up to 4,000kg per pair of cross beams with full safety pin locks.

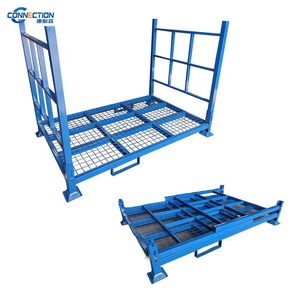

Foldable Steel Wire Mesh Stacking Tire & Bulk Cargo Rack
Collapsible post-pallet design enabling 4-to-6 tier dynamic vertical stacking without permanent frame setup; folds completely flat when empty to maximize return freight.
Metallurgical Precision, FEA Analysis & Global Compliance
Modern custom OEM racking manufacturing is not merely cutting steel channels; it is a discipline governed by finite element analysis (FEA), residual stress mitigation in cold-rolled sections, and strict verification under FEM 10.2.02 and RMI MH16.1 codes.
Certified High-Tensile Steel (Q235B & Q355B)
Every structural upright and cross beam begins with mill-certified prime coils. We select Q235B (yield strength ≥ 235 MPa) for standardized ambient configurations and high-ductility Q355B (yield strength ≥ 355 MPa) for seismic zones and extreme vertical multi-tier installations. Raw coils undergo spectrometry and ultrasonic flaw checks to verify tensile consistency before cold forming.
Yield Strength ≥ 355 MPa VerifiedContinuous Roll-Forming Without Thermal Stress
Cold-forming profiles into multi-bend Omega uprights demands progressive roller-die passes (up to 24 forming stations). This multi-stage cold bending avoids micro-fractures in the corners, generating cold-work hardening that boosts local yield strength at critical load-concentration points. Punching occurs inline prior to roll forming to avoid hole-pitch distortion.
Up to 24 Forming StationsFinite Element (FEA) Connection Verification
Beam-to-column connector brackets feature 3-, 4-, or 5-claw stamped teeth configurations with spring-steel locking clips. Advanced numerical FEA simulation verifies moment-rotation characteristics, torsional stability under dynamic forklift impact, and deflections limited to L/200 (or L/300 for automated crane interfaces) under fully rated pallet loading.
Deflection Limit L/200 ~ L/300Industrial Racking Architecture Comparison
Selecting the ideal custom OEM racking requires balancing floor footprint economy, individual pallet accessibility, forklift operating envelope, and total inventory rotation speed.
| Racking Topology | Direct Selectivity | Volumetric Density | Rotation Method | Forklift Compatibility | Best Warehouse Application |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Direct | Standard (40-50%) | FIFO / LIFO Any | Standard Counterbalance, Reach | Multi-SKU Distribution, 3PL Facilities, Retail Logistics |
| Drive-In / Drive-Thru Racking | Low (Lane-based) | Very High (75-85%) | LIFO (Drive-In) / FIFO (Thru) | Reach Truck with Guarded Cab | Cold Stores, Beverage Manufacturing, Uniform Bulk Cargo |
| Push-Back Trolley Racking | 25-50% Per Lane | High (70-75%) | Strict LIFO | Standard Reach or Counterbalance | 2 to 6 Pallets Deep Per SKU, Buffer Staging Areas |
| Gravity Pallet Flow Racking | Lane Picking Face | Ultra High (85%) | Strict FIFO | Standard Forklifts, Separate Aisle | Perishable Food, Pharmaceutical Hubs, High Throughput |
| Semi-Automated Radio Shuttle | Channel Controlled | Maximized (85-90%) | Configurable FIFO / LIFO | Forklift + Smart Radio Shuttle Cart | Blast Freezers, Raw Material Staging, High Tonnage Depots |
| Heavy Duty Cantilever Racking | 100% Direct | Modular Length | Any | Side Loader, Multi-Directional Reach | Steel Pipe Bundles, Timber Beams, Extrusion Profiles |
| Multi-Tier Mezzanine Platform | 100% Manual Access | Doubles / Triples Area | Manual Batch Pick | Vertical Lifts, Conveyors, Walkers | E-commerce Piece Picking, Garment Sorting, Tool Rooms |
*Density coefficients reflect relative volumetric pallet footprint comparisons based on standard 10,000 m² warehouse benchmarks with 9m clear height.
Procurement Trends Shaping Industrial Racking
Global supply chain leaders are shifting from third-party distribution trading marks to direct-from-factory OEM contracts to protect margins, speed up engineering revisions, and meet Scope 3 sustainability targets.
Disintermediation & Direct Factory CAD Turnaround
Middlemen and local trading agencies add 25% to 45% in margin overhead while introducing communication bottlenecks during design revisions. Global enterprise buyers now work directly with factory design offices. Detailed CAD drawings, 3D BIM models, and structural calculation reports are verified within 24 to 48 hours, speeding up greenfield installations by weeks.
Direct Engineer-to-Engineer WorkflowLife-Cycle Total Cost of Ownership (TCO) Over Initial Price
Savvy procurement teams recognize that steel thickness tolerances can be gamed by low-cost suppliers using undersized gauge strip steel. Modern OEM tender guidelines mandate mill test certificates (MTCs), guaranteed minimum paint micron thickness (≥ 60-80 μm), and automated powder curing to prevent premature chipping, rust bloom, and costly structural condemnations.
Verified Gauge ≥ 60-80 μm CoatingContainer Packing & Ocean Freight Cubic Optimization
With volatile maritime shipping rates, direct OEM factories design custom nested profiles and tailored bundling plans. By configuring upright column depths, knock-down diagonal frame assemblies, and specialized steel bracket dunnage, a 40-foot High Cube (40HQ) container can hit 24-26 metric tons while cutting per-pallet landed freight costs by up to 28%.
Knocked-Down Skid BundlingTechnological Advancements in Storage Systems
Modern racking is no longer a static steel skeleton. It is a precision-aligned mechanical foundation built for automated mobile robotics, IoT strain monitoring, and zero-downtime micro-fulfillment.
AMR & AGV Floor Interface Alignment
Autonomous mobile robots require tight floor-to-rack tolerances. OEM manufacturers integrate bottom-guide rails, low-profile baseplates, and high-tolerance floor anchoring to allow automated vehicles to navigate narrow tunnels safely.
Tolerance ±1.5mm PrecisionHigh-Bay ASRS Rack-Clad Architecture
High-bay installations (up to 40m tall) utilize the storage racking as the primary structural skeleton for the building's walls and roof. This design cuts conventional building steel needs while enabling continuous automated stacker crane operations.
Up to 40m Tall StructuresIoT Telemetry & Impact Sensing
Smart upright protectors feature embedded tri-axial accelerometers that log forklift collision kinetic energy in real time, alerting facility managers over wireless networks if structural load limits have been compromised.
Real-Time Collision TelemetryEco-Friendly Nanotech Pretreatments
Replacing traditional heavy iron-phosphating with zirconium-based nanotech conversion coatings delivers better powder adhesion, cuts sludge waste to zero, and provides salt-spray rust protection beyond 500 hours (ASTM B117).
>500h Salt Spray (ASTM B117)Why Enterprise Buyers Choose HEDA Shelves
Founded in 2001 in Guangzhou, South China, Guangzhou Heda Shelves Co., Ltd. operates a comprehensive 30,000 m² smart production base, engineering world-class racking systems trusted across 120+ countries.
30,000 Tons Monthly Output
Equipped with 18 automated cold-roll forming lines, 6-axis robotic welding cells, and automated punch presses, we deliver high-tonnage multi-bay systems with consistent hole alignment and dependable project turnaround.
Certified Quality Assurance
Our products carry independently verified CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Management Certification (No. 18624Q00169R0M), and full RoHS environmental compliance.
Pickling & Phosphating Pretreatment
Components pass through an automated chemical bath to strip rust and scale before electrostatic powder spraying. This creates deep coating adhesion that prevents flaking even in humid coastal or cold storage conditions.
Free CAD & 3D Modeling (24 Hours)
Our in-house team of structural engineers turns your warehouse blueprints and SKU specifications into comprehensive 2D CAD layout schematics, 3D renders, and load-deflection profiles within 24 hours.
Global Port-to-Port Delivery
Located near major South China container ports (Guangzhou, Shenzhen, Nansha), we coordinate full-container loads (FCL) to primary transport hubs across the Americas, Europe, the Middle East, Southeast Asia, and South Asia.
Custom Sections & Private Labeling
From custom Omega upright hole patterns and beam connectors to client-specified RAL powder colors and private-label packaging, our OEM/ODM engineering brings your storage designs to life reliably.
Frequently Asked Technical Procurement Questions
Straightforward engineering answers to help facility directors, supply chain VPs, and logistics managers navigate technical racking specifications.
Ready to Engineer Your Custom OEM Racking System?
Send your warehouse dimensions, ceiling heights, pallet specs, and load requirements. Our design team will deliver a complimentary 2D CAD layout, 3D structural visual, and full pricing breakdown within 24 hours.
