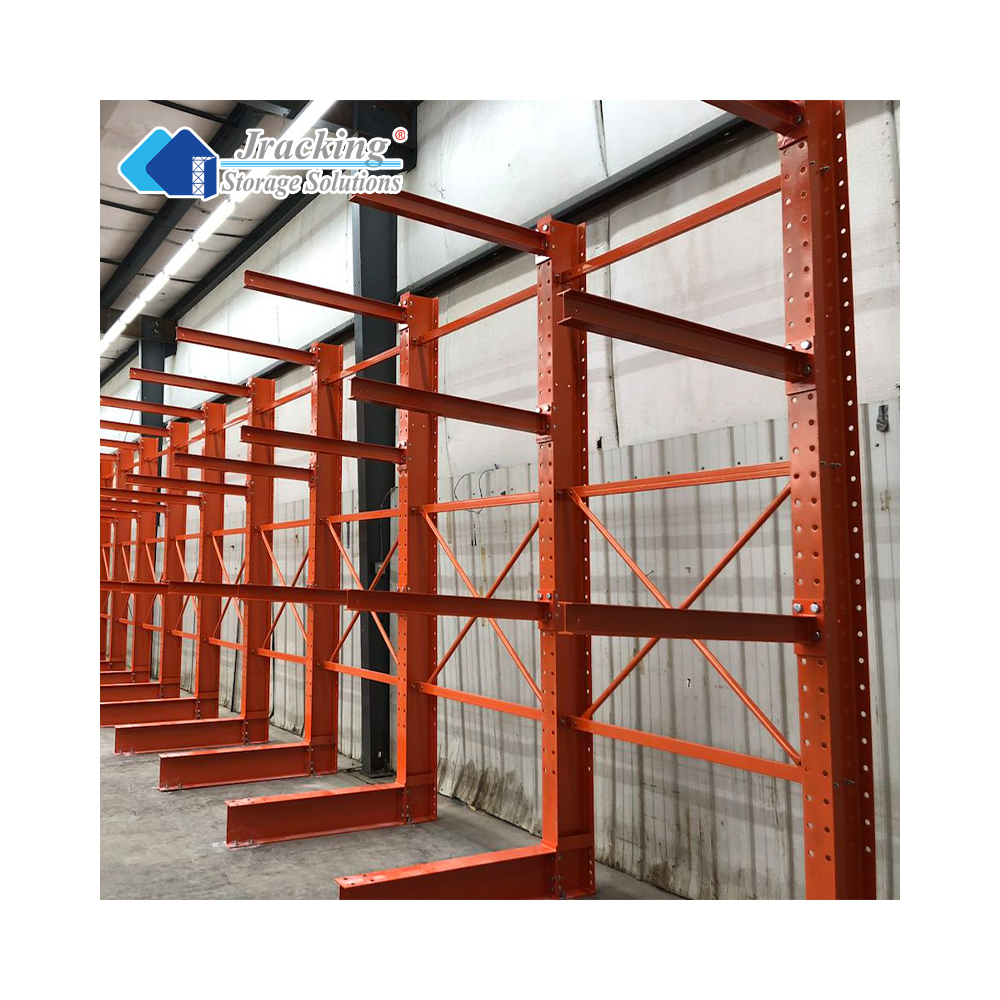

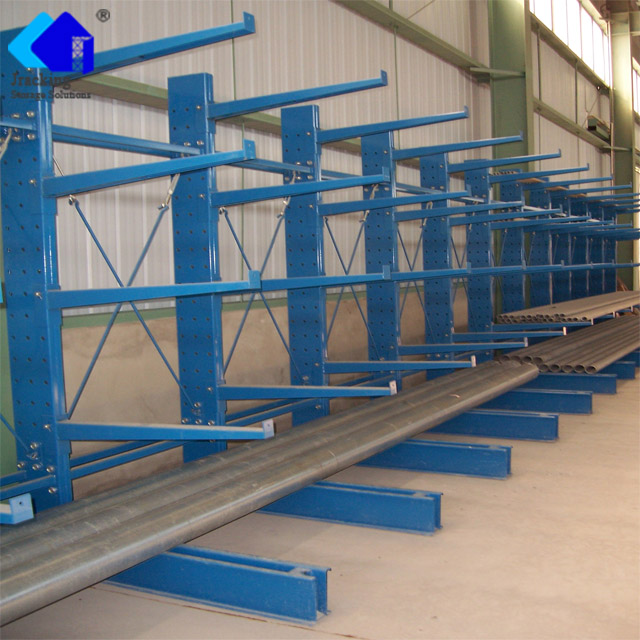

Jracking Customized Warehouse Storage Racks Rust-Resistant Light Duty Cantilever Rack For Plastic Pipes Storage
Product Description
Product Specifications
| Name | Cantilever Racking | Material | Q235B Steel |
| Size | Customized Size | Color | Customized Color |
| Depth | Customized | Weight Capacity | 1000kg/arm |
| Width | Customized | Height | Customized |
| Finish | Powder coating; Hot Dip Galvanized | ||
| Packing | Export Package | ||
| Certification | RMI/CE/ISO/TUV/AS4084-2012 | ||
| MOQ | One 20ft/40ft Container | ||
| Free Sample | Available (Delivery Cost on Buyer) | ||
| OEM | Available | ||

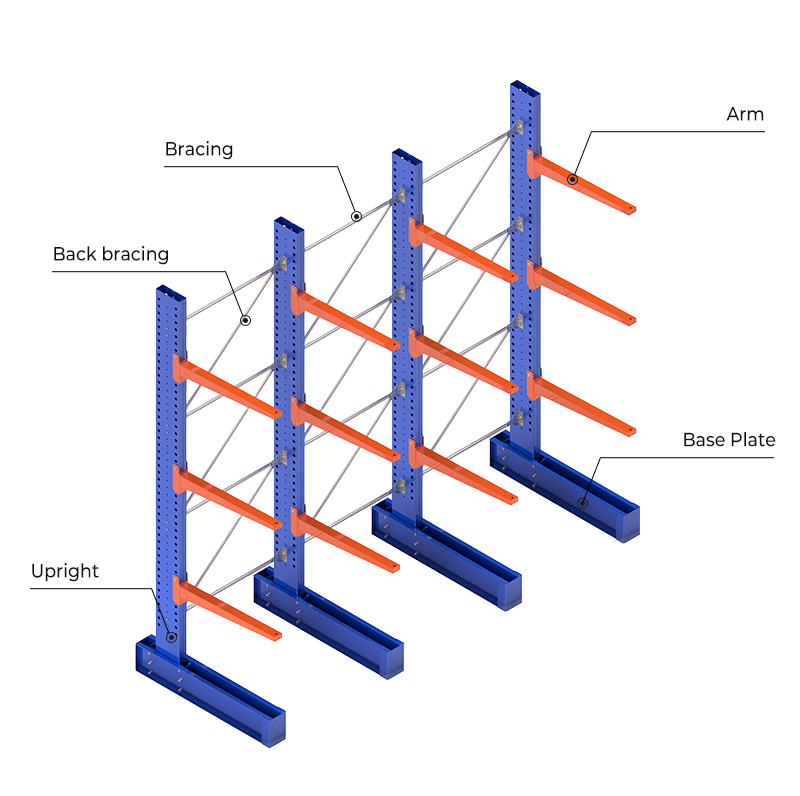

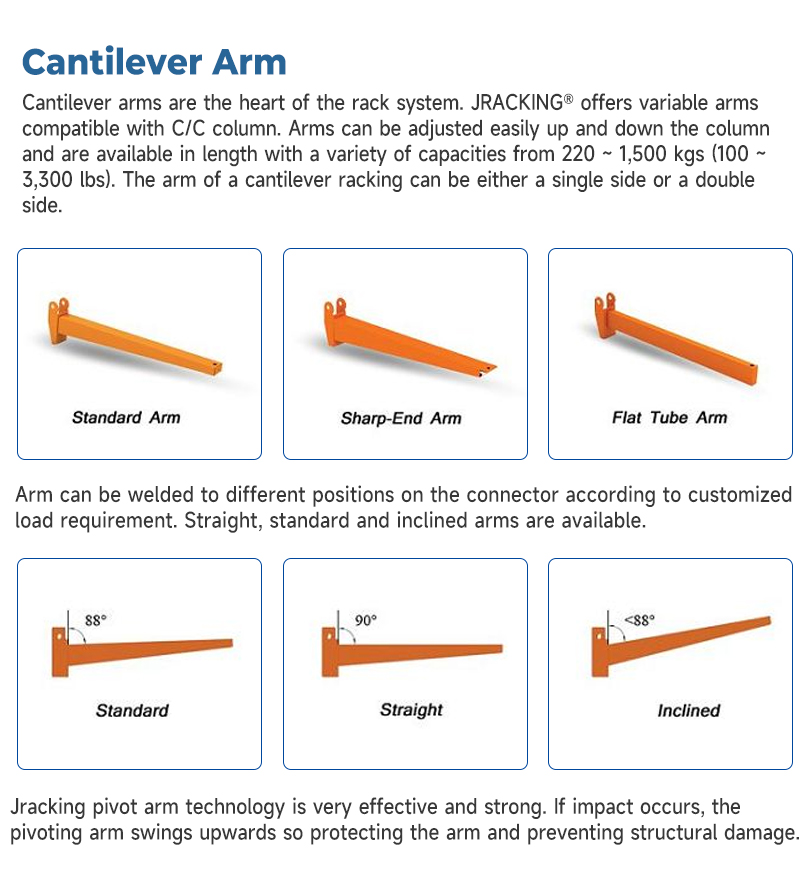

System Structure & Overview
Installation Guidelines

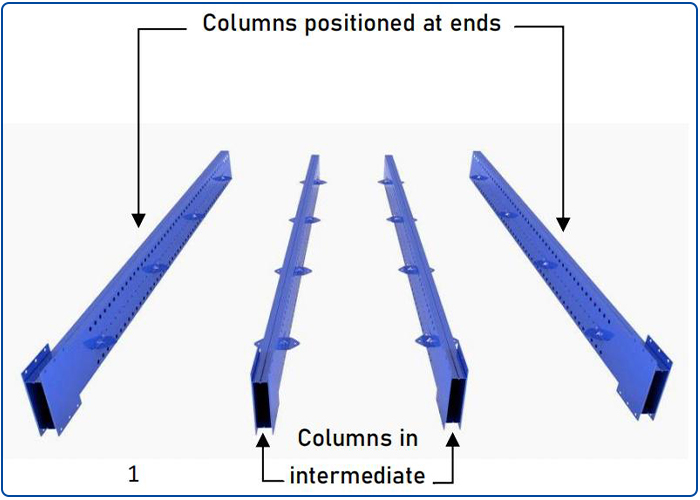

Step 1: Connect 1 row of MK bracing brackets at the inside of columns positioned at ends, meanwhile connect 2 rows of brackets at both sides of columns in intermediate, as shown.

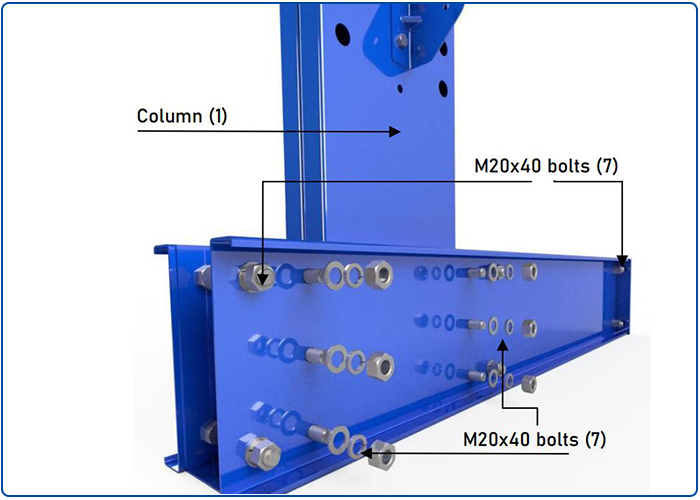

Step 2: Position the column (1) vertically into the fixing MK base, as shown. Connect the column and the base with M20x40 bolts (7). Fasten the other M20x40 bolts (7) on the base. Recommended torque: 86~103 N.M.

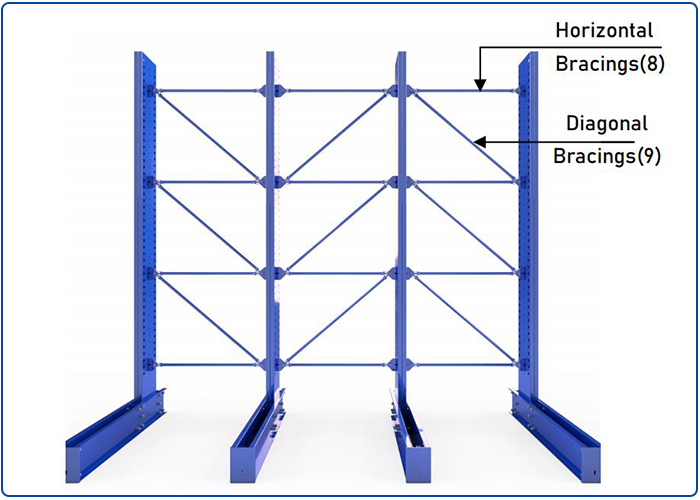

Step 3: The standard composition of the vertical bracing, after it has been fastened to the columns, is as shown in the illustration.

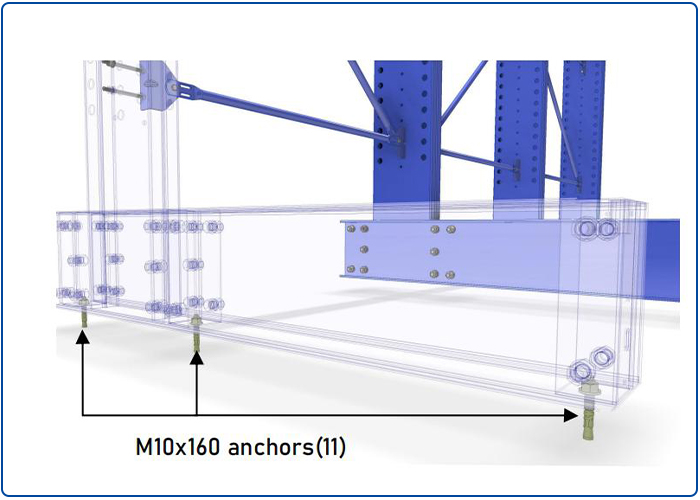

Step 4: The bases must be leveled with metal leveling plates if necessary. Fully tighten the M20x40 bolts (7) on the base front as indicated in step 2. Drill floor holes using a 014 bit to a minimum depth of 100 mm, remove remains, hammer in M10x160 anchors (11), and firmly bolt the plate. Recommended torque: 50 MN.

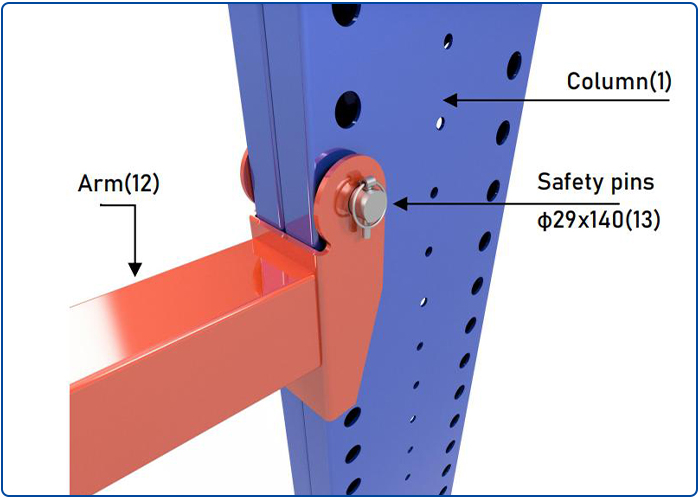

Step 5: The arm (12) is fastened to the column (1) using safety pins Φ29x140 (13). Fit the arms according to the heights and distribution shown on the project drawing.

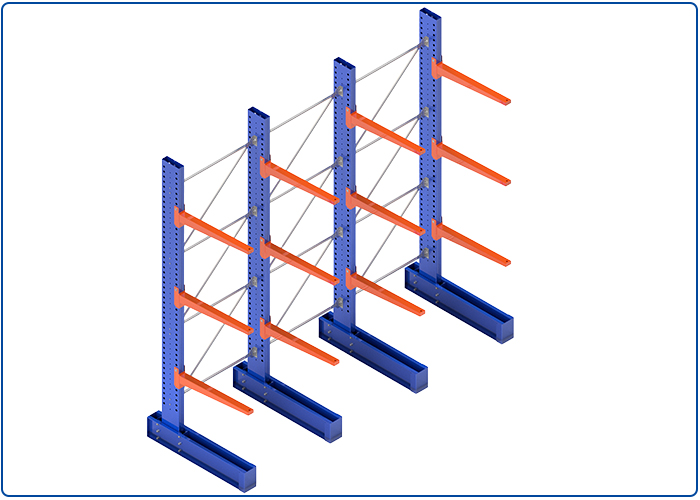

Step 6: Finally, the completed structure should look like the illustration.
Manufacturing & Production Capability
Product Range & Category
Frequently Asked Questions (FAQ)
What are your trading terms?
1) Payment terms: T/T 30% deposit after order confirmed, 70% balance paid against bill of lading. L/C and O/A are also available.
2) Lead time: Normally 20-25 days after deposit received.
3) Sample policy: Samples are available for each model, ready in 7-15 days upon payment.
4) Shipping port: Shanghai / Nanjing, China.
5) Discounts: Good discounts offered for large quantity orders.
2) Lead time: Normally 20-25 days after deposit received.
3) Sample policy: Samples are available for each model, ready in 7-15 days upon payment.
4) Shipping port: Shanghai / Nanjing, China.
5) Discounts: Good discounts offered for large quantity orders.
How can I deliver my goods?
1) Sea freight: We will update sea freight costs once your delivery seaport is specified.
2) Designated agent: Provide your shipping agent's contact details and we will coordinate delivery directly.
2) Designated agent: Provide your shipping agent's contact details and we will coordinate delivery directly.
What services do you provide?
1) Prompt response: Product or price inquiries replied within 12 hours.
2) Professional communication: Fluent English support from well-trained, experienced staff.
3) Customization: Full OEM & ODM support to design custom racking solutions.
4) Engineering expertise: Senior professional engineers providing optimized warehouse designs.
2) Professional communication: Fluent English support from well-trained, experienced staff.
3) Customization: Full OEM & ODM support to design custom racking solutions.
4) Engineering expertise: Senior professional engineers providing optimized warehouse designs.
What is the purchasing process?
Design drawing → Confirm drawing → Quotation → Proforma Invoice (PI) → Confirm PI → Arrange 30% deposit → Manufacture → QC inspection → Pay balance → Shipping.
What are your main advantages?
1) Flexible payment: O/A 40-60 days available.
2) Fast lead time: Rush order fast-track support.
3) Factory direct price: Competitive pricing direct from manufacturing.
4) Comprehensive warranty: 2-year warranty with free replacement parts dispatched for broken components.
2) Fast lead time: Rush order fast-track support.
3) Factory direct price: Competitive pricing direct from manufacturing.
4) Comprehensive warranty: 2-year warranty with free replacement parts dispatched for broken components.
Does Jracking have a Minimum Order Quantity (MOQ) limitation?
No strict limitation, but pricing is tied to order volume. We recommend ordering at least one 20ft container (approx. 15 tons) for regular products to ensure cost efficiency.
