Heavy Duty Metal Steel Storage Shelves 5-Layer Wire Shelf
Reinforced industrial-tier wire decking with heavy beam profiles designed for multi-tier picking facilities and high ventilation requirements.
25+
Years Engineering Expertise
30,000 T
Monthly Structural Output
ISO & CE
Certified Production QA
120+
Countries Deployed
Factory Catalog
Engineered High-Bay & Heavy-Duty Structural Storage Systems
Precision-formed industrial pallet racking, mezzanine frameworks, dynamic cart push-back arrays, and commercial bulk storage systems tailored to high-density logistical infrastructures.
High Density Steel Push-Back Racking (2-5 Movable Carts)
Precision-inclined rail systems with nested steel carts for deep-lane LIFO bulk handling, dramatically improving volumetric storage yields.
Custom Heavy-Duty Selective Pallet Racking System
High-bay selective structural configuration delivering 100% pallet accessibility. Cold-roll formed Q235B upright frames with 75mm beam adjustability.
Rack-Supported Mezzanine Interlocking Floor System
Multi-tier vertical floor extensions utilizing rack columns as support posts. Maximizes vertical headspace for dual-purpose staging and pallet storage.
Industrial Medium Duty Boltless Rack (4-Layer Shelving)
Interlocking beam-to-column mechanical joint design requiring zero fasteners. Features anti-corrosion powder priming for rapid setup operations.
Commercial Warehouse Selective High-Bay Racking
Engineered for large-scale reach truck and narrow-aisle (VNA) operations. Rigid frame gusseting prevents torsion stress during heavy cyclic loading.

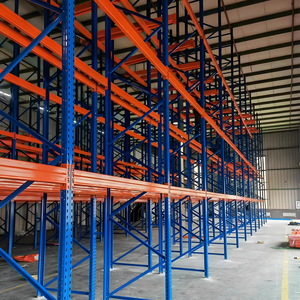

Turnkey 4000kg Capacity Cold-Rolled Steel Storage Shelving
Ultra-high payload capacity racking designed for dies, automotive blocks, and dense raw materials. Heavy-duty footings evenly distribute foundation stress.
HUAWU 200kg/Layer Boltless Q235 Steel Warehouse Rack
Standard modular shelving for light-to-medium parts staging, order fulfillment lines, and manual SKU carton picking facilities.
Architectural Mechanics of Modern High Bay Storage Rack Engineering
Modern automated and high-density fulfillment centers demand uncompromising precision from cold-rolled structural storage racks. As warehouses extend vertically from standard 8-meter limits toward 20- to 40-meter clad-rack and high-bay configurations, mechanical variables shift exponentially. Structural frame deflection, Euler column buckling, dynamic forklift impact absorption, and floor-slab anchor shear must be calculated using advanced Finite Element Analysis (FEA) compliant with EN 15512, RMI MH16.1, and AS4084 standards.
Information Gain Highlight: Dynamic Loading vs. Structural Fatigue
Unlike static residential or commercial steel framing, industrial warehouse racks operate in a cyclic dynamic environment. Repetitive forklift pallet placement, thermal oscillations in cold storage conditions, and seismic ground accelerations require controlled steel ductility. Our manufacturing process utilizes micro-alloyed Q235B and Q355B cold-rolled coils, offering an exceptional yield-to-tensile ratio and Charpy V-notch impact toughness calibrated down to -30°C.
High bay vertical uprights must balance punch-hole geometry with profile stiffness. Continuous automated punch presses punch 50mm or 75mm teardrop, diamond, or hex hole patterns along the neutral axis, preserving the outer flange integrity against torsional flexure. Simultaneously, inter-locking box beams are manufactured with continuous robotic seam welding, incorporating 3-to-5 tooth cast-steel or hot-stamped steel beam connectors fitted with mechanical safety pins to eliminate the hazard of accidental pallet beam dislodgement.
| Engineering Parameter | Standard Selective Profile | High-Bay Heavy Pallet Profile | Automated ASRS / VNA Matrix |
|---|---|---|---|
| Steel Composition | Certified Q235B Grade | High-Yield Q355B Hot-Dip/Cold-Roll | Structural High-Tensile Micro-Alloy |
| Clear Column Height Max | Up to 11.5 Meters | Up to 16.0 Meters | Up to 30.0+ Meters (Clad Rack) |
| Max Bay Weight Capacity | 8,000 – 12,000 kg | 15,000 – 24,000 kg | Custom Calibrated Dynamic Payload |
| Surface Protection Standard | 60-80µm Electrostatic Powder | 80-120µm Heavy Epoxy / Polyester | Continuous Hot-Dip Galvanizing (HDG) |
Market Intelligence
Future Sourcing & Procurement Trends in High Bay Systems
Global supply chain reorganizations, cold-chain expansions, and robotics integrations are reshaping how industrial enterprises acquire racking assets.
Nearshoring & Container Cube Maximization
Rising maritime container freight is driving engineering teams toward knocked-down, modular nesting configurations. Purchasing directors favor factories that package bolted frames and stepped interlocking beams to reach >95% volumetric 40HQ container load factors, significantly slashing landed cost per pallet location.
Total Traceability & Life-Cycle Certifications
Enterprise procurement departments no longer accept unverified mill test reports. Sourcing mandates increasingly specify ISO 9001:2015, CE certification (EN 1090 / EN 15512), RoHS structural chemical tests, and ultrasonic weld inspections before releasing initial ocean bill of ladings.
Hybrid Automation Adaptation
Buyers are shifting away from rigid standalone static racking in favor of hybrid-ready profiles. Modern upright profiles are pre-punched to accommodate bolt-on guide rails for AGVs, autonomous mobile robot (AMR) top-running decks, and electric pallet runner shuttle tracks without structural retrofitting.
Structural R&D Horizons: Next-Generation High Bay Geometries
The transition toward mega-distribution centers has pushed steel roll-forming engineering into high-precision, closed-loop feedback systems. In standard manufacturing setups, roll-forming residual stresses create microscopic column twists that compound over 15-meter heights. To counter this, advanced CNC roll-forming lines incorporate continuous laser telemetry to adjust roll passes dynamically, ensuring column straightness tolerances within 1/1000 across overall height.
Surface treatment technology has simultaneously transitioned from simple wet spray applications to multi-stage nanotech pre-treatment combined with electrostatic thermosetting powders. By combining automatic zinc-phosphate or zirconium conversion washes with hot-cured pure polyester powders, high bay racks achieve cross-hatch adhesion ratings of 0 (ISO 2409) and salt-spray resistance exceeding 500 hours. For corrosive coastal logistics hubs and sub-zero cold-chain facilities, continuous hot-dip galvanizing per ASTM A123 ensures complete structural longevity against condensation and thermal fracturing.
Factory Advantage
Integrated OEM/ODM Capabilities & Manufacturing Strengths
Direct-from-source engineering control from raw certified steel coil slitting to precision punch lines and global delivery support.
25+ Years of Dedicated Fabrication
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. operates an advanced 30,000 square-meter production complex staffed by over 300 experienced engineers, structural technicians, and production specialists dedicated exclusively to industrial racking excellence.
Complimentary CAD & 3D Structural Engineering
Our engineering wing provides complimentary CAD warehouse layout schematics, 3D visual renderings, and complete structural loading calculations within 24 hours. We evaluate column spacing, floor-slab load capacities, and forklift radius restrictions to eliminate onsite clashes.
End-to-End 10-Stage Process Control
Full manufacturing custody is maintained within our factory walls: raw steel coil testing, CNC shearing, automated 60-ton column punching, high-precision roll forming, robotized MIG beam welding, acid pickling, phosphating, electrostatic powder coating, and seaworthy container bundling.
Procurement Knowledge Base
Frequently Asked Questions on High Bay Storage Racking
Technical, logistical, and commercial inquiries answered by our Senior Racking Engineers.
What specific warehouse data is required to calculate an accurate structural racking quote?
To provide an optimized CAD proposal and quotation, our structural engineers require: (1) Warehouse architectural drawings (DWG/PDF) highlighting clear ceiling heights, building columns, dock doors, and fire riser positions; (2) Concrete slab specifications including slab thickness, compressive strength (e.g., C25/C30), and reinforcement structure; (3) Pallet parameters, specifically Width x Depth x Total Height (including goods) and gross weight per unit; (4) Total active SKU count and expected turnover velocity; and (5) Material handling equipment (MHE) models, including reach trucks, counterbalance, or VNA fork trucks along with maximum lift heights and right-angle turning clearances.
How does HEDA prevent coating degradation in high-humidity or cold-storage environments?
Corrosion control starts prior to coating application. All roll-formed steel components pass through a thorough 4-step bath pretreatment featuring immersion degreasing, acid pickling to strip mill scale, clean water rinsing, and zinc-iron phosphating to build an anti-oxidation barrier. For ambient tropical warehouses, our computerized electrostatic lines spray high-grade polyester thermosetting powders cured at 180°C–200°C. For -25°C blast freezers or corrosive coastal facilities, we supply continuous Hot-Dip Galvanized (HDG) steel components fabricated to ASTM A123 standards, eliminating peel, blistering, and rust initiation.
Can custom colors, OEM hole punching, and custom brand labeling be incorporated?
Yes. Operating as an authentic OEM/ODM high-bay rack manufacturer, we customize upright and beam configurations to any standard RAL color code (popular schemes include RAL 5005 Signal Blue, RAL 5015 Sky Blue, RAL 2004 Pure Orange, and RAL 7035 Light Grey). Punch tool dies can be set to 50mm, 75mm, 76.2mm (3-inch), teardrop, or trapezoidal patterns. We regularly integrate private-label brand plates, laser-etched payload data plates, and safety load capacity banners into customized container shipments.
How are heavy high-bay rack components packaged to prevent damage during sea transport?
High bay upright frames and box beams undergo rigorous bundling procedures. Frame uprights are grouped on custom-welded steel saddles or heavy timber skids, protected with corner edge-protectors, wrapped in heavy-duty polyethylene stretch film, and secured with tensile steel strapping. Beams are stacked with corrugated dunnage dividers between levels to eliminate metal-to-metal rubbing that causes cosmetic or protective coating damage. Small hardware, base plates, column anchors, and safety clips are packed in reinforced wooden crates labeled by component number to match installation drawings.
What seismic certifications and international quality management standards are met?
HEDA Shelves operates in strict compliance with the ISO 9001:2015 Quality Management System (Certificate No. 18624Q00169R0M) and holds official European CE certification (No. 2435-CPR-8605159) along with RoHS certification. All structural profiles conform to the European Federation of Materials Handling (FEM 10.2.02 / EN 15512 standards), American Rack Manufacturers Institute (RMI MH16.1), and Australian Standard AS 4084. Project-specific seismic base plate calculations and horizontal spine/transverse bracing schemes are engineered on demand for active seismic zones.
Engineer Your Warehouse With Direct Factory Precision
Send us your warehouse CAD drawings or operational specifications. Our Senior Structural Engineering Team will deliver a complimentary 2D layout, 3D isometric model, and competitive quotation within 24 hours.
