CE Certified Heavy Duty Industrial Steel Pallet Racking System
High-capacity adjustable beam storage engineered for structural stability, multi-tier cargo loads, and maximum forklift impact resistance in heavy manufacturing environments.
Factory-Direct Catalog
Featured Industrial Structural Racking & Storage Systems
Designed and manufactured to stringent international engineering standards (CE, ISO 9001:2015, FEM 10.2.02, RMI). Explore our core heavy-duty racking configurations for modern warehousing and distribution.
Mracking Multi-Level Light & Medium Duty Storage Bin Rack System
Modular multi-level bin shelf racking tailored for e-commerce picking, small parts organization, high load-bearing capacity, and rapid manual inventory retrieval.

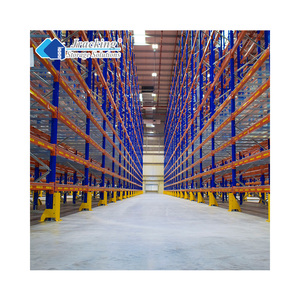

Jracking Dexion Pitch 76.2mm Style Warehouse Beam Pallet Rack
Industry-standard 76.2mm pitch adjustable structural beam racking system offering seamless compatibility with Australian and European warehouse layouts.
Heavy Duty Customized Steel Stackable Metal Storage Racking
Flexible, intubated multi-function steel stack racks ideal for temporary bulk storage, seasonal inventory shifts, and dense transport container packing.
High Density Very Narrow Aisle (VNA) Selective Pallet Racking
Precision-engineered ultra-dense VNA structural rack system maximizing vertical cube utilization up to 15+ meters while retaining 100% direct pallet selectivity.
Heavy-Duty Structural Steel Second Floor Mezzanine Platform
Heavy-duty attic platform and structural mezzanine floor systems designed to convert clear overhead ceiling height into load-bearing usable workspace and storage.
OEM Custom Heavy-Duty Warehouse Selective Pallet Racking
Custom-tailored OEM structural rack framing engineered specifically for non-standard pallet footprints, heavy industrial dies, and specialized logistics centers.
Gravity Carton Flow Roller Tilt Racking for Order Picking
FIFO cold-rolled steel tilt carton flow rack equipped with heavy-duty aluminum/steel rollers for high-speed assembly line replenishment and fulfillment.
Production Power & E-E-A-T Authority
Industrial Manufacturing Capabilities at a Glance
As a top-tier Chinese structural racking factory based in Guangzhou with over two decades of international export excellence, we combine heavy structural steel engineering with certified quality control systems.
2001
Established Year
30,000 m²
Modern Production Facility
30,000 Tons
Monthly Steel Processing Capacity
100% Verified
CE & ISO 9001:2015 Compliance
Engineering Whitepaper
Structural Racking Procurement & Structural Design Guide
An in-depth technical analysis for global supply chain managers, warehouse operations directors, and structural engineering consultants evaluating high-capacity Chinese racking manufacturers.
1. Structural Steel Racking vs. Standard Roll-Formed Racking: An Engineering Comparison
When procuring heavy-duty warehouse storage systems from Chinese suppliers, structural engineers and supply chain directors must first evaluate the core metallurgical and structural distinction between hot-rolled structural steel channel racking and standard cold-rolled formed profile racking.
Structural pallet racking is fabricated from hot-rolled structural C-channel steel profiles (typically Q235B or Q355B yield strength steel). The upright columns and horizontal load beams feature solid steel thickness ranging from 3.0mm to over 6.0mm, with heavy-duty structural bolting at column-to-beam connection nodes. This yields unmatched torsional rigidity and impact resistance.
In contrast, conventional roll-formed racking uses thin-gauge sheet steel rolled into open C-shapes or teardrop profiles with snap-in rivet connectors. While cost-effective for ambient e-commerce distribution handling standard 1,000 kg pallets, roll-formed profiles are significantly more vulnerable to forklift frame impacts, cyclic fatigue, and seismic shearing forces.
| Engineering Attribute | Hot-Rolled Structural Steel Racking | Cold-Rolled Formed Racking |
|---|---|---|
| Steel Grade & Fabrication | Structural C-Channel / I-Beam (Q235B / Q355B) | Light-Gauge Coil Steel Sheet (Q235) |
| Impact Resistance | Extreme Resistance: Withstands heavy industrial forklift impact without structural collapse. | Moderate: Prone to column crippling or denting upon direct forklift collision. |
| Load Capacity Per Level | Up to 5,000 kg - 8,000 kg per beam level | Typically 1,000 kg - 3,000 kg per beam level |
| Corrosion & Harsh Environments | Optimal for freezer cold stores (-30°C), chemical yards, and outdoor cantilever applications. | Requires strict ambient climate control to prevent rust at connection perforations. |
| Service Lifespan | 25+ Years minimal maintenance requirement | 10-15 Years dependent on operator handling severity |
2. Future Procurement Trends in Industrial Storage Racking (2025–2030)
The global warehousing landscape is undergoing a rapid paradigm shift driven by land scarcity, soaring industrial real estate lease rates, and the imperative for zero-emission automated operations. Chinese structural racking manufacturers are at the forefront of this industrial transformation. Key procurement trends include:
A. Integration with Automated Storage and Retrieval Systems (AS/RS)
Modern mega-fulfillment centers are moving away from manual forklift handling toward high-bay AS/RS rack-clad structures reaching heights up to 40 meters. Structural racking serves as the load-bearing skeleton for automated stacker cranes, shuttle cars, and vertical conveyors. Deflection tolerances must meet strict millimetric precision under AISC and EN 15512 codes to prevent automated crane jam events.
B. Heavy-Duty Cold-Chain Optimization
With global cold-chain logistics expanding across agricultural, fresh food, and biopharmaceutical sectors, high-density storage systems—specifically Radio Shuttle Racking and Drive-In Systems—are seeing explosive demand. Structural structural steel retains its ductile toughness under sub-zero freezer environments (-25°C to -30°C), whereas lower-grade cold-rolled steel can experience embrittlement under long-term thermal contraction stress.
C. High-Durability Hot-Dip Galvanizing & Sustainable Powder Coatings
Coastal logistics hubs, chemical processing plants, and high-humidity monsoon regions require advanced anti-corrosion surface treatments. Procurement teams now specify 10-stage pre-treatment pickling followed by heavy electrostatic thermosetting epoxy-polyester powder coating or continuous Hot-Dip Galvanizing (HDG) conforming to ISO 1461 standards, delivering 50+ years of rust prevention.
Information Gain: Structural Calculation & Floor Slab Requirements
Before purchasing heavy-duty structural racking from China, procurement engineers must perform a complete structural floor slab audit. Standard industrial slabs require a minimum concrete thickness of 150mm to 250mm with continuous rebar reinforcement, rated for 30 to 50 MPa compressive strength. Base plate anchoring utilizing mechanical or chemical wedge anchors must account for point-load punch shear forces transmitted through heavy structural racking baseplates.
3. Why Global Buyers Partner with Guangzhou Heda Shelves Co., Ltd.
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has grown into a premiere Chinese structural racking manufacturer, operating a 30,000 square meter state-of-the-art facility equipped with automated roll-forming lines, robotic MIG welding stations, CNC punching machinery, and an automated continuous powder coating line.
01
In-House Engineering & FEA Simulation
Our structural engineering team utilizes advanced Finite Element Analysis (FEA) software to calculate stress distribution, dynamic seismic load response, and safety factors before steel cutting begins.
02
Strict QC & Verifiable Certifications
We hold verified CE Certification (No. 2435-CPR-8605159) and ISO 9001:2015 Certification (No. 18624Q00169R0M), ensuring compliance with European CPR regulations and Australian AS4084 guidelines.
03
Container-Optimized Logistics
Components are precision-bundled, edge-protected, and palletized to maximize 20GP/40HQ shipping container utilization, dramatically reducing sea freight overhead per pallet position.
04
Turnkey Layout & Installation Guidance
Every custom project includes full 3D CAD spatial layout designs, detailed component numbering, and step-by-step video installation blueprints or on-site engineering supervision.
4. Structural Racking Procurement FAQ (Frequently Asked Questions)
What steel grades are used in HEDA structural racking manufacturing?
We primarily utilize high-tensile hot-rolled structural steel conforming to Q235B and Q355B (equivalent to European S235JR and S355JR / ASTM A36 and A572 Grade 50). These grades deliver superior yield strength, ensuring heavy beam load capacity without permanent plastic deformation.
How do you ensure seismic compliance for racks installed in earthquake-prone zones?
Our structural designers engineer customized rack bracing structures, oversized heavy-duty baseplates, dual floor anchor bolts, and reinforced column-to-beam connection brackets calibrated against local seismic acceleration coefficients (PGA ratings) following FEM 10.2.02 and RMI specifications.
What information is required to receive a free custom CAD warehouse design and quote?
To prepare an engineered CAD layout and price quotation, please provide: (1) Warehouse CAD or PDF architectural layout with clear height & column positions; (2) Pallet dimensions (L x W x H in mm) including cargo overhang; (3) Maximum load weight per pallet; (4) Forklift truck model, turning radius, and maximum reach height; (5) Operating temperature (ambient vs cold store).
What is the typical manufacturing lead time for container orders?
Standard production lead time for full container load (FCL) orders is typically 15 to 25 business days from final technical CAD drawing approval and deposit receipt. Automated high-volume forming lines enable fast turnaround times for urgent project expansions.
Can HEDA supply structural mezzanine floors integrated with racking systems?
Yes. We specialize in both free-standing structural steel platform mezzanines and rack-supported mezzanine floor systems capable of supporting floor loads from 300 kg/m² up to over 1,000 kg/m² with custom steel deck grating, plywood floor panels, safety handrails, and staircases.
