Engineered VNA & High-Density Pallet Racking Systems
Designed for man-up and man-down trilateral turret trucks. Our systems drastically reduce aisle widths down to 1.6 meters, elevating operational clearance while securing structural integrity under heavy dynamic loads.

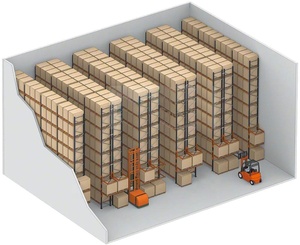

URGO Very Narrow Aisle Pallet Rack / VNA Racking System
High-precision cold-rolled profile racking designed specifically for guided turret trucks. Provides 100% direct pallet accessibility and vertical storage heights up to 18 meters.
900*450*1800mm Iron Multi-Level VNA Pallet Rack Multi-Level Storage
Hybrid combination framework supporting angle steel gondola interfaces and multi-tier picking levels. Optimized for SKU fragmentation in dense logistics sortation hubs.
Very Narrow Aisle Pallet Rack / VNA Heavy Duty Racking System
Heavy-duty seismic-rated upright columns with multi-hook connectors. Features ultra-rigid floor-mounted guide rails to ensure stability during high-elevation turret operations.

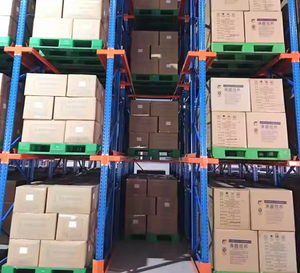

Heavy-Duty Adjustable VNA Pallet Racking System Metal Warehouse Rack
Factory direct modular engineering with corrosion-resistant electrostatic finish. Integrates drive-in rigidity elements with 75mm beam level adjustability for dynamic SKU profiles.

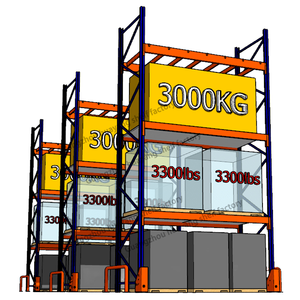

China Factory Steel 5-Layer Painted VNA Pallet Rack Heavy-Duty Multi-Tier
CE-certified 5-layer industrial high-bay racking. Treated through automated pickling and phosphating lines to guarantee salt-spray resistance and structural endurance under tropical humidity.

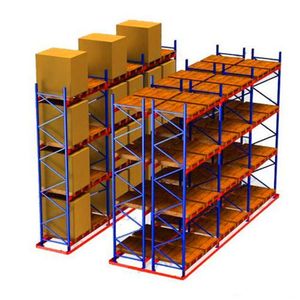

High Density Heavy Duty VNA Pallet Racking ISO Certified 1000-3000kg/layer
Q355B structural grade steel configuration engineered for extreme duty cycles. Verified under rigorous load testing to support up to 3 metric tons per beam level with zero permanent deflection.

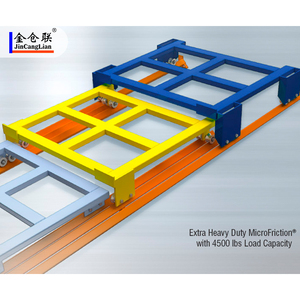

Customized Pallet Rack High Density Push-back Racking 2~5 Carts
High-density push-back cart system engineered with gravity-flow inclination. Integrates with VNA cross-dock buffer zones to maximize intermediate staging capacity without aisle expansion.

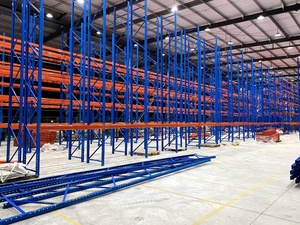

Steel Metal Gravity Flow Pallet Rack Powder Coated Finish Heavy Duty
Precision roller bed architecture facilitating seamless First-In, First-Out (FIFO) stock turnover. Ideal for batch-controlled pharmaceutical, food cold chain, and high-velocity goods.
Engineering Principles of Very Narrow Aisle (VNA) Systems
Very Narrow Aisle (VNA) racking represents the pinnacle of static warehouse density optimization. By shrinking working aisle widths from 3.5 meters (standard counterbalanced forklift requirement) down to between 1.6 and 1.8 meters, usable warehouse storage volume increases by up to 45% within the identical physical footprint.
Floor Flatness (DIN 15185 / EN 15620)
At operational mast heights of 14m to 18m, minor floor undulations amplify exponentially. Mast sway at elevation can cause hazardous collision with structural uprights. HEDA VNA systems are engineered in strict alignment with DIN 15185 and EN 15620 Class 300 Superflat tolerances, calculating lateral deflection and wheel-load dynamic impacts down to the millimeter.
Truck Guidance Kinematics
VNA operations rely on mechanical guidance or inductive wire systems. Mechanical guide rails utilize continuous, heavy low-profile angle steel (typically 100×75×10mm) secured via expansion anchor bolts every 500mm. Wire guidance transmits a 4.5 kHz to 9 kHz low-frequency signal embedded in a 4mm saw cut inside the slab, enabling automated electronic steering lock within the aisle.
Structural Metallurgy (Q235B vs Q355B)
Vertical integrity under seismic dynamic loading mandates rigorous profile roll forming. HEDA leverages ultra-grade SS400/Q235B and high-yield Q355B cold-rolled coiled steel. Uprights feature continuous omega-shaped profiles without weak seams, sustaining safety factors above 1.5 under maximum beam load deflection tolerances (L/200 complying with SEMA and FEM codes).
Intralogistics System Performance Comparison
Selecting the appropriate racking topography depends on capital expenditure (CAPEX), warehouse clear height, SKU volume, and required inventory turnover rates.
| Storage Architecture | Operating Aisle Width | Space Utilization | Accessibility | Throughput Speed | MHE Investment Level |
|---|---|---|---|---|---|
| Very Narrow Aisle (VNA) | 1.6m – 1.8m | 85% – 90% (High) | 100% Direct (Selective) | High (Up to 40 pallets/hr) | High (Turret Truck / AGV) |
| Standard Selective Racking | 3.2m – 3.8m | 45% – 50% (Standard) | 100% Direct (Selective) | Moderate (30 pallets/hr) | Low (Standard Forklift) |
| Double Deep Racking | 2.8m – 3.2m | 60% – 65% (Medium) | 50% Direct (LIFO) | Moderate (25 pallets/hr) | Medium (Deep-Reach Truck) |
| Drive-In Pallet Racking | Integrated Drive Lane | 70% – 75% (High) | Low (Last-In, First-Out) | Low (Slow Entry Cycles) | Low (Standard Counterbalance) |
| Radio Shuttle Automation | Buffer Aisle Only | 85% – 92% (Maximum) | Channel Access (FIFO/LIFO) | High (Continuous Run) | High (Radio Shuttle Carts) |
Future Sourcing & Technology Trends in VNA Systems
As commercial real estate leasing rates and industrial land purchase costs skyrocket globally, modern warehouse architecture is experiencing a permanent shift toward high-cube utilization, robotic integration, and structural carbon neutrality.
1. Convergence of VNA and Autonomous AGVs
Traditional manual man-up trilateral turret trucks are rapidly transitioning to unmanned autonomous guided vehicles (AGV/AMR). Modern VNA racking structures require integrated sensor reflector brackets, zero-interference laser target positioning, and tighter roll-forming tolerances (down to ±0.5mm across upright verticality) to facilitate seamless robotic pallet insertion.
2. Digital Twin Pre-Engineering & BIM Models
Engineering procurement is moving away from static 2D PDF layout assessments. Enterprise procurers in Europe, the Middle East, and North America now mandate Building Information Modeling (BIM Level 2). HEDA Shelves leads this shift by supplying full Revit, IFC, and 3D stress-simulated models before raw steel coil slitting begins, validating load points against floor slab deflection models.
3. Modular High-Bay Hybrid Platforms
Warehouse logistics providers (3PLs) now avoid rigid single-purpose configurations. Future-proof VNA racking integrates boltless adjustable bracket arms allowing quick conversion into rack-supported picking mezzanines or gravity carton flow buffer tiers without replacing primary upright columns, safeguarding long-term asset value.
Why Global Supply Chains Partner with HEDA Shelves
Operating from our Guangzhou industrial hub since 2001, Guangzhou Heda Shelves Co., Ltd. controls the full manufacturing spectrum in-house. We bridge structural design, cold bending, high-frequency punching, robotic welding, and international maritime logistics under verified ISO & CE protocols.
Full In-House Manufacturing
We do not broker components. From certified coil slitting, cold roll-forming of omega uprights, to robotic welding of beam connector brackets, our 30,000m² plant executes total quality control at every millimeter.
Certified Conformity (CE & ISO)
Auditable international credentials including CE Certificate No. 2435-CPR-8605159, ISO 9001:2015 Quality Management (Certificate No. 18624Q00169R0M, valid through June 2027), and RoHS testing compliance.
Advanced Surface Treatment
Automated 10-stage processing incorporates non-toxic pickling, phosphating, and electrostatic epoxy-polyester powder baking (60-80 micron thickness), creating superior durability against salt-spray and humid climates.
Container-Optimized Bundling
Uprights, box beams, and guide rails are packaged using specialized timber cradles and strapping configurations to maximize 40HQ container load cubes while preventing transit bending or coating abrasion.
Frequently Asked Questions by Industrial Procurers
Detailed technical answers to the most common engineering, logistical, and structural compliance challenges faced by project managers and logistics directors.
What concrete slab specifications are required for a 15-meter VNA installation?
For high-bay VNA installations between 12m and 18m, the concrete floor slab must deliver a minimum compressive strength of 30 N/mm² (C30/37 concrete grade) with a slab thickness typically not less than 200mm to 250mm. Crucially, the floor must comply with DIN 15185 or TR34 (Category DM2 or Superflat) tolerances. If the floor is uneven, high-strength non-shrink epoxy leveling grout must be applied beneath baseplates to prevent post-installation racking plumb deviations.
How do we select between mechanical guide rails and inductive wire guidance?
Mechanical steel guide rails (angle or low-profile channels) are physically robust, require lower initial equipment investment on the turret truck, and physically shield bottom upright footings from direct truck wheel impacts. Inductive wire guidance eliminates tripping hazards, simplifies cross-aisle transfers, and facilitates easy floor cleaning, but requires specialized frequency cutting into the slab and dedicated wire-tracking sensors on the truck.
What is the standard manufacturing and shipping lead time for a multi-container VNA project?
For standard project sizes ranging from 2,000 to 10,000 pallet positions (approximately 4 to 15 40HQ containers), manufacturing takes 20 to 28 calendar days following drawing sign-off and color confirmation. Shipping times from Guangzhou / Nansha / Shenzhen ports typically range between 12 to 18 days to South/Southeast Asia, 22 to 28 days to the Middle East, and 30 to 38 days to European or North American primary container terminals.
Can HEDA Shelves accommodate custom OEM steel profiles or match existing European racking?
Yes. Guangzhou Heda Shelves provides full OEM/ODM engineering. If you are expanding an existing European, Japanese, or North American installation, our tool and die division can roll-form custom teardrop, slotted, or 50mm/75mm pitch punchings, matching your existing hook connectors and beam profiles seamlessly while maintaining audited structural yield calculations.
Accelerate Your High-Density Logistics Strategy
Connect directly with HEDA Shelves senior storage system design engineers. Submit your warehouse layout drawing (DWG/CAD/PDF), floor slab data, and pallet load specs to receive a complimentary 3D rendering, structural calculation, and factory-direct export proposal within 24 hours.
