Do you supply warehouse racking to India, Bangladesh, Pakistan, Sri Lanka and Nepal?

Yes. Guangzhou Heda Shelves Co., Ltd. exports containerised racking from South China to major South Asian ports such as Nhava Sheva (JNPT), Mundra, Chennai, Kolkata, Chattogram, Karachi and Colombo. Landlocked projects in Nepal and Bhutan are usually routed via Kolkata or Visakhapatnam with inland transit.

How are racks protected against monsoon humidity and coastal air?

All steel components go through pickling and phosphating pretreatment before electrostatic powder coating, which improves coating adhesion and corrosion resistance. For cold stores, open-sided sheds and coastal sites, galvanized components can be specified at the design stage.

What information is needed for a racking layout design?

Please share your warehouse drawing (CAD or PDF), clear height, column positions, pallet size and maximum load, number of SKUs, forklift type and lift height, and the project city. Our engineers then prepare a free CAD layout and 3D rendering.

Which certifications does HEDA Shelves hold?

HEDA Shelves holds CE certification No. 2435-CPR-8605159, ISO 9001:2015 quality management certification No. 18624Q00169R0M (valid until 2027-06) and RoHS compliance.

Do you provide installation support in South Asia?

Every shipment includes numbered components, installation drawings and video guidance so local contractors can install efficiently. On-site supervision by HEDA engineers can be arranged for larger or complex projects.

What load capacities are available?

Capacities are engineered per project. Typical references include heavy duty cantilever racking up to 3,000 kg per level and mezzanine floors from 300 to 1,000 kg per square metre, with custom capacities available on request.

Product Structure

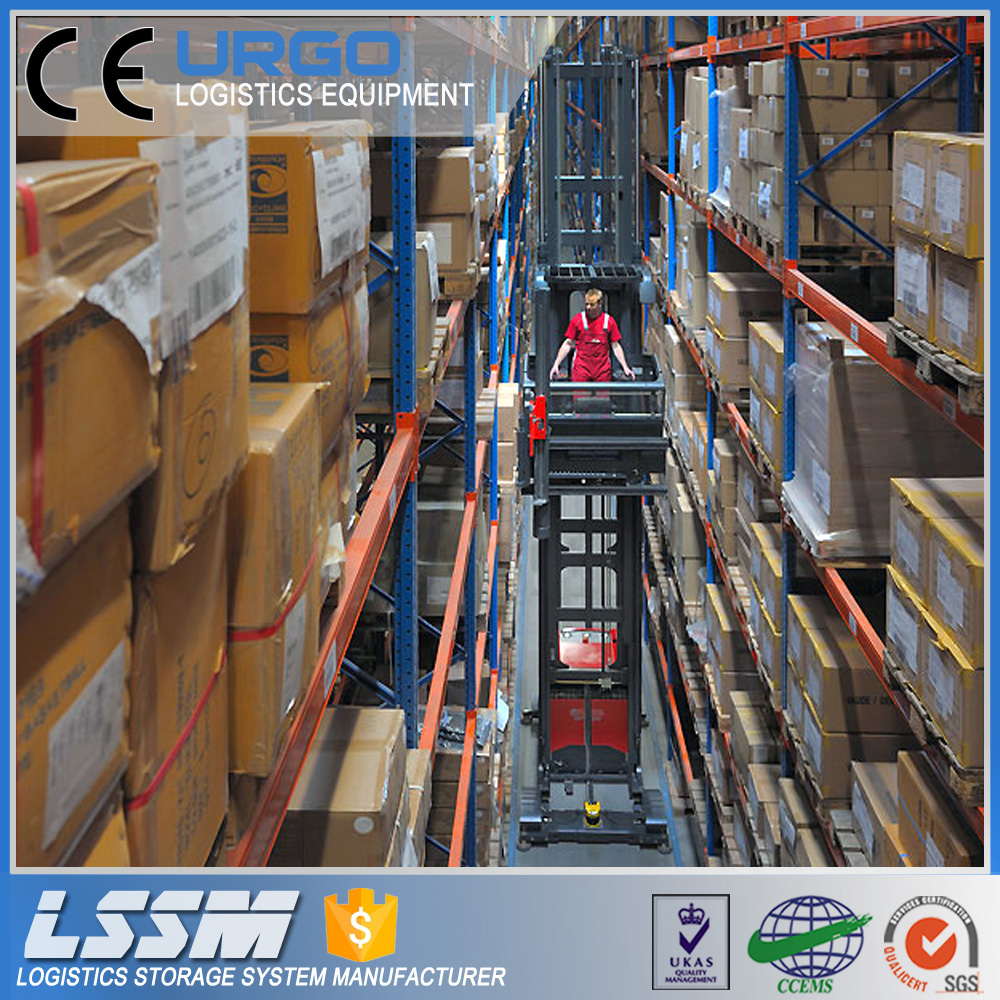

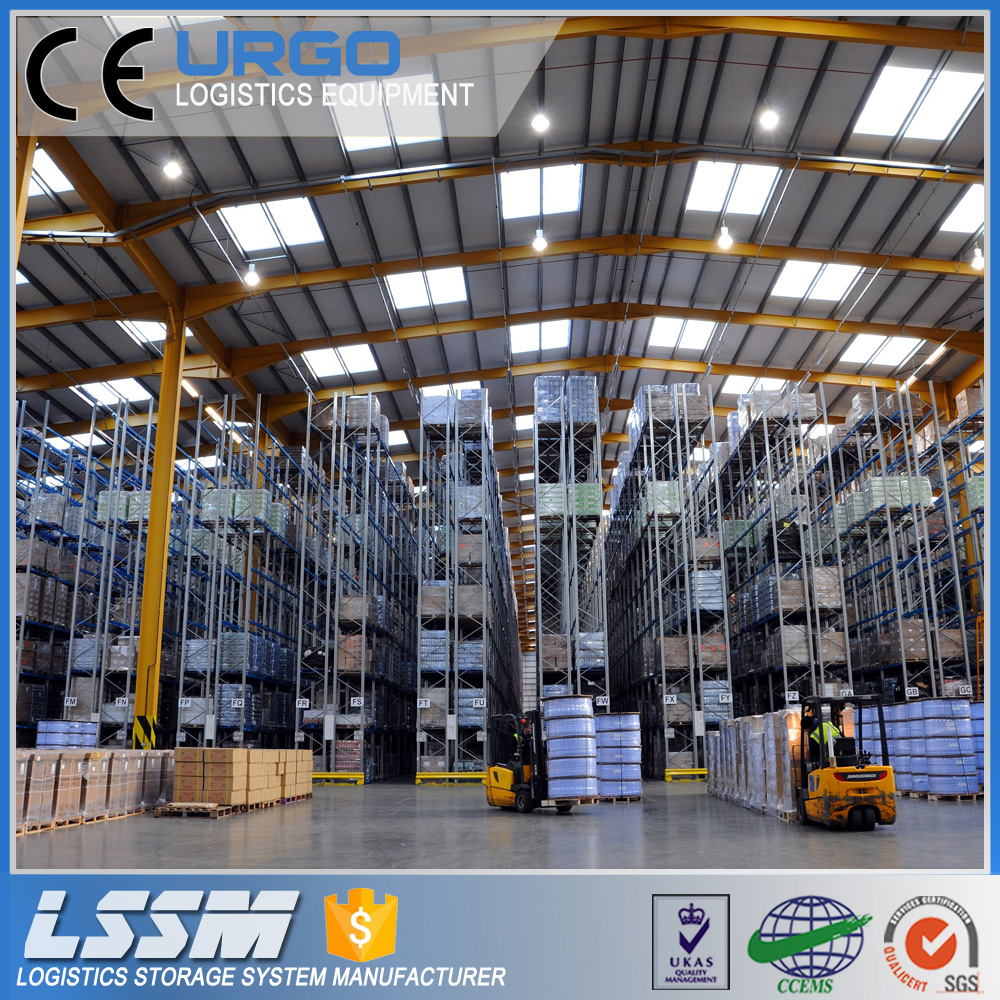

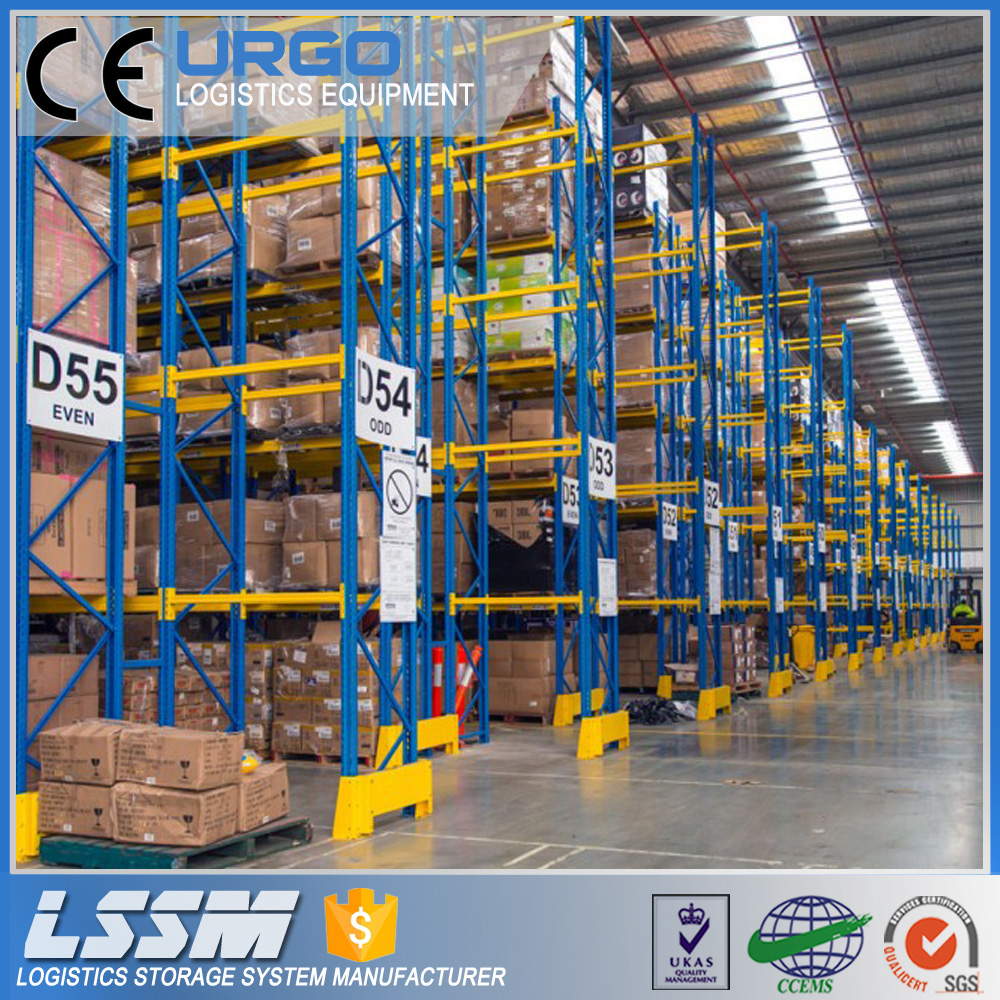

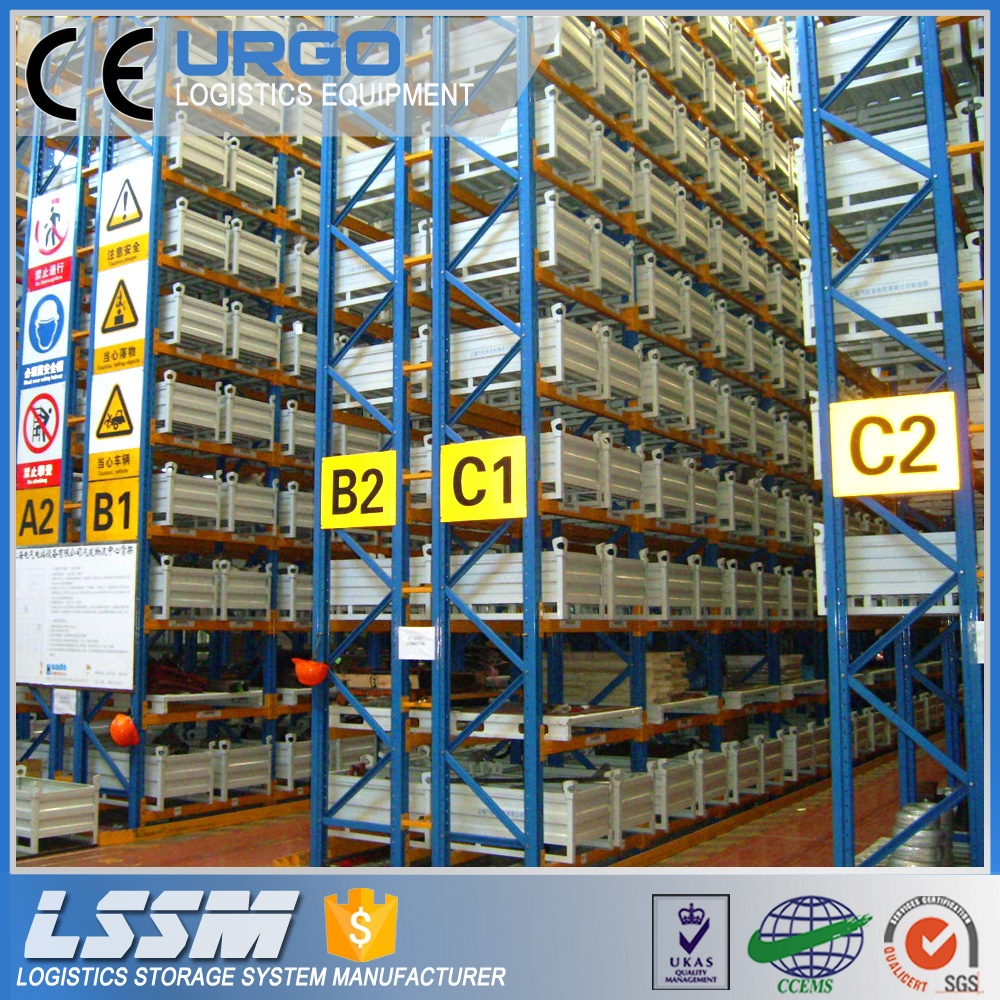

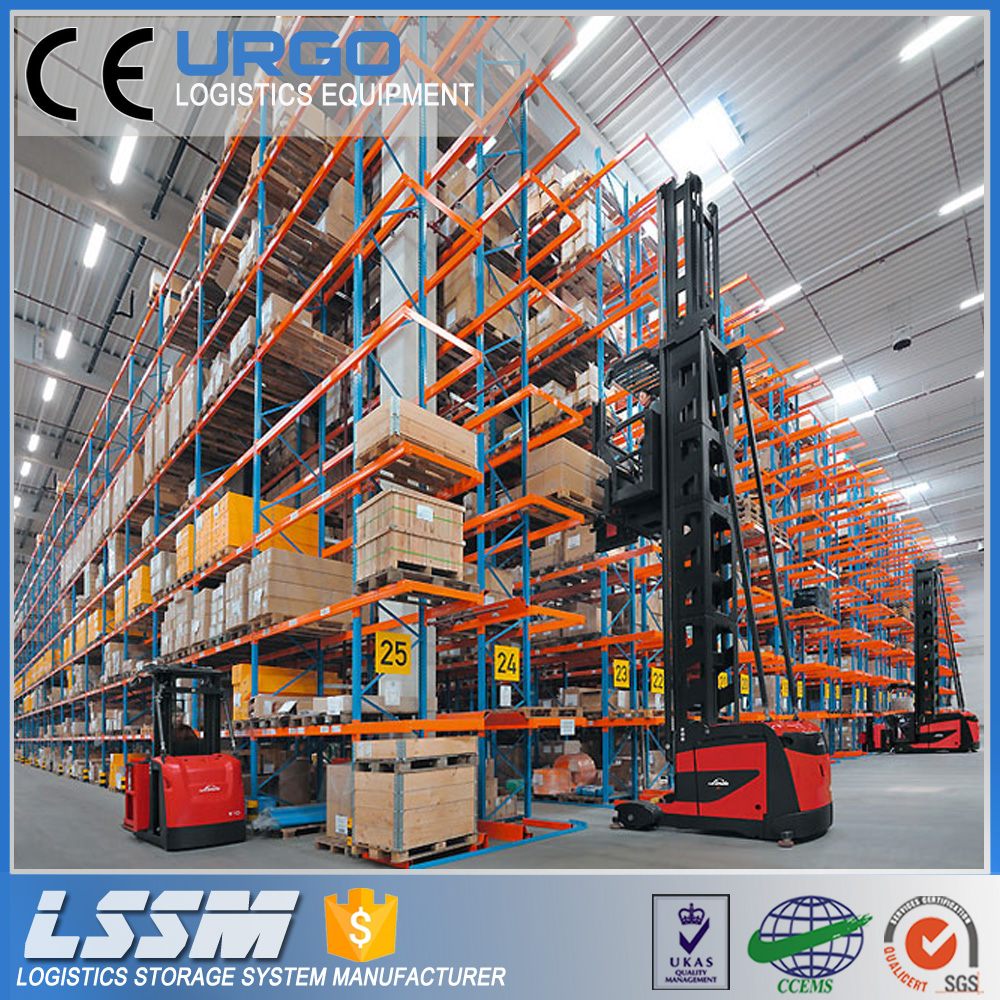

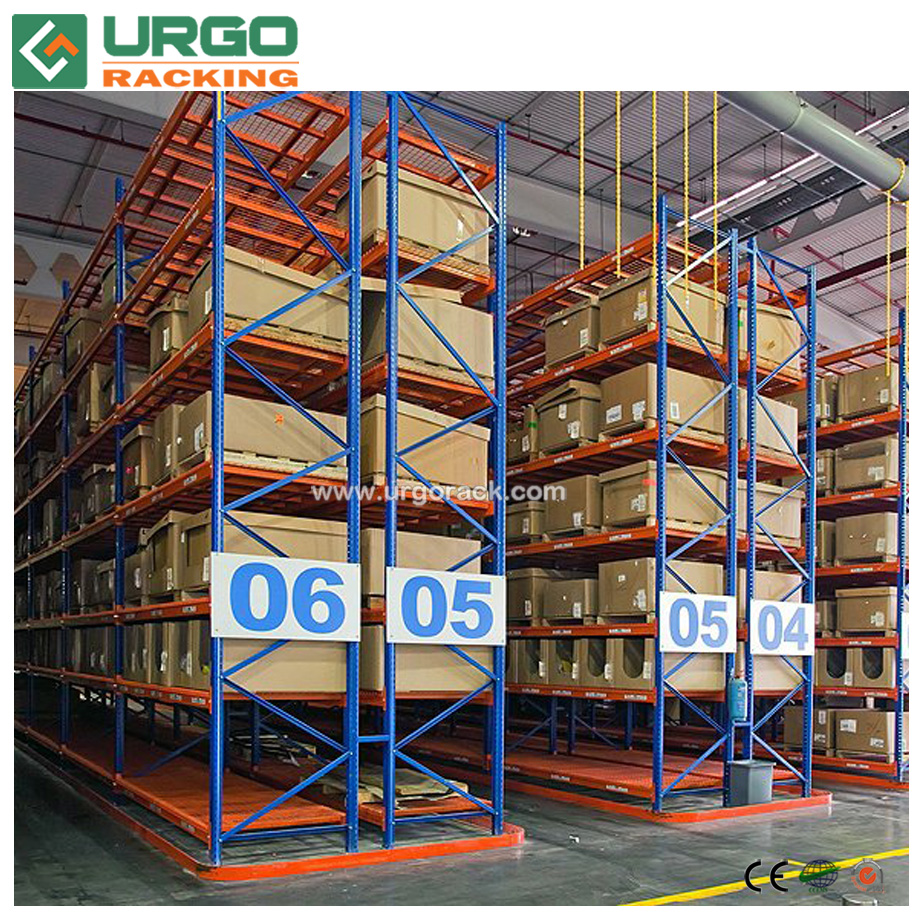

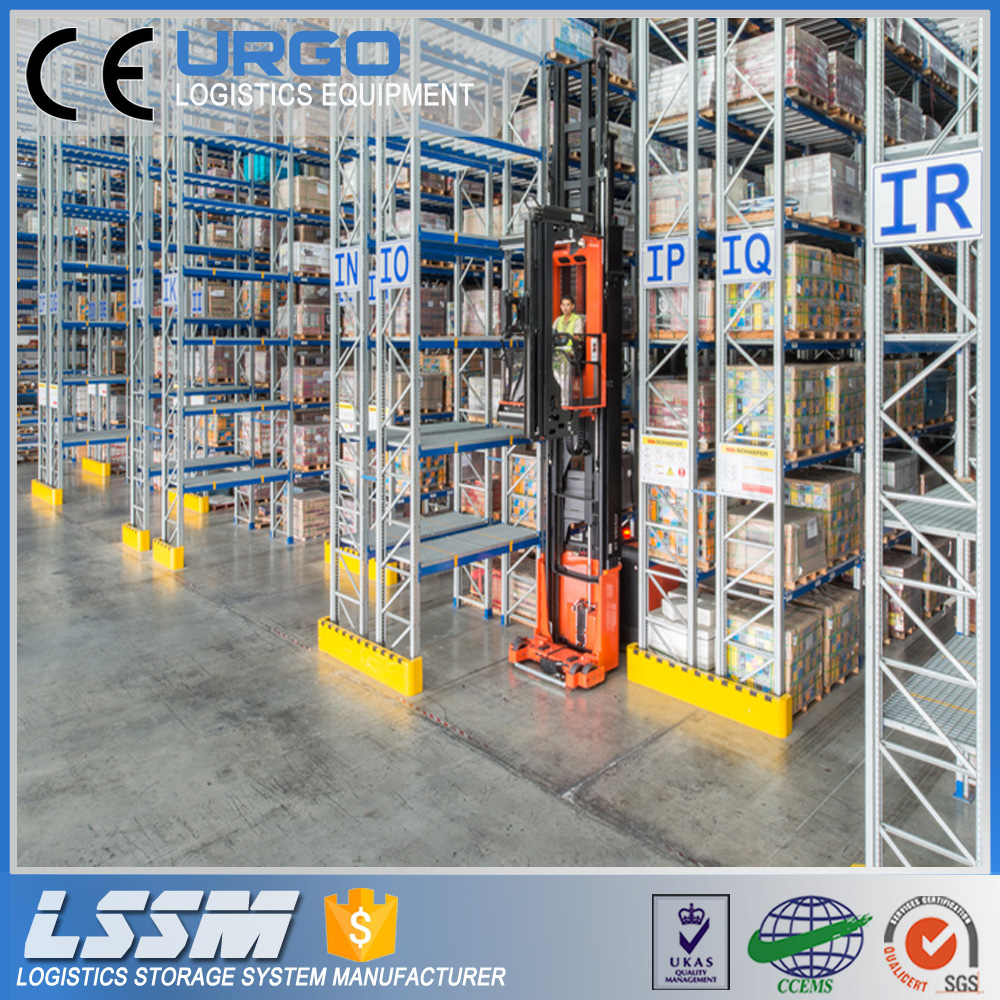

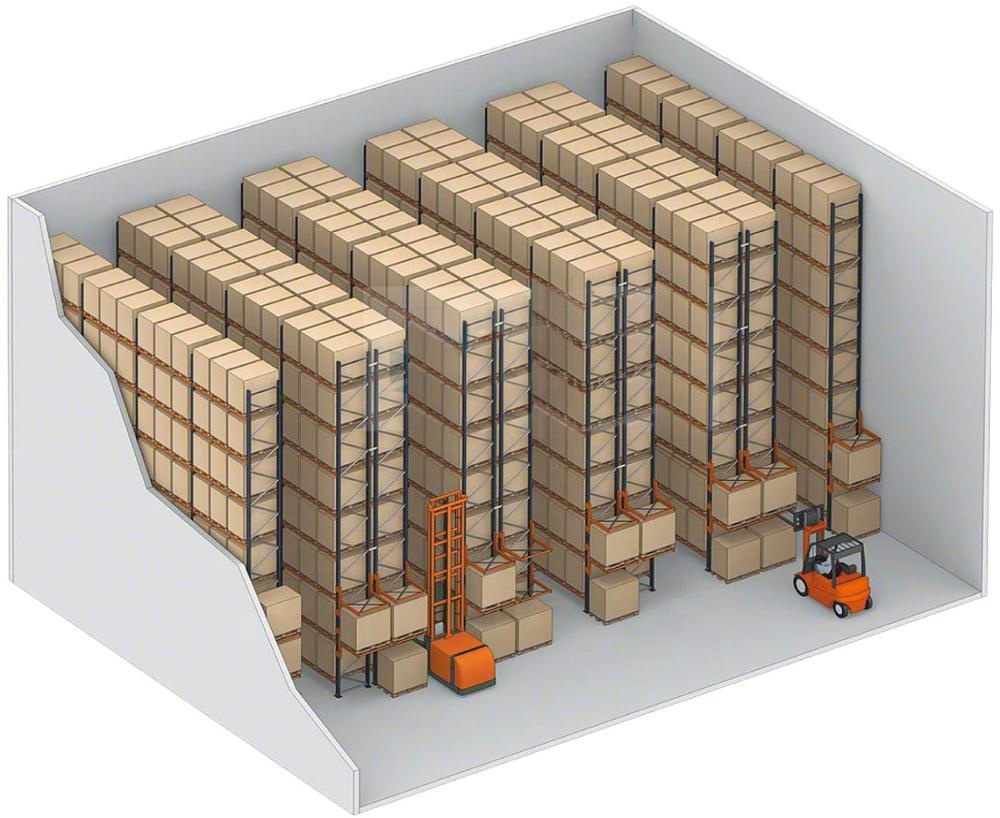

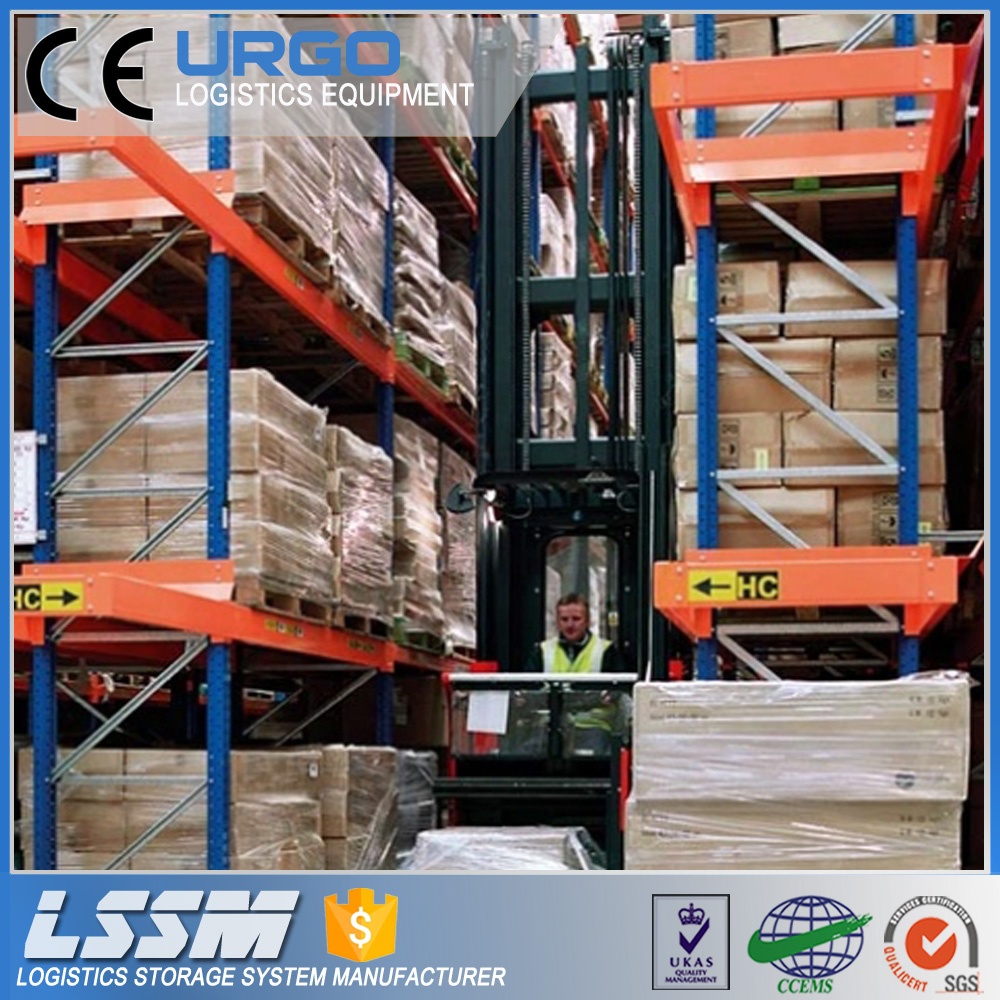

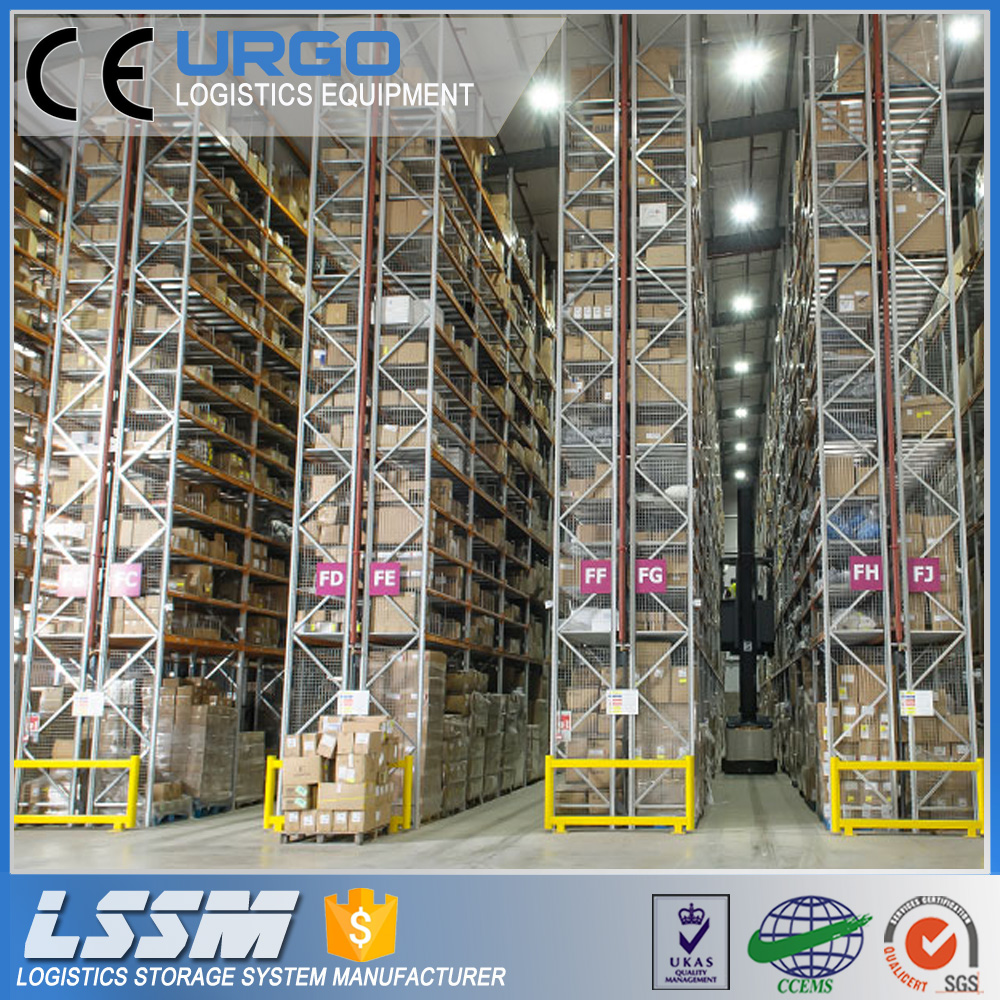

URGO Very Narrow Aisle Pallet Rack / VNA Racking System

The structure of URGO heavy duty pallet rack includes uprights and beams. According to the customer's actual pallet load capacity and warehouse size, select the column and beam specifications, as well as increasing racking accessories.

Warehouse Rack Use and Customized Width Drive In Pallet Racking

Category	Technical Specifications & System Details
Features	1. 90% picking efficiency, and appropriate for picking heavy goods by pallet. 2. Surface finishing with araldite static powder coating. 3. High Strength and durability, easy for complete installation. 4. Pallets can be located, accessed and moved individually. 5. Rapid handling of almost all types of palletised goods. 6. Bottom level of pallets can be stored on the floor, lowering structure costs. 7. Strength and rigidity prevents compression damage to goods. 8. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs. 9. Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
Beam & Frame	1. Frame depth normally from 800-1000mm, height is limited by handling equipment of approximate 11mm. 2. Beam length from 1000-3300mm depends on requirement or design. 3. Operation aisle is from 2200-3800mm depends on operating truck.

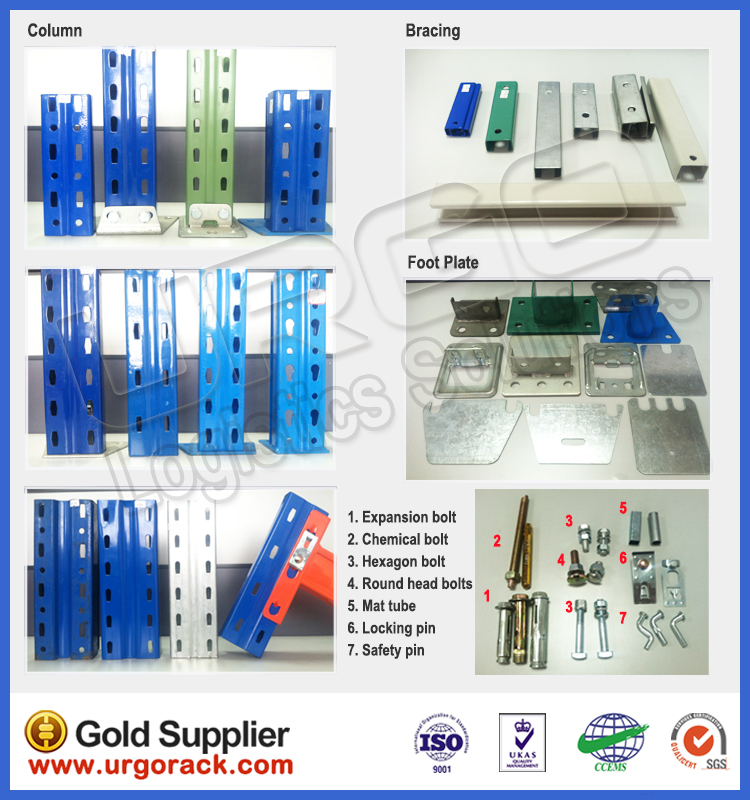

Main Parts Specs	1. Upright section: 80602.0, 90702.0, 100702.0, 120952.0-2.5mm, etc. 2. Box beams section: 80501.5, 100501.5, 110501.5, 120501.5-2.0, 140501.5-2.0, 160501.5-2.0, 180502.0mm, etc. 3. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components.
Load Capacity & Dimension	1. Loading capacity: 500-4,000 kgs UDL/beam level. 2. Height: 1,000-11,000mm 3. Depth: 400-1,500mm 4. Length: 1,500-3,300mm 5. Special sizes also available to specific storage needs.
Delivery Time	Within 25 days for ordinary order quantity. Big production capacity allows us in a position to make quick delivery.

Upright Frame Technical Details

High load capacity: Up to 21,000 kg total capacity.
Complete Frame Assemblies: Includes all necessary elements for assembly: bracing, feet, and nuts & bolts.
Protective Finish: Blue epoxy coated finish (RAL 5012 / 5015 / 5017).
Versatile Dimensions: Standard heights from 2m to 11.5m; adjusted by 50mm / 75mm pitch.

Column Profiles Specification

Column Specification (mm)	Thickness (mm)	Upright Loading (kg)
W80 x D60	1.8 - 2.0	4,000 - 6,000 KG
W85 x D67	1.8 - 2.3	7,500 - 12,500 KG
W90 x D60	1.8 - 2.5	8,000 - 10,000 KG
W90 x D70	1.8 - 2.5	10,000 - 12,000 KG
W100 x D70	2.0 - 2.5	11,000 - 14,000 KG
W120 x D95	2.3 - 3.0	17,000 - 21,000 KG

Beam Profiles & Load Ratings

High load capacity up to 5,000 kg.
Manufactured with highest quality steel Q235.
Orange epoxy coated (RAL 2004) & durable powder coating finish.
Lengths available: 1500 / 2000 / 2300 / 2700 / 3000 / 3300 / 3600 / 3900 mm.
Boltless connection with 3, 4, or 5 connector hooks, plus safety locking pins per beam to prevent accidental dislodgement.

Box Beam Load Capacity (kg) by Specification & Length (mm)

Specification (mm)	The Length of Box Beam (mm)
Specification (mm)	1500	2000	2300	2500	2700	3000	3300	3600	3900
80 x 50 x 1.5	3000	1740	1340	1160	1010	-	-	-	-
90 x 50 x 1.5	4080	2350	1800	1645	1345	1010	850	-	-
100 x 50 x 1.5	-	2960	2260	1930	1680	1380	1040	-	-
110 x 50 x 1.5	-	-	2640	2250	1950	1600	1340	1140	-
120 x 50 x 1.5	-	-	3200	2730	2358	1930	1518	1379	-
140 x 50 x 1.5	-	-	-	3868	3330	2720	2370	2020	-
160 x 50 x 1.5	-	-	-	-	4220	3690	2970	2600	2340
160 x 50 x 1.8	-	-	-	-	-	4400	3420	3020	2590
160 x 50 x 2.0	-	-	-	-	-	4130	4170	3320	2840

P Box Beam Load Capacity (kg) by Specification & Length (mm)

Specification (mm)	The Length of P Box Beam (mm)
Specification (mm)	1500	2000	2300	2500	2700	3000	3300	3600	3900
100 x 50 x 1.5	4470	2512	1900	1610	1380	1120	920	-	-
110 x 50 x 1.5	5484	3085	2332	1974	1693	1371	1133	952	-
120 x 50 x 1.5	-	3910	2957	2503	2146	1738	1436	1207	1030
140 x 50 x 1.5	-	5722	4330	3662	3140	2543	2102	1766	1505

Optional Accessories

Urgo heavy weight pallet rack conventional accessories include:

Cross Beam Back Brake Beam Back Mesh Side Mesh Steel Plate Grid Plate Wood Plate Column Protector Guard Bar

Packaging & Shipping

URGO Packaging and Shipping Are Your Cargo’s Safeguard

We own a professional logistics team. First-class packaging technique meets your customized packing plan. Every step of logistics progress is thoroughly under our strict control. We ensure your order received safely within the agreed duration. On-time delivery is our supreme promise.

Company Honor

Other Main Products

Frequently Asked Questions (FAQ)

Q1 What makes you different with other suppliers?

1) Our excellent service: For a quick, no hassle quote just send email to us. We promise to reply with a price within 12 hours.

2) Our quick manufacturing time: For selective pallet racking orders, we promise to produce within 15 days. As a manufactory we can ensure the delivery time according to the formal contract.

3) Our special export design: We pay great attention to export packages. We have plastic clips on the beams to protect them from surface damage during transportation, and whole uprights are wrapped with transparent plastic film.

4) Our warranty time: High standards in design and manufacturing ensure products carry a 10-year warranty for normal use—the longest manufacturer's warranty available.

Q2 What is the delivery time?

This depends on the product type. Typically standard products are delivered within 15 days. The delivery time of special products corresponds to the tooling setup time.

Q3 What are your payment terms?

1) 30% T/T down payment and balance before shipping.
2) 100% LC at sight.

Q4 May I know the status of my order?

Yes. We will send you updates and photos at each different production stage of your order so you receive real-time updates.

Q5 Is Galvanised Finish available for pallet racks?

Yes. Pallet racking posts and bracings are available with galvanized finish.

Q6 How can I get your quick quotation on my pallet racking project?

Because different projects have diverse racking dimensions and specifications, please provide the following information for a rapid quotation:
