Featured Heavy-Duty Adjustable Racking & Industrial Storage
Custom-engineered racking assemblies optimized for rapid vertical beam adjustability, dynamic load deflection mitigation, and harsh operational warehouse environments.

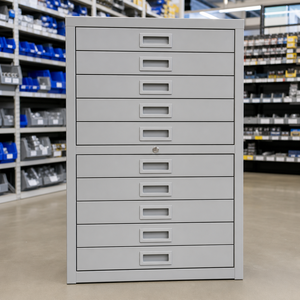

Multi-Purpose Drawer Cabinet For Workshop / Lab / Warehouse / Archive - Durable Steel Storage With Lockable Drawers
Inquire Now

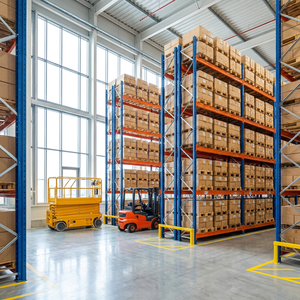

Warehouse Equipment Heavy Duty Pallet Rack Steel Storage Racking System Supplier
Inquire Now

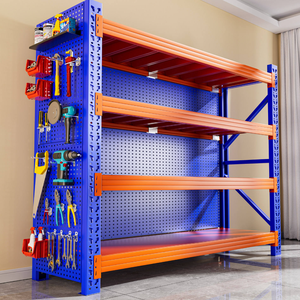

Long Span Shelving System Heavy Duty Steel Storage Rack for Warehouse Picking
Inquire Now

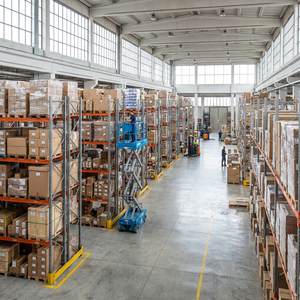

Industrial Storage Shelving Heavy Duty Steel Warehouse Rack Supplier
Inquire Now
Engineering Precision & Metallurgy in Adjustable Industrial Racking
A rigorous breakdown of structural integrity, cold-roll profiling mechanics, surface passivation, and load distribution calculation for international project procurement.
Structural Steel Grades: Q235B & Q355B
We source prime, certified structural carbon steel coils. Uprights and load beams utilize hot-rolled slit strip cold-formed into specialized 70-profile and 90-profile omega cross-sections. Q355B high-tensile alloy is implemented for high-bay racks over 8 meters, guaranteeing yield strengths ≥ 355 MPa without excessive deadweight, drastically reducing slab point-loading stress.
50mm & 75mm CNC Pitch Adjustability
Flexibility depends on hole-pitch precision. Our CNC automated multi-stage rolling lines stamp teardrop, diamond, and butterfly punch patterns at strictly controlled 50mm or 75mm increments. This enables tool-free repositioning of box and step beams to accommodate fluctuating pallet heights while preserving frame lateral stiffness under heavy cyclical forklift loading.
Pretreatment, Phosphating & Powder Coat
Corrosion resistance is fortified through our 10-stage automated surface treatment: chemical alkaline degreasing, twin acid pickling to eliminate scale, manganese phosphating for molecular bonding, and electrostatic dry powder deposition (60–90μm). Tested to withstand 500+ hours in ASTM B117 neutral salt-spray chambers for high-humidity coastal zones.
| Racking Type | Primary Material | Load Rating (Per Tier) | Adjustable Pitch | Compliance Standards | Typical Application |
|---|---|---|---|---|---|
| Selective Pallet Racking | Q235B / Q355B Steel | 1,000 kg – 4,500 kg | 50mm / 75mm CNC Pitch | FEM 10.2.02, EN 15512, ISO 9001 | 3PL, FMCG & Multi-SKU Distribution |
| Drive-In / Drive-Through | High-Tensile Cold Formed | 1,000 kg – 2,000 kg | Boltless Bracket Adjust | RMI MH16.1, CE 2435-CPR | Cold Chain & Seasonal Bulk Goods |

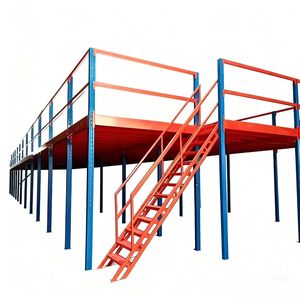

| Multi-Tier Mezzanine | Structural Steel + C-Beams | 300 kg – 1,000 kg / m² | Custom Engineered Grid | AISC 360, EN 1090-2, CE | E-Commerce Picking & Workshop Space |
| Heavy Longspan Shelving | Cold-Rolled Carbon Steel | 300 kg – 800 kg | 50mm Snap-In Slots | ISO 9001:2015, RoHS | Automotive Spare Parts, Hardware |
Future Trends in Global Adjustable Racking Supply Chains
Analysis of evolving engineering specifications, sustainability criteria, and automation convergence driving international warehouse purchasing through 2026–2030.
1. AGV/AMR & Shuttle Convergence
Standard manual racking is rapidly pivoting toward hybrid layouts. Pallet racks must now integrate laser-guided Automated Guided Vehicles (AGVs) and four-way radio shuttle systems. Upright deflection tolerances have compressed from classical L/200 down to L/400 to eliminate sensor collision errors during automated high-speed pallet retrieval.
2. Low-Carbon Steel & ESG Mandates
Global procurement directives in Europe and North America now demand verifiable carbon footprint certification for imported steel frames. Chinese tier-1 exporters are implementing green electric-arc furnace (EAF) steel sourcing and zero-VOC powder coating lines to comply with impending CBAM carbon border tariffs without inflating landed costs.
3. Dynamic Seismic Resilience Modeling
Geographic diversification across earthquake-prone regions (Latin America, Southeast Asia, South Asia) requires real-time finite element analysis (FEA). Exporters must provide localized baseplate engineering, ductile floor anchoring, and cross-bay dynamic seismic dampeners engineered to local building codes prior to container departure.
Why Enterprise Importers Partner with Guangzhou HEDA Shelves
Integrating 25+ years of factory-direct heavy storage engineering with an expansive 30,000 m² automated production facility in South China.
Full-Chain In-House Industrial Processing
Unlike trading intermediaries, Guangzhou Heda Shelves Co., Ltd. oversees every critical process in-house: high-precision steel slitting, cold roll-forming with over 20 roller sets, robotic argon welding of beam end connectors, 10-stage automated phosphating, and powder curing in computer-controlled convection tunnels. Every shipment provides complete heat-number steel traceability and ISO 9001:2015 audited quality logs.
Compliant Certifications: CE & ISO Audited
Structural reliability is validated through official European CE Certification (Certificate No. 2435-CPR-8605159), ISO 9001:2015 Quality Management certification (No. 18624Q00169R0M, valid to June 2027), and RoHS environmental compliance. Our engineering team conducts yield, weld shear, and cyclic deflection load verification under third-party audit standards.
Free Turnkey CAD & 3D Engineering Layouts
Our in-house design office turns complex warehouse drawings into millimeter-accurate 2D CAD floor plans, 3D structural renderings, and bill-of-materials (BOM) load calculations within 24 hours. We evaluate forklift turning radiuses, aisle widths, clear vertical heights, sprinkler clearance, and slab anchor safety factors before production begins.
Optimized Ocean Packaging & Global Logistics
Export freight costs heavily dictate landed pallet-position pricing. Our logistics department utilizes container space simulation software, custom steel dunnage strapping, and moisture-barrier protective packaging to pack up to 26 metric tons into 40HQ ocean containers. Direct container routes ship regularly to Nhava Sheva, Mundra, Chattogram, Karachi, Colombo, Singapore, Rotterdam, and Long Beach.
Frequently Asked Questions on Adjustable Racking Procurement
Clear, engineering-focused answers covering beam deflection, seismic safety, packaging protection, and custom manufacturing requirements.
What deflection limit formula is used to calculate beam safe working load (SWL)?
Under international standards (such as FEM 10.2.02 and EN 15512), the maximum allowable deflection for an adjustable box beam under uniformly distributed load (UDL) is calculated as L/200, where L represents the clear span of the beam between column faces. For automated robotic retrieval systems (ASRS), we engineer to stricter limits of L/300 or L/400 to protect machine clearance.
How does HEDA prevent rust during ocean transit and tropical monsoon warehouse storage?
Marine salt air during sea shipping and inland monsoon humidity present serious oxidation hazards. We mitigate this through dual-action pre-treatment: full chemical immersion pickling to remove mill scale, followed by iron-phosphate passivation that deposits a corrosion-inhibiting layer before electrostatically applying 60–90 microns of thermosetting epoxy-polyester powder. For outdoor yards, humid cold rooms, and chemical sheds, hot-dip galvanized components (ISO 1461) are manufactured on demand.
What minimum floor slab specifications are necessary before installing heavy racks?
Heavy-duty adjustable pallet racks transfer significant concentrated point loads through baseplates to the concrete slab. We generally require a reinforced slab with a minimum thickness of 150mm to 200mm and a compressive strength of C20/25 (approx. 3,000 PSI) or higher. For seismic zones or multi-tier mezzanine floors, our engineers calculate baseplate surface dimensions and anchor embedment depths to disperse forces evenly and prevent slab cracking.
Can we customize upright profiles, hole configurations, and corporate powder colors?
Yes. As a direct manufacturer with complete tooling facilities, we provide extensive OEM and ODM support. We offer 50mm, 75mm, and 76.2mm (3-inch) pitch punching, custom column profile thicknesses from 1.5mm to 2.5mm, specialized step-beam contours for steel decking, and RAL-matched electrostatic powder coatings to align with corporate branding.
What engineering documentation is delivered alongside overseas container shipments?
Every overseas export consignment includes a full documentation dossier: verified CAD erection drawings, 3D component installation manuals, exploded structural sub-assembly schematics, mill test certificates (MTCs) for raw steel coils, factory QC load-test sign-offs, and container packing packing lists marked with corresponding piece numbers for efficient on-site contractor erection.
Design Your Optimized Warehouse Layout Today
Connect directly with our senior structural racking engineers. Provide your building dimensions, clear height, and pallet specifications to receive a free, professional 2D/3D CAD design layout, structural load analysis, and factory-direct price quotation within 24 hours.
