Engineered Warehouse Racking & Heavy-Duty Storage Systems
Manufactured under strict ISO 9001:2015 and CE certification standards (EN 15512 & EN 1090). Explore our core line of selective wide aisle pallet racks, cantilever racking, and modular structural mezzanine platforms.
CE Certified
OEM / ODM
Heavy Duty
Long Goods
Fast Turn
Engineered
Multi-Tier

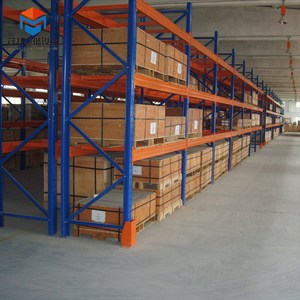

Standard Selective
Engineering Wide Aisle Racking: Codes, Safety Limits & Material Mechanics
Wide aisle pallet racking (also recognized globally as standard selective pallet racking) serves as the structural backbone of international supply chain logistics. Designing racking systems to European standards requires rigorous calculations across Ultimate Limit States (ULS) and Serviceability Limit States (SLS).
Wide Aisle Pallet Racking vs Alternative Industrial Storage Systems
Selecting the optimal layout requires balancing aisle width clearances, floor flatness requirements, material handling equipment (MHE) capital expenditures, and direct pallet selectivity.
| System Configuration | Operating Aisle Width | Direct Selectivity | Floor Flatness Spec | MHE Equipment Required | Relative CapEx Index |
|---|---|---|---|---|---|
| Wide Aisle (Standard Selective) | 3.0m - 3.8m | 100% (Instant Pick) | Standard Industrial (DIN 18202) | Counterbalance / Reach Trucks | Baseline (1.0x - Lowest) |
| Very Narrow Aisle (VNA) | 1.6m - 1.9m | 100% (Instant Pick) | Superflat (EN 15620 Class 300) | VNA Man-up / Turret Trucks | High (2.4x - 3.2x) |
| Double Deep Racking | 3.1m - 3.5m | 50% (Secondary LIFO) | Standard Industrial | Pantograph / Deep-Reach Forklifts | Moderate (1.25x) |
| Drive-In / Drive-Through | Continuous Lanes | < 15% (LIFO / FIFO Bulk) | Standard Reinforced Slab | Counterbalance with Overhead Guard | Moderate (1.35x) |
| Radio Shuttle Automation | Independent Aisles | High-Density Channel LIFO/FIFO | Level Concrete Slab | Shuttle Cart + Standard Forklift | High (2.8x - 4.0x) |
Emerging Trends in Global Racking Procurement & Warehouse Architecture
Racking procurement is evolving rapidly beyond static steel beams. Forward-looking facility heads and EPC project directors are integrating four macro technical trends into their tenders.
Guangzhou Heda Shelves Co., Ltd.
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. operates a specialized 30,000 square meter intelligent manufacturing base equipped with continuous cold-roll forming lines, high-precision automated column punching stations, and robotic laser welding systems.
Unlike trading intermediaries, HEDA maintains full vertical control from raw hot-rolled steel coil slitting to automated electrostatic powder coating. Every production batch undergoes destructive testing, coupon tensile verification, and salt-spray corrosion assessments.
Frequently Asked Questions on Wide Aisle Racking Procurement
Critical structural, commercial, and logistic inquiries addressed by HEDA's Senior Storage Engineering team.
What specific verification makes racking legitimately "CE Certified"?
Legitimate CE certification for steel storage systems must comply with EN 15512 (structural design), EN 15620 (tolerances and clearances), and the Construction Products Regulation (EU No 305/2011 CPR). A valid CE mark requires an accredited notified body factory audit certificate (e.g. HEDA Certificate No. 2435-CPR-8605159), not merely an unverified self-declaration.
How do you accurately calculate clear aisle widths for wide aisle racks?
Clear aisle width equals the forklift turning radius (Ast) plus pallet load length (l) plus a mandatory dynamic safety buffer of at least 200 mm to 300 mm. For standard 3-wheel or 4-wheel counterbalance trucks handling standard 1200x1000mm pallets, aisles range between 3.2m and 3.8m. For reach trucks, aisles narrow safely to 2.7m to 3.0m.
When should a buyer choose Q355B high-tensile steel over Q235B?
Q235B (yield strength 235 MPa) is the industry workhorse for standard bay loads under 2,500 kg and upright heights below 8 meters. When designing tall racking up to 14 meters, seismic risk zones, or heavy industrial storage exceeding 4,000 kg per beam pair, Q355B (yield strength 355 MPa) enables thinner wall thicknesses with higher torsional rigidity, saving freight weight while enhancing safety.
How does HEDA prevent rust during deep-sea ocean container shipping?
All HEDA cold-rolled components undergo industrial degreasing, acid pickling, and chemical phosphating to create an insoluble crystalline conversion layer prior to thermoset epoxy powder application (60-80 microns). Bundles are wrapped in heavy-duty polyethylene stretch wrap with vapor corrosion inhibiting (VCI) desiccant pouches inside sealed 40HQ containers.
Can a wide aisle racking installation be converted to higher density later?
Yes. Because selective wide aisle racking employs standard 50mm / 75mm slotted uprights, bays can be dismantled, re-spaced, and reconfigured into double deep layouts or adapted into rack-supported multi-tier mezzanine floors without scrapping original upright sections, provided floor slab capacity permits.
What concrete slab specification is necessary for anchor bolting?
Standard selective racking up to 8m height requires a reinforced concrete floor slab of at least 150 mm to 200 mm depth with a compressive strength grade of C20/25 to C30/37. HEDA engineers size heavy-duty M12 to M16 expansion anchors with minimum 100 mm embedment depth to satisfy pull-out and shear design parameters under full load.
Request Your Free Structural Engineering & CAD Layout
Consult directly with Guangzhou Heda Shelves Co., Ltd.'s structural design engineers. Provide your warehouse dimensions, clear height, pallet dimensions, and forklift parameters to receive a complimentary 2D layout drawing, 3D visualization, and comprehensive CIF quotation within 24 hours.
