Heavy-Duty Storage Systems for Modern Logistics Facilities
Engineered to strict CE (EN 15512, EN 15620) standards, each unit delivers verifiable structural integrity, deflection-governed load stability, and long-term anti-corrosive powder coatings for demanding warehouse environments.
Heavy Duty Mezzanine Floor Racking Warehouse Storage Racks Shelf Units Pallet Rack System Equipment Platform Shelves Attic Rack
Integrated multi-tier attic racking maximizing vertical cube utilization by 200%. Incorporates cold-formed steel decking, integrated staircases, and handrails.
HUAWU 1000kg/sqm 2-Layer Mezzanine Floor System Steel Q235 Corrosion Protected Electrostatic Powder Coated Warehouse Platform
Engineered for heavy machinery and dense assembly operations. Chemically phosphated with high-grade electrostatic polyester powder coating.
Heavy Duty Steel Powder Coated FIFO Rack Pallet Flow Racking System Gravity Flow High Load Capacity Modular Expandable Storage
Continuous gravity-roller design for strict First-In First-Out inventory turnover. Equipped with centrifugal speed controllers and load separators.
Customizable 100% Space Utilization Drive-In Pallet Flow System with 5 Layer Metal Safety Guardrails for Warehouses Laser-Cut
Maximum lane density eliminating handling aisles. Laser-cut structural brackets, flared pallet entry guide rails, and heavy-gauge floor anchors.
Jracking Customized Warehouse Storage Racks Rust-Resistant Light Duty Cantilever Rack For Plastic Pipes Storage
Unobstructed frontal opening for extruded profiles, conduits, and plastic pipe bundles. Adjustable arm heights with secure mechanical locking pins.
Custom Warehouse Racking System Steel Storage Rack Solution For Logistics And Manufacturing
Bespoke selective beam layouts engineered around specific forklift clearances, aisle widths, and picking dynamics. 100% immediate pallet accessibility.
Prefabricated Steel Warehouse High Bay Storage Building Pallet Racking System Distribution Facility Space Planning
Heavy structural engineering for automated high-bay warehouses. Designed to withstand wind loads, roof weight, and high-frequency stacker crane dynamics.

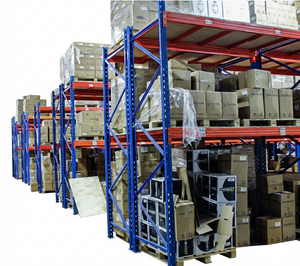

Warehouse Shelves Wholesale 3-Layer Cold Rolled Steel Epoxy Powder Coated Heavy Duty Storage Racks for Household Express
High-strength cold-rolled steel shelving optimized for e-commerce fulfilment hubs, package sorting lanes, and high-velocity manual picking lines.
CE Marking Structural Standards in Industrial Pallet Racking (EN 15512 & CPR 305/2011)
In high-density industrial intralogistics, pallet racking systems are not mere shelving furniture; they are load-bearing steel structures governed by strict international building safety codes. As an accredited manufacturer certified under CE Certification No. 2435-CPR-8605159 and ISO 9001:2015 Certification No. 18624Q00169R0M, our manufacturing process complies thoroughly with the European Union's Construction Products Regulation (CPR 305/2011/EU) and harmonized standards EN 15512:2020 (Structural Design of Adjustable Pallet Racking Systems), EN 15620 (Tolerances, Deformations and Clearances), and EN 15629 (Specification of Storage Equipment).
Purchasing warehouse racking without valid CE marking exposes enterprise facilities to catastrophic collapse risks, invalid insurance claims during seismic or forklift impact incidents, and legal shutdowns by occupational health bodies. A true CE-certified racking factory provides verified Declaration of Performance (DoP) documents, validating cold-formed upright profiles through full-scale stub-column compression tests and beam-end connector shear stiffness analyses.
Structural Comparison of CE Certified Racking Configurations
Examine real physical parameters, steel yield profiles, and application thresholds to determine the optimal intralogistics system for your operational profile.
| Racking System | Typical Steel Grade | Max Bay Load | Pallet Access Rate | Floor Space Utilization | Primary Industrial Application |
|---|---|---|---|---|---|
| Selective Pallet Racking | Q235B / Q355B (EN S355JR) | Up to 24,000 kg | 100% Direct | 40% – 50% | 3PL, Multi-SKU Retail, Pharma distribution hubs |
| Drive-In / Drive-Through | Q235B Cold-Formed High Tensile | Up to 18,000 kg/lane | LIFO / Batch | Up to 80% | Cold storage, beverage, seasonal agricultural produce |
| FIFO Gravity Flow Racks | Q235B with Heavy Galvanized Rollers | 1,500 kg / Pallet | Sequential FIFO | Up to 75% | Dairy, meat packaging, raw material FIFO buffers |
| Radio Shuttle Automation | High-Tolerance Cold-Formed Q355B | 2,000 kg / Pallet | Semi-Automated | 85% – 90% | Sub-zero cold chain (-25°C), high-throughput FMCG |
| Structural Steel Mezzanine | Hot-Rolled H-Beams / Q355B Box Columns | 300 – 1,000 kg / m² | Continuous Walk | 200% Floor Multiplier | E-commerce fulfillment, manual picking zones, offices |
| Heavy Cantilever Racks | Heavy Gauge Q235B Roll-formed / H-Section | Up to 3,000 kg / Arm | 100% Open Face | Variable | Steel pipes, lumber, PVC profiles, sheet metals |
Why Global Supply Chains Rely on Guangzhou Heda Shelves Co., Ltd.
Operating continuously since 2001, Guangzhou Heda Shelves Co., Ltd. has expanded into a worldwide benchmark for specialized steel storage systems. Our full-scale 30,000 m² smart manufacturing plant houses 8 automated cold-roll forming lines, high-precision fiber laser cutting cells, CNC punching presses, and robotic welding stations. We strictly prohibit outsourcing critical structural forming, guaranteeing 100% end-to-end traceability for every beam, upright, and footplate deployed across six continents.
Future Procurement Trends in Warehouse Pallet Racking (2025–2030)
As warehouse operations grapple with escalating square-meter land costs, automated guided vehicles (AGVs), and decarbonization pressures, procurement directors must evaluate future-proof storage infrastructures.
Engineering & Procurement FAQ for Industrial Buyers
Clear, definitive answers directly from our factory structural engineering department.
What documentation certifies that your pallet racking meets CE EN 15512 requirements?
Every industrial racking export is backed by CE Certificate No. 2435-CPR-8605159, mill test certificates (MTC) documenting steel yield and tensile strengths (Q235B / Q355B), and our official Declaration of Performance (DoP). Furthermore, we supply comprehensive structural calculation reports confirming adherence to deflection and safety factor thresholds.
What specific warehouse data is needed to receive a complete CAD layout and quotation?
To produce an optimized layout within 24 hours, our engineering office requires: (1) Warehouse architectural drawings indicating column locations, clear internal roof heights, and doors; (2) Pallet dimensions (width, depth, height including cargo) and maximum gross weight; (3) Forklift model, maximum lift height, and minimum aisle turning radius; (4) Local seismic zone ratings.
How does Heda Shelves protect steel components against tropical humidity and sea freight rust?
All structural steel passes through our automated 10-stage immersion and spray pretreatment process—including acid descaling and zinc-iron phosphating—before being coated with thermoset epoxy-polyester powder (60–90 μm thickness). For coastal warehouses or freezer rooms (-30°C), we offer optional hot-dip galvanization or send pre-galvanized components.
Can our local contractors assemble your racking, or do you provide installation supervision?
Every ocean shipment is tagged with matching alphanumeric assembly labels and accompanied by high-definition 3D component installation manuals and step-by-step video guides. For complex projects like multi-tier mezzanines or automated flow systems, we dispatch factory installation engineers to oversee on-site assembly.
Request Your Custom CAD Layout & Factory Proposal
Connect immediately with our senior warehouse systems engineering team. We provide complimentary CAD design layouts, structural load calculations, and competitive factory-direct pricing within 24 hours.
