Certified High-Density Bulk Storage Rack Systems
From single-pallet selective racking to automated crane retrieval systems and structural mezzanine floorings, our product lines are manufactured with precision roll-forming and certified Q235B/Q355B structural steel.
Heavy Duty Mezzanine Floor Racking Warehouse Storage Racks Shelf Units
- Integrated structural upright load: up to 1,200 kg/m²
- Multi-tier platform doubling overhead warehouse floor space
- Full compatibility with cargo lifts and chute conveyors
Factory Customized 500kg Per Layer Adjustable Warehouse Pallet Storage Racking
- 50mm/75mm adjustable pitch for flexible pallet profiles
- Dual interlocking safety pins preventing beam dislodgement
- Thermo-set epoxy powder coating resisting corrosion

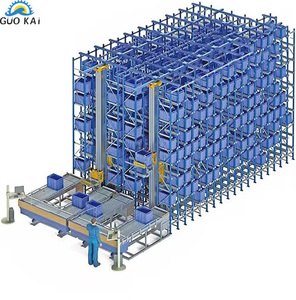

Multi Level Rack ASRS Warehouse Robot Storage Retrieval Picking System
- High-bay structural tolerances engineered under FEM 9.831
- Integrated stacking crane guide rails with millimetre alignment
- High-velocity dynamic picking for high-throughput 3PL hubs
Custom Plastic Organizer Wall Mounted Tool Spare Stackable Shelf Rack Bins
- High-impact virgin polypropylene co-polymer composition
- Modular rear-lip design locking seamlessly onto slotted panels
- Resistant to workshop oils, alkalis, and extreme temperatures
Customized Heavy-Duty Slotted Angle Rack Fast Delivery Steel Building System
- Precision punched slot patterns for boltless or bolted framing
- Engineered for rapid field assembly and workshop fabrication
- High tensile cold-bent steel with anti-scratch coating

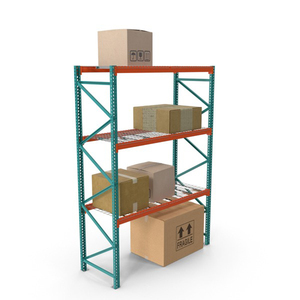

Heavy Duty Steel Beam Pallet Racking System Industrial 3000kg Load
- Heavy box-beam profiles carrying up to 3,000 kg per pallet level
- Finite Element Analysis (FEA) verified frame deflection (L/200)
- Standardized upright footplates for heavy anchoring into concrete

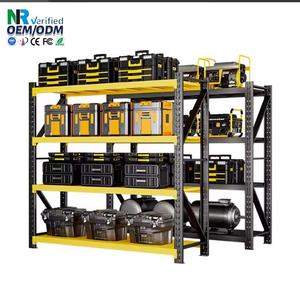

Manufacturer Long Span Storage Adjustable 200Kg Steel Racking Shelving
- Medium-duty manual picking system with steel or wire mesh decks
- Snap-in step beams for instant, tool-free vertical reconfiguration
- Ideal for e-commerce fulfilment, archive boxes, and retail spares
Heavy Duty Steel Multi-Level Pallet Metal Rack System Corrosion Protection
- 14-stage pickling, phosphating & passivation surface chemistry
- Tested for salt spray endurance in high-humidity & coastal facilities
- Complies with CE 2435-CPR-8605159 structural integrity mandates
Structural Engineering Standards for Industrial Bulk Storage
Why structural certification under European Standard EN 15512:2020 and CE Machinery/Construction Directives separates tier-1 manufacturing facilities from unrated steel suppliers.
In modern industrial logistics, static storage racks are no longer treated as mere steel furniture; they are classified as structural engineering systems governed by strict load combination calculations. Under the European Union Construction Products Regulation (EU CPR 305/2011), static steel racking systems installed across international facilities must verify limit states against permanent gravitational actions, live pallet loads, vertical and horizontal placement tolerances, and site-specific seismic ground accelerations.
A certified bulk rack manufacturer must execute rigorous testing regimes on cold-formed thin-walled steel sections. At our Guangzhou production facility, load capacities are derived not merely through empirical rule-of-thumb, but through comprehensive Finite Element Analysis (FEA) coupled with physical stub-column tests, beam-to-column connection stiffness tests, and floor plate uplift analyses. This structural rigor ensures that under full design capacity, beam deflections remain strictly within the allowable limit of L/200 (or L/300 for automated crane systems), preventing pallet roll-off, connector shear fatigue, and catastrophic progressive rack collapse.
| Structural Parameter | Certified HEDA Standard (CE / ISO) | Generic / Unrated Commercial Rack | Engineering Impact |
|---|---|---|---|
| Raw Material Specification | Certified Q235B & Q355B Hot-Rolled Strip Steel with Mill Certificates | Recycled scrap steel, non-traceable strip slitters | Guaranteed yield strength ($\ge 235 \text{ MPa} - 355 \text{ MPa}$), zero brittle micro-fractures under sub-zero cooling. |
| Connection Design | 3 to 5-claw high-ductility welded connectors with safety spring locks | Loose 2-prong hooks without anti-dislodgement locks | Superior torsional stiffness resisting horizontal displacement during seismic tremors and fork impact. |
| Manufacturing Tolerances | $\pm 0.5\text{ mm}$ pitch punching tolerance per 10m profile via CNC roll lines | Manual punch press with cumulative pitch drift ($>3\text{ mm}$) | Flawless verticality, zero racking twist, smooth robotic crane alignment for ASRS systems. |
| Surface Protection | 14-Stage Chemical Pre-treatment + 80-120μm Electrostatic Powder Coating | Quick solvent spray with no pickling or phosphating | Passes 500-hour neutral salt spray test; prevents subsurface oxidation under tropical humidity. |
| Compliance Documentation | CE 2435-CPR-8605159, ISO 9001:2015 Cert. 18624Q00169R0M, RoHS | Self-declared unverified test sheets | Complete regulatory compliance for multinational plant audits, insurance sign-offs, and building permits. |
Key Procurement Trends Reshaping Bulk Storage Racks
Procurement directors, supply chain architects, and 3PL leaders are adapting to macro trends that dictate warehouse infrastructure purchasing over the next five years.
1. Modular Automation-Ready Engineering
High interest rates and capital scrutiny mean warehouse developers no longer invest in fixed single-purpose racking. Procurement is prioritizing hybrid systems: standard selective pallet frameworks capable of immediate retrofitting with autonomous mobile robots (AMRs), automated 4-way pallet shuttles, or vertical pick-towers without replacing upright frames.
2. Carbon Footprint & Steel Traceability
Under the European Carbon Border Adjustment Mechanism (CBAM) and global ESG disclosures, Tier-1 buyers demand auditable environmental declarations for structural steel. Our factory utilizes primary low-emission coils, closed-loop zero-discharge phosphating lines, and lead-free thermoset powders that satisfy global chemical directives including RoHS.
3. TCO Over Initial Capital Outlay
Operational downtime from rack deflection or forklift impact damage can cost tens of thousands of dollars per bay. B2B buyers now evaluate Total Cost of Ownership (TCO). Specifying cold-rolled omega upright sections with wrapped impact post-protectors and factory-galvanized base plates yields lower maintenance overheads and extended 20-year structural lifespans.
Technological Innovations in High-Density Storage
How progressive cold-forming metallurgy, finite element dynamic simulations, and robotic material handling integrations are transforming industrial warehouses.
High-Yield Micro-Alloy Profiles
By utilizing advanced micro-alloyed hot-rolled steel strip, modern upright profiles achieve greater buckling resistance with optimized wall thickness. Our precision 24-pass cold roll-forming process introduces controlled strain hardening, maximizing structural yield margins while reducing deadweight on industrial building foundations.
Seismic Energy Dissipation Bases
In high-seismic zones (such as South Asia, the Mediterranean, and the Pacific Rim), standard rigid baseplates can shear concrete anchors during earthquakes. Modern racking incorporates non-linear dynamic dissipation base assemblies and vertical cross-bracing ties engineered under Eurocode 8 and RMI MH16.1 provisions to safely absorb lateral seismic shock.
Cold-Chain Corrosion Passivation
Cold storage facilities (-25°C to -30°C) suffer severe condensation cycles that aggressively corrode steel seams. Innovative manufacturing incorporates hot-dip galvanized components (BS EN ISO 1461) combined with ultra-low VOC hydrophobic powder finishes, preventing hydrogen embrittlement and maintaining structural tenacity for decades in cold-chain logistics.
Guangzhou Heda Shelves Co., Ltd. - Your Global OEM/ODM Partner
Established in 2001, we operate one of South China's largest intelligent rack fabrication bases, delivering turn-key storage engineering across more than 120 countries worldwide.
Complete In-House Manufacturing Chain
We eliminate third-party outsourcing by controlling the end-to-end production workflow: coil decoiling, continuous automated column punching, multi-roll cold bending, robotic CO2 shielded welding, 14-stage pickling and phosphating, and electrostatic powder curing lines in our 30,000 m² factory.
Free 3D & CAD Layout Consultation
Our team of over 30 structural engineers prepares fully customized warehouse layout drawings, 3D renderings, and pallet capacity reports within 24 hours. We evaluate building column grids, forklift aisle turn radii, fire suppression flue spaces, and slab loading limits before steel processing commences.
Independently Verifiable Certifications
Every batch of racking is manufactured strictly in compliance with CE Certificate No. 2435-CPR-8605159, ISO 9001:2015 Quality Management System No. 18624Q00169R0M, and RoHS directives. Complete test documentation, mill certs, and coating thickness records are supplied with each export shipment.
Frequently Asked Questions by Industrial Racking Buyers
Clear, technically rigorous answers covering load deflection, installation procedures, surface anti-corrosion treatments, and containerized logistics.
What is the standard beam deflection allowance under full load?
How does HEDA ensure rack corrosion resistance in high-humidity climates?
What engineering data is required to generate a custom warehouse CAD layout?
What structural safety mechanisms prevent accidental beam dislodgement?
How are heavy racking components packaged for overseas sea freight?
Can HEDA racking support structural mezzanine platforms above pallet storage?
Plan Your Bulk Storage Optimization With Certified Engineers
Whether you need heavy-duty selective pallet racks, high-density radio shuttle lanes, or multi-tier mezzanine floors, our structural design team is ready to evaluate your layout and provide competitive direct-factory pricing.
