Precision cold-rolled steel storage architectures configured for high-density small parts, carton flow, heavy bulk bins, and automated picking environments. Fully audited for structural integrity under international CE standards.
Modern distribution logistics demands structural compliance under stringent load criteria. Bin shelving is no longer a passive hardware commodity; it is a load-rated, precision-formed intralogistics sub-structure governed by EN 15512 (structural design analysis) and EN 15635 (steel static storage tolerancing).
Manufactured exclusively from high-tensile Q235B and SPCC certified hot/cold coiled steel, our bin shelving upright profiles feature an Omega or multifold channel geometry. Through progressive CNC roll-forming, internal bend radii are controlled within ±0.15mm, maximizing radius rigidity and preventing torsional buckling under unevenly distributed parts bin loads. Continuous 50mm or 75mm pitch precision punch patterns enable swift slotting for front louvered panels and partition shelves.
Bin integration utilizes rear heavy-gauge louvered hanging panels and reinforced box-beam drop shelves. Specially molded polypropylene (PP) copolymer containers resist impacts, industrial oils, and high temperatures (-20°C to +75°C). Rear interlocking lips anchor directly into CNC-stamped louver slots, guaranteeing that maximum horizontal extraction force does not tip individual bins when picking heavy fasteners, valves, or electronic modules.
Every upright, beam, deck, and shelf manufactured by HEDA Shelves carries factory certification under CE Certificate No. 2435-CPR-8605159. Weld integrity conforms to ISO 3834-3, ensuring welded beam end-connectors withstand cyclic racking loading. All load capacities (from 50kg per picking drawer tier up to 1,500kg per intermediate heavy-bin level) are mathematically modeled via finite element analysis (FEA) and verified by dynamic proof testing.
Selecting the appropriate internal storage sub-type requires assessing SKU density, accessibility ratios, throughput speed, and floor footprint utilization. Compare technical trade-offs across common small-to-medium parts warehouse layouts.
| Storage System Type | Typical SKU Density | Load Rating Per Tier | Direct Selectivity | Picking Throughput | Optimal Industry Application |
|---|---|---|---|---|---|
| CE Modular Bin Shelving | Ultra High (1000+ SKU/Bay) | 50 kg – 350 kg | 100% Immediate Direct | Fast Manual / Barcode Scan | Automotive Fasteners, Electronics, Maintenance Spares |
| Carton Flow Racking | High (Dynamic Lanes) | 150 kg – 600 kg | FIFO Picking Face Only | Continuous Replenishment | Pharmaceutical Packaging, High-Volume E-Commerce |

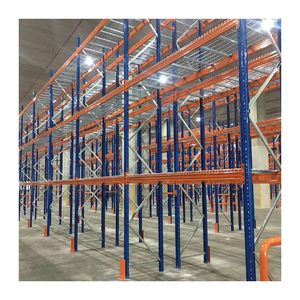

| Heavy Duty Selective Rack | Medium (Palletized) | 1,000 kg – 4,500 kg | 100% Forklift Access | Forklift Cycle Dependent | Master Carton Overstock, Raw Industrial Materials |
| Multi-Tier Shelving Mezzanine | Maximum Vertical (300%) | 300 kg – 1,000 kg/m² | 100% Multi-Level Floor | Zone Picking Teams | Apparel Fulfillment, Third-Party Logistics (3PL) Hubs |

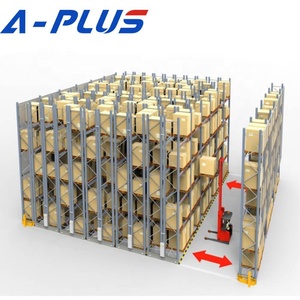

| Motorized Mobile Shelving | Ultra Compact (-50% Floor) | 150 kg – 500 kg | Single Open Aisle Access | Batch / Archival Pace | Tool Cribs, High-Value Cleanroom Parts, Medical Records |
Global supply chain shocks, increasing warehouse land premiums, and labor overhead have transformed how procurement directors source small-parts storage. Five macro trends dictate modern procurement specifications.
Mega-warehouses are decentralizing into urban and regional dark-store micro-fulfillment hubs. Small parts bin shelving must deliver maximum vertical cubic volumetric efficiency within low clear-height facilities (3.5m to 5.5m), requiring rapid-assembly boltless uprights with high strength-to-weight ratios.
Procurement officers increasingly demand verification of low-VOC, zero-heavy-metal electrostatic powder coatings compliant with EU RoHS and REACH protocols. Epoxy-polyester hybrid dry powders must endure minimum 500-hour salt spray ASTM B117 testing without blistering or delamination.
First-cost purchasing models are obsolete. Global engineering procurement protocols now measure TCO across 10-to-15 year cycles, prioritizing corrosion-resistant pickling/phosphating base treatments that eliminate repainting and prevent structural yield degradation from continuous warehouse humidity.
The convergence of industrial IoT, autonomous mobile robots (AMRs), and ergonomic standards has elevated bin shelving from static furniture into an active automation-interface node.
Integrated LED light strips and digital alpha-numeric confirmation displays snap directly into shelf extrusions, cutting picking error rates to under 0.02% in high-SKU distribution.
Shelving bays engineered with specialized bottom clearance allowances, recessed anchors, and optical guidance targets for automated mobile robots to ferry pods directly to pick-stations.
Electrostatic dissipative (ESD) powder coating formulas (surface resistivity 10^6 - 10^9 ohms) protect sensitive semiconductor reels, microchips, and medical sensors against electrical discharge damage.
Load cells embedded under shelf bin runner guides continuously monitor part counts by unit weight, automatically initiating ERP replenishment triggers when bins hit reorder thresholds.
Founded in 2001 in Guangzhou, China, Guangzhou Heda Shelves Co., Ltd. operates an integrated, fully traceable 30,000-square-meter manufacturing complex. We provide comprehensive design, fabrication, QC inspection, and export logistics under verifiable international credentials.
With 30,000 tons monthly steel throughput across fully automated roll-forming lines, automated laser cutting, and robotic welding stations, HEDA controls production precision and schedules without third-party outsourcing delays.
Our manufacturing procedures strictly comply with ISO 9001:2015 (Cert No. 18624Q00169R0M) and European Construction Products Regulation CE Certification (Cert No. 2435-CPR-8605159), backed by full chemical and tensile material certs.
All components undergo a 9-stage pickling, rinsing, and phosphating pretreatment process before robotic electrostatic powder coating. This prevents oxidation and corrosion even in humid equatorial and marine environments.
Our team of 30+ project engineers provides complimentary warehouse space calculations, structural seismic verification, and detailed 3D AutoCAD/BIM layout drawings tailored precisely to your floor slab capacity and SKU profile.
Direct technical and commercial answers addressing structural safety standards, export packaging, floor load calculations, and global installation protocols.
Under the European Construction Products Regulation (CPR 305/2011), warehouse storage systems fall within EN 15512 (Steel static storage systems – Adjustable pallet racking systems – Principles for structural design) and EN 15635 (Application and maintenance of storage equipment). For bin shelving, uprights and shelf levels are engineered to maintain a safety factor of at least 1.5 against structural yield under full load, preventing buckling or connector shear failure. HEDA Shelves provides official Declaration of Performance (DoP) documents verified under CE Certificate No. 2435-CPR-8605159.
When designing multi-tier shelving systems or high-density bin towers, concentrated point loads transferred through base plates into the concrete floor slab must not exceed the slab's punching shear and flexural capacity. Standard warehouse slabs generally rate between 25 kN/m² and 50 kN/m² uniformly distributed load (UDL). Our engineers evaluate slab thickness, subgrade soil modulus, and reinforcement bar mesh specifications to design customized heavy-gauge spread base plates and determine anchor bolt expansion depths, preventing localized slab cracking.
Export shipping costs directly impact landed unit costs. Upright frames are either shipped disassembled in compact strapped bundles with protective cardboard edge protectors or pre-welded based on client preference. Beams, shelves, and panels are bundled on wooden blocks with moisture-proof stretch-film wrap and steel strapping. Bins are nested to minimize dead space. Each container layout is modeled using 3D loading software to achieve up to 98% cubic container utilization across 20GP, 40GP, and 40HQ ocean containers.
Standard fabrication cycle for a 1-to-5 container order is 15 to 25 business days from final approval of engineering drawings. HEDA Shelves provides a 5-year structural warranty against manufacturing defects, weld failures, and premature paint delamination under normal rated operations. Every shipment includes comprehensive installation manuals, component mapping diagrams, step-by-step video guides, and dedicated remote engineering support via video conferencing.
Provide your building architectural footprint, clear ceiling height, SKU dimensions, and load requirements. Our intralogistics engineering team will deliver a comprehensive 3D layout, weight distribution calculation, and firm export quotation within 24 hours.
