Engineered Automation Racking Systems & Heavy-Duty Storage
Discover factory-direct, CE-certified automated storage and retrieval racking systems designed for seamless integration with stacking cranes, autonomous AGVs, radio shuttles, and warehouse management software (WMS/WCS).
ASRS Warehouse Stacking Rack Automated Storage Retrieval System Rack System
High-bay automated pallet architecture built with tight millimeter tolerances for seamless interface with automated stacker cranes.
Multi Level Rack ASRS Warehouse Robot Storage Retrieval Picking System Asrs Racking System with Stacking Crane
Turnkey robotic picking and high-density buffer racking featuring integrated mast guide rails, safety end-stops, and busbar tracks.
Automatic Radio Shuttle Rack System Heavy Duty Industrial Warehouse Storage Shelf Racking CE Certified
Heavy-duty galvanized channel tracks paired with robotic wireless shuttles for rapid deep-lane pallet entry and retrieval without forklift entry.
New Stock XBOT-AGV50 Designated Station Docking Warehouse Automation Systems For Efficient Logistic Robot
Precision-engineered AGV docking station and rack feed stations designed for sub-millimeter repeatable robot positioning and pallet transfer.
Heavy Duty Shuttle Pallet Racking System For Automated Warehouse Site
Optimized cold-rolled Q235B steel upright profiles engineered specifically to resist continuous dynamic cyclic braking forces of loaded carriers.
EYDA ASRS Warehouse System Stack Crane Automated Storage Retrieval System Free Design Intelligent Cold Storage
Cryogenic cold-chain ASRS racking operating down to -30°C with low-temperature ductile metallurgy and condensation-resistant finishes.

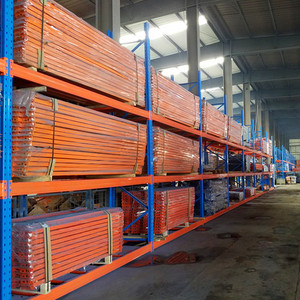

Heavy Duty Steel Q235 Conventional Pallet Rack for Certification 500-1500kg Capacity Adjustable Height
Industrial heavy-duty modular selective racking with 50mm/75mm adjustable connector pitches, engineered to support automated VNA truck integration.
Heavy Duty Steel Pallet Racking System Metal Stacking Steel Storage Truck Tire Pallet Rack Steel Pallet
Custom structural cradles and modular stacking pallet racks designed for bulk industrial cylindrical payloads, heavy machinery components, and automotive tire lines.
Guangzhou HEDA Shelves: Automated Production Capacity
Since 2001, Guangzhou Heda Shelves Co., Ltd. has delivered turnkey industrial storage engineering. With direct oversight of cold forming, CNC multi-station punching, robotic welding, and specialized surface treatment, we assure the zero-deflection tolerances vital for automated facilities.
Structural Steel Metallurgy Engineered for Dynamic Robotic Stress
Automated storage structures are subjected to live dynamic loads far exceeding those found in conventional static racking. High-velocity stacker cranes moving at 4 m/s and fast-accelerating 4D radio shuttles transmit continuous cyclic vibrations, lateral wind loads (in rack-supported clad buildings), and emergency braking torsional forces through vertical uprights and beam connectors.
HEDA utilizes premium-grade, certified Q235B and Q355B high-tensile structural coil steel. Every batch undergoes strict yield-strength verification, chemical spectroscopy, and ultrasonic flaw detection before cold forming. Our CNC rolling mills form custom upright sections featuring up to 14 distinct cold-formed bending folds—significantly increasing the second moment of area and torsional stiffness without adding unnecessary dead weight.
Engineering Principles of Automation Racking Integration
Unlike static warehousing, automation racking is a structural kinematic machine component. It serves as both the material storage envelope and the precision reference plane for high-speed robotics.
Deflection Classifications: EN 15620 Class 100 to 400
Automated storage interfaces cannot tolerate the deflection rates acceptable in manual forklift setups. Under EN 15620, automated high-bay systems are classified based on handling hardware type (ASRS Stacker Cranes vs. VNA Man-Up vs. Shuttles):
- Class 100 / 200: Stacker cranes operating at heights >30m require vertical mast rail tolerances within ±2.0mm.
- Beam Deflection Limit: Main beams are restricted to L/300 or max 10mm to avoid optical sensor blind-outs.
- Kinematic Acceleration: Horizontal braking forces calculated via finite element method (FEM) simulations.
4-Way Radio Shuttle & Rail Dynamics
Multi-directional shuttles travel along custom continuous cold-formed guide tracks that demand strict flatness and parallel alignment to avoid track wedging or drive wheel slippage:
- Continuous Track Roll: Eliminates rail joint shock, ensuring shuttle encoder positioning within ±1mm.
- Transverse Switching Rails: Mechanically synchronized cross-over intersections for seamless 90° direction shift.
- Integrated Power Busways: Copper busbar grooves built directly into the rack channel profiles.
Cryogenic Cold Storage Engineering (-30°C)
Refrigerated warehouse automation presents severe material challenges. Sub-zero thermal contraction alters bolt torque, induces cold-shortness in standard steels, and risks sensor icing:
- Impact Toughness at -30°C: Charpy V-notch energy tested steel maintains ductility and prevents brittle fracture.
- Thermal Contraction Clearances: Custom expansion joint tolerances prevent upright buckling across large bays.
- Anti-Corrosive Hot-Dip Galvanizing: Minimum 65μm zinc bath prevents rust caused by defrost cycling.
| System Architecture | Structural Deflection Rating | Floor Flatness Standard | Typical Clear Heights | Maximum Throughput | Ideal Application |
|---|---|---|---|---|---|
| ASRS High-Bay Stacker Crane | EN 15620 Class 100 (< L/300) | DIN 18202 Table 3, Line 4 / TR34 DM1 | 18m - 40m | Ultra High (350+ plts/hr) | Raw material buffers, finished mega-DCs |
| 4D Radio Shuttle System | EN 15620 Class 200 (< L/250) | DIN 18202 Table 3, Line 3 / TR34 FM2 | 6m - 24m | High (Flexible Scalable) | Cold storage, food & beverage, FMCG |
| AGV/AMR Floor-to-Rack Cells | EN 15620 Class 300 (< L/200) | DIN 18202 Table 3, Line 2 / TR34 FM3 | 4m - 12m | Medium-High Dynamic | E-commerce fulfillment, 3PL logistics |
| Automated Pallet Flow (FIFO) | EN 15512 Industrial Elastic (< L/200) | Standard Industrial Superflat | 4m - 16m | Continuous Gravity Flow | Fast-moving dispatch buffers, dairy staging |
Future Procurement & Technology Trends in Automation Warehousing
Procurement officers and logistics directors are shifting from traditional standalone equipment purchases to fully modular, software-interconnected automation racking ecosystems.
1. Clad-Rack Warehouse Engineering
Instead of building a civil warehouse shell and installing racking inside, buyers are choosing Rack-Supported Buildings (Clad-Racks). The automation racking itself acts as the structural load-bearing frame carrying the roof and side-wall cladding, cutting construction timelines by up to 35% and slashing civil CapEx.
2. IoT-Sensorized Structural Monitoring
Modern tier-1 automated facilities require real-time structural health monitoring. Integrated fiber-optic strain gauges and tri-axial tilt sensors placed on critical high-bay uprights transmit real-time telemetry to the WMS, detecting seismic displacement, anchor bolt loosening, or accidental overload before failure occurs.
3. Hybrid Modular Scalability (Phased CapEx)
Enterprise buyers are moving away from rigid, single-phase monolithic ASRS commitments. The emerging procurement strategy specifies pre-engineered automation-ready steel framework, operating initially with manual reach trucks and later upgrading bay-by-bay to 2D/4D shuttles and robotic stacker cranes as volume expands.
4. Low-Carbon Green Steel Mandates
Global corporate ESG directives increasingly govern supply-chain hardware procurement. HEDA addresses this through scrap-recycled EAF (Electric Arc Furnace) steel options, bio-based non-toxic powder coating pigments, and weight-optimized hollow-flange profile geometry that reduces steel consumption by up to 14% without compromising load ratings.
Frequently Asked Questions for Technical Buyers
Clear, engineering-focused answers covering regulatory compliance, slab foundations, deflection standards, and international delivery protocols.
Request a Structural Consultation & Free 3D CAD ASRS Layout
Consult directly with our structural engineering department. We evaluate pallet density, dynamic crane deflection, and seismic safety factors to deliver a fully documented feasibility package tailored to your exact warehouse layout.
- Complete 3D BIM / AutoCAD layout model delivered within 48 hours.
- Certified structural calculations in compliance with EN 15512 & EN 15620.
- Direct factory pricing with container-optimized sea freight planning.
Connect with an automation engineering consultant now for immediate technical specifications and layout support.
