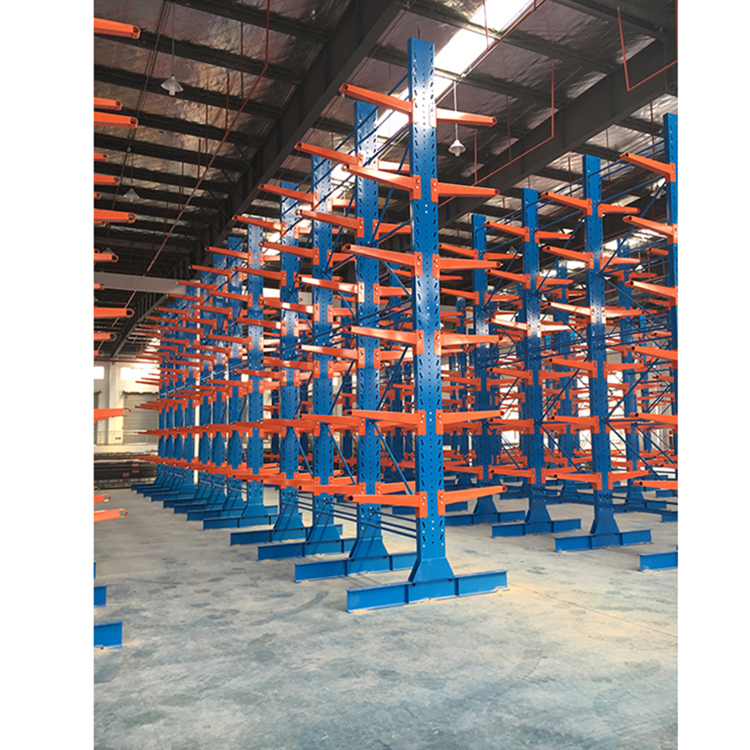

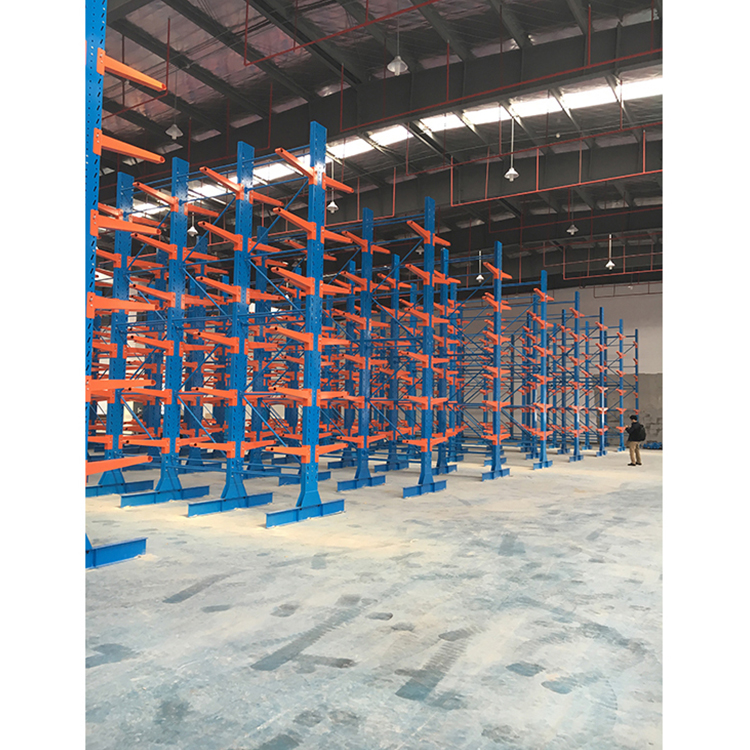

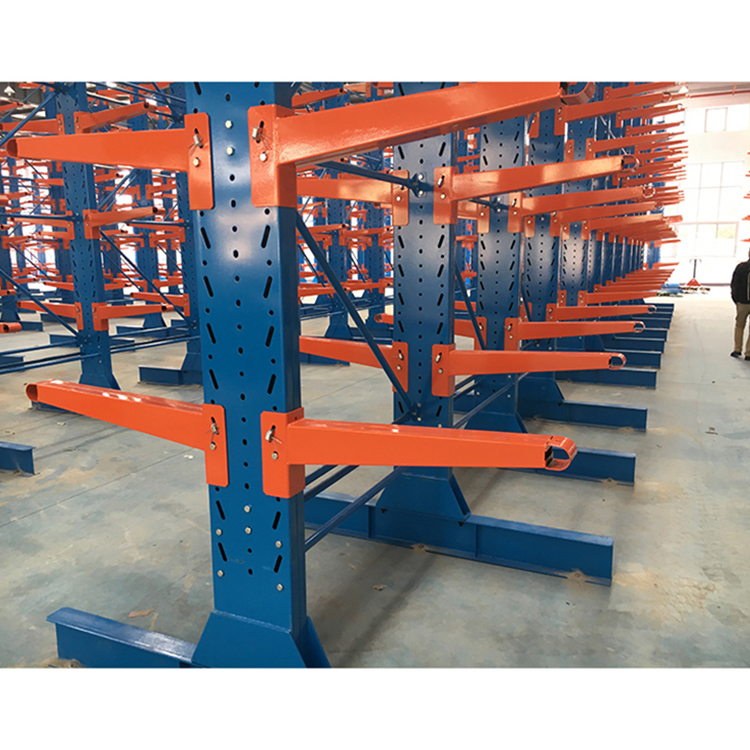

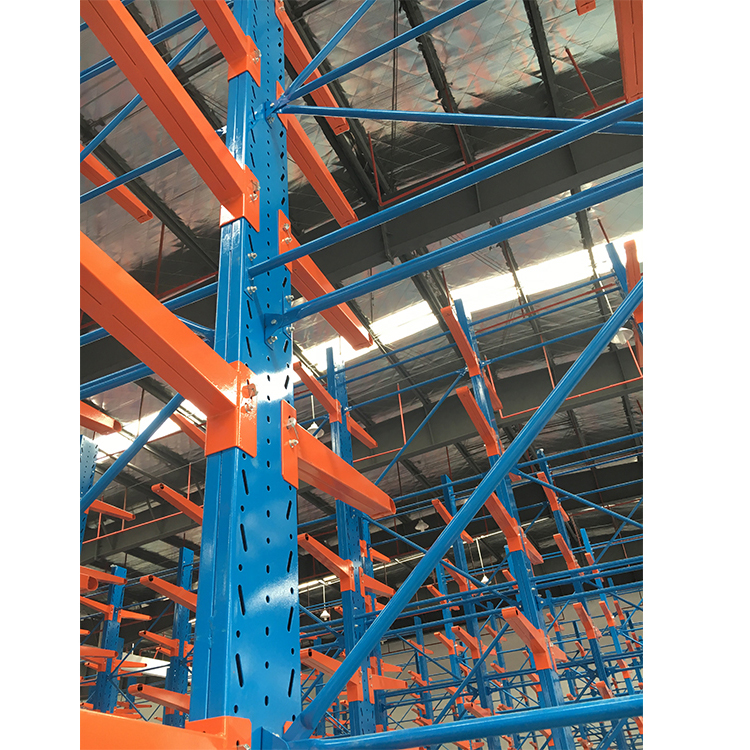

Adjustable Equipment Supply Chain Storage Racking Cantilever Rack for Warehouse Management
Product Description
Product Parameter
Cantilever racks are designed for the safe and organised storage of long and heavy loads - ideal for timber or metal storage. Our cantilever rack systems are an effective and efficient alternative to conventional lighter weight storage solutions.

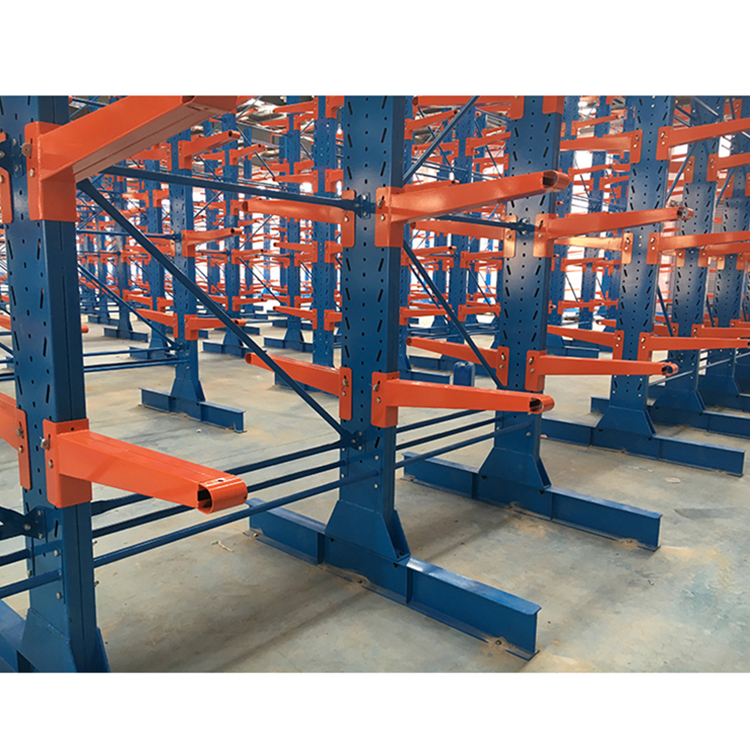

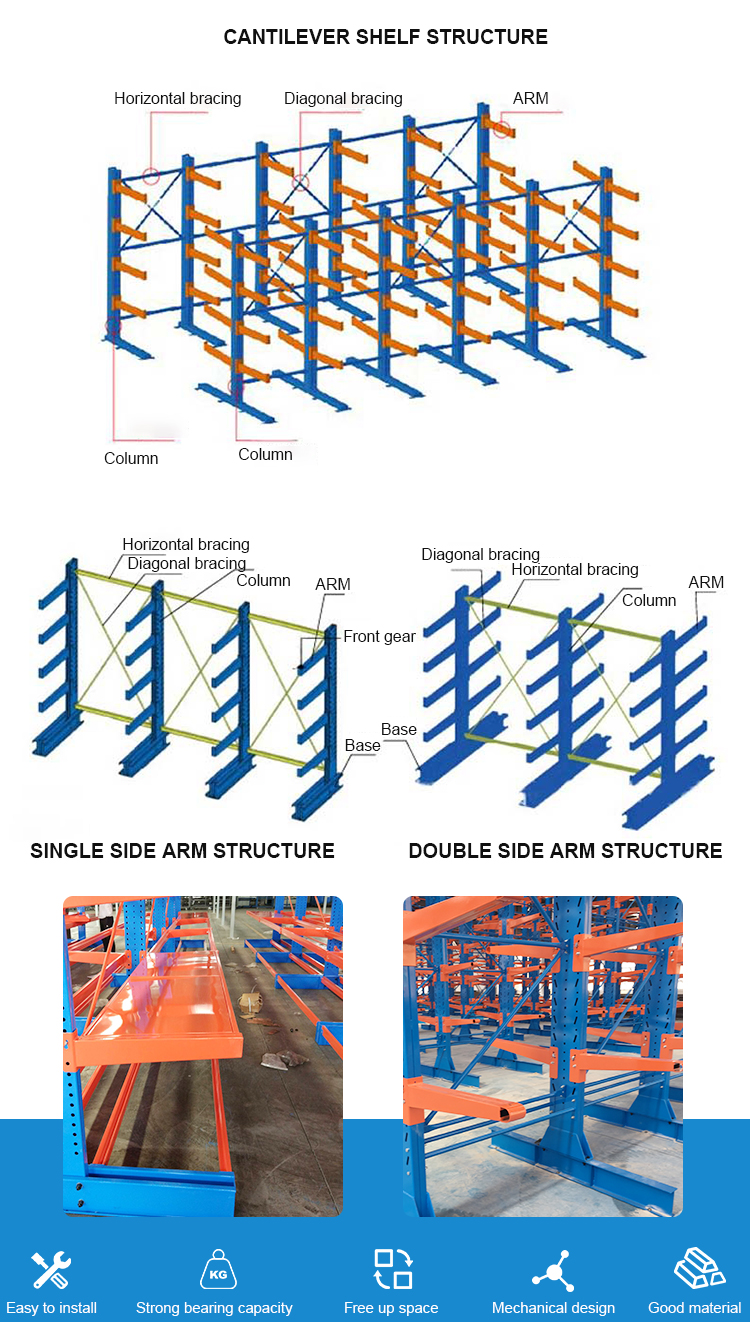

| Structure of Cantilever Racking | Column, Base, Arm, Bracings |
| Determinant of Cantilever Racking Design |
1. The weight of your goods 2. The dimension of your goods together with pallets (Length, Width, Height) 3. The dimension of your warehouse 4. The path of the transportation |
| Advantages of Cantilever Racking |
1). Cantilever racking system is optimal for the storage of long-shaped and bulky materials, profiles, pipe, timber and moulding etc. 2). Constructed of structural H steel and traditional roll-formed style, both are available. 3). Single and double-sided configuration available. 4). Different column and arm sizes available to suit various loading requirements. 5). Bolted arm and base connection. 6). Surface treatment: Spray-painting. 7). Packing: Neutral paper box or in bulk or upon clients' requirements. |
| Our Services | You can send us your CAD drawing and we will give you a quick online quote. Or you just tell us the tridimensional dimensions of your warehouse and we can design and draw drawings for you within 48 hours. |

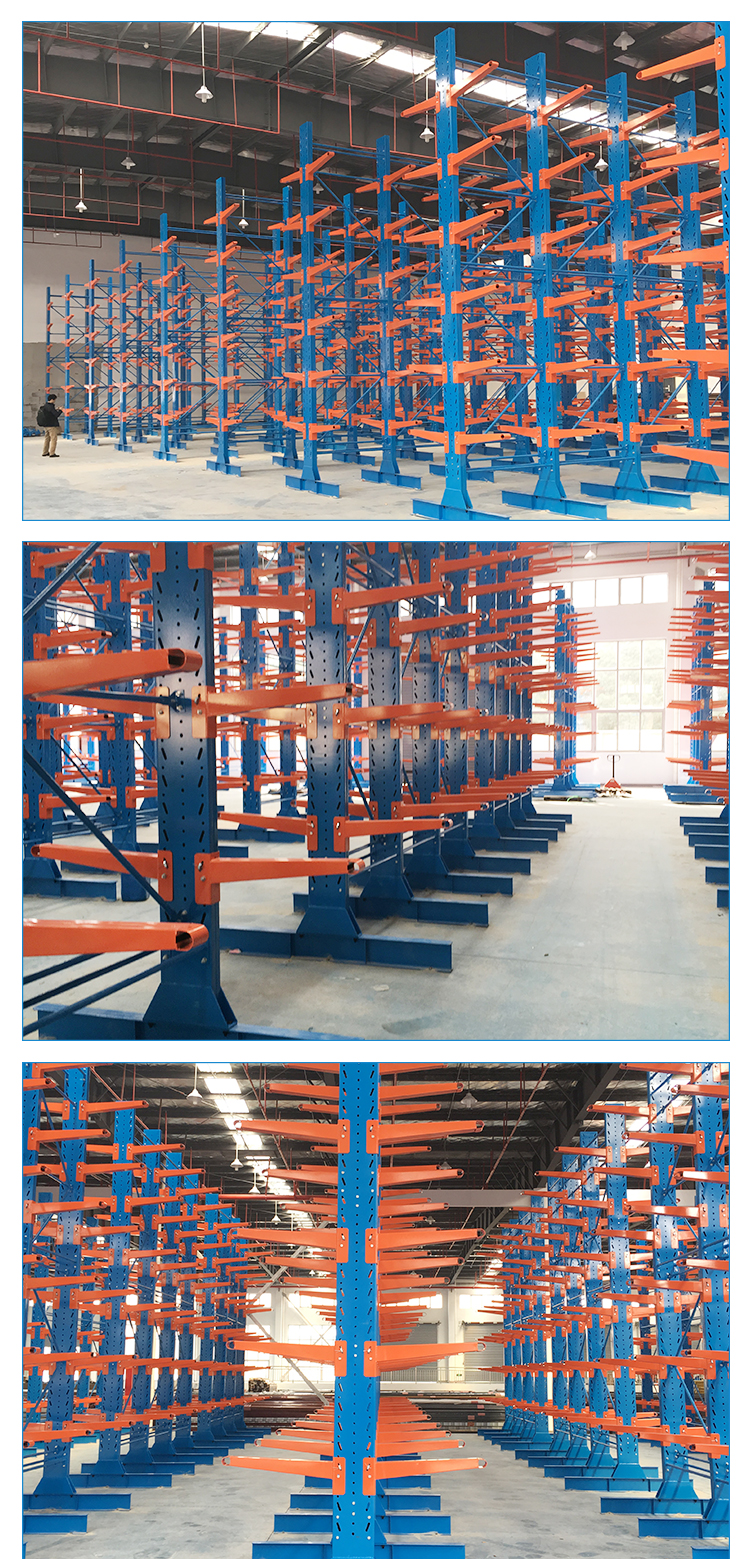

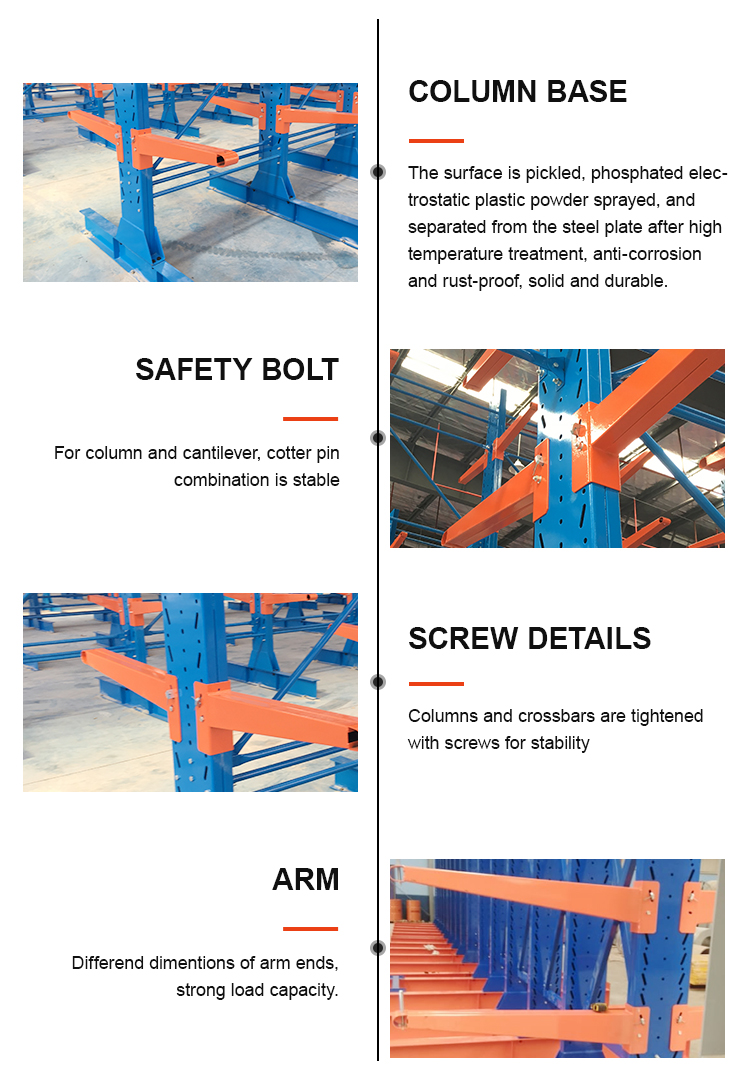

Product Details

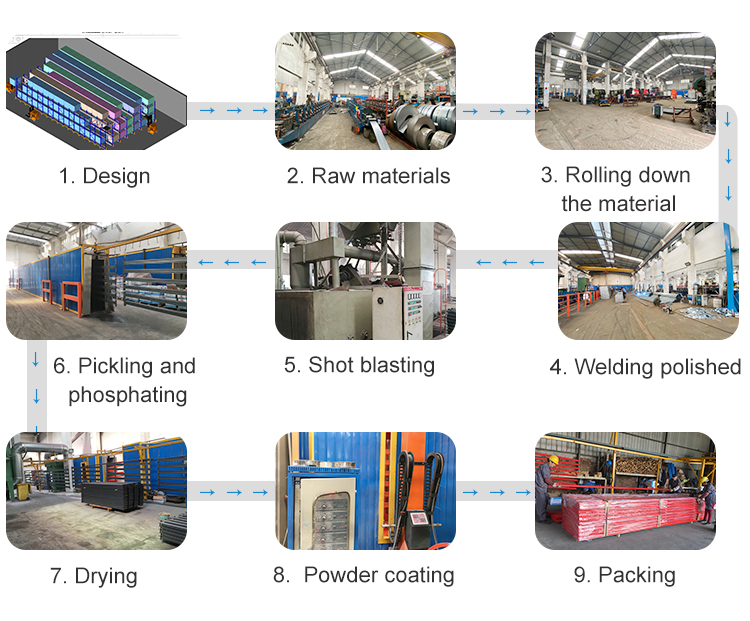

Production Process
Company Profile
Our Team
Certificate
Joint Venture
Transportation And Logistics
Frequently Asked Questions (FAQ)
What types of goods are most suitable for cantilever racking?
Cantilever racking is ideal for storing long, bulky, or irregularly shaped items such as metal pipes, steel profiles, timber, lumber, moldings, and plastic tubes, allowing unobstructed horizontal loading.
What are the structural differences between single-sided and double-sided cantilever racks?
Single-sided cantilever racks have arms extending from one side only, making them perfect for placement against warehouse walls. Double-sided units have a central column with arms extending from both sides, accessible from both aisles to maximize floor space.
How quickly can I get a customized warehouse layout design and quote?
If you provide your CAD drawing or warehouse dimensions, our engineering team can provide a tailored design layout and drawing within 48 hours, along with a prompt quotation.
What information is needed to design a cantilever rack system?
Essential parameters include the weight and overall dimensions (length, width, height) of your products, available warehouse dimensions and clearance height, and details regarding your forklift or handling equipment's operating pathways.
What manufacturing materials and surface treatments are provided?
The systems are manufactured using high-grade structural H steel or heavy-duty roll-formed steel depending on capacity requirements. Components undergo spray-painting surface treatment for durability and corrosion protection.
