Featured Industrial Pallet Racking Portfolio
Heavy-load racking architectures factory-built to support standard EUR-pallets (800×1200 mm) and Nordic FIN-pallets (1000×1200 mm) across extreme ambient and temperature-controlled environments.
1000 - 3000 kg/Level
Mracking Heavy Duty Metal Pallet Storage Racking
- Payload: 1000-3000 kg per beam level
- Profile: Q355B / S355 high-tensile steel
- Fit: Dual EUR & FIN pallet clearance
High-Density Semi-Auto
OEM High-Tech Radio Shuttle Pallet Rack
- Control: 2.4GHz RF & WMS connectivity
- Thermal Rating: Sub-zero operational (-25°C)
- Modes: Configurable FIFO & LIFO logic
Strict FIFO Gravity Flow
Warehouse Gravity Storage Racking Live Pallet Flow Rack
- Bed: Heavy-duty galvanized steel roller beds
- Safety: Built-in centrifugal speed controllers
- Best For: Expiry-controlled food & pharma
Electrostatic Coated
Selective Pallet Racking With Steel Decking
- Decking: Galvanized or powder-coated panels
- Surface: ISO 12944 compliant finish
- Access: 100% direct picking selectivity
VNA High-Bay Fit
Teardrop Pallet Rack Adjustable Shelves Unit VNA
- Pattern: Teardrop or 50/75mm Euro-slot
- Height: Scalable up to 16m upright clear
- Guide: Magnetic wire or mechanical rail guidance
Up to 5000 kg/Level
Warehouse Pallet Rack Beam Shelving 1000-5000kg
- Configuration: Multi-layer heavy steel box beams
- Deflection: SS-EN 15512 L/200 structural limit
- Safety: 5-claw high rigidity connector hooks
Hot-Dip Galvanized

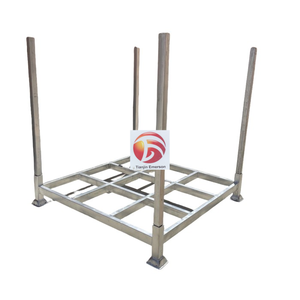

Heavy-Duty Galvanized Zinc Storage Post Pallet
- Anti-Corrosion: ISO 1461 hot-dip galvanized
- Modularity: 4-way forklift entry, 4-tier stack
- Application: Yard, cold room & bulk tires
Standard Modular Cell
L2200*W1200*H4050mm 4-Layer 2000kg Heavy Rack
- Dimensions: 2200L × 1200W × 4050H mm
- Payload: 2000 kg UDL per pair of beams
- Uprights: 90×68×2.0mm roll-formed profile
Engineering Racking Infrastructure for Sweden's Supply Chain Corridors
A technical breakdown of mechanical compliance, Eurocode load principles, and Nordic operational demands across Tier-1 Swedish logistics regions.
Procuring industrial racking structures for installations within the Kingdom of Sweden requires an acute understanding of both European harmonization directives and regional Swedish building practices. As Sweden cements its position as Northern Europe’s primary logistics hub, modern Distribution Centers (DCs) constructed around Gothenburg (Göteborg), Jönköping, the Greater Stockholm (Stockholm-Nord / Rosersberg), and Malmö-Öresund corridors demand strict structural conformance. Warehouse developers and 3PL operators operate under the governing framework of Boverket’s Building Regulations (BBR) alongside structural Eurocode standards implemented via Swedish national annexes.
From an OEM/ODM manufacturing perspective, supplying pallet racking structures into Sweden goes beyond generic metal fabrication. The structural matrix must adhere to SS-EN 15512:2020 (Steel static storage systems - Adjustable pallet racking systems - Principles for structural design), SS-EN 15620 (Tolerances, deformations, and clearances), SS-EN 15629 (Specification of storage equipment), and the operational safety doctrine of SS-EN 15635. Because Sweden utilizes two primary load unit standards—the ubiquitous standard EUR-pallet (800 × 1200 mm) and the larger Nordic industrial FIN-pallet (1000 × 1200 mm)—racking geometry, beam span calculation, frame upright profiles, and run-spacer configurations must be calculated with verified safety factors against accidental impact, seismic micro-vibrations, and concrete floor slab elasticity.
Critical Compliance Mandate: Construction Products Regulation (CPR 305/2011) & CE Marking
All load-bearing steel components destined for permanent warehouse integration in Sweden are manufactured under certified Factory Production Control (FPC) systems conforming to EN 1090-1 (Execution Class EXC2). Full material traceability is certified through EN 10204 Type 3.1 inspection certificates, guaranteeing tensile yield strengths and chemical compositions for cold-formed steel coils.
Port of Gothenburg & Torslanda Automotive
High-turnover containerized import storage, sequenced staging for Tier-1 automotive subassemblies, and heavy mechanical part buffers. Demands heavy-duty selective beam-racks with specialized 3.0mm structural post footings to disperse high concentrated dynamic point loads onto industrial concrete slabs.
Jönköping Nordic Logistics Core
Serving as the geographical triangle capable of reaching 80% of Nordic purchasing power within 24 hours. Warehouses here prioritize automated and semi-automated high-density installations, specifically radio shuttle racking and multi-tier picking towers built to withstand high operational cycle frequencies.
Sub-Zero Cold Chains (Skåne & Norrland)
Deep frozen distribution hubs supporting Swedish grocery retail networks (ICA, Dagab, Axfood). Operating at sustained temperatures between -20°C and -30°C requires low-temperature notch toughness (S355J2 steel grades) to eradicate cold brittleness risks and maintain structural resilience.
Technological & Sustainability Drivers in Sweden
How rising facility heating costs, high labor rates, and strict Nordic green building standards are altering storage system procurement.
Swedish industrial real estate operates under demanding macroeconomic conditions. Land costs around major transportation infrastructure (such as the E4 and E6 motorways) coupled with strict municipal environmental building codes (Miljöbyggnad Silver and Gold certifications) make horizontal warehouse sprawl economically impractical. As a direct consequence, Swedish intralogistics is experiencing three definitive shifts:
Vertical Volume Exploitation (VNA & High-Bay)
Warehouse designs in Rosersberg and Eskilstuna routinely reach clear heights of 12 to 16 meters. Replacing wide 3.5m reach-truck aisles with 1.7m Very Narrow Aisle (VNA) or automated turret-truck profiles increases cubic volume utilization by up to 50%, significantly curbing the total heating and cooling footprint per stored pallet position.
Radio Shuttle Automation & Cold-Room Densification
Given Sweden's strict statutory energy benchmarking, cold stores cannot afford excessive volume dissipation. Radio shuttle systems remove access aisles entirely, allowing continuous block-stack storage up to 40 pallets deep. Shuttles navigate automated channels with self-diagnosing laser distance sensors, slashing forklift travel into conditioned spaces.
REACH/RoHS Surface Finishing & Green Logistics
Environmental standards in Sweden preclude heavy-metal phosphate waste streams. Our factory employs automated 8-stage surface pretreatment lines with zirconium-silane nanotechnology. Powder coatings use non-toxic, TGIC-free epoxy-polyester formulas cured in energy-recuperating convection ovens, maintaining compliance with EU chemical directives.
Structural Architecture Comparison for Swedish Procurement
Direct parametric analysis comparing load capacity, pallet accommodation, footprint efficiency, and Eurocode deflection characteristics.
| Racking Architecture | Pallet Support Formats | Max Capacity (UDL) | Space Efficiency | Selectivity | Deflection Limit | Nordic Certification |
|---|---|---|---|---|---|---|
| Standard Selective Rack | EUR (800×1200) / FIN (1000×1200) | 1000 - 4500 kg / beam level | 40% - 45% footprint | 100% direct access | ≤ L/200 (SS-EN 15512) | CE / EXC2 |
| Narrow Aisle (VNA) | EUR / FIN / Mixed cages | 1500 - 3500 kg / beam level | 55% - 65% footprint | 100% direct access | ≤ L/200 to L/300 | CE / EXC2 |
| Radio Shuttle Automation | EUR & FIN dedicated lanes | 500 - 1500 kg / pallet | 75% - 85% footprint | LIFO or FIFO channel access | ≤ L/250 precision rail | CE / EMC / LVD |
| Gravity Pallet Flow | Calibrated EUR Wooden/Plastic | 800 - 1200 kg / pallet | 70% - 80% footprint | Strict FIFO by lane | Inclined bed (≈ 3.5%) | SS-EN 15512 |
| Drive-In Storage | Standardized single-SKU EUR | 1000 - 1500 kg / position | 65% - 75% footprint | LIFO deep lane | Reinforced cantilever arm | CE / EXC2 |
| Structural Post Pallet | Bulk irregular / Auto crates | 1000 - 2000 kg / unit | Flexible dynamic yard | Unit block stack | ISO 1461 Hot-Dip Galv | EN ISO 1461 |
OEM/ODM Manufacturing Precision & Process Control
Operating from our 30,000 m² smart manufacturing center, our automated cold-roll lines and robotic laser systems guarantee precise mechanical tolerances.
Certified Steel Sourcing
We source prime steel coils (Q235B and Q355B, chemically and mechanically matching European S235JR and S355JR under EN 10025-2). Coils undergo batch spectrometer verification and ultrasonic thickness inspections prior to rolling.
Continuous Roll-Forming
Our computer-controlled rolling mills feature up to 26 continuous shaping passes. This progressive forming minimizes internal residual stress in omega-profile upright columns, ensuring exact cross-sectional dimensional consistency.
Robotic Welding Stations
Beam-end connectors with 3, 4, or 5 structural claws are welded to closed-profile box beams using 6-axis robotic welding cells with argon-CO2 shielding, eliminating cold-lap defects and establishing uniform weld throats.
Pretreatment & Finishing
Components traverse an 8-stage automatic surface conditioning tunnel (degreasing, rinsing, nanoceramic passivation) followed by electrostatic powder deposition, resulting in an impact-proof 60-90µm exterior coating.
Spectrometer QC
Mill certificate validation & chemical composition analysis.
Slitting & Blanking
High-precision uncoiling and CNC coil longitudinal slitting.
Continuous Punch
Multi-punch indexing for 50mm / 75mm European pitch lines.
Cold-Roll Profile
26-station progressive profiling for uprights and box beams.
Robotic Weld
Automated connector bracket joining with zero spatter.
Acid Pickling
Complete scale, oxidation, and oil removal.
Silane Passivation
Nanoceramic eco-friendly corrosion inhibitor bonding.
Powder Application
Dual-reciprocator automated electrostatic coating booth.
Thermal Curing
200°C polymerized cross-linking bake tunnel.
Export Bundling
Containerized bracing, damp-proof wrapping & palletization.
Frequently Asked Questions by Swedish Buyers
Engineering, documentation, structural calculation, and maritime freight queries answered for warehouse development managers in Sweden.
How do you reconcile EUR-pallet and Nordic FIN-pallet dimensions in rack layout designs?
EUR-pallets measure 800 × 1200 mm, while FIN-pallets measure 1000 × 1200 mm. When engineering systems for Swedish 3PL providers that handle both formats, we provide clear bay beam lengths of either 2700 mm (for three EUR-pallets) or 3400/3600 mm (to accommodate three FIN-pallets or four EUR-pallets side-by-side). Frame depths are engineered at 1100 mm with heavy-duty drop-in pallet support cross-bars or wire mesh decks to safely support pallets without risking bottom-board disengagement.
Are structural calculations compliant with SS-EN 15512:2020 and Eurocodes?
Yes. Every custom proposal is calculated by our structural engineering department using finite element analysis (FEA) based on the ultimate limit state (ULS) and serviceability limit state (SLS) provisions of SS-EN 15512:2020. We account for frame buckling curves, connector looseness, vertical beam deflection (guaranteed ≤ L/200), upright frame sway, and baseplate anchoring stresses under Swedish seismic and building codes.
What documentation accompanies each project for statutory Swedish workplace safety audits (Arbetsmiljöverket)?
Swedish labor regulations require documented annual safety inspections per SS-EN 15635. We supply every installation with: (1) Certified Load Notification Signs (belastningsskyltar) in Swedish and English detailing max bay/level payloads; (2) Detailed assembly and layout drawings with torque specifications; (3) Mill Test Certificates (EN 10204 Type 3.1); and (4) CE Declaration of Performance (DoP) documents conforming to CPR 305/2011.
What are the sea freight routing options and typical transit times into Sweden?
Shipments depart from Guangzhou, Shenzhen, or Ningbo ports directly to the Port of Gothenburg (Göteborgs Hamn, APM Terminals) or the Port of Helsingborg. Ocean transit takes roughly 32 to 38 days. Landlocked inland intermodal destinations (Jönköping, Örebro, Eskilstuna, Rosersberg) are efficiently served via scheduled rail shuttles directly from the Gothenburg quayside.
How do you prevent brittle failure in sub-zero cold-chain facilities located in Northern Sweden?
Under sub-zero temperatures (-25°C to -30°C), ordinary carbon structural steel can encounter a ductile-to-brittle transition, elevating the risk of catastrophic fracture under dynamic forklift impact. For cold-chain installations, we select certified structural steel (S355J2 or equivalent) verified via Charpy V-notch impact testing to maintain absorption values of at least 27 Joules at -20°C.
Do you support OEM branding and custom color matching for Scandinavian distributors?
Yes. We offer complete OEM/ODM production for equipment distributors, system integrators, and engineering houses. We can manufacture components with customized hole punching patterns, client-branded column profile embossments, custom-printed loading plates, and bespoke RAL powder finishes (including corporate blues, yellows, anthracites, and safety oranges).
RFP/RFQ Specification Checklist for Swedish Projects
Ensure fast structural review and precision CAD layouts by providing our engineering team with your initial warehouse parameters.
1. Building Architecture
Architectural DWG drawings indicating structural column grids, clear ceiling height under trusses, fire sprinkler drop levels, smoke evacuation vents, floor expansion joints, and loading dock gate placements.
2. Pallet Unit Parameters
Breakdown of load units (EUR 800×1200 or FIN 1000×1200), pallet construction (wood, composite, plastic), maximum gross payload per pallet including overhang, total stacked unit height, and SKU inventory counts.
3. Floor & Material Handling
Concrete slab thickness, compressive strength class (e.g., C28/35 or C30/37), subgrade reinforcement details, forklift fleet specifications (counterbalance, reach truck, VNA turret), lift mast clear height, and turning radiuses.
Request a Structural Design & CIF Sweden Container Quotation
Connect with our technical design engineers. We supply complete 2D/3D CAD layouts, structural FEA stress calculations, and competitive factory-direct pricing for Swedish industrial facilities within 24 to 48 hours.
