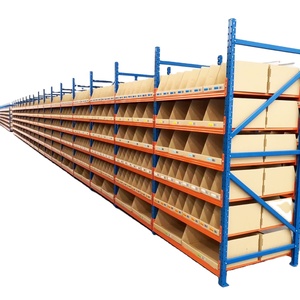

China Factory Heavy Duty Industrial Steel Racking Shelf Warehouse Storage Rack with Powder Coating High Capacity
High Quality Selective Racking System Warehouse Storage Forklift Heavy Duty Rack Pallet Racking System Heavy Duty Racks

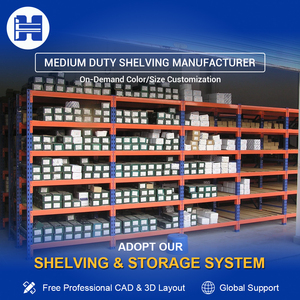

Stable 5 Layer Steel Longspan Shelving System for Commercial Warehouse Picking with Step Beam Design and Customized Sizes
Light-Duty Steel 5-Layer Drive-In Pallet Rack Warehouse Storage Shelf
Heavy Duty Warehouse Storage Rack Steel Shelving System for Commercial Warehouse
Teardrop Pallet Rack Mesh Vertical Storage Adjustable Shelves Unit Vna Racking System

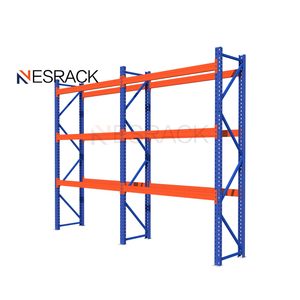

High Density High Bay Warehouse Heavy Duty Pallet Racking System Multi-Level Customized Steel Industrial Selective Pallet Rack
Engineering Architecture of Drive Through Racking Systems
Drive-Through pallet racking represents a transformative high-density configuration engineered to combine maximum spatial utilization with strict First-In, First-Out (FIFO) material flow management.
The FIFO Principle: Structural Differentiation from Drive-In Racks
Industrial warehousing operations in Peru frequently grapple with the critical balance between volumetric storage density and inventory cycle speed. While traditional Drive-In racking employs a single access aisle utilizing Last-In, First-Out (LIFO) inventory logic, a Drive-Through racking system is engineered with distinct entry and exit faces. Forklifts load palletized inventory from the rear loading aisle and pick from the front unloading aisle.
This dual-aisle structural orientation makes Drive-Through systems indispensable for perishable commodities, batch-controlled chemical production, and expiration-sensitive fast-moving consumer goods (FMCG). Pallets glide along heavy continuous cantilevered rails supported by unyielding upright columns, ensuring that the oldest batch is invariably the first to be dispatched without requiring double-handling or pallet shuffling.
Structural Anatomy and Load-Bearing Components
A resilient Drive-Through racking structure operates without the intermediate horizontal cross beams typical of selective pallet racking, meaning the structural integrity of the system relies entirely on overhead spatial portal bracing, horizontal tie beams, and heavy-gauge cantilever brackets. As primary manufacturers, Guangzhou Heda Shelves Co., Ltd. details the foundational engineering anatomy of each system:
Reinforced Omega Upright Frames
Cold-roll formed from certified high-tensile Q235B and Q355B structural steel coils. Featuring an 11-13 fold complex cross-section that maximizes the radius of gyration, our uprights deliver extreme torsional stiffness under asymmetrical forklift entry and dynamic loads.
Continuous Pallet Support Rails & Arms
Heavy-duty, tapered cantilever brackets (corbels) punched from 3.5mm–4.5mm steel plates connect directly to the upright columns. They hold precision roll-formed Z-section or C-section continuous pallet support rails designed with integral flared entry guides.
Top & Spine Portal Stabilization Bracing
Because the interior vehicular lanes must remain free of cross-bracing for forklift passage, spatial stability is accomplished via overhead truss portal beams and horizontal roof bracing grids that bind parallel upright rows into an unyielding three-dimensional monolithic box structure.
In standard selective racking, access aisles consume approximately 60% to 65% of the total warehouse floor footprint, resulting in a net storage volume ratio of merely 35%–40%. A HEDA Drive-Through Racking System reduces transit aisle requirements by up to 75%, elevating total warehouse floor space utilization to 75%–82%, while increasing storage volume by over 250% within identical square meterage.
Seismic Design (Norma E.030) & Coastal Durability for Peru
Peru sits squarely along the Pacific Rim's "Ring of Fire" (Cinturón de Fuego del Pacífico). Installing high-density racking along the Peruvian coast demands rigorous structural calculations compliant with strict national building codes.
Norma Técnica E.030 (Sismorresistente)
The Peruvian coastal strip—including Callao, Lima, Pisco, Ica, and Trujillo—is categorized as Zone 4 (Zona Sísmica 4), with a peak ground acceleration coefficient of Z = 0.45g. Our engineering division conducts dynamic modal response spectrum analysis to safeguard against lateral rack deformation and progressive collapse under severe seismic events.
Oversized Baseplates & Heavy Anchoring
To resist massive overturning moments during seismic sway, our Drive-Through frames for Peru feature enlarged, robot-welded baseplates (up to 12mm–16mm thickness) fastened with dual M16/M20 heavy chemical or mechanical wedge anchors embedded deep into the concrete slab in accordance with Norma E.090 (Estructuras Metálicas).
INDECI / ITSE Certification Preparedness
Every racking system exported by HEDA Shelves to Peruvian clients is delivered with a comprehensive Memoria de Cálculo Estructural (Structural Calculation Dossier) detailing dead load, live pallet load, seismic acceleration calculations, and safety coefficients. This enables seamless sign-off by registered Peruvian civil engineers (Colegio de Ingenieros del Perú) for municipal INDECI safety inspections.
Mitigating Maritime Atmospheric Corrosion: Callao & Lima Coastline
Industrial parks located in Ventanilla, Gambetta, Callao, and Lurín experience extreme atmospheric moisture caused by the cold Humboldt Current, resulting in seasonal dense sea fog (garúa) and ambient relative humidity persistently exceeding 85% to 95%. Standard commercial paints degrade rapidly under such salt-laden airborne conditions.
To guarantee a 15–20 year operational lifespan, HEDA Shelves enforces an exhaustive 10-stage automated pre-treatment and electrostatic finishing cycle. All cold-formed profiles pass through acidic bath pickling to strip scale, zinc phosphating to establish an impervious crystalline anti-corrosion barrier, followed by automated electrostatic deposition of AkzoNobel or PPG thermosetting epoxy-polyester powder (80–110 microns dry film thickness). For blast freezers operating down to -30°C in Paita, full hot-dip galvanization (HDG, ASTM A123) is standard.
Drive Through Racking in Key Peruvian Industrial Hubs
Across Peru's dynamic commercial regions, our heavy-duty Drive-Through configurations resolve complex operational storage bottlenecks in agro-export, cold storage logistics, distribution, and manufacturing.
Agro-Export & Cold Storage: Ica, Piura, La Libertad
Peru leads global agricultural exports in blueberries, Hass avocados, fresh asparagus, and table grapes. Packing centers along the coastal valleys require blast freezing and short-term cold preservation (-20°C to +4°C). Drive-Through racks enable strict FIFO dispatch, preventing premature expiration of harvest pallets prior to reefer container loading.
Logistics & 3PL Parks: Lurín, Chilca, Huachipa
Third-party logistics providers (3PL) in Southern Lima manage immense SKU volumes for supermarket chains and department stores. Drive-Through racks allow continuous pallet intake at the rear gate and rapid pallet order picking from the front face, eliminating cross-traffic congestion during high-volume peak dispatches.
Beverage & Brewery Plants: Lima & Arequipa
Heavy beverage manufacturing (bottled water, soft drinks, breweries) handles massive pallet weights up to 1,500 kg per pallet position with uniform SKU counts. Drive-Through racking lanes store pallets up to 8–10 positions deep without risking structural deflection, with floor guide rails protecting uprights from forklift impact.
Fisheries & Marine Storage: Chimbote & Paita
Processing plants for canned tuna, anchovy meal, and frozen cephalopods operate in high-salinity harbor corridors. Our galvanized Drive-Through racking systems endure continuous wet washing, industrial detergents, and deep sub-zero blast environments without structural degradation.
Chancay Megaport: Direct China-Peru Transpacific Trade
The inauguration of the deepwater Megapuerto de Chancay (developed by COSCO Shipping Ports) creates an unprecedented direct maritime artery connecting Shanghai and Guangzhou to Peru.
Slashing Maritime Transit Time from 40 to 25 Days
Historically, shipping heavy manufactured steel structures from China to the Port of Callao required transshipment routes via Mexico, Panama, or North American transshipment hubs, resulting in ocean transits extending between 38 and 48 days. The direct Chancay maritime corridor compresses shipping duration down to 23–28 days.
For Peruvian logistics managers, EPC contractors, and warehouse investors, this dramatic reduction mitigates supply chain volatility and decreases container demurrage risks. It accelerates project commissioning timelines for newly erected Class A logistics parks spanning Huaral, Chancay, Ancón, and greater metropolitan Lima.
Rise of Modern Class A Warehousing Parks
Industrial land prices in traditional urban logistics zones like Ate, San Luis, and Callao have skyrocketed, driving warehouse developers southward to Lurín and Chilca, and northward along the Panamericana Norte toward Chancay. These modern facilities boast clear ceiling heights of 12 to 14 meters. Utilizing high-bay Drive-Through and Drive-In racking allows operators to exploit vertical cubic space fully, yielding low cost-per-pallet-position ratios.
Engineering Evaluation: High-Density Racking Configurations
Evaluate key technical parameters across Drive-Through, Drive-In, Radio Shuttle, and Selective Pallet systems to determine the optimal layout for your facility.
| System Type | Inventory Logic | Floor Space Efficiency | Throughput Speed | Peruvian Seismic Rating | Optimal Application Scenarios |
|---|---|---|---|---|---|
| Drive Through Racking | FIFO (First-In, First-Out) | 75% – 82% | High (Separate Entry/Exit) | High (Requires Top Portal Bracing) | Agro-exports, cold stores, pharmaceuticals, FMCG distribution |
| Drive In Racking | LIFO (Last-In, First-Out) | 75% – 82% | Moderate (Shared Entry Aisle) | High (Back & Top X-Bracing) | Non-perishable bulk goods, seasonal reserves, raw materials |
| Radio Shuttle Racking | FIFO or LIFO (Automated) | 80% – 88% | Very High (Cart Automation) | Maximum (Rigid Box Frame) | Mega cold storages (-25°C), intensive volume beverage hubs |
| Selective Pallet Racking | 100% Random Access | 35% – 42% | Instant Direct Access | Standard (Single/Double Rows) | High SKU diversity, retail picking, automotive spare parts |
Why Peruvian Industrial Enterprises Partner with HEDA Shelves
With more than two decades of dedicated heavy storage manufacturing, Guangzhou Heda Shelves Co., Ltd. delivers direct factory engineering solutions backed by international certifications.
Full In-House Manufacturing
We do not broker. From raw steel uncoiling, automated high-speed roll forming, multi-station column punching to robotic welding and powder coating, our 30,000 m² factory guarantees end-to-end quality control and dimensional tolerance precision.
Free 2D CAD & 3D Modeling
Within 24 to 48 hours of receiving your warehouse layout, clear building height, forklift parameters, and pallet metrics, our structural design engineers deliver comprehensive 2D CAD floorplans and 3D architectural renderings at zero cost.
International Audited Quality
Certified strictly under ISO 9001:2015 Quality Management Systems (Certificate No. 18624Q00169R0M) and European CE Norm EN 15512 (Certificate No. 2435-CPR-8605159). We provide mill test certificates (MTC) with every batch of raw steel coils.
TLC Perú-China Tariff Savings
Under the China-Peru Free Trade Agreement (Tratado de Libre Comercio Perú-China), we supply official Form F Certificates of Origin, empowering Peruvian importers to secure 0% preferential customs import tariffs at SUNAT entry customs.
Frequently Asked Questions (FAQ) for Peruvian Buyers
Key technical, structural, regulatory, and logistics answers for operations directors and procurement executives sourcing racking from China to Peru.
Request Your Free CAD Layout & Seismic Engineering Proposal
Planning a new logistics facility in Lurín, Huachipa, Callao, or Chancay? Share your warehouse dimensions, clear ceiling height, and pallet specifications. Our engineers will deliver a free 3D CAD design, seismic calculation overview, and CIF Callao/Chancay quotation within 24 hours.
