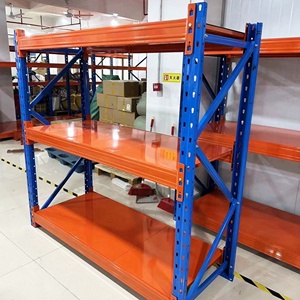

2000kg 5 Layer Adjustable Steel Selective Pallet Rack Boltless Heavy Duty Industrial Warehouse Storage Shelves Pallet Racking
Warehouse Heavy Duty Industrial Shelves Steel EU Blue and Orange Selective Pallet Racking Shelving System CE Certified

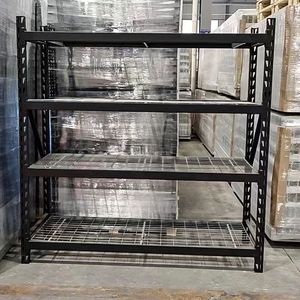

Warehouse Racking System for Light Duty Pallet Storage | Industrial Metal Rack Corrosion Protection Selective Pallet Rack Carton
3000KG Custom Steel Deck Storage Rack for Plastic Bins And Small Parts Warehouse Shelves Racking System
Medium/Heavy Duty Storage Equipment Warehouse Industrial Powder Coating Cargo Steel Iron Tool Supermarket Stacking Storage Racks
Customized Warehouse Heavy Duty Portable Rack Metal Spare Steel Detachable Stackable Pallet Tire Storage System 1000KG Powder
Heavy Duty Warehouse Shelving Steel Storage Rack For Industrial Logistics Warehouse
Factory Direct Sale Pallet Rack Teardrop Wide Span Storage Racks with Wire Mesh Decking for America Market
Why Tier-1 3PLs and Global Distribution Hubs Partner With Our Factory
Backed by over two decades of heavy industrial manufacturing, Guangzhou Heda Shelves Co., Ltd. controls the complete vertical supply chain from raw hot-rolled strip slitting to automated continuous roll-forming and robotic welding.
Verifiable Engineering Compliance
Fully certified under European CE Standard (Certificate 2435-CPR-8605159) and ISO 9001:2015 Quality Management Systems (Certificate 18624Q00169R0M). All structural load computations are verified against cold-formed steel design standards.
10-Stage Surface Pretreatment
Unlike small fabricators that rely on simple solvent wiping, our steel undergoes automated high-temperature alkaline degreasing, multi-stage acid pickling, rust removal, phosphating, and deionized water rinsing before electrostatic epoxy powder coating.
Free CAD & 3D Structural Simulation
Our in-house project engineering division delivers complete AutoCAD layout schemes, 3D parametric warehouse renderings, forklift aisle clearance models, and anchor bolt shear/pullout calculations within 24 business hours of floor plan receipt.
Optimized Direct Container Logistics
Export packing is engineered specifically for 40ft High Cube sea containers. Uprights and beams are systematically bundled with heavy-duty steel strappings and corner edge protectors to achieve maximum ocean freight space utilization.
Engineering Specifications: Metallurgy, Deflection Limits & Frame Mechanics
Selecting industrial pallet racking requires deep comprehension of thin-walled cold-formed steel behavior, perforated column axial buckling, and beam-to-column connector moment resistance.
1. Steel Metallurgy: Q235B vs. Q355B Mechanical Properties
Storage racks are structurally optimized cold-formed steel structures subject to both static gravity dead loads (the weight of the steel and stored pallets) and dynamic transient live loads (forklift impact, seismic lateral acceleration, pallet placement vibration). We specify primary structural members based on standardized chemical and mechanical parameters:
Q235B Cold-Rolled Carbon Steel: Yield strength $f_y \ge 235 \text{ MPa}$, ultimate tensile strength $f_u = 370\text{--}500 \text{ MPa}$, elongation $\delta_5 \ge 26\%$. This alloy provides exceptional cold-bending plasticity, making it the premier choice for roll-formed upright columns with intricate 50mm/75mm multi-bend profiles and step/box beam connector brackets.
Q355B Low-Alloy High-Strength Steel: Yield strength $f_y \ge 355 \text{ MPa}$, ultimate tensile strength $f_u = 470\text{--}630 \text{ MPa}$. Applied across heavy cantilever arms, drive-in support brackets, high-bay automated storage retrieval systems (AS/RS), and high seismic zones where maximum axial load carrying capacity per kilogram of steel is required.
2. Deflection Thresholds & Beam Connector Moment Capacity
Under rated operational loads, beam deflection directly affects forklift mast positioning, automated sensor scanning, and overall rack stability. According to international standards, the vertical elastic deflection of horizontal rack beams under uniformly distributed pallet load must not exceed:
$\delta_{max} \le \frac{L}{200}$ (where $L$ is the clear span distance between upright columns)
For automated shuttle tracks and high-tolerance AS/RS integrations, HEDA Shelves tightens this threshold to $\delta_{max} \le L/300$. Furthermore, our interlocking beam end connectors feature 3-claw or 4-claw precision stamped engagement teeth welded seamlessly to the beam with robotic CO₂ gas-shielded arc welding. This generates a rigid semi-rigid joint with calculated rotational stiffness ($C_d$) that drastically diminishes overall unbraced frame length and lateral drift during seismic excitations.
| Storage System Type | Pallet Selectivity | Space Utilization | Stock Rotation | Typical Bay Load | Optimal Application |
|---|---|---|---|---|---|
| Selective Pallet Rack | 100% Direct Access | 40% - 50% | FIFO / Any | 1,000 - 4,000 kg | General 3PL, FMCG, E-Commerce Fulfillment |
| Double-Deep Pallet Rack | 50% Direct Access | 55% - 65% | FILO / LIFO | 1,500 - 3,000 kg | Cold Storage, Dry Grocery, Multiple Pallets/SKU |
| Drive-In / Drive-Through | Low (Lane-Based) | 70% - 85% | LIFO (Drive-In) / FIFO | Up to 1,500 kg/pallet | Bulk Raw Materials, Beverage Bottling, Cold Rooms |
| Radio Shuttle System | Semi-Automated Lane | 80% - 90% | Configurable FIFO / LIFO | 500 - 1,500 kg | Frozen Food Chains, Chemical, High-Volume Logistics |
| Push-Back Cart Rack | Medium (2-6 Deep) | 65% - 75% | LIFO | 1,000 - 2,500 kg | Medium Throughput, Bulk Buffer Storage |
| Heavy Duty Cantilever | 100% Open Access | Variable | Any | 1,000 - 6,000 kg/arm | Steel Pipes, Lumber, Aluminum Profiles, Sheet Panels |
| Rack-Supported Mezzanine | Multi-Level Manual | 100% - 200% Gain | Any | 300 - 1,000 kg/m² | Spare Parts Distribution, Fashion Apparel, Manual Picking |
Macro Trends Reshaping Industrial Storage Racking Procurement
Warehousing infrastructure is shifting rapidly toward automated compaction, carbon accountability, and dynamic seismic survivability. Supply chain directors must evaluate these architectural procurement trends.
The Shift from Static Aisles to Radio Shuttle & AS/RS Hybrid Racks
Escalating industrial land costs and severe labor shortages in major logistics corridors are accelerating the transition from traditional 3.5m wide-aisle selective racking to dense semi-automated radio shuttle systems and vertical AS/RS rack clad structures. Warehouse managers are demanding modular racking profiles that allow future retrofitting of lithium-powered shuttle bots without tearing down existing upright frameworks.
Anti-Corrosion Metallurgy in Tropical & Cold-Chain Facilities
With the rapid expansion of cross-border pharmaceutical and frozen food cold chains across humid equatorial zones (such as South Asia, Southeast Asia, and the Middle East), standard interior powder coatings are proving insufficient. Procurement specifications increasingly require hot-dip galvanized uprights (ASTM A123 / ISO 1461) or specialized zinc-rich epoxy primers tested to withstand 1,000+ hours of continuous neutral salt spray (ASTM B117).
Advanced Non-Linear Dynamic Seismic Structural Analysis
Regulatory building bodies worldwide are tightening enforcement of structural rack safety under dynamic seismic loading. Modern procurement contracts now mandate finite element analysis (FEA) validating baseplate bolt shear, floor slab punching shear capacity, and frame ductility factors under specific spectral acceleration zones (Ss and S1 ratings), ensuring racks withstand earth tremors without progressive catastrophic collapse.
Frequently Asked Questions on Factory Direct Racking Procurement
Critical engineering, manufacturing, and international export logistics questions answered by HEDA Shelves' technical director.
1. Architectural DWG or PDF floor plan detailing column grid spacing, building clear height under roof joists, locations of overhead doors, fire exit pathways, dock levelers, and sprinkler manifold drops.
2. Pallet load profile: Pallet dimensions (Width × Depth × Height including product overhang) and maximum gross weight per pallet.
3. Material handling equipment (MHE) specs: Forklift make, model, minimum right-angle stacking aisle width, mast overall collapsed height, and maximum fork lift height.
4. Concrete floor slab integrity: Slab thickness, rebar mesh layout, concrete compressive strength rating ($f'_c$, usually 20–30 MPa), and project location seismic zone coefficient.
Request Your Free Engineering CAD Layout & Factory Direct Quotation
Eliminate intermediary markups. Partner directly with Guangzhou Heda Shelves Co., Ltd. for custom-engineered, load-certified storage racking systems manufactured to exact warehouse specifications.
