Heavy Duty
Industrial Heavy Duty Pallet Stacking Rack System
- Load Capacity: 1,000–4,000 kg/tier
- Upright: 80/90/100/120 mm Omega
- 50/75 mm Pitch Beam Adjustment
Direct Factory Catalog
High-Capacity Industrial Racking Systems
Precision-formed from certified Q235B/Q355B structural steel, our heavy-duty racking configurations deliver up to 5,000 kg per level with certified deflection control, strict seismic resistance, and corrosion-resistant powder coatings.
Epoxy Coated
Q235 Multi-Layer Epoxy Powder Coated Racking
- Steel Grade: SS400 / Q235B Carbon Steel
- Finish: 80–100µm Electrostatic Epoxy
- Beam Connectors: 3–5 Claw Stamping
Modular Beam

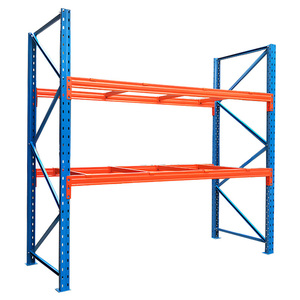

Adjustable Steel Selective 4-Layer Pallet Rack
- Main & Add-on Starter/Add Extension
- Safety Locking Pins: High-Shear Rated
- Card Slot Interlock Assembly
Galvanized
Customized Heavy-Duty Galvanized Steel Pallet
- Zinc Layer: Hot-Dip / Cold Galvanizing
- Entry: 2-Way & 4-Way Forklift Entry
- Dynamic Load: 1,500–2,500 kg
Selective
Industrial Selective Warehouse Pallet Rack
- 100% SKU Direct Access / High Throughput
- Compatible with Reach Trucks & Counterbalance
- Structural Standard: RMI MH16.1 / EN 15512
3000KG Class
3-Level Heavy Duty Selective Racking 3000KG
- Tested Payload: 3,000 kg UDL Per Level
- Box Beam Specification: 120×50×1.5/2.0 mm
- Baseplates: Seismic Heavy Anchor Anchor-Down
Logistics Hub
Logistics Distribution Center High-Bay Racking
- High-Bay Height Range: 4 m to 14 m Clear
- Aisle Width: Narrow Aisle (VNA) or Standard
- Heavy Column Guard & Frame Protector
Multi-Tier
Multi-Level Corrosion-Proof Storage Rack
- Pre-treatment: 10-Stage Pickling & Phosphating
- Multi-tier Catwalk & Mezzanine Integration
- High Chemical & High-Humidity Resilience
2001
Established Since
30,000 m²
Factory Floor Space
30,000 T
Monthly Steel Output
120+
Global Export Markets
Enterprise Integrity & Capability
Engineering Mastery in Steel Pallet Racking Fabrication
Operating from Guangzhou, South China, Guangzhou Heda Shelves Co., Ltd. has established international trust through uncompromising structural engineering, certified metallurgical compliance, and vertically integrated factory operations since 2001. Unlike broker-driven supply chains, we maintain full chain custody over every ton of raw carbon steel coil, CNC profiling station, automated stamping punch, robotic welding cell, and electrostatic curing tunnel.
Our structural calculation protocols strictly verify cold-formed thin-walled steel sections according to the American Rack Manufacturers Institute (RMI MH16.1), the European Steel Racking Standard (EN 15512), and Australian AS 4084 standards. Each racking project is cross-examined against dead load ($G_k$), live payload ($Q_k$), vertical placement impact coefficients, and site-specific seismic shear actions, guaranteeing absolute stability under peak capacity demands.
Independent Third-Party Auditable Certifications
Holding official CE Certificate No. 2435-CPR-8605159, ISO 9001:2015 Registration No. 18624Q00169R0M, and comprehensive RoHS chemical compliance, Heda Shelves provides traceable steel mill test certificates (MTC 3.1) with guaranteed yield strength exceeding 235 MPa (Q235B) up to 355 MPa (Q355B).
Factory-Direct Export Value Proposition
Global supply chain architects prioritize total landed cost efficiency, zero structural deviation, and rapid deployment schedules. Our production facility bridges the gap between customized warehouse layouts and rapid containerized maritime shipping.
- Free Comprehensive CAD Engineering: Complete 2D layout planning, forklift aisle simulations, and high-definition 3D visualization within 24 hours.
- High-Density Shipping Bundles: Precision nested bundling for 40HQ container packing maximizes volumetric efficiency and drastically decreases CIF shipping cost per pallet position.
- Anti-Corrosive Chemical Resistance: Our 10-stage pre-treatment and electrostatic powder bake withstands severe coastal saline humidity and sub-zero cold storage condensation.
Technical Decision Matrix
Comparative Engineering Evaluation of Industrial Racking Architectures
Selecting the ideal pallet racking system demands balancing floor space utilization, SKU inventory velocity, forklift fleet compatibility, and capital investment per storage cell.
| Racking Architecture | Storage Density | Direct Access | Stock Rotation | Optimal Floor Use | Primary Sector Application |
|---|---|---|---|---|---|
| Selective Pallet Racking | Baseline (40–50%) | 100% Direct | FIFO / LIFO Any | Aisle: 2.8m – 3.5m | 3PL, FMCG E-commerce, High-SKU Distribution |
| Double Deep Racking | High (+30% vs Sel.) | 50% Direct | LIFO Priority | Pantograph Reach Truck | Dry Goods, Manufacturing Buffers, Multi-Batch |
| Drive-In / Drive-Through | Ultra-High (up to 80%) | Lane Dedicated | LIFO (Drive-In) / FIFO | Eliminates Aisles | Cold Storage, Agricultural Produce, Raw Materials |
| Radio Shuttle System | Maximum (85%+) | Semi-Automated | Dual (FIFO & LIFO) | Channels to 40m+ deep | Cold Chain Logistics, Food & Beverage Bottlers |
| Push-Back Cart Racking | High (60–70%) | Lane Facing | Strict LIFO | Nested Gravity Trolley | Medium SKU Batches, Fast In/Out Loading Dock Staging |
| Gravity Pallet Flow | Maximum (85%) | Separated Faces | Strict FIFO | Inclined Roller Track | Pharmaceuticals, Dairy, Expiration-Critical Retail |
| Very Narrow Aisle (VNA) | High (+45% vs Sel.) | 100% Direct | Continuous FIFO | Aisle: 1.5m – 1.8m | High-Ceiling Superhubs, Premium Land-Cost Zones |
*Note: Structural deflection limits strictly calculated under uniform distributed load (UDL) at $L/200$ deflection ratio per European EN 15512 standard guidelines.
Strategic Whitepaper Outlook
Next-Generation Procurement & Technological Evolution (2025–2035)
Global warehousing is entering a paradigm shift driven by urban real estate premiums, micro-fulfillment demands, labor scarcity, and automated material handling system (AMHS) integration.
01
Automation & AMR Compatibility
Racking frames are shifting from manual forklift tolerance standards (±5mm) to precision laser-aligned robotic tolerances (±1mm). Integration with Autonomous Mobile Robots (AMRs) and automated pallet shuttle car systems demands high-rigidity base footings and high-tolerance punch-hole geometry.
02
Cold Chain Thermal Dynamics
With pharmaceutical and frozen food cold chain investments surging across Southeast Asia, the Middle East, and Latin America, buyers are transitioning away from ordinary enamel paints toward pre-galvanized or deep immersion hot-dip galvanized racking profiles that resist thermal shock cycling (-30°C to +40°C).
03
Structural Finite Element Modeling (FEA)
Modern procurement requires project-tailored structural validation. Every racking design must undergo software-driven 3D Finite Element Analysis (FEA) under dynamic load conditions, accounting for seismic Zone II–IV base reactions, soil liquefaction factors, and torsional frame buckling.
04
Lifecycle Carbon Accounting (ESG)
Procurement teams at Fortune 500 logistics firms mandate quantifiable environmental sustainability. Our factory leverages 100% recyclable prime structural steel, low-emission closed-loop phosphating wastewater treatment, and zero-VOC heavy metals free electrostatic dry powder coats.
Procurement Intelligence: Total Cost of Ownership (TCO) vs. Initial Capital Expense
Smart procurement managers avoid the dangerous trap of comparing racking solely on initial steel tonnage price. A low-grade racking system fabricated with uneven wall thickness, suboptimal column punching, or poorly pre-treated coating introduces catastrophic operational risks:
Forklift Impact Fatigue:
Standard thin profiles buckle permanently under low-speed warehouse impacts. Heda uprights feature continuous 11-13 fold roll-formed omega geometry that distributes localized impact forces over the entire cross-section.
Beam Deflection and Creep:
Using inferior recycled steels results in progressive beam deformation over 18–24 months. Heda twin box beams are certified against permanent structural sag, ensuring smooth robotic fork insertion.
Delamination & Oxidation:
Skipping the pickling and phosphating stage leads to rapid paint peeling in tropical or humid port distribution centers. Our 10-stage immersion system locks the epoxy layer directly into the etched steel matrix.
Expert Buyer FAQ
Engineering, Maritime Logistics & Installation Clarifications
Critical technical answers designed for logistics facility directors, industrial property developers, structural consultants, and enterprise procurement executives.
What steel chemical specifications and tensile certifications are provided?
All Heda structural components are hot-rolled or cold-rolled from verified Q235B and Q355B prime carbon steel coils from certified mills (e.g., Baosteel, Shougang). We supply original 3.1 Mill Test Certificates confirming Yield Strength ($R_e \ge 235 \text{ MPa}$ to $355 \text{ MPa}$), Tensile Strength ($R_m = 370–510 \text{ MPa}$), and minimum elongation percentages ($A \ge 26\%$) for complete project audit trails.
How does Heda calculate safety factors for beam and upright structural load?
Structural components are calculated with an ultimate limit state safety factor of 1.5 to 1.65 against yield, adhering to European standard EN 15512 and RMI MH16.1. Beam deflection under full Uniform Distributed Load (UDL) is restricted to a maximum ratio of $L/200$ (or $L/250$ upon request), ensuring automated retrieval tools and forklift tines never snag on sagged pallets.
What surface treatment guarantees rust prevention in high-humidity or coastal ports?
Our components pass through an automated 10-stage chemical bath: alkaline degreasing, twin acid pickling for rust descaling, phosphating for crystal bonding, and passivation. Afterwards, high-voltage electrostatic epoxy-polyester powder is cured at 180°C–200°C with an average thickness of 60–90µm, passing 500-hour neutral salt spray tests (ASTM B117 compliant). Hot-dip galvanization is also available for outdoor or coastal yards.
What concrete warehouse floor specifications are required for anchoring?
Standard heavy-duty installations mandate a reinforced concrete slab of at least 150 mm to 250 mm depth with a compressive strength of C20/25 or C25/30 (25–30 MPa). Floor levelness must meet DIN 18202 Table 3 or TR34 FM2 standards for narrow aisle systems. Base plates are locked down using high-tensile M10–M16 mechanical wedge expansion anchors or chemical anchor bolts.
How are export shipments packed to prevent transit deformation?
Upright frames and horizontal beams are nested, bundle-strapped with heavy plastic-steel bands, wrapped in corrugated paperboard and protective air-cushion film, and equipped with custom wooden pallet runners. All accessory hardware (bolts, safety pins, footplates, shims) is packed in reinforced corrugated export cartons and sealed on wooden skids, maximizing container volume and preventing maritime moisture oxidation.
What installation guidance and on-site support is provided to international clients?
Every project shipment includes comprehensive 3D assembly shop drawings, numbered part manifests, torque specification manuals, and step-by-step video tutorials. For large-scale multi-tier projects or complex automated shuttle systems, Heda Shelves dispatches senior installation supervisors on-site to lead local labor teams, conduct pull-out tests, and certify final rack plumbness.
