Structural Design & Optimization of Span Track Flow Rack Systems
In modern order fulfillment and high-velocity assembly facilities, dynamic storage solutions bridge the gap between static bulk holding and fully automated retrieval systems. A Span Track Flow Rack (often classified within carton flow and conveyor-assisted dynamic racking) converts standard pallet rack bays into high-efficiency, gravity-fed picking faces. By replacing stationary decking with angled tracks of heavy-duty steel or durable polypropylene rollers, goods are loaded from the rear replenish aisle and smoothly glide forward to the picking face under controlled gravitational acceleration.
This First-In, First-Out (FIFO) stock rotation architecture eliminates aisle interference, drastically reduces picker travel distances by up to 60%, and safeguards product integrity through continuous line replenishment. At Guangzhou Heda Shelves, our span track systems are engineered with full-width roller assemblies and drop-in universal brackets that distribute product weight evenly over heavy-gauge galvanized steel side channels, ensuring zero sagging over continuous spans up to 3,600 mm.
Technical Principle: Optimal carton flow performance depends on gravity gradient calibration. Our engineering department designs roller track pitch between 2.5° and 4.5° (equivalent to a drop of 40–75 mm per linear meter), calibrated against carton tare weight, base rigidity, and roller drag coefficients to guarantee consistent velocity without carton impact damage.
Unlike conventional plastic skate-wheel tracks that develop flat spots under prolonged contact stress or yield to irregular tote bottoms, industrial span tracks utilize heavy-gauge continuous steel axled rollers or reinforced composite wheels. These provide 300% wider surface contact areas, mitigating box hang-ups and significantly improving warehouse ergonomics for assembly lines in automotive, fast-moving consumer goods (FMCG), and cold-chain pharmaceutical facilities.
| Storage System Type | Flow Mechanism | Picking Density | Stock Rotation | Standard Load Capacity | Primary Industrial Use Case |
|---|---|---|---|---|---|
| Full-Width Span Track | Heavy-Duty Steel / Polymer Rollers | Extremely High (Up to 90% bay use) | Strict FIFO | 150 – 400 kg / linear meter | Split-case picking, 3PL e-commerce hubs, automotive kitting |
| Skate-Wheel Carton Flow | Individual Staggered Wheels | Moderate to High | Strict FIFO | 50 – 100 kg / linear meter | Light carton handling, retail apparel replenishment |

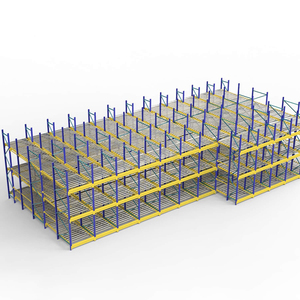

| Pallet Gravity Flow Rack | Brake-governed Twin / Triple Roller Lanes | Ultra-Dense Deep Lane (2–20 pallets deep) | Strict FIFO | 500 – 1,500 kg / pallet position | Cold storage, raw material buffers, beverage distribution |
| Selective Pallet Racking | Static Beam Support | Standard Direct Access | Flexible (LIFO/FIFO) | 1,000 – 4,000 kg / level | Multi-SKU general warehousing, large transit terminals |
| Rack-Supported Mezzanine | Multi-Tier Walkway Decking | Maximum Vertical Volumetric Efficiency | Manual Process Dependent | 300 – 1,000 kg / m² deck load | High-SKU small parts, garment storage, manual assembly hubs |
Advanced Manufacturing Powerhouse & Global Export Standards
With an operational legacy dating back to 2001, Guangzhou Heda Shelves Co., Ltd. has grown from a specialized metal processing unit into an international leader in storage rack engineering and export distribution.
Full In-House Metal Processing
We exercise comprehensive metallurgical control: cold coil slitting, precision CNC punching, high-yield continuous profile roll forming, robotic welding, and shot blasting. Nothing is outsourced, ensuring total dimensional repeatability and strict quality control.
Verified CE & ISO Credentials
Every batch of steel racking is produced under rigorous ISO 9001:2015 quality assurance protocols (Certificate No. 18624Q00169R0M) and carries CE certification (No. 2435-CPR-8605159), ensuring compliance with international warehouse structural safety codes.
Pretreatment & Anti-Corrosion
Every profile undergoes an 8-stage pickling and phosphating pre-wash before thermoset electrostatic powder coating. For aggressive environments like tropical ports or sub-zero blast freezers, hot-dip galvanizing protects surfaces from oxidation.
Complimentary 3D & CAD Design
Our veteran engineering team converts floor sketches, SKU velocity metrics, and building blueprints into optimized warehouse layouts with complete CAD drawings, static load calculations, and photorealistic 3D visual mockups—delivered within 24 hours.
Procurement & Technological Trends in Dynamic Flow Racking (2025–2035)
Driven by rapid e-commerce expansion, labor constraints, and rising real estate costs, storage procurement has shifted from static, inflexible steel shelves to dynamic, modular, and technology-integrated picking infrastructure.
Integration with Pick-to-Light (PTL) & AMR Systems
Modern distribution hubs are phasing out manual paper-pick lists in favor of digital carton flow systems. Flow rack pick faces are now pre-engineered with built-in extruded aluminum snap-in tracks for wiring harness runs, light sensors, and barcode verification displays. Concurrently, Autonomous Mobile Robots (AMRs) are replacing standard picking carts at the front face, requiring high-precision clearance dimensions and standardized bin presentation angles.
Hybrid High-Density Modular Retrofits
Rising construction costs and high interest rates have made brownfield optimization essential. Industrial operators are increasingly opting to retrofit existing selective pallet racking uprights with drop-in, tool-less span track sections rather than constructing new facilities. This enables rapid conversion of bottom floor levels into fast-pick carton flow zones while preserving bulk pallet reserve storage on upper beams.
Low-Carbon Steel Metallurgy & Circular Lifecycles
Global supply chains now emphasize Scope 3 emissions reductions. Future procurement specifications prioritize low-carbon electric arc furnace (EAF) steel coils, heavy-metal-free electrostatic powder resins, and completely demountable boltless track sections that can be recycled or reconfigured without on-site cutting or hot welding work.
Engineering Innovations: Roller Damping & Acoustic Dampening
A persistent operational issue in high-throughput gravity flow systems has been impact noise and carton velocity control. High-speed carton descent can cause carton box splitting, product damage, and disruptive ambient noise levels that violate occupational health guidelines.
Guangzhou Heda Shelves addresses this through proprietary centrifugal speed controllers and resilient thermoplastic elastomer (TPE) roller jackets integrated directly into our span tracks. When descending carton velocity exceeds 0.35 m/s, internal centrifugal brake pawls engage progressively, providing quiet deceleration without mechanical jamming or electrical power requirements.
Frequently Asked Questions on Span Track & Flow Racks
Technical guidance and engineering insights to help project engineers, supply chain managers, and procurement officers make informed purchasing decisions.
What is the structural difference between Span Track and standard plastic skate-wheel flow tracks?
Traditional carton flow tracks use individual plastic skate-wheels mounted on staggered light-gauge metal rails. Under continuous use or high-density storage, skate-wheels concentrate product weight onto narrow contact points, which can cause corrugated box bottoms to bow, get caught, and fail to advance. In contrast, Span Track utilizes full-width steel or heavy-duty synthetic rollers housed in a rigid structural frame. This spreads the load across the entire width of the carton, provides up to 300% more surface contact, accommodates warped or soft-bottomed totes, and supports loads exceeding 300 kg/m with minimal deflection.
Can Span Track be retrofitted into our existing selective pallet racking?
Yes. Our span track assemblies are engineered to retrofit into virtually any standard step beam, box beam, or structural steel beam profile. We manufacture custom-formed universal drop-in hangers and adjustable brackets that lock directly over your front and rear load beams without requiring on-site drilling or welding. This allows you to convert the lower levels of your existing pallet racking into high-efficiency carton flow pick faces while maintaining full pallet reserve storage above.
How do you calculate the correct pitch angle for carton flow?
Pitch angle is determined based on the friction coefficient of the container base material, total tare weight, roller bearing friction, and total track lane length. Corrugated cartons typically require an incline between 3.5° and 4.2° (approximately 60–75 mm drop per meter of lane length). Rigid plastic injection-molded totes have lower rolling resistance and can operate efficiently at shallower slopes between 2.2° and 3.0°. We perform physical drop tests and test simulations on client box samples at our factory testing bay before confirming final bracket heights.
How are export shipments packed to prevent transit deformation?
Because span track channels and upright profiles are susceptible to torsional bending during rough sea transit, we follow a strict export packing methodology. All upright frames and track assemblies are nested into rigid bundles strapped with high-tensile steel bands, protected with corrugated corner guards, and wrapped in thick multilayer polyethylene shrink wrap. Roller bearings are coated with vapor-corrosion-inhibiting (VCI) oil, and smaller hardware fittings are crated in heat-treated fumigated wooden boxes compliant with ISPM-15 standards.
What is the typical lead time and minimum order quantity (MOQ)?
Standard warehouse flow rack systems and components typically ship within 15 to 25 business days from CAD drawing approval. Our monthly production capacity of 30,000 tons allows us to process both large multi-container distribution center orders and smaller distributor replenishments with equal efficiency. Our MOQ is generally one 20GP container load, but trial orders for specific warehouse expansion bays can be arranged.
