Enterprise-Grade Warehouse Pallet Racking Solutions
Explore our high-performance heavy-duty racking systems engineered from prime Q235B/Q355B cold-rolled steel. Custom designed to optimize volumetric space utilization, maximize load safety, and integrate seamlessly with modern material handling equipment.
HEDA Guangzhou Steel Pallet Racking System Warehouse Rack Storage Shelves Heavy Duty
Engineered for high-density multi-tier storage with load capacities reaching 4,000kg per beam level. Features adjustable 75mm beam pitch and safety locking pins.
View Technical Specs

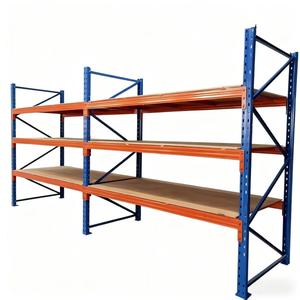

Mracking Heavy-duty Pallet Racks Accept Customized Racks Sturdy with Diagonal Bracing
Reinforced horizontal and diagonal truss bracing design for superior structural stability under severe dynamic loading and seismic conditions.
View Technical Specs

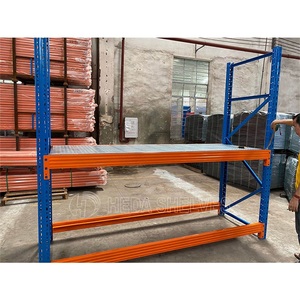

1500kg Per Layer Heavy Duty Shelves Storage Rack Warehouse Steel Pallet Racking System
Optimized 1500kg/layer payload selective racking ideal for manufacturing logistics, distribution centers, and standard palletized goods handling.
View Technical Specs
Industrial Heavy Duty Adjustable Pallet Racks Cold Rolled Steel Powder Coated Custom Layout
Custom engineering tailored for overseas logistics hubs. Treated with electrostatic powder coating for corrosion resistance in humid tropical climates.
View Technical Specs
Conventional Steel Pallet Racks for Forklift Access in Industrial Warehouses
Designed for 100% direct pallet selectivity. Compatible with reach trucks, counterbalanced forklifts, and VNA narrow aisle equipment setups.
View Technical Specs
2000*600*2000 Medium Duty 300kg/Layer Multifunctional Warehouse Steel Storage Rack
Versatile intermediate modular shelving system for manual picking, spare parts management, and medium-weight industrial goods staging.
View Technical Specs
Mracking Heavy-Duty Drive-In Pallet Rack Steel Detachable Multi-Layer Storage
High-density LIFO storage solution maximizing floor area by eliminating operational aisles. Perfect for cold storage, agricultural, and uniform SKU inventory.
View Technical Specs
Safe and Durable Industrial Storage Pallet Rack Storage System Cold Rolled Steel Heavy Duty
Rigorous ISO 9001 certified heavy-duty storage system built with continuous robotic welds and structural column protectors for extreme industrial durability.
View Technical Specs1. Executive Whitepaper: Structural Integrity in Heavy-Duty Warehouse Racking
In modern supply chain management and industrial logistics, the physical storage framework forms the backbone of operational velocity and workplace safety. Selecting a trusted pallet racking factory and supplier requires far more than comparing baseline material costs per ton. Industrial warehouse racking systems are active structural load-bearing installations subject to dynamic stress, repetitive impact forces, ambient environmental degradation, and seismic loading parameters.
As supply chain hubs scale vertically to mitigate rising commercial land prices, structural racking systems regularly reach heights between 8 to 15 meters, carrying concentrated payload weights exceeding 30,000 kg per bay. A structural collapse due to inferior raw steel grades, sub-standard cold-roll forming, or improper load-beam calculations can result in catastrophic financial liability, operational paralysis, and human casualties.
Technical Comparison Matrix: Conventional Racking vs. High-Density Systems
To assist warehouse operations directors and procurement executives in specifying the optimal system architecture, the following engineering matrix synthesizes physical performance characteristics across prime racking configurations:
| Racking Architecture | Space Utilization | Pallet Selectivity | Handling Equipment | Max Load/Level | Primary Application |
|---|---|---|---|---|---|
| Selective Pallet Racking | 40% – 50% | 100% Direct Access | Standard Counterbalance / Reach | 4,000 kg | Multi-SKU, high-turnover logistics & 3PL |
| Drive-In / Drive-Thru | 75% – 85% | Low (LIFO / FIFO) | Counterbalance / Reach Truck | 1,500 kg / pallet | Cold storage, bulk beverage, seasonal ag |
| Radio Shuttle Racking | 80% – 90% | Medium (Automated FIFO/LIFO) | Shuttle Cart + Forklift | 2,000 kg / pallet | Automated high-density food & chemical hubs |
| Push-Back Racking | 65% – 75% | Moderate (LIFO per lane) | Standard Forklift Fleet | 1,500 kg / cart | Medium-turnover, multi-lane buffer storage |
| Cantilever Racking | 50% – 65% | 100% Linear Access | Side Loaders / Specialized Forklifts | 3,000 kg / arm | Steel pipes, TMT bars, timber & long profiles |
2. Enterprise Advantages: Guangzhou Heda Shelves Co., Ltd.
Founded in 2001 and headquartered in Guangzhou, China, Guangzhou Heda Shelves Co., Ltd. has established itself as an international benchmark in warehouse storage engineering, factory-direct manufacturing, and end-to-end logistics infrastructure deployment. Spanning a state-of-the-art 30,000 square meter production complex, our facility integrates fully automated continuous cold-roll forming, automated column punching, robotic arc welding, and electrostatic powder coating lines.
Prime Structural Raw Steel
Exclusively utilizing high-tensile Q235B and Q355B structural steel coils from tier-1 state-owned steel mills, providing certified yield strengths up to 355 MPa.
Automated 10-Stage Surface Finish
Automated pickling, phosphating, acid washing, and electrostatic epoxy-polyester powder coating guarantees superior salt-spray corrosion resistance.
Free Custom CAD & 3D Layouts
In-house structural engineering team provides complimentary 24-hour CAD space calculations, structural load simulations, and 3D renderings.
3. Future Procurement Trends in Industrial Warehouse Racking
Global supply chain transformations are radically reshaping how enterprises approach industrial procurement for warehouse infrastructure. Buyers are transitioning from transactional, low-cost purchasing models toward holistic Total Cost of Ownership (TCO) evaluation. Key future procurement vector transformations include:
- Integration Readiness for Automated Guided Vehicles (AGVs) & AMRs: Traditional pallet racking design was engineered around human forklift operators. Next-generation procurement demands micro-tolerance fabrication (column straightness within ±1mm per 10m height) to allow seamless navigation by Autonomous Mobile Robots (AMRs) and automated shuttle systems.
- Supply Chain Decarbonization & Green Steel Powder Coating: Scope 3 carbon footprint tracking is enforcing sustainable sourcing practices. Leading global procurement divisions prioritize suppliers utilizing zero-VOC electrostatic powder coatings and closed-loop water recycled pretreatment systems.
- Modular Scalability & Fast-Assembly Fasteners: In dynamic e-commerce fulfillment environments, operational flexibility is paramount. Boltless adjustable beam connectors, teardrop punch profiles, and detachable mezzanine platforms reduce field installation timelines by over 35%.
- Seismic Mitigation & Dynamic Deflection Engineering: With warehousing expanding across earthquake-prone regions in South Asia, North America, and Europe, structural engineering specs now mandate seismic anchor footplates, dynamic cross-bracing, and localized moment-resisting frame calculations.
4. Technological & Material Development Trends in Storage Systems
The storage equipment industry is experiencing a technological revolution powered by advances in metallurgy, IoT structural health monitoring, and advanced simulation software. The following technical trends represent the cutting edge of industrial storage engineering:
Cold-Formed High-Strength Light-Gauge Profiles
Through advanced roll-forming algorithms and cold-work hardening techniques, modern upright columns utilize multi-fold geometry (up to 12-bend profiles). This structural geometry significantly enhances section modulus and torsional stiffness while reducing total raw material weight, driving down transport freight costs without compromising structural payload capacities.
IoT Sensor Integration & Real-Time Load Monitoring
Smart warehousing infrastructure is deploying embedded strain gauges and optical displacement sensors inside main load beams and column bases. Wireless telemetry sends real-time deformation alerts to Warehouse Management Systems (WMS) when static load capacities are breached or when structural uprights sustain critical forklift collision impacts.
5. Warehouse Racking Procurement & Engineering FAQ
Essential technical answers compiled by HEDA senior engineering directors to address complex structural, compliance, and procurement queries:
What structural information is required to design a custom warehouse pallet racking layout?
To prepare an optimized CAD drawing and static structural calculation, our engineering team requires: (1) Warehouse architectural drawings showing clear building height, column grid matrix, and floor plan dimensions; (2) Pallet dimensions (Length × Width × Height including cargo); (3) Maximum load weight per pallet; (4) Forklift truck specifications (maximum lift height, turning radius, aisle clearance requirement); and (5) Ambient operational temperature ( ambient vs. cold store room ).
How does HEDA guarantee compliance with international quality and safety standards?
All HEDA racking systems undergo rigorous structural testing in accordance with European standard EN 15512 and FEM 10.2.02 guidelines. We hold official CE certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management certification (No. 18624Q00169R0M), and RoHS environmental compliance. Every shipment is accompanied by mill test certificates (MTC) verifying raw steel chemistry and tensile yield strength.
What surface finish options are recommended for humid, coastal, or cold-chain environments?
For standard dry indoor warehouses, our 10-stage electrostatic epoxy-polyester powder coating (thickness 60–80 microns) provides long-lasting scratch and rust resistance. For coastal warehouses, chemical storage facilities, or sub-zero cold stores (-25°C), we recommend hot-dip galvanizing (HDG) or zinc-rich primer pre-treatments to prevent intergranular oxidation and coating failure.
What is the typical production lead time and ocean container shipping process for overseas projects?
Standard manufacturing lead times range from 15 to 25 calendar days depending on total steel tonnage. Upright frames and beams are tightly bundled using protective steel strapping and plastic wrapping designed to optimize 20GP and 40HQ container space utilization. Complete installation drawings, numbered component lists, and video guides are provided with every shipment.
Can HEDA supply rack-supported mezzanines and multi-tier picking structures?
Yes. HEDA specializes in rack-supported mezzanine platforms and structural steel floor systems with load capacities ranging from 300kg/m² to 1,000kg/m². These integrated systems double or triple usable floor square footage without requiring traditional building construction permits, ideal for e-commerce order picking and automotive spare parts distribution.
Optimize Your Warehouse Storage Density & Safety Today
Partner directly with Guangzhou's premier warehouse racking factory. Connect with our senior structural engineers now to receive a complimentary custom CAD layout design, structural load analysis, and factory-direct price quotation within 24 hours.
