Top Recommended Heavy Duty Industrial Pallet Racks
Precision-engineered in our 30,000 m² factory using cold-rolled Q235B/Q355B structural steel, conforming to EN 15512:2020, RMI (ANSI MH16.1), and FEM 10.2.02 international racking design standards.

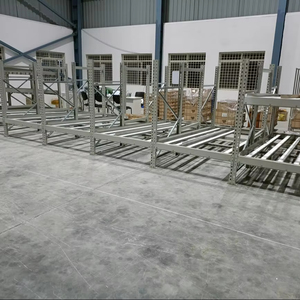

FIFO Flow
Heavy Duty Steel Pallet Flow Racking System
Gravity-driven dynamic roller lane design engineered for strict FIFO stock rotation, maximum throughput, and zero internal aisle energy usage.
- Load: 500-1500 kg/Pallet
- Incline: 3-4% Gradient
- Brake Roller Control
100% Selective
Heavy Duty Warehouse Industrial Pallet Racking
The gold standard for high-SKU distribution hubs. Featuring 75mm/50mm pitch adjustable beam levels and mechanical 5-pin safety connector locks.
- Load: 1000-4500 kg/Beam
- Height: Up to 12 Meters
- Steel: Certified Q235B

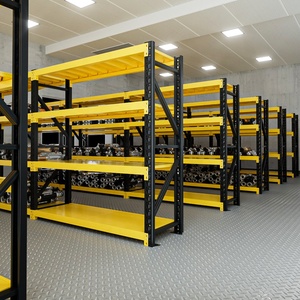

Medium Duty
Industrial Storage Racks Warehouse Plate Shelving
Designed for manual picking and hybrid carton-pallet fulfillment centers. Cold-rolled steel decking panels with anti-slip embossed surface finish.
- Load: 200-800 kg/Level
- Boltless Clamping System
- Multi-Bay Continuous Run
Custom Heavy Duty
Customized Industrial Rack Heavy Duty System
Engineered for extreme localized structural loads, heavy equipment molds, and corrosive industrial chemical staging with reinforced base plates.
- Sectional Uprights: 120x95mm
- Thickness: 2.0-3.0mm
- Epoxy Electrostatic Powder
Double Deep
Double Deep Pallet Racking High Density System
Doubles storage density over standard selective racks by placing pallets two deep in back-to-back bays. Requires pantograph pantograph/deep-reach forklifts.
- Floor Footprint: -30% Aisles
- 50% Immediate Access
- Guide Rail Optimized
Textile & Rolls
Multi-Level Carpet Roll Beam Pallet Racking
Specialized cradle beams and extra-deep cantilever or selective support bars customized for heavy rolls of non-wovens, textiles, paper, and industrial coils.
- Length: Up to 6000mm Bay
- Custom Saddle Saddles
- Integrated End Protectors
Long Span
Adjustable Long Span Boltless Shelving Units
High-capacity step beam design with drop-in galvanized steel or timber shelf decking. Modular expandability makes it ideal for multi-tier mezzanine floors.
- Load: 300-1000 kg/Tier
- CE Certified Design
- Corrosion-Resistant Powder
Workshop & Light Duty
Adjustable Layer Warehouse Boltless Steel Rack
Rapid tool-less interlocking rivet or butterfly hole configuration for assembly plants, e-commerce micro-fulfillment centers, and maintenance stores.
- Assembly: 100% Bolt-Free
- Load: 100-300 kg/Level
- Scratch-Resistant Finish
Engineering Decision Framework: Structural System Selection Matrix
A technical assessment model evaluating storage density, accessibility, forklift requirements, and dynamic live loads to maximize cubic utilization.
| Racking Topology | Accessibility Index | Space Density | Aisle Clearance | Forklift Compatibility | Primary Industrial Use-Case |
|---|---|---|---|---|---|
| Selective Pallet Rack | 100% Immediate (FIFO/LIFO) | Standard (40-50%) | 3.0m - 3.5m | Counterbalance / Reach Truck | High SKU variety, fast FMCG turnover, retail 3PL hubs. |
| Double Deep Racking | 50% Direct Access (LIFO) | High (60-65%) | 2.8m - 3.2m | Pantograph Double Reach | Homogeneous stock, cold storage, manufacturing staging. |
| Drive-In / Drive-Thru | Last-In, First-Out (LIFO) | Maximum (75-85%) | Lane Dependent | Counterbalance (Drive-Through) | Seasonal produce, batch agriculture, bulk cold storage. |
| Radio Shuttle System | Semi-Automated FIFO / LIFO | Extreme (80-90%) | Transfer Aisle Only | Standard Reach + Shuttle Cart | Large-scale beverage bottling, cold-chain distribution. |
| Pallet Gravity Flow | Strict FIFO (Gravity Rollers) | High (70-80%) | Loading & Pick Faces | Standard Lift Trucks | Perishable foods, pharmaceuticals with expiration cycles. |
| Very Narrow Aisle (VNA) | 100% Direct Selective | High (65-75%) | 1.6m - 1.8m | Turret Truck / Man-Up VNA | High clear-height logistics centers with costly real estate. |
Why Tier-1 Importers Partner With HEDA Shelves
Operating a modernized 30,000 m² integrated production base in Guangzhou, China, Guangzhou Heda Shelves Co., Ltd. controls the complete metallurgical process from raw coil slitting to precision robotic welding and electrostatic powder coating.
Certified Steel Metallurgy
We source cold-rolled structural steel coils exclusively from premier primary mills (Baosteel, Shougang) certified under GB/T 700-Q235B and Q355B. Yield strength is routinely tested beyond 235 MPa and 355 MPa respectively, maintaining tensile safety margins exceeding 1.65.
- Mill Test Certificates (MTC) supplied with every production batch
- Automated continuous roll-forming lines guarantee ±0.5mm profile tolerance
- Computer-controlled high-speed punching ensures precise 50mm/75mm beam adjustment
9-Stage Anti-Corrosion Treatment
Standard industrial coatings often degrade rapidly in tropical or marine environments. HEDA utilizes a thorough 9-stage automated chemical pretreatment system including immersion degreasing, ultrasonic rust removal, zinc phosphating, and pure DI water rinsing.
- Cured with heavy-duty thermosetting epoxy-polyester electrostatic powder
- Standard coating thickness: 60 to 80 microns (expandable up to 120 microns)
- Exceeds 500-hour ASTM B117 neutral salt spray corrosion resistance tests
FEM & Seismic Engineering Compliance
All load designs undergo Finite Element Analysis (FEA) to simulate complex second-order P-Delta structural displacement and localized buckling. Compliant with EN 15512:2020, FEM 10.2.02, and AS 4084:2023 standards.
- Custom structural baseplate sizing for site-specific concrete compressive limits
- Seismic bracings configured to withstand local acceleration coefficients
- Free complete 2D CAD layout plans and 3D visual models provided within 24 hours
Future Procurement & Technological Trends in Pallet Racking (2025–2030)
A forward-looking perspective on how automation integration, sustainable metallurgy, and dynamic logistics are redefining intralogistics capital investment.
1. Convergence of AS/RS & Autonomous Mobile Robots (AMRs)
The traditional standalone static pallet rack is rapidly evolving into a precision-engineered automation interface. Over the next five years, over 65% of large-scale global greenfield distribution centers will deploy high-density Shuttle Racking and automated stacker cranes (AS/RS).
Procurement teams must specify significantly tighter structural tolerances (deflection limits restricted to L/400 instead of traditional L/200) to ensure laser-guided automated guided vehicles (AGVs) and optical sensors can index pallets without collision or false-positive beam sensor errors.
2. Carbon-Neutral Metallurgy & Recyclable Finishes
Scope 3 ESG reporting is rapidly impacting international racking procurement. Major multinational retail and logistics brands are prioritizing suppliers utilizing electric arc furnace (EAF) low-carbon steel, alongside zero-VOC, heavy-metal-free electrostatic powder coatings that comply fully with RoHS and REACH directives.
Modular, demountable rack components are replacing welded structural channels, ensuring warehouse facilities can reconfigure, extend, or relocate storage systems with zero structural scrap, cutting lifecycle depreciation costs.
3. IoT Structural Health Monitoring & Dynamic Impact Sensing
Accidental forklift impact remains the primary cause of progressive warehouse rack collapses worldwide. The next generation of industrial racking integrates strain-gauge sensors, RFID column identity tags, and 3D accelerometer pods into the front uprights.
These smart telemetry systems immediately alert facility managers to severe structural shocks that exceed localized yield tolerances, initiating automated work-order inspections before hazardous beam disconnection or column bucking can compromise worker safety.
Frequently Asked Questions: Global Pallet Rack Procurement
Direct technical guidance from HEDA Shelves' chief structural engineers to help supply chain directors avoid critical design flaws, customs bottlenecks, and costly warehouse downtime.
Accelerate Your Warehouse Capacity with Expert Engineering
Partner with Guangzhou Heda Shelves Co., Ltd. Receive a complimentary, fully engineered 2D/3D warehouse layout calculation, seismic stability assessment, and complete bill of materials within 24 hours.
