Long Span Pallet Racking Architecture & Industrial Storage Engineering
An exhaustive technical manual on optimizing volumetric warehouse density, structural deflection limits, and load capacity safety margins for enterprise supply chains.
In modern industrial logistics, selecting a qualified long span pallet racking supplier is a capital decision that directly impacts operational throughput, structural safety, and long-term facility scalability. Long span racking bridges the structural gap between light-duty manual shelving and heavy-duty selective pallet racks. Engineered to accommodate medium-to-heavy bulk items, unpalletized merchandise, carton overflow, and heavy industrial components, long span rack systems utilize high-yield cold-rolled steel profiles engineered for maximum clear-span distance without intermediate upright interference.
At Guangzhou Heda Shelves Co., Ltd. (HEDA Shelves), founded in 2001, we have spent over two decades engineering structural warehouse solutions across global logistics nodes. Operating a state-of-the-art 30,000-square-meter manufacturing facility with a monthly output exceeding 30,000 tons of finished steel racking, HEDA Shelves integrates custom finite element analysis (FEA), automated roll-forming, and strict CE and ISO 9001:2015 quality assurance into every beam and upright manufactured.
Technical Insight: Structural safety in long span and heavy-duty racking relies on beam deflection standards. According to FEM 10.2.02 and EN 15512 codes, maximum allowable beam deflection under full static load must not exceed L/200 (where L is the clear span length). HEDA Shelves engineers every beam connector with safety locking pins and custom profile geometries to eliminate torsional rotation under eccentric load distributions.
High Yield Q235B / Q355B Steel
We source premium cold-rolled structural steel coils with verified tensile strengths. Cold-formed teardrop and diamond column profiles ensure structural rigidity against forklift impacts and seismic vibrations.
Surface Pretreatment & Coating
Automated 8-stage pickling and phosphating pretreatment removes all surface oxides prior to electrostatic powder coating (60–80 microns thickness), guaranteeing superior salt-spray and moisture resistance.
Full Modular Customization
Adjustable beam pitch (50mm / 75mm increments), customizable frame depths (600mm to 1200mm), and hybrid decking options (steel panels, wire mesh, particle board) tailored to exact warehouse architectural CADs.
Industrial Storage System Comparison Guide
Compare mechanical characteristics, access efficiency, and payload parameters across core racking categories to determine optimal facility fit.
| Racking Category | Load Capacity (Per Level) | Selectivity & Access | Storage Density | Recommended Industrial Applications |
|---|---|---|---|---|
| Long Span Racking | 300 kg – 1,000 kg | 100% Direct Manual Access | Medium High | E-commerce fulfillment, auto parts, retail backroom, archive storage, hand-picked cartons. |

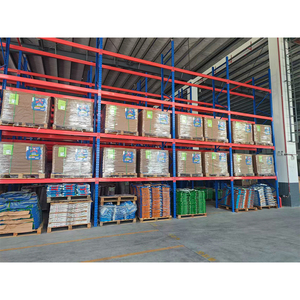

| Selective Pallet Rack | 1,000 kg – 4,000 kg | 100% Direct Forklift Access | Standard Medium | Multi-SKU logistics hubs, 3PL warehouses, pharmaceutical storage, FMCG centers. |

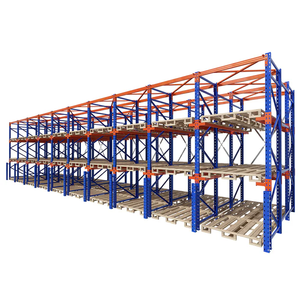

| Drive-In / Drive-Thru | 1,000 kg – 2,000 kg/pallet | LIFO / FIFO Lane Access | Maximum Density | Cold storage, seasonal agricultural produce, bulk uniform SKU manufacturing facilities. |
| Radio Shuttle System | 1,500 kg/pallet (Semi-Auto) | Automated Lane Retrieval | Ultra High Density | Automated cold chains, beverage distribution, high-turnover food manufacturing. |
| Cantilever Racking | 1,000 kg – 3,000 kg/arm | 100% Open Horizontal Access | Specialized Linear | Steel pipes, TMT rebar, timber bundles, extruded aluminum profiles, building materials. |
Future Sourcing & Product Engineering Trends (2025–2030)
How automation, ESG compliance, digital twin CAD planning, and advanced metallurgy are reshaping the global procurement landscape for industrial racking.
1. Hybrid AMR/AGV Racking Integration
Procurement is shifting away from static racks toward AMR-compatible structures. Future long span systems feature widened bottom-clearance aisles, guided floor tracks, and integrated rack-supported mezzanines engineered specifically for Autonomous Mobile Robots and automated order pickers.
2. Decarbonized Steel & ESG Procurement
Global enterprise buyers increasingly mandate carbon-footprint transparency. HEDA Shelves leads this transition by utilizing eco-friendly electrostatic powder coatings free of VOCs/heavy metals and sourcing raw steel processed via energy-efficient electric arc furnaces (EAF).
3. High-Strength Thin-Walled Profiles
Advancements in cold-roll forming allow engineers to achieve higher load capacities using micro-alloyed ultra-high-strength steel. This reduces raw material mass and landed shipping costs while maintaining rigid safety factors under structural load testing.
Evolution of Product Engineering: Modular Boltless Mechanics

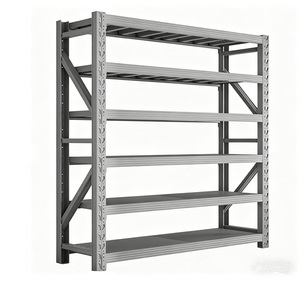

Historically, long span shelving required labor-intensive bolting at column junctions. Modern long span pallet racking utilizes self-locking interlocking beam connectors with drop-in safety pins. This boltless engineering reduces site installation timelines by up to 60%, allowing rapid readjustment of beam levels as SKU dimensions change. Furthermore, multi-tier rack-supported mezzanines built upon long span heavy-duty frames are replacing expensive civil building expansions, allowing companies to double or triple vertical footprint utility without breaking ground on new real estate.
Frequently Asked Sourcing & Technical Questions
Expert answers to common procurement, compliance, structural calculation, and international shipping queries.
Q1: What distinguishes Long Span Pallet Racking from standard industrial shelving?
Long span pallet racking is heavy-duty modular shelving designed for larger clear-span widths (typically 1,500mm to 3,000mm) and heavier payloads (up to 1,000kg+ per beam level) compared to light-duty shelving. It utilizes structural upright frames similar to selective pallet racks, making it ideal for non-palletized bulk items, heavy boxes, and hand-loaded goods that exceed standard shelving capacities.
Q2: How does Guangzhou Heda Shelves ensure quality control and structural safety?
HEDA Shelves operates under an ISO 9001:2015 certified quality management system and holds international CE certification (No. 2435-CPR-8605159). Every production batch undergoes raw steel tensile testing, weld penetration audits, powder coat thickness verification (60–80 µm), and static load testing in accordance with FEM 10.2.02 racking standards.
Q3: What information is required to receive a custom 3D layout and quote?
To prepare an accurate engineering drawing and budget proposal, we require: (1) Warehouse floor plan dimensions and clear ceiling height, (2) Pallet or package dimensions (L x W x H), (3) Maximum weight per storage level or pallet, (4) Operating aisle widths or forklift model specifications, and (5) Project site location for environmental/seismic design considerations.
Q4: Can HEDA racking systems be customized for humid or cold storage environments?
Yes. For high-humidity, coastal, or sub-zero cold storage facilities (down to -30°C), we offer hot-dip galvanizing (HDG) or specialized anti-corrosive zinc-rich epoxy powder coatings. This prevents rust, peeling, and embrittlement, ensuring a long operational lifespan.
Q5: What are the typical ocean freight lead times and packaging standards?
Standard production lead times are 15 to 20 days following technical drawing sign-off. Components are bundled using high-tensile steel strapping, corner edge protectors, and waterproof plastic film wrapping optimized for 20GP and 40HQ container density, preventing transport damage during transoceanic transit.
Q6: Does HEDA Shelves supply installation guidance and international support?
Yes. Every shipment includes step-by-step assembly drawings, 3D structural guides, and video tutorials. For large-scale enterprise projects, HEDA can dispatch experienced installation engineers on-site to direct local assembly teams and conduct final safety sign-offs.
Why Direct Sourcing from HEDA Shelves Advantageous
Partner with a proven OEM/ODM manufacturer backed by 25+ years of storage innovation, end-to-end quality control, and direct factory pricing.
Direct Factory Pricing
Eliminate middleman markups. Sourcing directly from our Guangzhou facility guarantees competitive cost-per-pallet position pricing while retaining full control over custom design specifications.
Complimentary 3D & CAD Design
Our dedicated engineering department provides complimentary initial warehouse layouts, load calculation reports, and 3D realistic renderings within 24 hours of inquiry submission.
Certified Quality & Warranty
All structural steel racking is backed by CE and ISO certifications, supported by a 5-year structural warranty against manufacturing defects for complete procurement peace of mind.
