Featured Industrial Racking & High-Density Storage Solutions
Standardized cold-rolled structural Q235B/Q355B steel racking components manufactured in-house. Tailored specifically for global logistics centers, cold chains, automotive distributors, and intensive retail supply hubs.

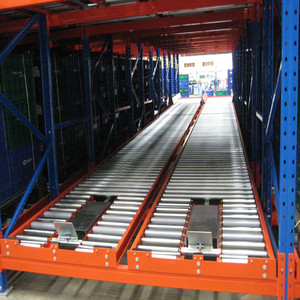

Factory Steel Warehouse Gravity Carton Pallet Flow Roller Sliding Rack
Engineered inclined roller lanes utilizing controlled gravitational force. Guarantees 100% strict FIFO inventory rotation with autonomous magnetic speed separators for high-throughput fulfillment.

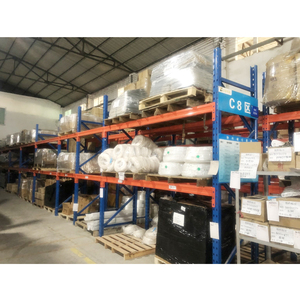

Customize Small and Medium Warehouse Shelves Industrial Steel Shelf Heavy Duty Pallet Track
Custom cold-formed steel shelving featuring multi-pitch column perforations. Tailor-made for intermediate raw component staging, automotive tier-1 assembly, and variable carton logistics.

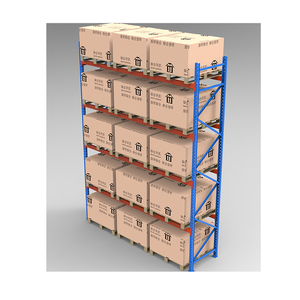

Warehouse Racking Heavy Duty Rack System Stack Warehouse Storage Steel Pallet Racks for Sale
High-capacity structural selective pallet rack system with interlocking safety pins and heavy-gauge box beams. Configured for uninhibited reach truck and counterbalance forklift operations.

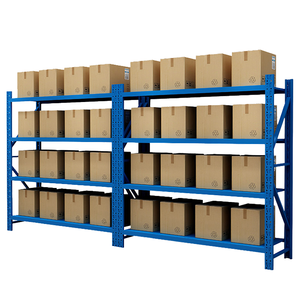

Factory Metal Heavy Duty Racking Boltless 4-Layer Steel Industrial Storage Shelves Electrostatic Powder
Precision rivet and butterfly-hole boltless architecture allowing fast reconfiguration without specialized tooling. Protected with anti-corrosive thermoset polyester powder coating.
Manufacturer's Long Span Storage Adjustable Corrosion Protection 200Kg Steel Racking Warehouse Shelving
Longspan multi-tier storage shelving for bulk cartons and manual goods picking. Integrated with step beams and heavy-duty steel drop-in shelves treated with pickling and phosphating.

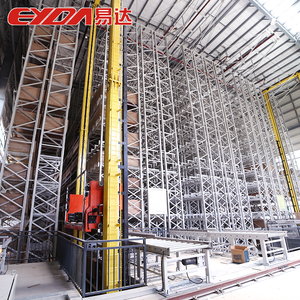

EYDA ASRS Warehouse System Stack Crane Automated Storage Retrieval System Intelligent Cold Storage Shuttle Rack
High-bay intelligent four-way and two-way radio shuttle systems configured for deep freeze (-30°C) logistics. Eliminates forklift lane travel to slash energy consumption and space loss.
Heavy Duty Industrial Shelves Cargo Steel Warehouse Iron Metal Pallet Racking Bolt Structure Carton Storage Rack
Rigid bolted upright frames reinforced with diagonal C-profile bracing. Engineered to withstand lateral seismic forces, vehicle impacts, and uneven concentrated industrial pallet loads.

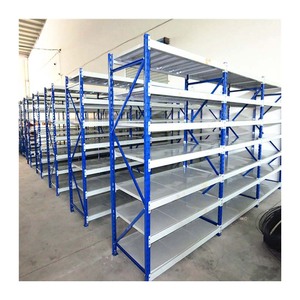

Mracking Light Duty Warehouse Selective Shelf Metal Steel Customized Warehouse Rack Boltless Racking
Cost-efficient light-to-medium selective shelving for archive management, retail back-room sorting, and small parts distribution. Quick tool-free shelf level adjustments on 50mm increments.
Structural Engineering, Metallurgy, and Load Mechanics in Modern Racking
Specifying warehouse storage systems is not merely a question of steel tonnage; it is a critical structural engineering calculation involving soil bearing capacity, dynamic forklift kinetic impact, deflection thresholds, and seismic coefficient analysis.
Cold-Formed High-Tensile Steel Profiles
Our upright columns and load beams are roll-formed from certified primary hot-rolled steel coils (Q235B and Q355B structural grades). Through precision cold-forming, continuous omega profiles undergo work-hardening, significantly elevating yield strength from 235 MPa up to 355+ MPa. This enables higher buckling resistance without adding redundant dead weight to your concrete foundation slab.
Deflection Limits & Safety Factors
Structural reliability adheres stringently to European FEM 10.2.02 / EN 15512 and American RMI MH16.1 codes. Under full rated design load, our box beams maintain a maximum deflection ratio of less than L/200 (span length divided by 200), preventing irreversible plastic deformation and guaranteeing seamless pallet retrieval for automated lift trucks.
Slab Pressure & Seismic Bracing
Point load distribution beneath racking upright baseplates must be verified against concrete slab compressive resistance (typically 25-35 MPa). In seismic-active regions, our finite element engineers execute response spectrum analysis to incorporate horizontal portal ties, top transverse cross-bracing, and heavy-duty M12-M16 chemical expansion anchor bolts.
| Storage System Archetype | Pallet Selectivity | Volumetric Density | Floor Space Utilization | FIFO vs. LIFO | Handling Equipment Required | Optimal Industry Application |
|---|---|---|---|---|---|---|
| Standard Selective Racking | 100% Direct Access | Moderate (35-40%) | Standard Aisle (3.0-3.5m) | Any Rotation | Counterbalance / Reach Truck | 3PL hubs, multi-SKU retail, FMCG |
| Double Deep Pallet Racking | 50% Immediate Access | High (50-60%) | Medium Aisle (2.8-3.2m) | FILO / LIFO | Deep-Reach Pantograph Forklift | High-throughput batch manufacturing |
| Drive-In / Drive-Through | Lane Dependent | Ultra-High (70-80%) | Zero Internal Aisles | LIFO (FIFO with Drive-Thru) | Standard Reach Forklift | Seasonal produce, cold storage, beverage |
| Push-Back Cart Racking | Lane Front Pick | High (65-75%) | Single Access Aisle | LIFO (Gravity Nested) | Counterbalance / Reach Truck | Cold storage, intermediate buffer lines |
| Radio Shuttle Automation | Channel Selective | Maximum (80-88%) | Optimized Drive Lanes | Both FIFO and LIFO | Standard Forklift + Radio Shuttle Cart | Deep freeze (-30°C), pharma, food export |
| Multi-Tier Mezzanine Rack | 100% Manual Floor Pick | Vertical Max (200-300%) | Multi-Level Footprint | Custom Process | Carton Flow, Conveyor, Freight Hoist | E-commerce fulfillment, spare parts, apparel |
*Structural figures, clearance widths, and point loadings must be validated against your building's civil drawings and forklift turning radii.
Future Procurement & Technological Trends in Warehouse Racking
Global supply chain disruptions, skyrocketing industrial real estate leases, and labor shortages are reshaping warehouse infrastructure procurement. Leading supply chain directors must evaluate five macro procurement shifts over the 2025–2030 horizon.
1. Robotic ASRS & AMR Integration
Static racking is transitioning rapidly into dynamic, robot-ready infrastructure. Modern racking procurement specifies ultra-precise manufacturing tolerances (beam flatness within ±1.5mm) to accommodate Autonomous Mobile Robots (AMRs), automated guided vehicles (AGVs), and stacker cranes with integrated photoelectric positioning tracks.
2. High-Density Cold Chain Resilience
Refrigeration energy represents over 60% of cold storage operational budgets. Buyers are phasing out low-density selective configurations in favor of deep-lane radio shuttle systems. Steel alloys engineered specifically for low-temperature ductile toughness prevent brittle fractures at temperatures down to -30°C.
3. Circular Logistics & Green Steel
Scope 3 supply chain carbon tracking now impacts tender evaluations. B2B enterprises favor suppliers utilizing electric-arc furnace (EAF) low-carbon steel, heavy metals-free electrostatic powder coating finishes, and modular bolt-assembled profiles that allow 100% component disassembly, reuse, or recycling.
4. Total Cost of Ownership (TCO)
Procurement criteria have moved past initial purchase price per pallet. Sophisticated purchasers evaluate TCO over a 15-year lifecycle: assessing container ocean stuffing efficiency (reducing landed cost per cubic meter), corrosion lifespan under coastal humidity, and replacement availability for standard upright sections.
Guangzhou Heda Shelves Co., Ltd. - Manufacturing Excellence Since 2001
Headquartered in Guangzhou, South China, Guangzhou Heda Shelves Co., Ltd. operates a vertically integrated 30,000 square meter intelligent production complex. We control the complete value chain—from structural calculation, coil slit-cutting, and continuous roll-forming to automated welding, chemical pretreatment, and powder curing.
Our 10-Stage In-House Quality Manufacturing Protocol
Batch mechanical tensile and yield testing of Q235B/Q355B coils.
Laser-guided high-speed slitting to exact cross-sectional strip dimensions.
High-precision automated continuous pitch punching (50mm/75mm).
Multi-roller cold rolling lines for continuous omega & box profiles.
Deburring and automated hydraulic angle cutting to exact lengths.
Multi-axis robotic arm CO2 gas shielded beam connector welding.
7-stage immersion: ultrasonic degreasing, acid pickling & phosphating.
Automated reciprocator spray booths applying 60-80µm epoxy-polyester.
Cured at 180°C-200°C for exceptional impact and salt-fog resistance.
Destructive test verification, protective bundling for 40HQ stuffing.
Verifiable Global Credentials & Structural Safety Compliance
Guangzhou Heda Shelves holds verified international certifications audited by independent notified bodies: CE Certification No. 2435-CPR-8605159 (EN 1090 structural steel execution), ISO 9001:2015 Quality Management System Certification No. 18624Q00169R0M (valid through 2027), and complete RoHS Compliance ensuring raw coatings are free from hazardous heavy metals.
Frequently Asked Technical & Procurement Questions (FAQ)
Clear, definitive engineering answers addressing the concerns procurement specialists, logistics consultants, and plant managers raise during the design and supplier validation phases.
To deliver an accurate CAD layout and finite element calculation, our engineering team requires: (1) Warehouse architectural drawings (AutoCAD DWG or PDF) noting internal column matrices, overhead truss clear height, dock door locations, and fire exit doors; (2) Pallet specifications including overall dimensions (W × D × H), bottom runner orientation, and gross load weight; (3) Existing forklift equipment models, turning aisle requirements, and maximum mast extension; (4) Local seismic zone ratings and floor slab specifications (concrete compressive strength and slab thickness).
Raw steel components undergo a rigorous multi-stage chemical surface conversion before coating. Our automated pretreatment line includes hot alkaline degreasing, clean water cascade rinsing, acid pickling to eliminate mill scale, and zinc phosphating to generate a micro-crystalline barrier. Components then receive a 60–90µm electrostatic powder coating of architectural-grade thermosetting polyester resin cured at 200°C. For extreme outdoor or coastal applications (e.g., Chennai, Chattogram, Karachi), components can be specified with hot-dip galvanization to EN ISO 1461, yielding over 50 years of atmospheric protection.
Ocean freight represents a significant component of CIF project valuation. Our logistics department utilizes 3D mathematical container stuffing software to calculate nested bundle orientations for 40-foot High Cube (40HQ) containers. Uprights are bundled with protective corrugated paper sleeves, and beams are inter-nested on custom steel skids to maximize container payload weight (up to 26–28 metric tons where destination road limits permit). By minimizing dead void space, we routinely achieve 95%+ volumetric utilization, dramatically lowering shipping cost per pallet location.
Yes. Our senior engineering department performs load calculations in full accordance with European Standard EN 15512:2020 (Steel static storage systems - Adjustable pallet racking systems - Principles for structural design) and American ANSI/RMI MH16.1. Every installation is supplied with certified safety signage, rated capacity plaques detailing maximum allowable unit loads per beam level, maximum total frame loading, and critical structural bracing schemas validated by finite element analysis (FEA).
Every project package is accompanied by complete engineering installation packages: CAD layout drawings with color-coded component tagging, step-by-step exploded assembly diagrams, video assembly walkthroughs, and torque specifications for anchor hardware. For large logistics distribution projects, Guangzhou Heda Shelves dispatches bilingual project engineers directly to your job site to supervise local mechanical rigging crews, audit baseplate shimming, and conduct final load test sign-offs.
Yes. With extensive in-house CNC tooling and progressive roll-forming mold fabrication, we support complete OEM/ODM production for international system integrators and distributors. We can manufacture customized upright column widths (80mm to 120mm), variable steel thicknesses (1.5mm to 3.0mm), proprietary teardrop or hex-hole patterns, custom RAL powder finishes, and private-label laser cut branding on upright post caps and load placards.
Accelerate Your Warehouse Capacity with a Certified Factory Partner
Submit your architectural CAD drawing or building dimensions today. Our structural engineering team will prepare a comprehensive 2D CAD layout, 3D visualization model, and itemized bill of materials (BOM)—delivered free of charge within 24 hours.
