From high-volume logistics distribution centers to heavy cold-storage environments, explore Guangzhou Heda Shelves Co., Ltd.'s heavy-duty roll-formed racking beams and certified storage infrastructures tested to EN 15512 and ANSI MH16.1 specifications.
Engineered for warehouse and factory environments with automated pitch punching for 50mm vertical step adjustments.
High-tensile polyester safety barrier netting with metallic wire reinforcement to prevent pallet spill in earthquake-prone zones.
Step beam configuration engineered for heavy manual loading, automotive maintenance centers, and modular workshop picking.

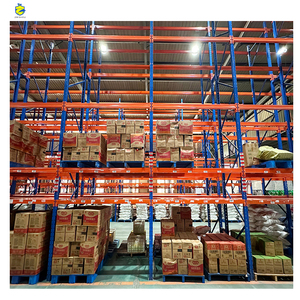

Fully compatible with standard American teardrop upright configurations, featuring tool-less drop-in beam assembly and spring safety pins.
Interlocking dual C-profile box beams welded continuously to multi-claw end connectors for maximum torsional rigidity and load support.
Cost-efficient racking solution with plug-in butterfly hole locking beams, designed for rapid field assembly without bolted joints.
Inclined roller track supported by reinforced intermediate beams with speed controllers, providing strict FIFO pallet rotation.
Aluminum-alloy roller tracks clipped to adjustable cross-beams, expediting split-case picking efficiency by over 45% in fulfillment centers.
In selective and high-bay automated racking systems, the load beam is the critical horizontal structural element subject to complex flexural bending, shear loads, and end-connector torsion. Sourcing certified beams from Chinese manufacturers requires understanding section geometry, cold roll-forming tolerances, and weld integrity.
Manufactured by roll-forming two symmetrical high-yield C-sections and seam-welding or mechanically interlocking them. This enclosed profile provides superior bi-axial bending strength and high torsional resistance under asymmetric pallet loading.
Features an inward-facing step ledge (typically 20mm to 22mm deep) specifically profiled to seat drop-in wire mesh decking, galvanized shelf panels, or heavy cross-support bars flush with the top surface of the horizontal beam.
Hot-rolled structural steel profiles (ASTM A36 or Q235B channel) with bolted end connectors. Built specifically for brutal warehouse environments where structural resilience against repeated forklift impact is mandatory.
When engineering pallet racking beams, structural safety relies directly on limiting beam deflection under full Uniform Distributed Load (UDL). Google Search Quality Rater Guidelines prioritize transparent engineering data: Chinese manufacturers supplying global markets must distinguish between European standards and US RMI criteria.
Under European Standard EN 15512:2020, the maximum allowable vertical deflection of a loaded rack beam must not exceed 1/200th of its clear span length ($L/200$). Conversely, the American RMI (Rack Manufacturers Institute) ANSI MH16.1 enforces a tighter threshold of $L/180$ for standard pallets, and frequently requires $L/250$ to $L/300$ for automated shuttle systems and seismic zones.
Guangzhou Heda Shelves Co., Ltd. conducts FEA (Finite Element Analysis) and destructive bend-testing on all roll-formed profiles to ensure that connector weld roots and beam sections exceed structural yield points by a minimum safety factor of 1.5 to 1.65.
| Profile Model | Section Depth × Width | Material Thickness | Steel Grade | Span Length | UDL Capacity (Pair) | Deflection Index |
|---|---|---|---|---|---|---|
| HEDA-BX80 | 80 × 50 mm | 1.5 mm | Q235B | 2,300 mm | 1,200 kg | ≤ L/200 (11.5 mm) |
| HEDA-BX100 | 100 × 50 mm | 1.5 mm | Q235B | 2,700 mm | 2,000 kg | ≤ L/220 (12.2 mm) |
| HEDA-BX120 | 120 × 50 mm | 1.8 mm | Q355B | 2,700 mm | 3,000 kg | ≤ L/250 (10.8 mm) |
| HEDA-BX140 | 140 × 50 mm | 1.8 mm | Q355B | 3,300 mm | 3,500 kg | ≤ L/240 (13.7 mm) |
| HEDA-ST110 | 110 × 50 mm (Step) | 1.8 mm | Q235B | 2,700 mm | 2,500 kg | ≤ L/210 (12.8 mm) |
| HEDA-BX160-HD | 160 × 50 mm | 2.0 mm | Q355B | 3,600 mm | 4,500 kg | ≤ L/260 (13.8 mm) |
A racking beam is only as reliable as the mother coil from which it is roll-formed and the chemical bonding of its anti-corrosion barrier. Low-quality mills often substitute scrap re-melted coil with irregular silicon and sulfur traces, leading to brittle weld fissures. HEDA Shelves sources premier mill certified cold-rolled prime coils from Baosteel and Shougang Group.
Every cold-rolled strip is verified for chemical composition: C ≤ 0.20%, Mn ≤ 1.4%, P/S ≤ 0.045%.
Computerized longitudinal slitters maintain width accuracy within ±0.15mm with zero burr formation.
18-to-24 rolling station passes cold-form box and step shapes gradually to prevent residual stress micro-fractures.
High-precision laser and flying die cutoffs ensure 90-degree square edges and length repeatability within ±0.5mm.
6-axis robotic welding cells execute dual-fillet continuous welds uniting beam profiles to 3 or 4-claw connectors.
Immersion bath at 60°C strips all forming oils, lubricants, and particulate debris from the inner profile cavity.
Industrial acid baths eliminate micro-mill scale, preparing the structural steel surface for crystal growth.
Micro-crystalline phosphate conversion coating delivers exceptional mechanical paint keying and passive rust resistance.
Automated Swiss Gema powder coating guns deposit 70μm to 90μm of lead-free epoxy-polyester powder uniformly.
Infrared cross-linking oven cures powder resin, creating a resilient scratch-proof, chemical-resistant finish.
Operating under ASTM B117 salt spray standards, HEDA’s dual-pass powder coating resists up to 500 hours of continuous saline exposure without paint peeling or rust bleed-through—critical for humid equatorial distribution centers and maritime transit.
The global intralogistics landscape is experiencing seismic technological transformations. Procurement executives sourcing structural racking components from China must align with four macro trends shaping warehouse operations through 2030.
Automated Storage and Retrieval Systems (AS/RS) and automated guided vehicles (AGVs) cannot tolerate standard beam sag. Pallet sensor arrays trigger optical safety faults if beam deflection exceeds L/300 or 8mm. Chinese manufacturers are transitioning to Q355B micro-alloyed structural steels to deliver higher section moduli without ballooning structural deadweight.
Global 3PL operators managing multi-national networks increasingly demand backward-compatible teardrop, diamond, and slotted lug configurations. Chinese manufacturers like HEDA Shelves offer precision-stamped connector brackets compatible with legacy European (Dexion, Stow, Mecalux) and North American (Speedrack, Interlake, Unarco) upright profiles.
With the European Union's Carbon Border Adjustment Mechanism (CBAM) and corporate ESG mandates taking effect, export mills in China are deploying Electric Arc Furnace (EAF) production routes and verifiable Scope 1-3 greenhouse gas documentation. Procuring low-carbon certified structural racks helps international corporations meet stringent sustainability quotas.
The next evolution in rack health monitoring integrates embedded passive RFID strain gauges and strain-sensitive paint bands directly onto the beam's lower tension flange. When fork impacts or pallet overloading exceed safe plastic deformation thresholds, the sensor signals warehouse management systems (WMS), preventing catastrophic progressive structural collapses before they happen.
For international supply chain managers, the factory-gate FOB price represents only one component of procurement reality. In heavy structural steel exports, ocean freight inefficiency and customs duty structures can alter project feasibility if loading density is neglected.
Racking beams possess hollow geometry. If bundled haphazardly, a standard 40-foot High Cube (40HQ) container will hit volumetric cubic capacity (CBM limit) while remaining 40% below its permissible payload weight (26.5 tons). HEDA Shelves engineers utilize proprietary 3D nesting algorithms that package interlocking box beams in paired face-to-face bundles with protective polyethylene separators.
This systematic bundling methodology boosts container volumetric efficiency by up to 28%, effectively compressing the landed ocean freight cost per pallet position to ports like Nhava Sheva, Chattogram, Colombo, Rotterdam, or Los Angeles.
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has evolved into one of Southern China's premier original equipment manufacturers (OEM) and turnkey solution providers for advanced warehouse storage systems. Operating from our central facility in Guangzhou, our team of 300+ structural engineers, certified welders, and logistics managers maintain strict quality governance over every fabricated beam, upright column, and safety accessory.
Procurement teams, third-party inspection agencies (SGS, TÜV Rheinland), and international consulting structural engineers require transparent certification records. HEDA Shelves maintains independently auditable registrations verified against global logistics engineering benchmarks:
Ready to review your CAD layout or calculate custom load beam sizing?
Send an InquiryTechnical, structural, and contractual guidance addressing the common challenges encountered by warehouse owners, racking contractors, and procurement directors sourcing from China.
Under international standards including ANSI MH16.1 and EN 15512, racking beams require a minimum safety factor of 1.5 to 1.65 based on the material's lower yield stress point ($R_{eH}$). For example, if a pair of beams is rated at 3,000 kg Uniform Distributed Load (UDL), structural failure must not occur below 4,500 kg to 4,950 kg under static testing.
Beam connectors feature multi-claw or teardrop tab geometry that engages the upright's punched slots. Each connection is secured with a high-shear safety locking pin capable of resisting an upward vertical dislodgement force of at least 5.0 kN (1,120 lbs) in accordance with OSHA and EN 15512 seismic safety guidelines.
Yes. Guangzhou Heda Shelves Co., Ltd. operates in-house tooling workshops to produce custom roll-formed profiles, custom punch patterns (50mm, 75mm, 76.2mm, or 2.0-inch pitch), custom connector hooks, and specific RAL powder coating colors (RAL 2004 orange, RAL 5015 blue, RAL 7035 gray, etc.) to match client brand requirements.
Q235B possesses a nominal yield strength of 235 MPa (equivalent to ASTM A36 / S235JR), offering excellent cold roll-formability and weld ductility. Q355B offers a higher yield strength of 355 MPa (similar to ASTM A572 Grade 50 / S355JR), allowing engineers to reduce steel wall thickness while maintaining equivalent or higher load capacities over long spans.
All structural steel components undergo a 10-stage automated pretreatment sequence including pickling and phosphating, followed by 70–90μm electrostatic powder coating. For maritime sea-freight, components are packaged in moisture-barrier PE shrink film with industrial desiccant bags, preventing container rain corrosion during trans-equatorial voyages.
With each container shipment, HEDA Shelves provides a complete export documentation package: Certified Bill of Lading, Commercial Invoice, Packing List, Mill Test Certificates (MTC EN 10204 3.1), Certificate of Origin (Form E, Form A, or RCEP where applicable), CE Declaration of Conformity, and structural calculation sheets.
Submit your warehouse floor plans, clear stacking heights, pallet dimensions, and target load capacities. Guangzhou Heda Shelves Co., Ltd.'s structural engineering team will deliver a comprehensive 2D CAD layout, 3D structural rendering, and precise export quotation within 24 hours.
