Anti-Rust 5-Tier Adjustable Display Stand Storage Racking
Slotted Angle
Phosphated Anti-Rust
Manual Pick
Factory-Engineered Inventory
Precision Teardrop Racking & High-Density Storage Solutions
Direct from Guangzhou factory lines. Engineered with universal teardrop punch geometries, robotic seam welding, and multi-tier surface passivations for seamless facility integration.
Intelligent Radio Shuttle Warehouse Pallet Racking Express System
Semi-Automated
Deep Lane FIFO/LIFO
High-Bay
Warehouse Shelves 5-Layer Boltless Rivet Steel Storage Rack
Boltless Interlock
Cold-Rolled Sheet
Rapid Assembly
High Bay Heavy Duty Steel Pallet Racking System
Teardrop / Box Beam
Up to 4500kg/Tier
RMI Certified

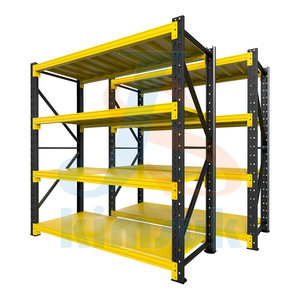

Longspan Medium Duty Display Stacking Steel Shelves
2000x600x2000mm
Step Beam Infill
Versatile Span
4-Layer Industrial Stainless Steel Wire Rack with Wheels
Electropolished
Mobile Castor Hub
Cleanroom & Food
3000KG Custom Steel Deck Heavy-Duty Storage Rack
Drop-In Steel Deck
High Distributed Load
Custom Pitch
Heavy-Duty Chrome Plated High-Precision Net Racking
Galvanized Netting
Overhead Containment
Severe Duty
Engineering Insight
The Mechanics of Teardrop Shelving: Interchangeability & Safety Standards
Teardrop warehouse shelving represents the prevailing structural standard across the Americas and fast-expanding modern distributions in South Asia and Australasia. Defined by its signature punch design where the hole narrows toward the bottom, the teardrop profile relies on gravity-assisted seating. When a beam's conical connector pin engages the column, horizontal and vertical dead-loads drive the rivet deeper into the taper, generating an intrinsically stabilizing frictional joint without requiring thru-bolts.
Sourcing teardrop systems internationally mandates strict adherence to the Rack Manufacturers Institute (RMI) Specification ANSI MH16.1. The load performance depends directly on cold-formed yield points, column torsion resistance, and weld integrity along the beam-end connectors. Guangzhou Heda Shelves Co., Ltd. builds teardrop profiles utilizing domestic prime Q235B steel coils, cold-bent through high-precision roll formers. This mechanical execution ensures universal pin-pitch matching (typically 2-inch vertical increments) so imported uprights mesh reliably with existing legacy configurations.
| Structural Parameter | HEDA Standard Specification | Industry Standard Tolerance | Mechanical Impact |
|---|---|---|---|
| Raw Material Grade | Q235B / Q355B Hot-Rolled Strip | GB/T 700 / ASTM A36 equiv. | Yield strength ≥ 235-355 MPa prevents buckling under design load |
| Upright Column Depth | 80mm, 90mm, 100mm, 120mm | ± 0.5 mm | Governs cross-sectional radius of gyration and axial load capacity |
| Beam Locking Mechanism | Spring-Steel Integrated Safety Pin | RMI Standard Auto-Latch | Prevents accidental beam dislodgement caused by forklift mast hook |
| Surface Passivation | Pickling + Phosphating Pretreatment | 10-Stage Immersion Batch | Micro-crystalline surface etching optimizes powder bond strength |
| Coating Thickness | 60 – 90 μm Epoxy-Polyester | ISO 2808 Quality Control | Resists chipping, alkali degradation, and tropical salt humidity |
Strategic Procurement
Emerging Trends Shaping Global Racking Procurement
Supply chain infrastructure investments are undergoing seismic transitions. Procurement teams must account for automation readiness, environmental footprints, and dynamic trade corridors.
Cross-Compatible Modular Tooling
Modern mega-hubs demand that static racking systems accept automated mobile robots (AMRs), drop-in roller tracks, and pick-to-light bracketry without cold cutting or field welding on site.
Container Space Density Optimization
Ocean freight fluctuations require intelligent piece-nesting profiles. Custom beam profiles are designed to nest inside upright runs, pushing 40HQ container volumetric capacity above 94%.
Seismic Engineering & Slab Validation
Global logistics sites in seismic active zones require engineering firms to substantiate dynamic base plate shear values and anchor embedments rather than generic load capacity ratings.
Technology & Material Evolution
The Future of Industrial Warehouse Shelving Systems
From structural metallurgy to digital twin synchronization, warehouse storage racking is evolving from passive steel into intelligent, high-performance spatial infrastructure.
High-Strength Micro-Alloys
Adoption of low-carbon HSLA (High-Strength Low-Alloy) steels reduces steel gauge mass without sacrificing dynamic beam deflection criteria (L/180 or L/240 deflection ratios).
Smart Beam Load Telemetry
Embedded strain gauges and wireless RFID sensors in box beams to alert safety managers of localized floor settling, overload conditions, or forklift column collisions in real time.
Nano-Zinc Composite Coatings
Replacing toxic solvent galvanization with electro-deposited micro-zinc powder formulas that self-heal under light scratches, completely resisting oxidation in cold-storage freezers.
ASRS Vertical Extension
Transition from standard 6-8m manual lift limits to 24-30m cold-rolled, single-piece upright tolerances matched with automated shuttle cars and rail-guided cranes.
Factory Authority
Why Global Tier-1 Logistics Trust HEDA Shelves
Guangzhou Heda Shelves Co., Ltd. controls the complete manufacturing chain in-house since 2001. Certified under CE and ISO 9001:2015, we provide engineered peace of mind.
30,000 m² Integrated Facility
Our Guangzhou hub integrates continuous roll-forming lanes, automatic punching, robotic welding jigs, and an advanced electrostatic powder line delivering over 30,000 metric tons annually.
Export Footprint in 120+ Countries
Proven export packaging safeguards components against ocean freight corrosion. Optimized logistics connections serve North America, Europe, Australia, and major South Asian ports.
Compliant Certifications
Every lot conforms to CE Certification No. 2435-CPR-8605159 and ISO 9001:2015 registration No. 18624Q00169R0M, backed by comprehensive finite-element stress analysis (FEA).
Procurement Directives
Frequently Asked Questions for Teardrop Racking Imports
Answers to critical procurement, engineering compatibility, and shipping questions when importing teardrop shelving systems from China.
Is Chinese teardrop racking directly compatible with US-made systems?
Yes. HEDA standard teardrop upright profiles utilize the universal 2-inch pitch teardrop punched column configuration. Beams, drop-in wire decking, safety cross-bars, and row spacers conform directly with standard North American styles (such as Interlake Mecalux and SpaceRak legacy profiles).
What surface finishing is applied to survive high-humidity ocean transit?
All carbon steel profiles undergo a 10-stage automated surface preparation line, including industrial pickling and phosphating to eliminate mill scale and oil traces. Then, electrostatically charged polyester powder coating (60-90 microns) is oven-baked at 180°C, delivering optimal salt-spray resistance.
What engineering drawings and load calculations do you provide?
Before production commences, our engineering department provides complimentary 2D CAD layout schemes, 3D realistic warehouse isometric models, structural load calculation reports (under uniformly distributed loads - UDL), and anchor shear stress verification for local permitting.
How does HEDA Shelves bundle goods to protect against shipping deformation?
Uprights and roll-formed box beams are bundled in custom-sized steel strapping with corrugated edge-protectors, plastic air-cushion wrapping, and timber dunnage blocks. Items are systematically numbered according to container pack manifests for fast job-site sorting.
Request Your Custom Teardrop Layout & Factory Quote
Send our senior engineering team your warehouse architectural floor plans, ceiling clearance, and pallet load specs. We deliver structural CAD layouts and direct-export quotes within 24 hours.
